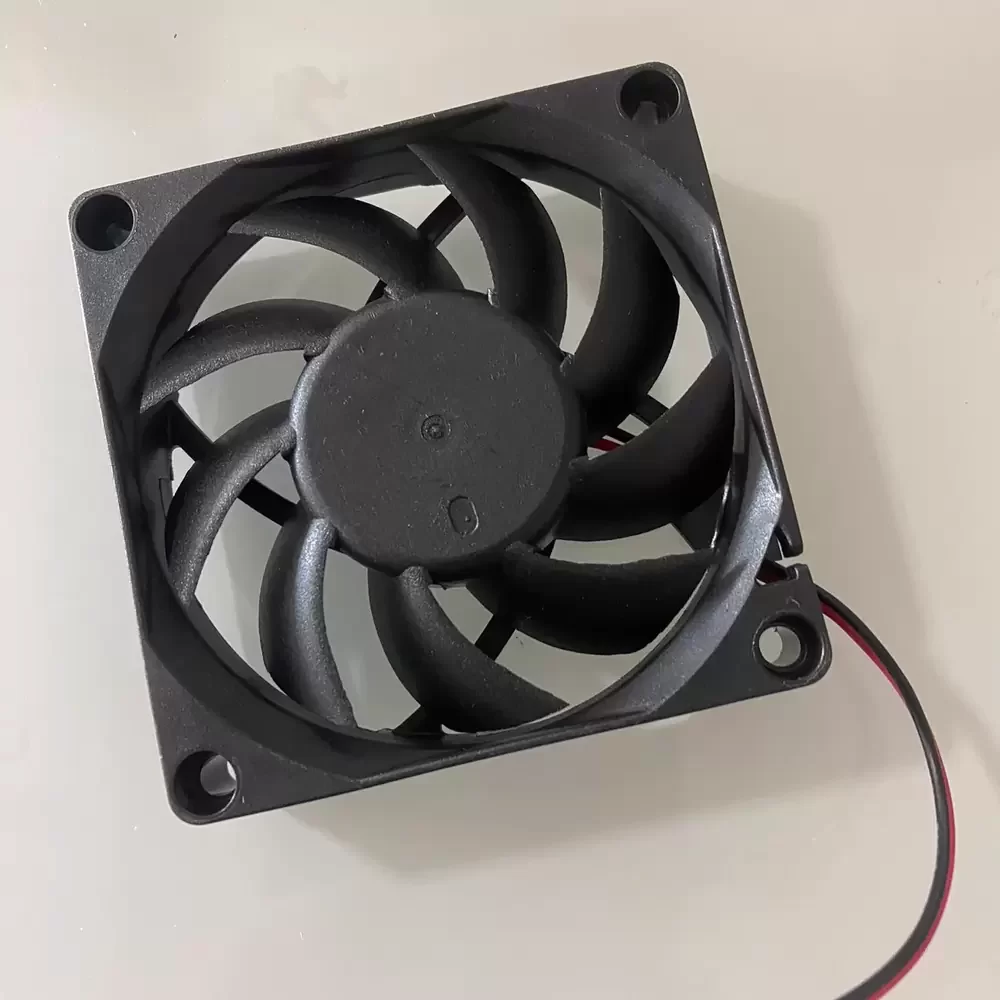

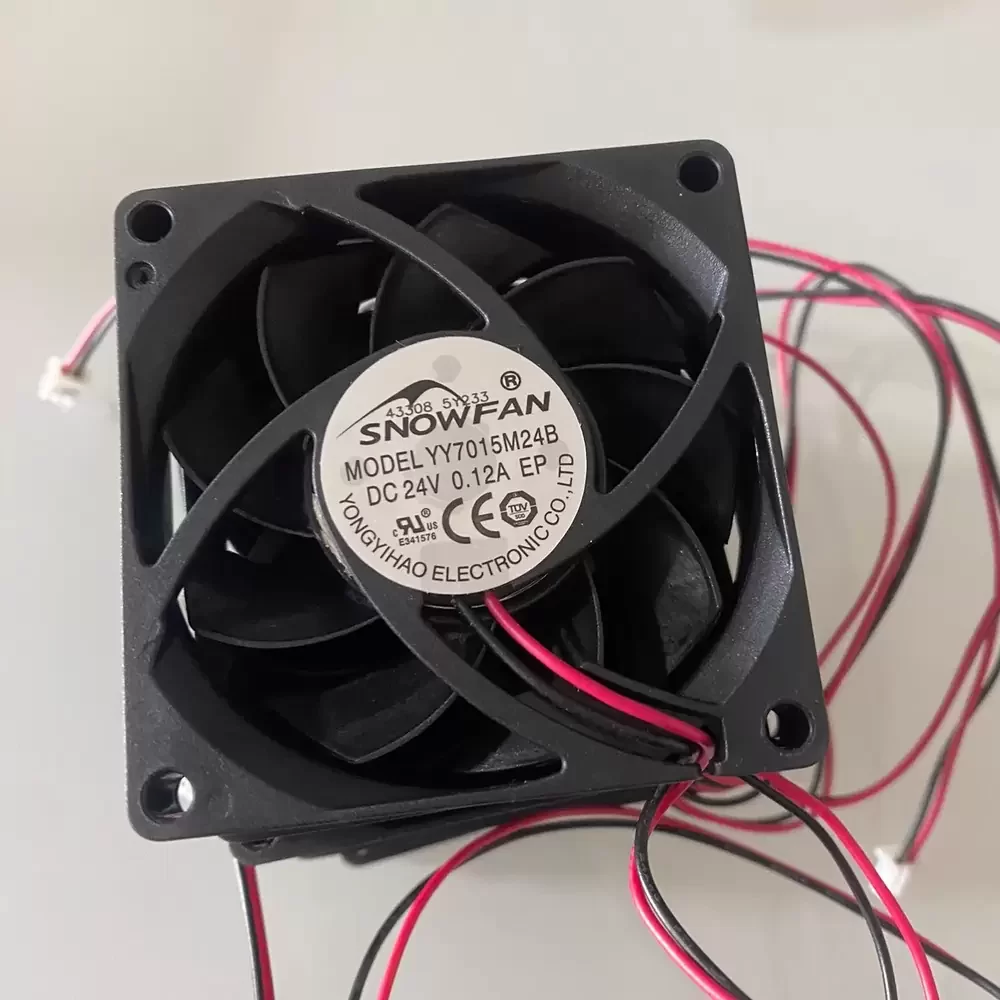

YY7015M24B SNOWFAN 24VDC 70x70x15mm Axial Fan

Description

SNOWFAN YY7015M24B is a 24VDC 70x70x15mm Axial Fan optimized for thermal management in space-constrained industrial enclosures. Engineered with a dual ball bearing architecture, this model minimizes mechanical friction to ensure long-term structural rigidity and reduced thermal impedance. Operating at a rated current of 0.12A, the fan delivers consistent airflow performance necessary for maintaining component longevity in high-duty cycle environments. The aerodynamic impeller design is specifically tuned to balance static pressure and noise, making it an ideal solution for localized heat dissipation where a standard 25mm depth fan cannot be accommodated.

Model Number: YY7015M24B
Brand: SNOWFAN
Product Type: Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.12 A
Power: 2.88 W
Bearing Type: Dual Ball Bearing
Dimensions: 70 x 70 x 15 mm

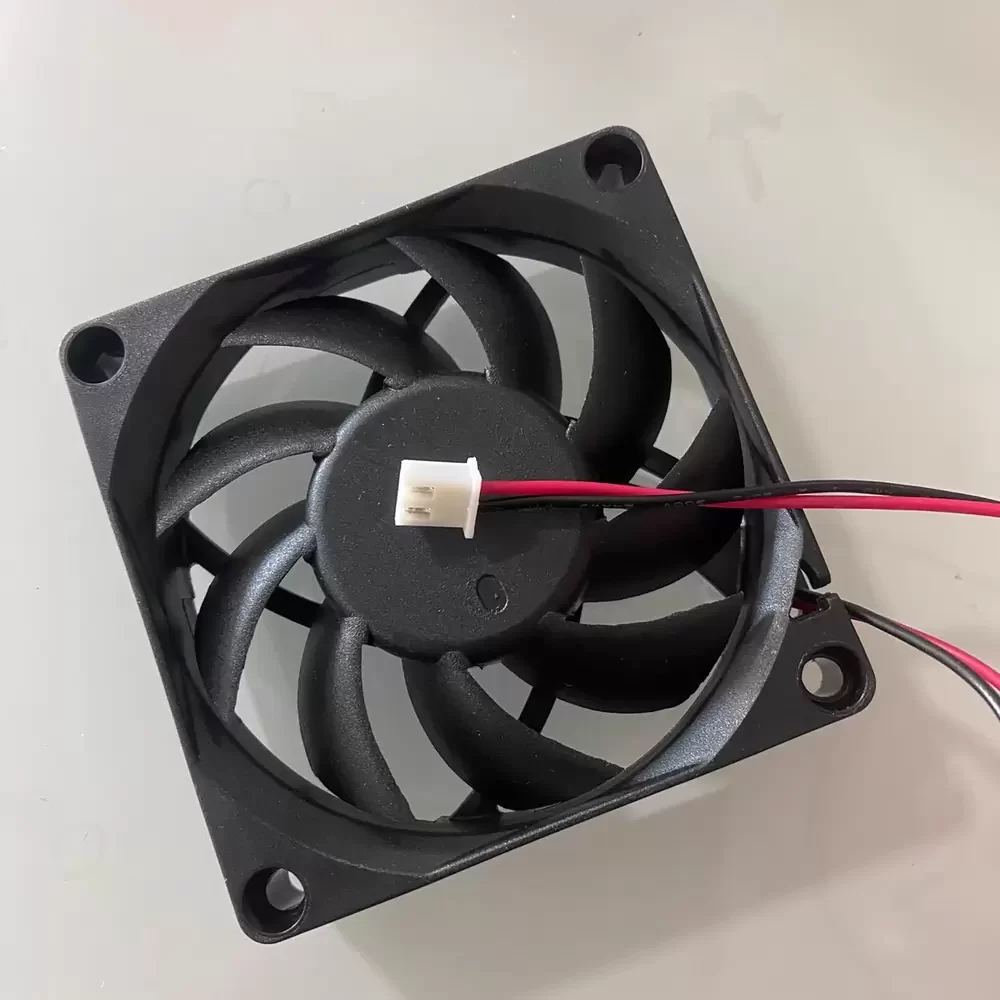

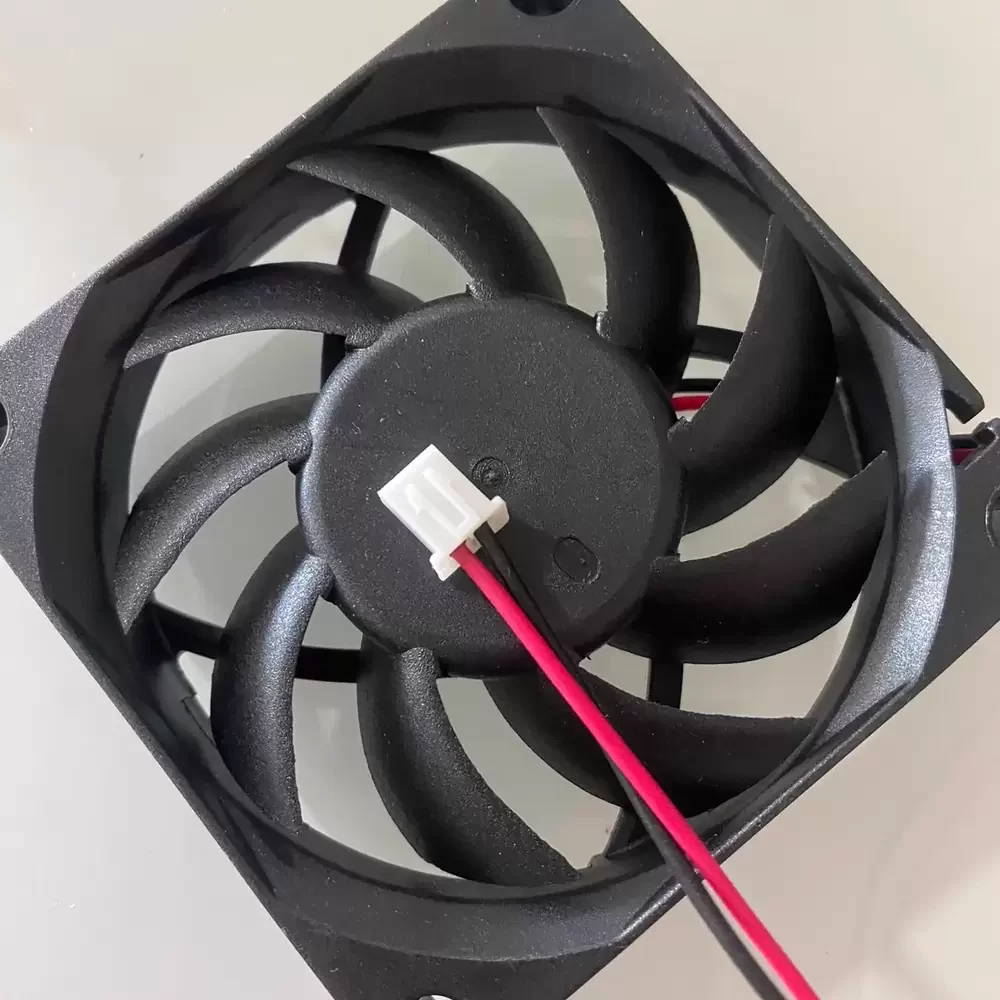

Termination: 2-Wire Lead (Red/Black)
Wire Length: 260 mm
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Mounting Orientation: All Directions
Protection Features: Locked Rotor Protection, Reverse Polarity Protection

YY7015M24B Applications
1. Slim-profile Industrial Power Supplies: The 15mm depth allows for integration into low-profile SMPS units where overcoming internal component impedance is critical for heat extraction.
2. Medical Diagnostic Equipment: Dual ball bearings provide the low-vibration operation and high reliability required for sensitive optical or laboratory instrumentation.
3. Embedded Controller Enclosures: Ideal as a replacement fan for 24V control cabinets and small-scale automation hubs requiring continuous-duty cooling in a compact footprint.
