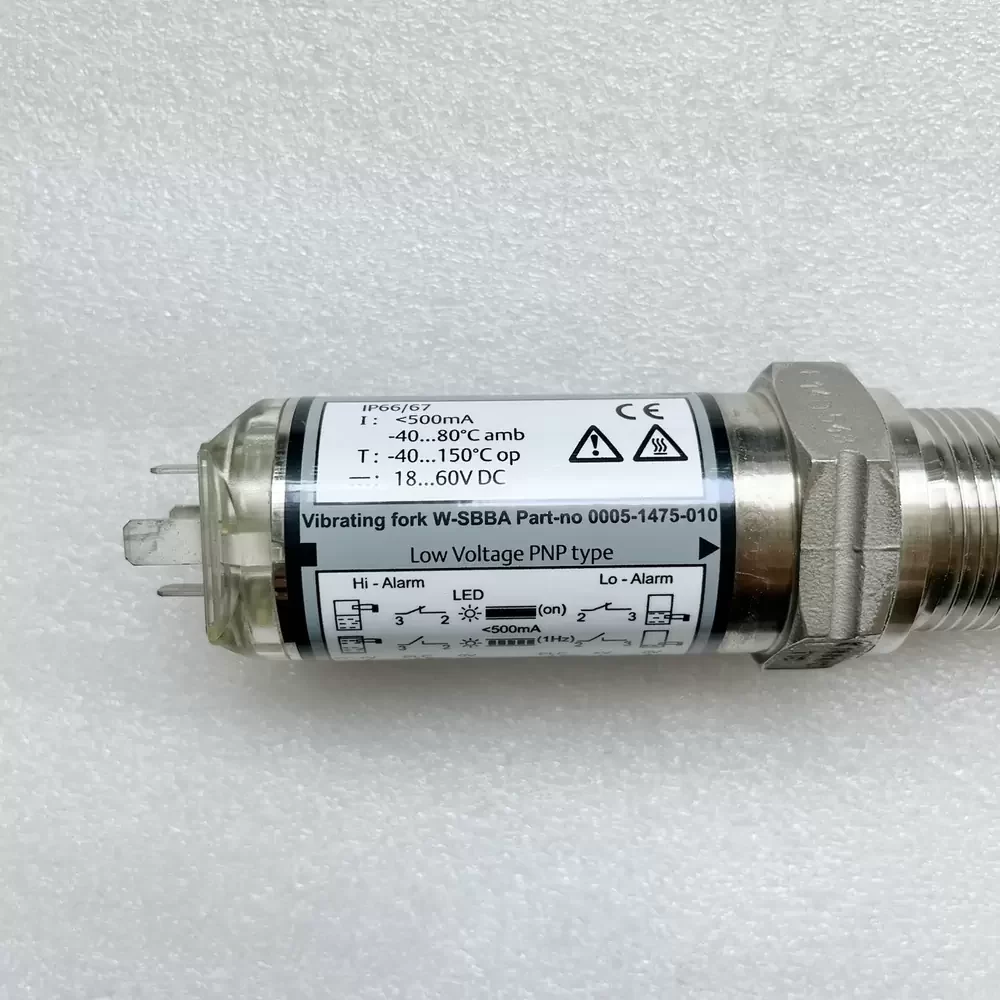

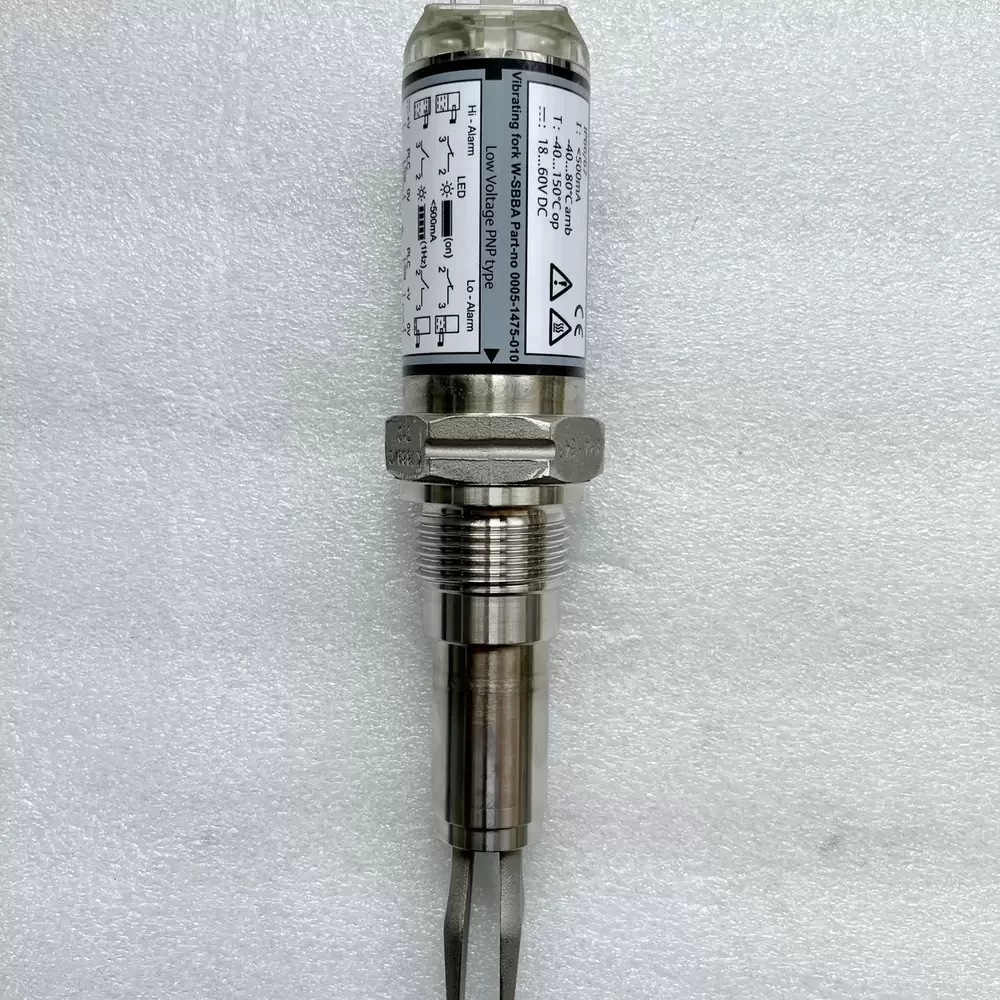

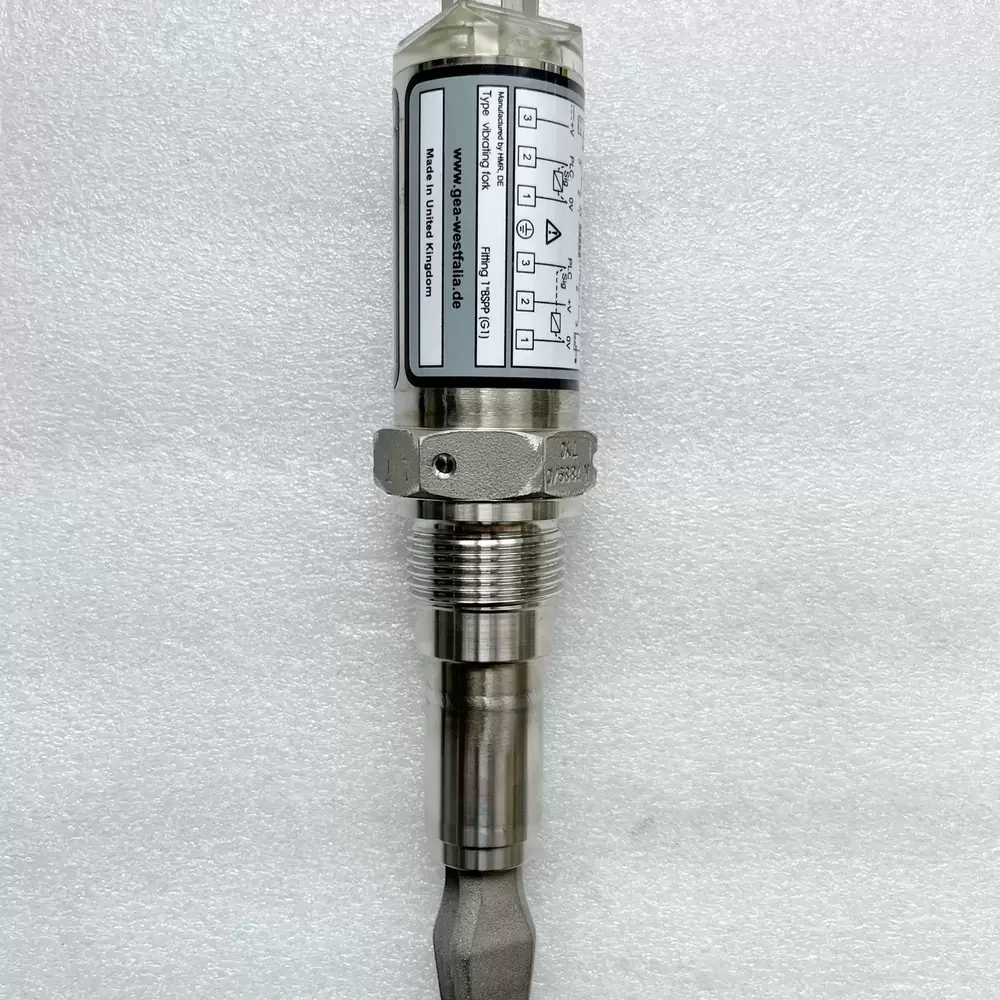

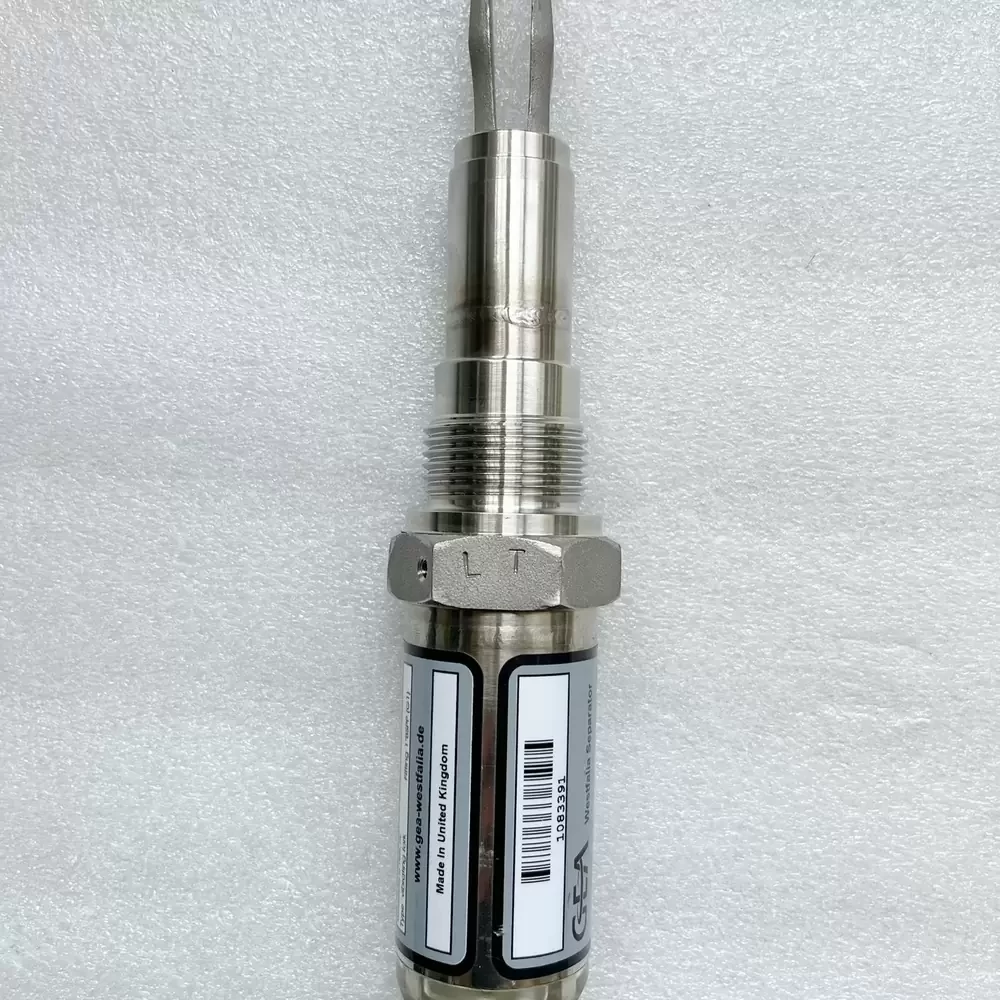

0005-1475-010 GEA 60VDC IP67 Vibrating Fork Level Switch

Description

The GEA 0005-1475-010 is a vibrating fork level switch featuring an 18 to 60 VDC operating voltage, a G1 ISO outer thread connection, and a robust 1.4401 stainless steel construction. Operating via precise liquid limit detection, this unit functions within a wide thermal range of -40 to 150 °C and maintains an IP66 / IP67 ingress protection rating. The hardware integrates a piezoelectric drive mechanism that monitors resonant frequency shifts, drawing less than 500 mA of current while weighing exactly 0.730 kg. It is structurally designed for compatibility with W-SBBA controller platforms, ensuring seamless mechanical integration without the need for calibration.

0005-1475-010 Specifications
Model Number: 0005-1475-010
Brand: GEA Westfalia
Product Category: Vibrating Fork Level Switch
Operating Voltage: 18 to 60 VDC
Maximum Current: < 500 mA
Operating Temperature: -40 to 150 °C
Ambient Temperature: -40 to 80 °C
Ingress Protection: IP66 / IP67
Wetted Material: 1.4401 Stainless Steel
Process Connection: G1 ISO Outer Thread
Weight: 0.730 kg
Platform Compatibility: W-SBBA Controller Unit
Detection Principle: Piezoelectric Resonant Frequency Shift

0005-1475-010 Applications
Primary applications include integration into marine industrial machinery, specifically within GEA Westfalia mechanical separation systems and flat belt separators. Deployed within heavy-duty purification controller units and liquid storage tanks, this switch provides critical limit level detection for automated fluid management systems.
