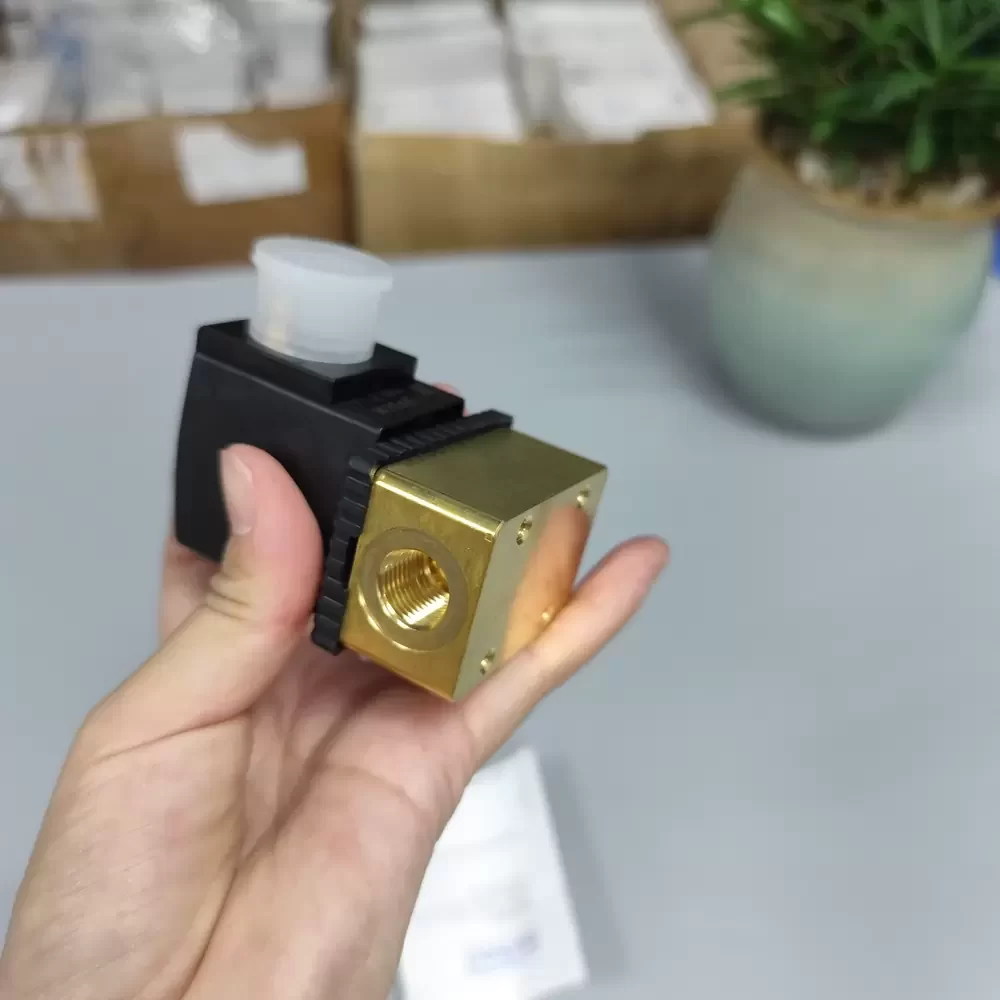

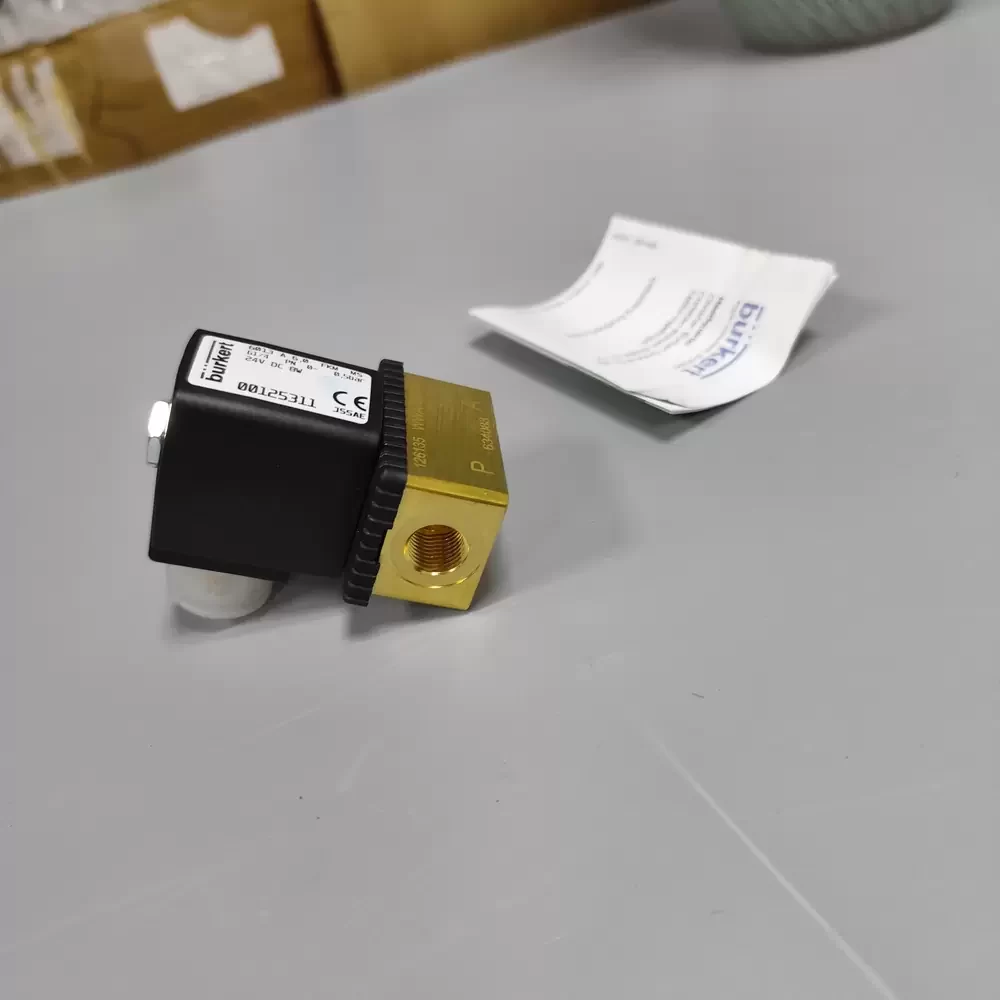

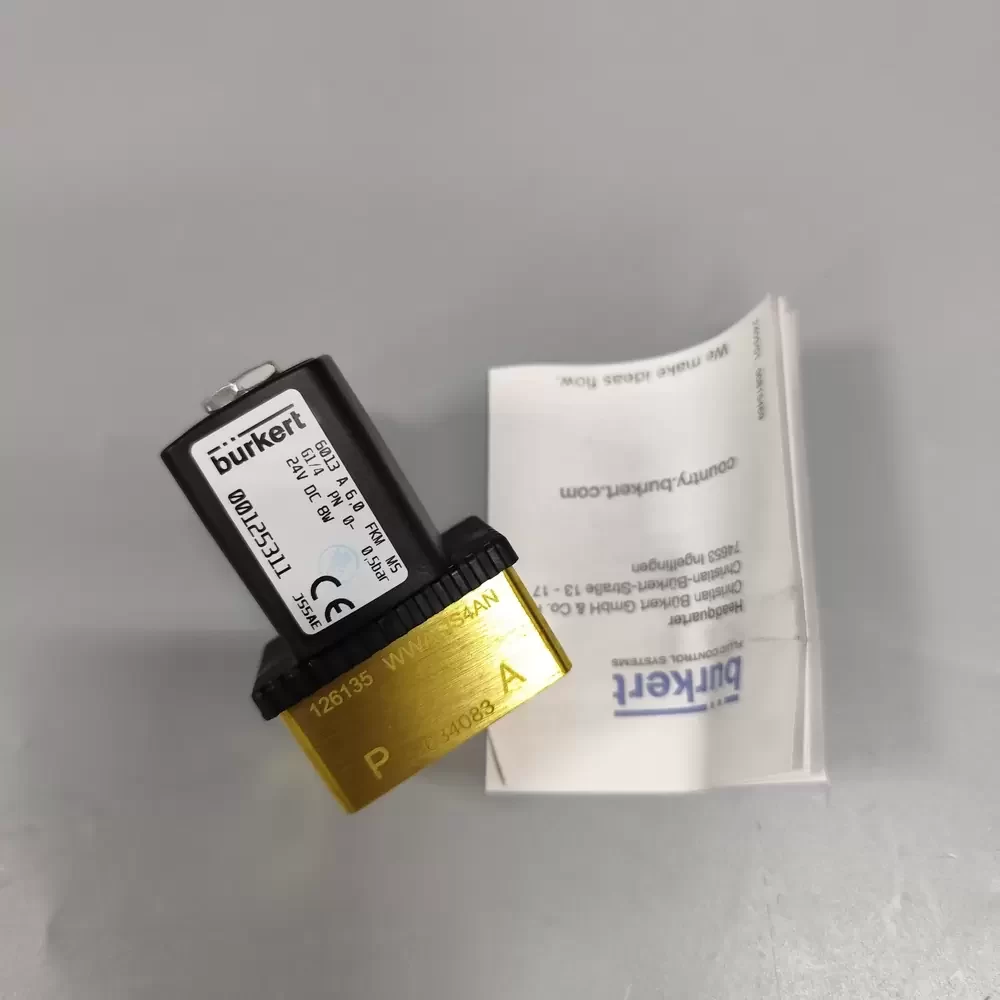

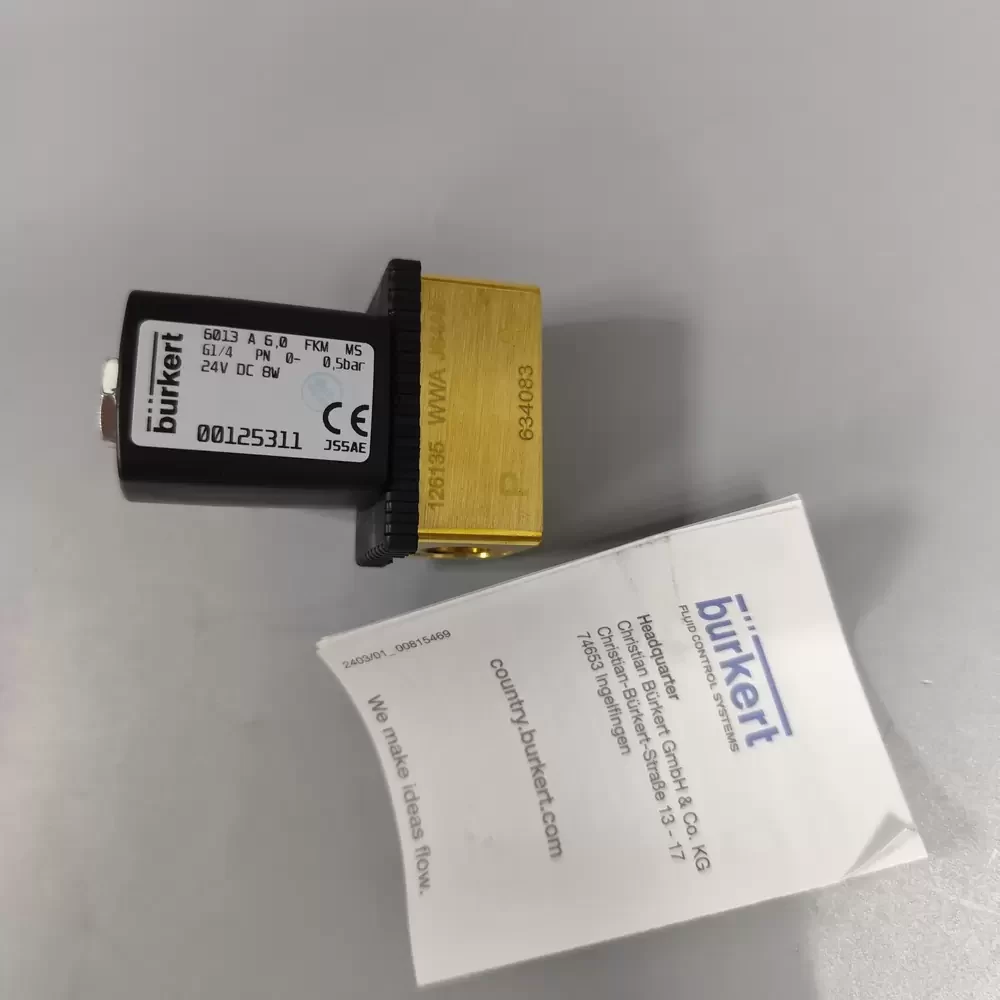

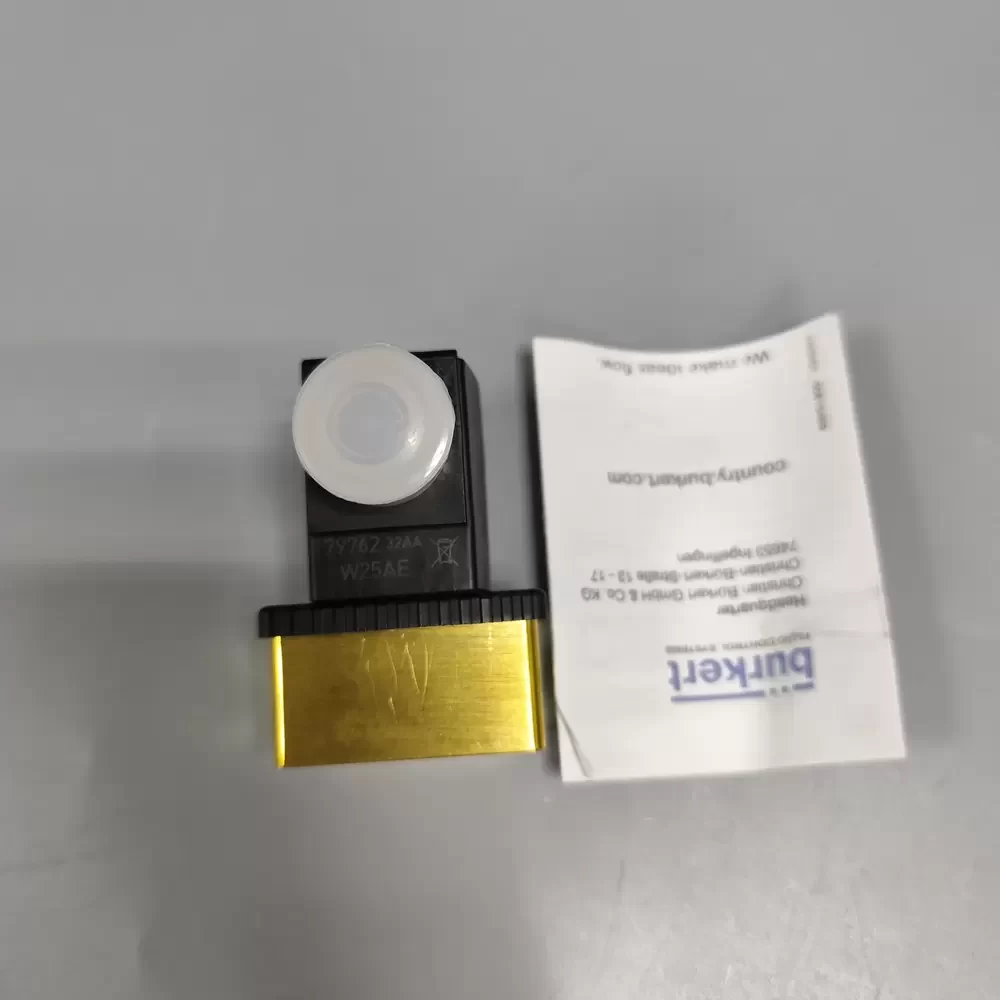

00125311 Bürkert 24VDC G1/4 2/2-way NC Solenoid Valve

Description

Bürkert 00125311 is a direct-acting 2/2-way plunger solenoid valve featuring a G 1/4 port connection, 24 VDC nominal voltage, 2.0 mm orifice, and 0 to 25 bar pressure range. The unit is constructed with a brass body and FKM (fluororubber) seals, utilizing a welded stopper and plunger guide tube to ensure high pressure resistance and leak-tightness. It operates with a 100 % continuous duty cycle and employs a vibration-proof, bolted coil system with a Form A electrical interface.

00125311 Specifications
Model: 00125311
Brand: Bürkert
Type: 6013
Circuit Function: A (Normally Closed)
Port Connection: G 1/4
Orifice Size: 2.0 mm
Kv Value: 0.12 m³/h
Pressure Range: 0 to 25 bar
Operating Voltage: 24 VDC
Voltage Tolerance: ± 10 %
Power Consumption: 8 W
Body Material: Brass
Seal Material: FKM
Medium Temperature: -10 to +100 °C
Ambient Temperature: Max +55 °C
Viscosity: Max 21 mm²/s
Protection Class: IP65 (with cable plug)
Duty Cycle: 100 %
Weight: 436 g
Electrical Connection: Tag connector Form A (DIN EN 175301-803)

00125311 Applications
Primary applications include integration into pneumatic control systems, technical vacuum equipment, and neutral gas distribution manifolds. Deployed within industrial water treatment units, hydraulic oil regulation circuits, and compressed air processing machinery.
