Description

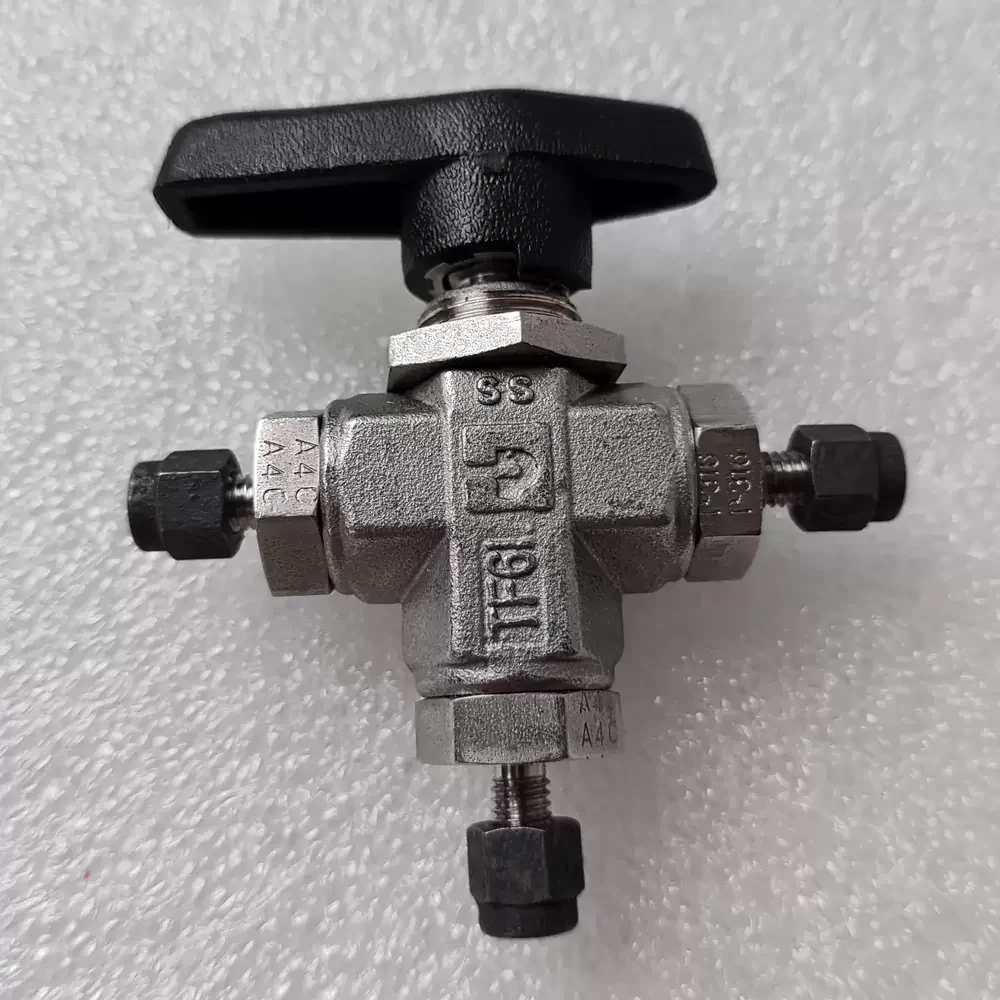

Parker 1Z-B2XJ2-SSP is a 1/16 ” CPI™ compression 3-way diverter ball valve manufactured from 316 stainless steel with a 6000 PSI (414 bar) pressure rating. The unit features a 0.060 ” (1.5 mm) orifice and a 0.06 Cv flow coefficient. It utilizes a free-floating ball design and a micro-finished ball surface to ensure a positive, leak-tight seal. The internal construction includes PCTFE seats and PTFE stem seals, operated by a black nylon lever handle with 180 degree actuation.
1Z-B2XJ2-SSP Specifications
Model: 1Z-B2XJ2-SSP
Brand: Parker Hannifin
Series: B Series Ball Valves
Valve Type: 3-Way Diverter
Connection Type: 1/16 ” CPI™ Compression
Body Material: 316 Stainless Steel
Maximum Pressure: 6000 PSI (414 bar)
Temperature Range: -65 to 350 °F (-54 to 177 °C)
Orifice Diameter: 0.060 ” (1.5 mm)
Flow Coefficient (Cv): 0.06
Seat Material: PCTFE
Seal Material: PTFE

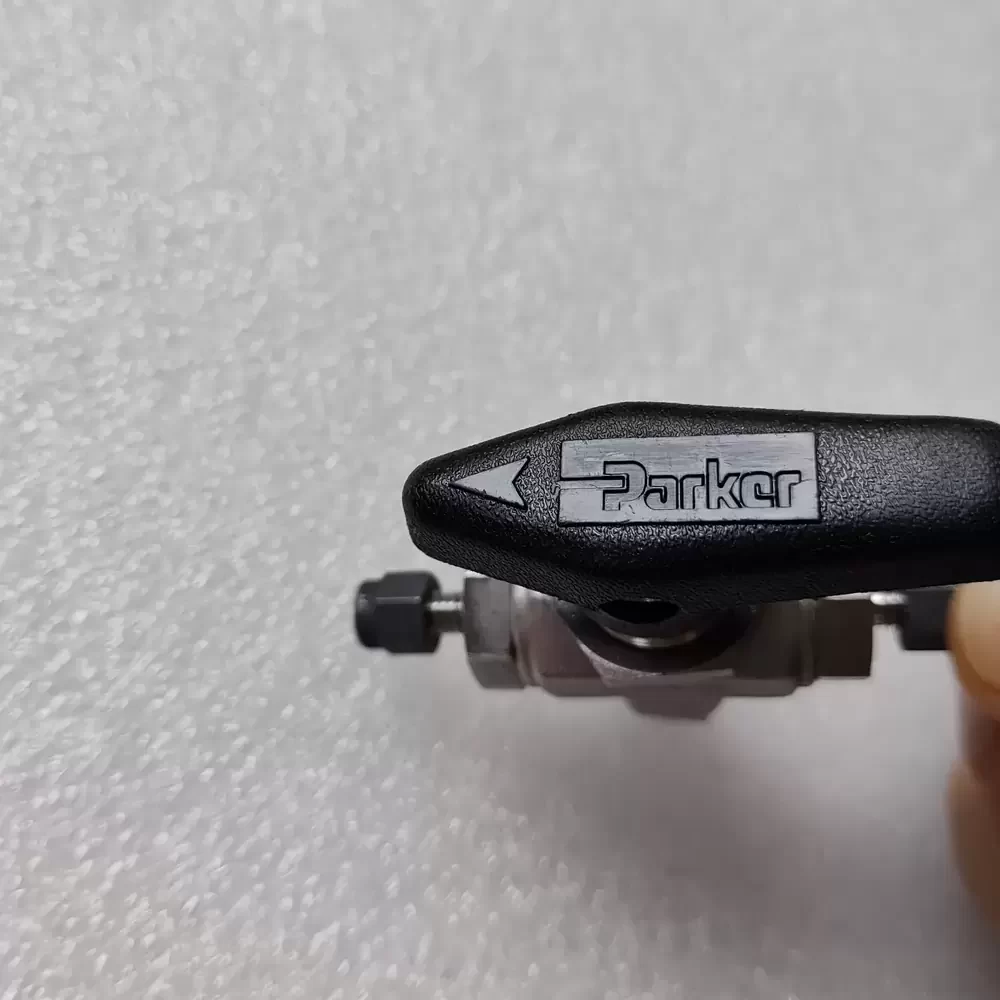

Handle Type: Black Nylon Lever
Actuation: 180 ° Manual
Stem Type: Blow-out Proof
Mounting: Panel Mountable with Stainless Steel Nut
Wetted Parts: 316 SS, PCTFE, PTFE
1Z-B2XJ2-SSP Applications
Primary applications include integration into analytical instrumentation systems, gas chromatography sampling loops, and pilot plant fluid control manifolds. Deployed within chemical processing laboratories and offshore oil and gas monitoring panels for precise directional flow diversion of high-pressure process fluids.
Additional information
| Shipping Weight | 1 kg |
|---|
