Description

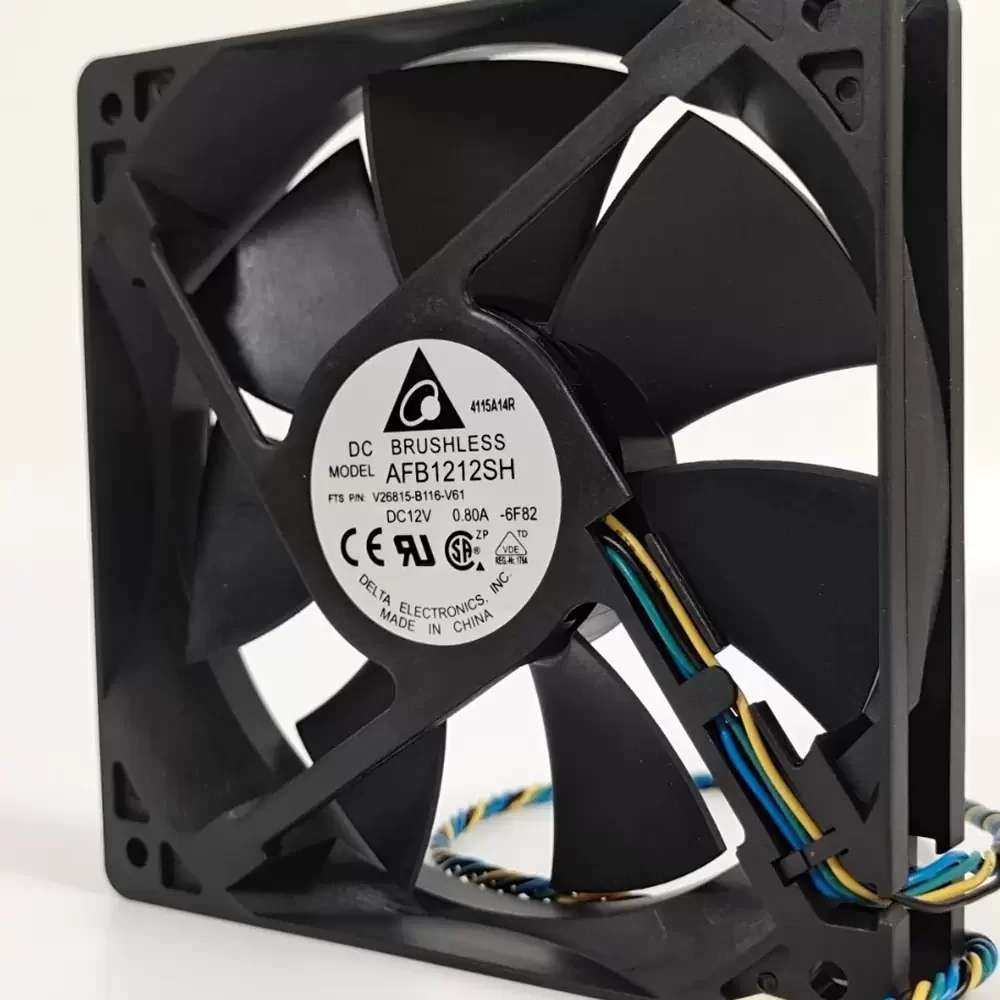

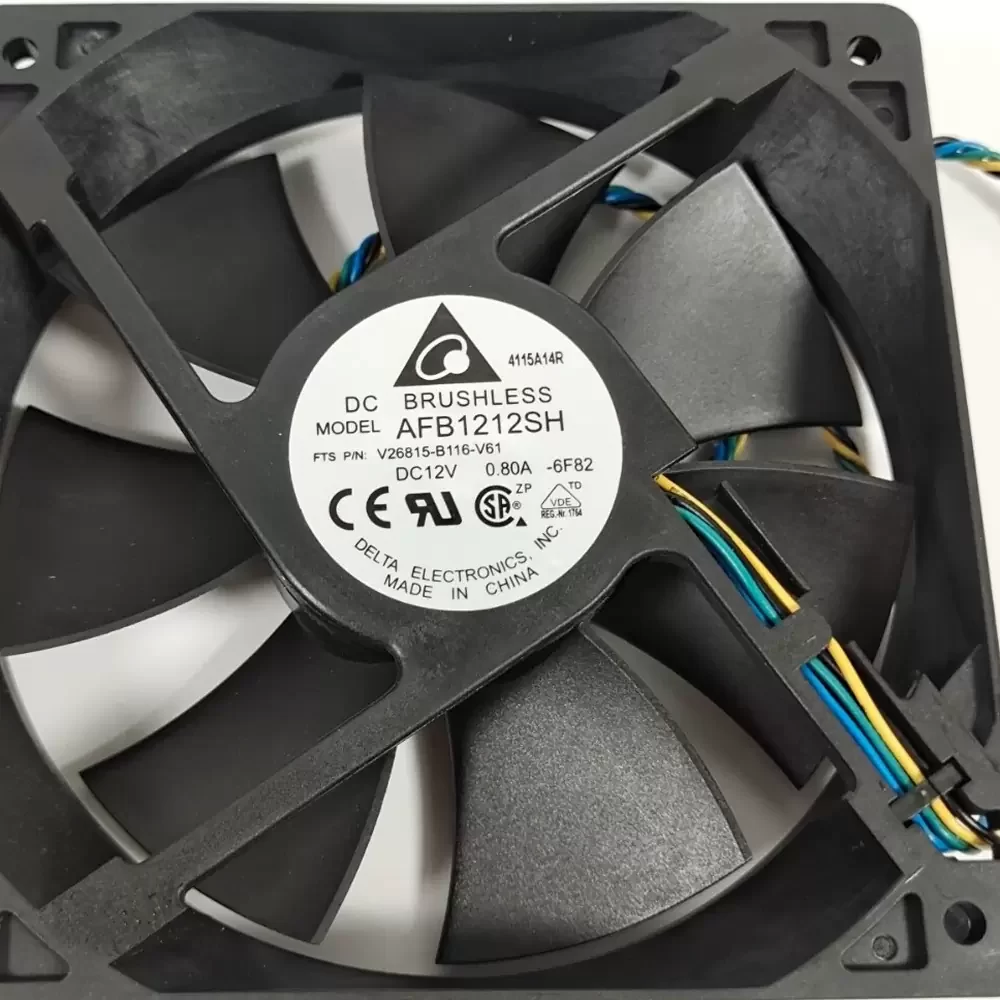

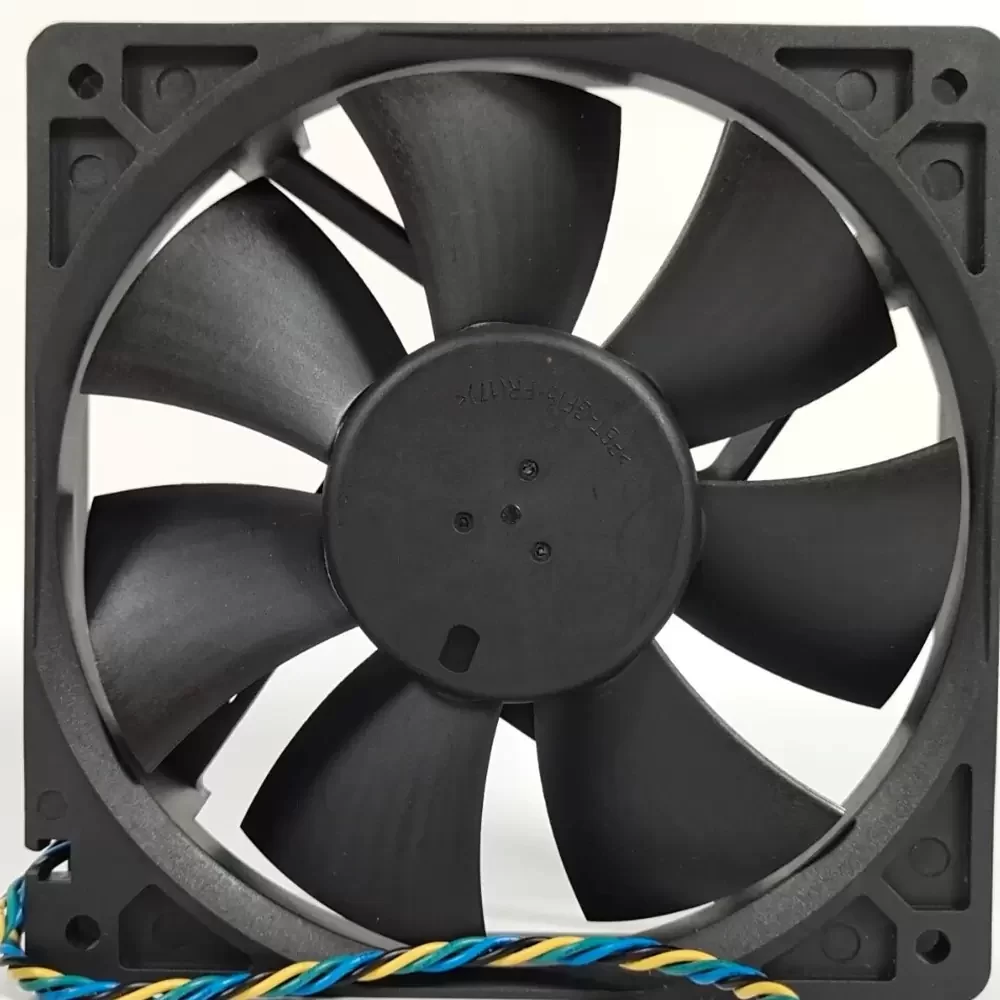

Delta AFB1212SH-6F82 is a 12VDC 120x120x25mm Axial Fan optimized for high-density thermal management in space-constrained enclosures. This unit features a sophisticated dual ball bearing architecture designed to minimize thermal impedance and ensure long-term structural rigidity under continuous operation. The aerodynamic impeller design is engineered for high static pressure, delivering a robust 113 CFM of airflow at a rated speed of 3400 RPM. Utilizing a 0.80A current draw, the motor integrates PWM speed control for precise thermal regulation, making it an ideal replacement fan for high-performance computing environments requiring efficient heat dissipation and low mechanical vibration.
Model Number: AFB1212SH-6F82
Brand: Delta Electronics
Product Type: Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.80 A
Power: 9.6 W
Rated Speed: 3400 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 113.11 CFM (3.203 m³/min)
Max. Static Pressure: 10.92 mmH₂O (0.430 inH₂O)
Noise Level: 46.5 dB
Dimensions: 120 x 120 x 25 mm
Weight: 198 g
Housing Material: Plastic (UL 94V-0)
Blade Material: Plastic (UL 94V-0)
Termination: 4-Wire Lead (PWM Control)
Speed Control: Pulse Width Modulation (PWM)
Operating Temperature: -10 to +70 C
Storage Temperature: -40 to +75 C
Life Expectancy: 70,000 Hours at 40 C
Protection: Locked Rotor Protection, Reverse Polarity Protection
AFB1212SH-6F82 Applications
1. 2U Rackmount Chassis: The 25mm depth and high static pressure profile allow for efficient cooling through dense internal components where airflow resistance is high.
2. Industrial Workstations: Ideal as a high-performance replacement fan for workstations requiring PWM-regulated cooling to balance acoustic output with thermal load.
3. Network Switch Enclosures: Optimized for overcoming the system impedance of high-port-density networking hardware while maintaining 24/7 operational reliability.
