Description

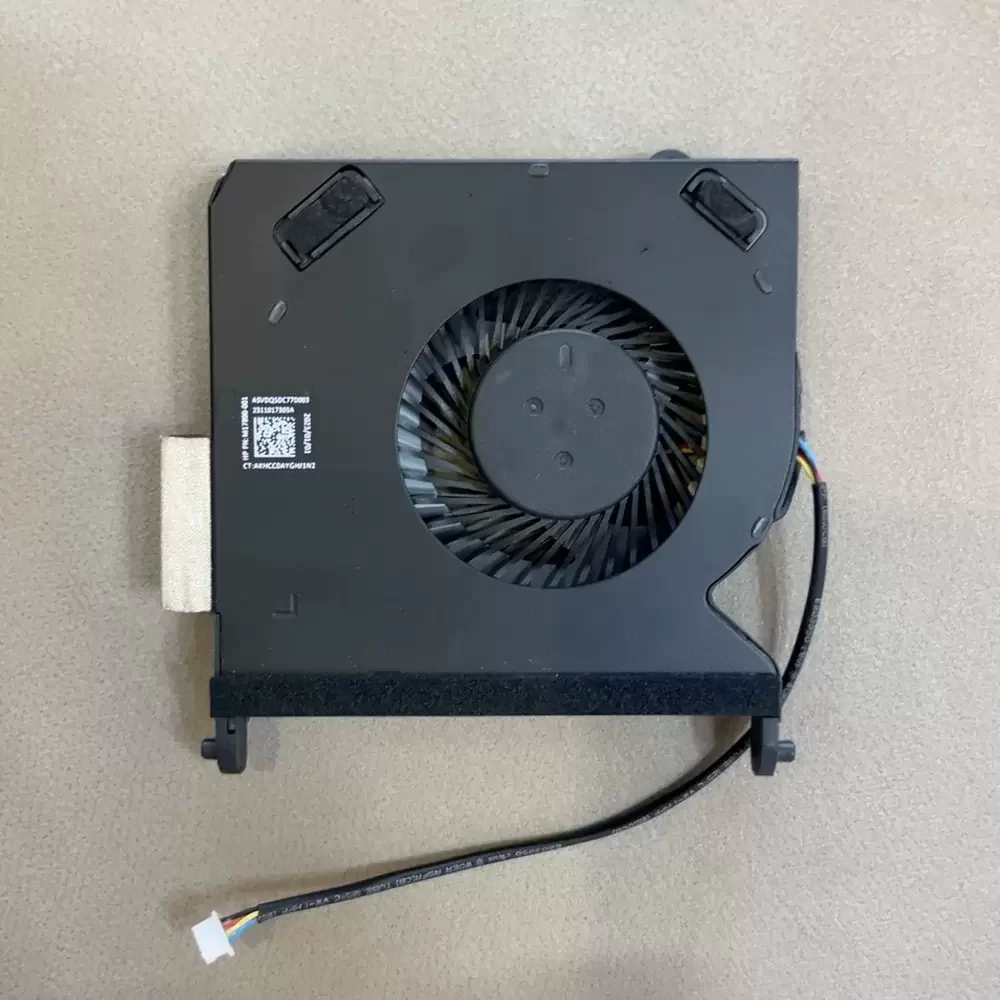

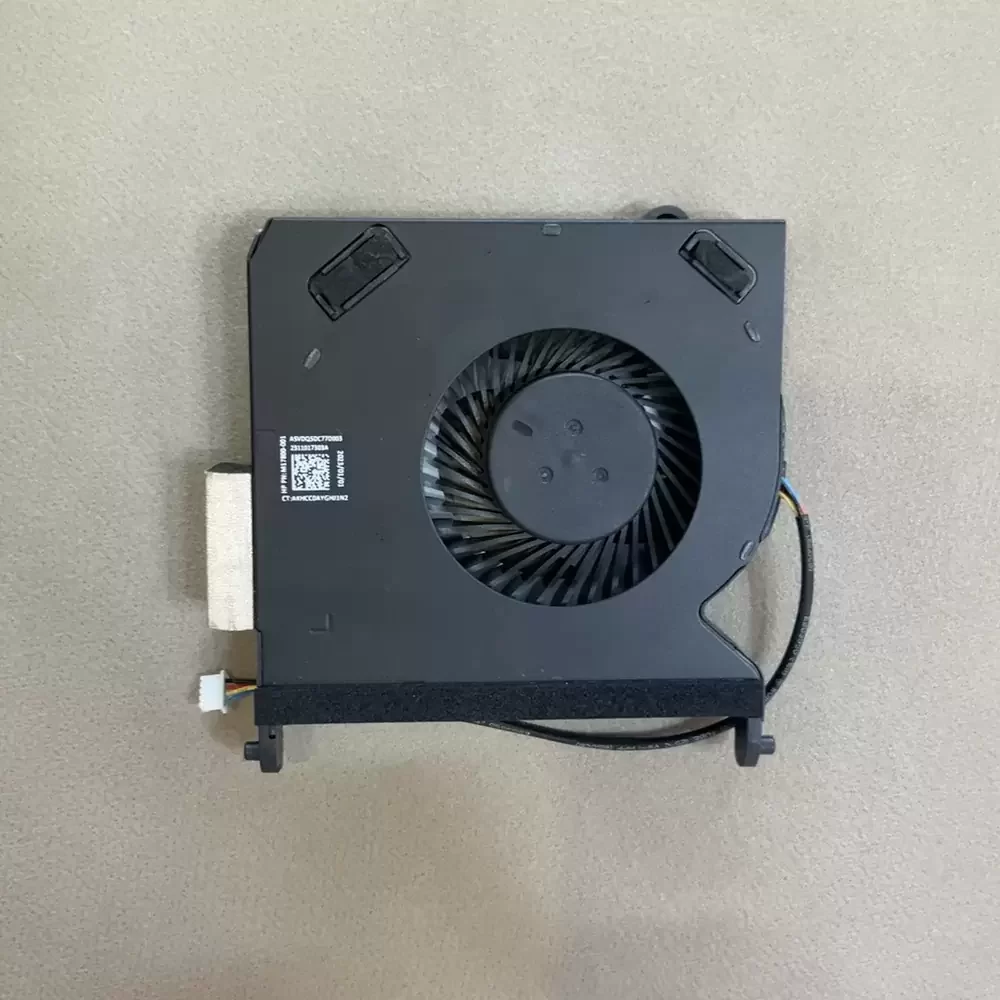

The AVC BAZB0813R2UP006 is a 12VDC 80x80x13mm centrifugal blower optimized for high-density thermal management in ultra-small form factor (USFF) computing environments. Engineered with a hydraulic bearing architecture, this unit minimizes mechanical friction and acoustic resonance while maintaining structural rigidity under continuous operation. The 4-wire PWM interface allows for precise speed modulation, drawing 0.6A at peak performance to effectively mitigate thermal impedance in cramped chassis. Delivering high static pressure to overcome internal airflow resistance, it serves as a critical cooling component for HP EliteDesk systems, ensuring long-term reliability and component longevity through efficient heat dissipation.
Model Number: BAZB0813R2UP006
Brand: AVC
Product Type: Centrifugal Blower Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.6A
Power: 7.2W
Rated Speed: 4800 RPM
Bearing Type: Hydraulic Bearing
Max. Air Flow: 14.2 CFM (24.1 m³/h / 0.40 m³/min)
Max. Static Pressure: 16.8 mmH2O (164.7 Pa / 0.66 inH2O)
Dimensions: 80mm x 80mm x 13mm
Weight: 48g
Life Expectancy: 50,000 Hours at 40C
Speed Control: 4-Wire PWM
Signal Output: Tachometer Sensor
Housing Material: UL94V-0 PBT Plastic
Blade Material: UL94V-0 PBT Plastic
Termination: 4-Pin OEM Connector
Operating Temperature: -10C to +70C
Storage Temperature: -40C to +75C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Certifications: CE, TUV, UL, RoHS
Compatibility: HP L90295-001, TPC-Q072-DM
BAZB0813R2UP006 Applications
1. HP EliteDesk 400G6/800G6 USFF Maintenance: Direct replacement fan designed to match the specific mounting geometry and thermal profile of HP G6 series Desktop Mini PCs.
2. High-Impedance Micro-Chassis Cooling: The centrifugal design provides the necessary static pressure to force air through dense internal heat sinks where axial fans would stall.
3. Low-Profile Embedded Systems: Ideal for 1U or sub-1U industrial controllers requiring a slim 13mm footprint without sacrificing airflow velocity.
