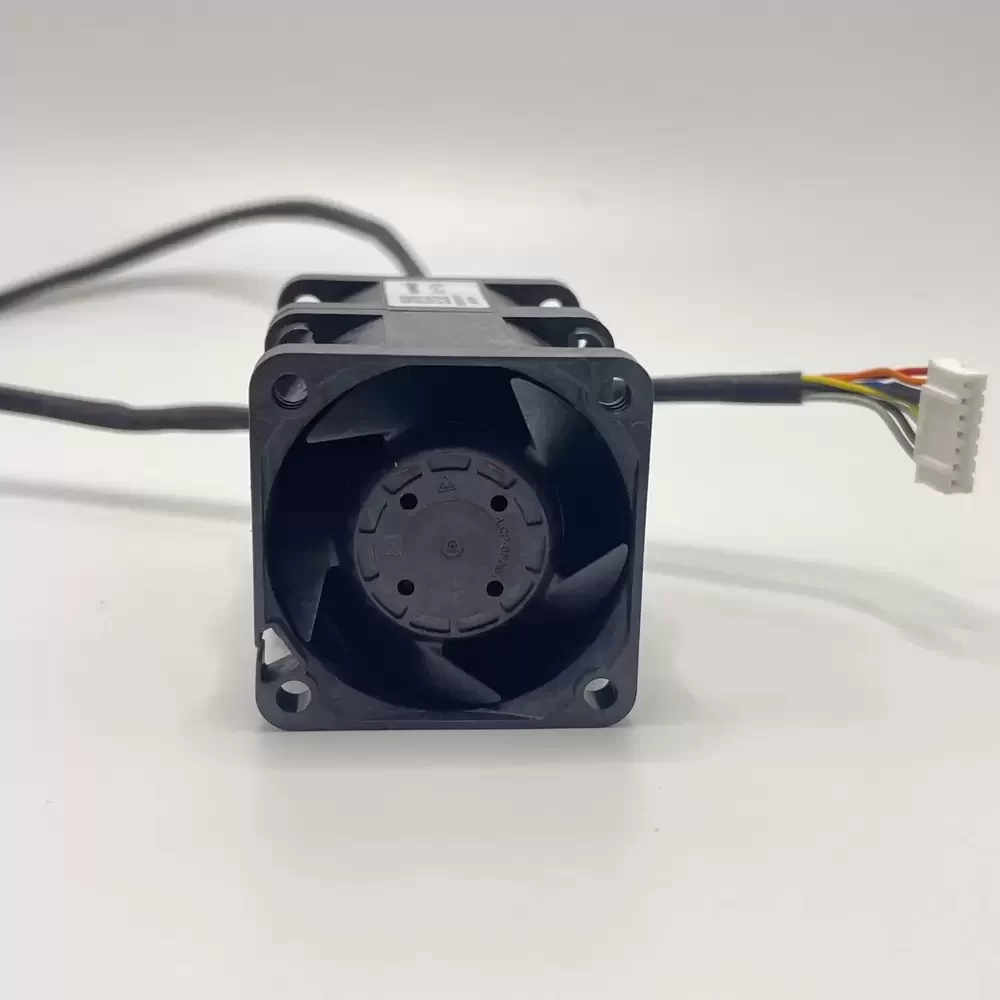

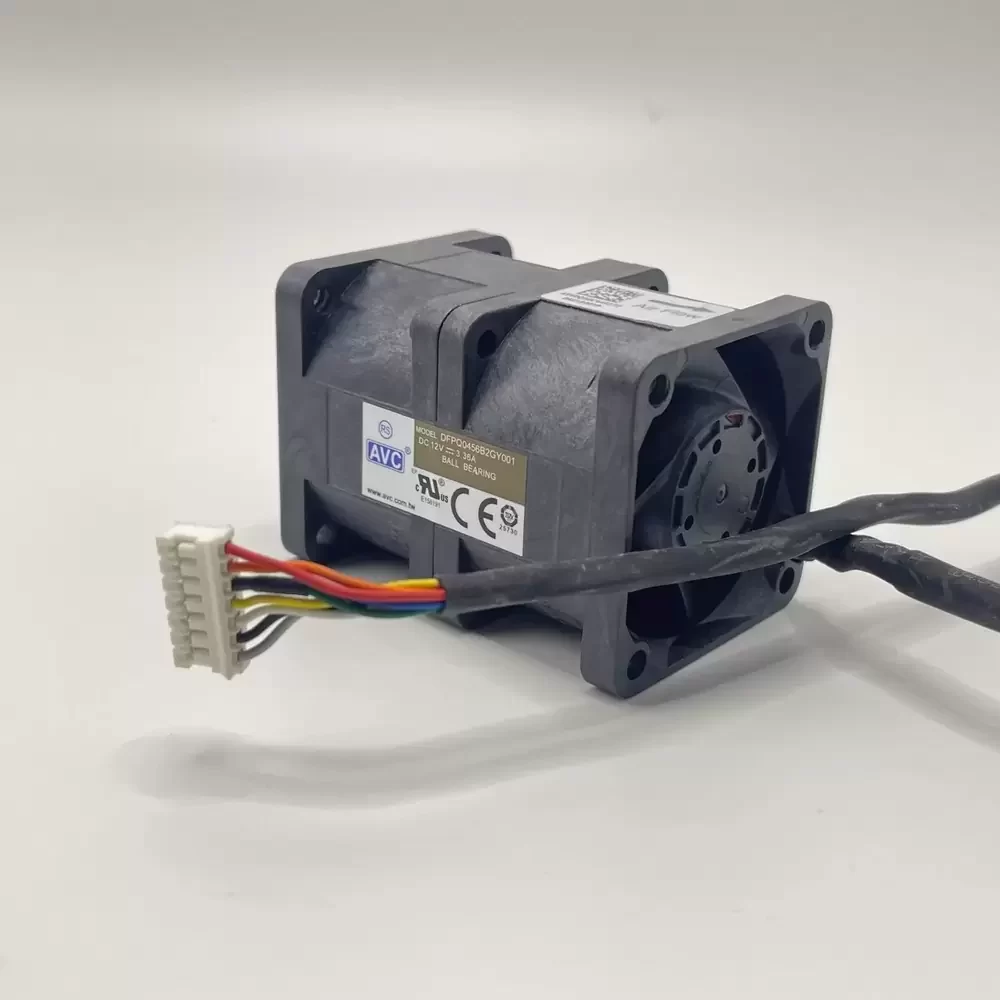

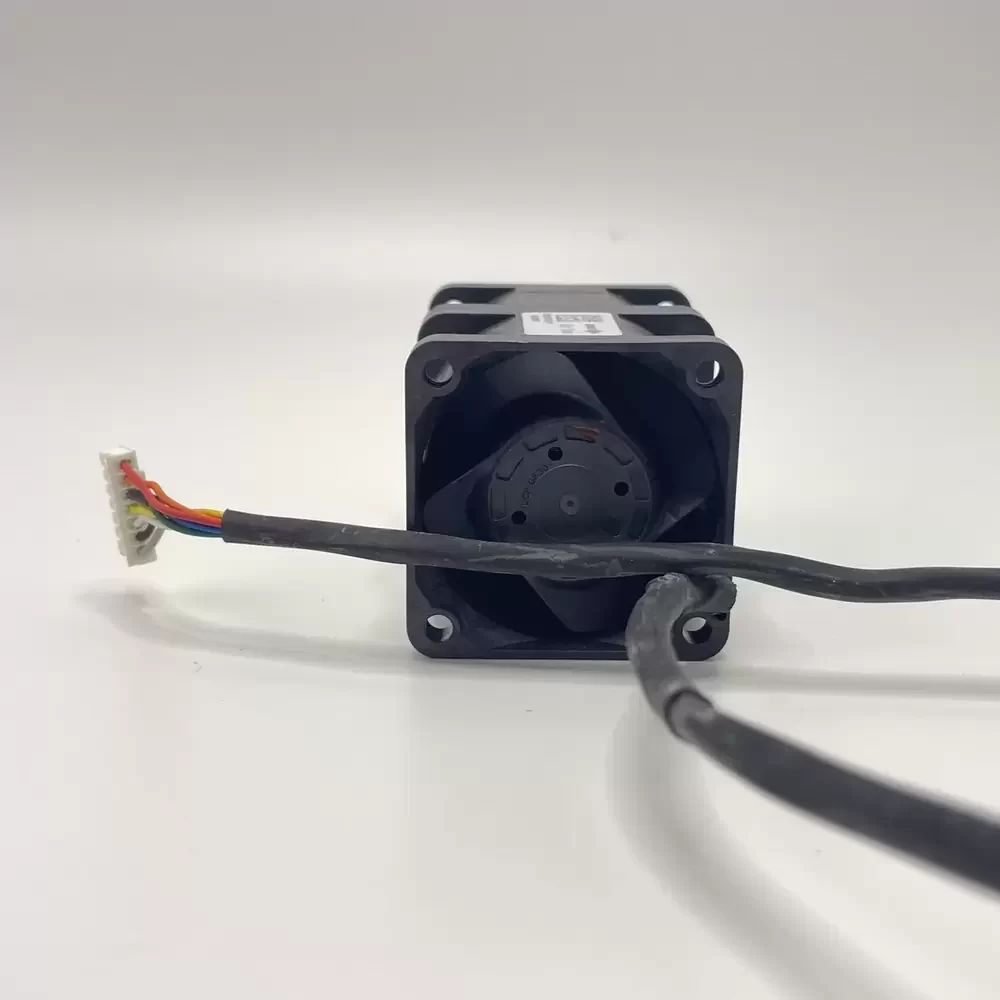

DFPQ0456B2GY001 AVC 12VDC 3.36A 40x40x56mm Axial Fan

Description

AVC DFPQ0456B2GY001 is a 40 x 40 x 56 mm high-performance DC axial fan operating at 12 VDC with a 3.36 A current rating. The unit features a dual-rotor counter-rotating design housed in a PBT UL 94V-0 plastic frame and impeller. It utilizes a dual ball bearing system to support rotational speeds exceeding 20,000 RPM, generating extreme static pressure and airflow. The electrical interface consists of a 4-wire configuration supporting PWM speed control and frequency generator output signals.

DFPQ0456B2GY001 Specifications
Model: DFPQ0456B2GY001
Brand: AVC
Category: DC Axial Fan
Dimensions: 40 x 40 x 56 mm
Rated Voltage: 12 VDC
Operating Voltage: 7.0 to 13.2 VDC
Rated Current: 3.36 A
Input Power: 40.32 W
Bearing Type: Dual Ball Bearing
Housing Material: Thermoplastic PBT (UL 94V-0)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Speed: 25,000 RPM
Termination: 4-wire
Signal Output: Tachometer (FG)
Control: Pulse Width Modulation (PWM)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Weight: 160 g

DFPQ0456B2GY001 Applications
Primary applications include integration into 1U / 2U rackmount servers, high-density blade chassis, and telecommunications switching equipment. Deployed within crypto-mining hardware and industrial power supply units requiring concentrated thermal dissipation for high-wattage components.
