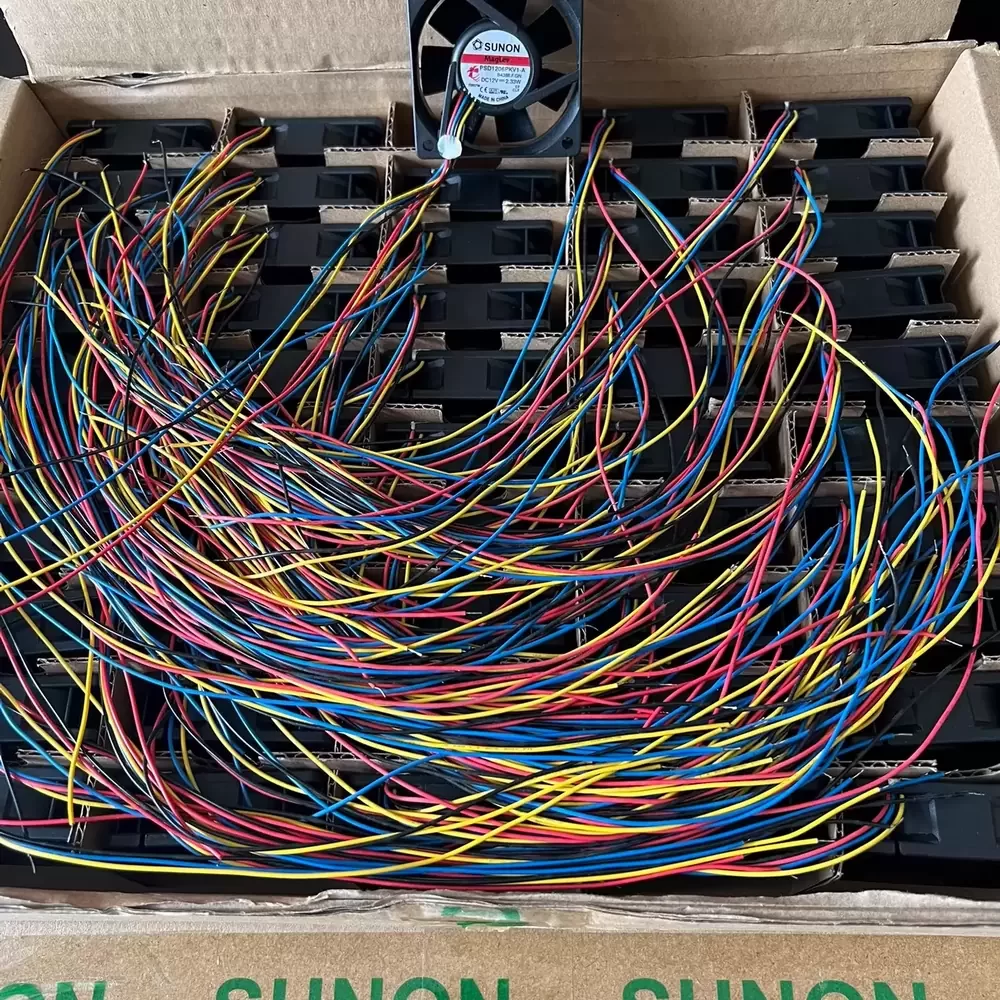

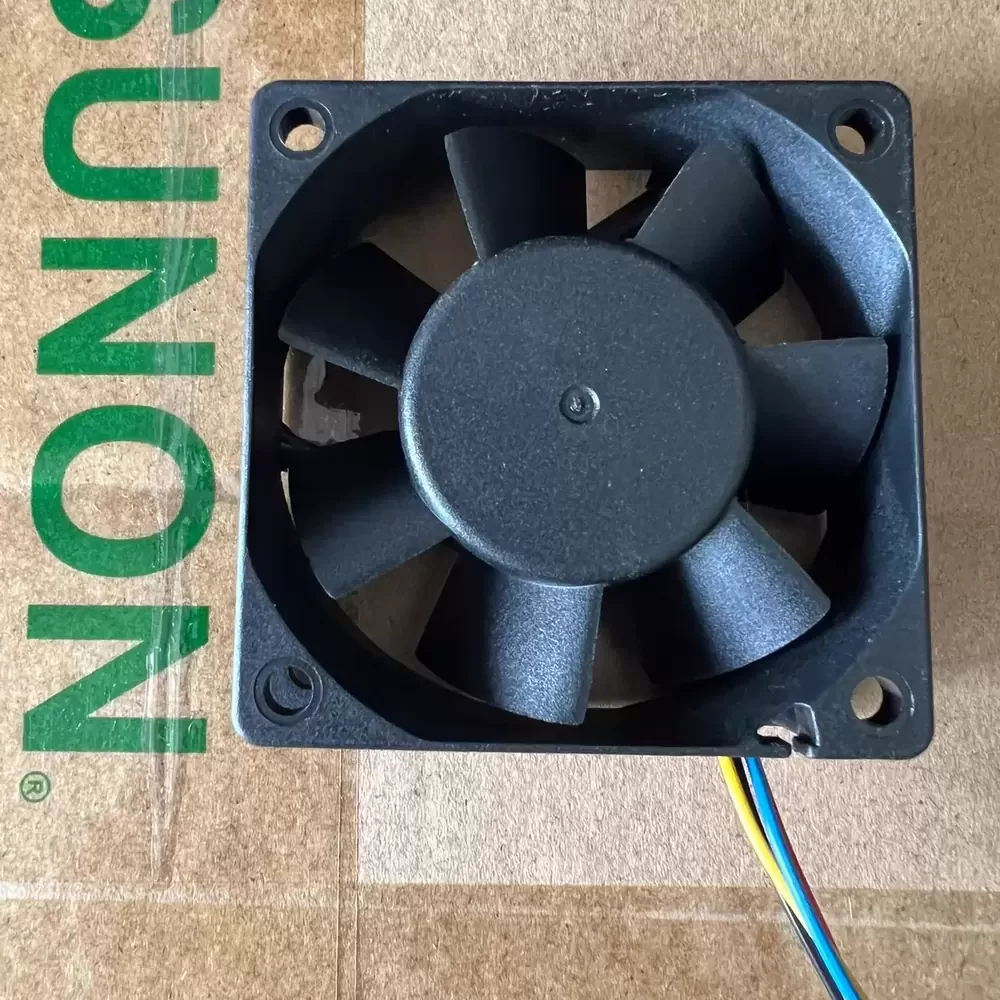

PSD1206PKV1-A.B4386.F.GN Sunon 12VDC 60x60x20mm Axial Fan

Description

Sunon PSD1206PKV1-A.B4386.F.GN is a 60 x 60 x 20 mm high-performance axial fan operating at 12 VDC with a 2.33 A rated current and 28.0 W power consumption. The unit features a patented MagLev VAPO bearing system and a 4-wire interface supporting PWM speed control and frequency generator output. Constructed with a glass fiber reinforced PBT plastic housing and impeller rated to UL 94V-0, the fan utilizes a brushless DC motor design to achieve rotational speeds up to 13,000 RPM, delivering an airflow of 55.5 CFM and a static pressure of 1.58 inch-H2O.

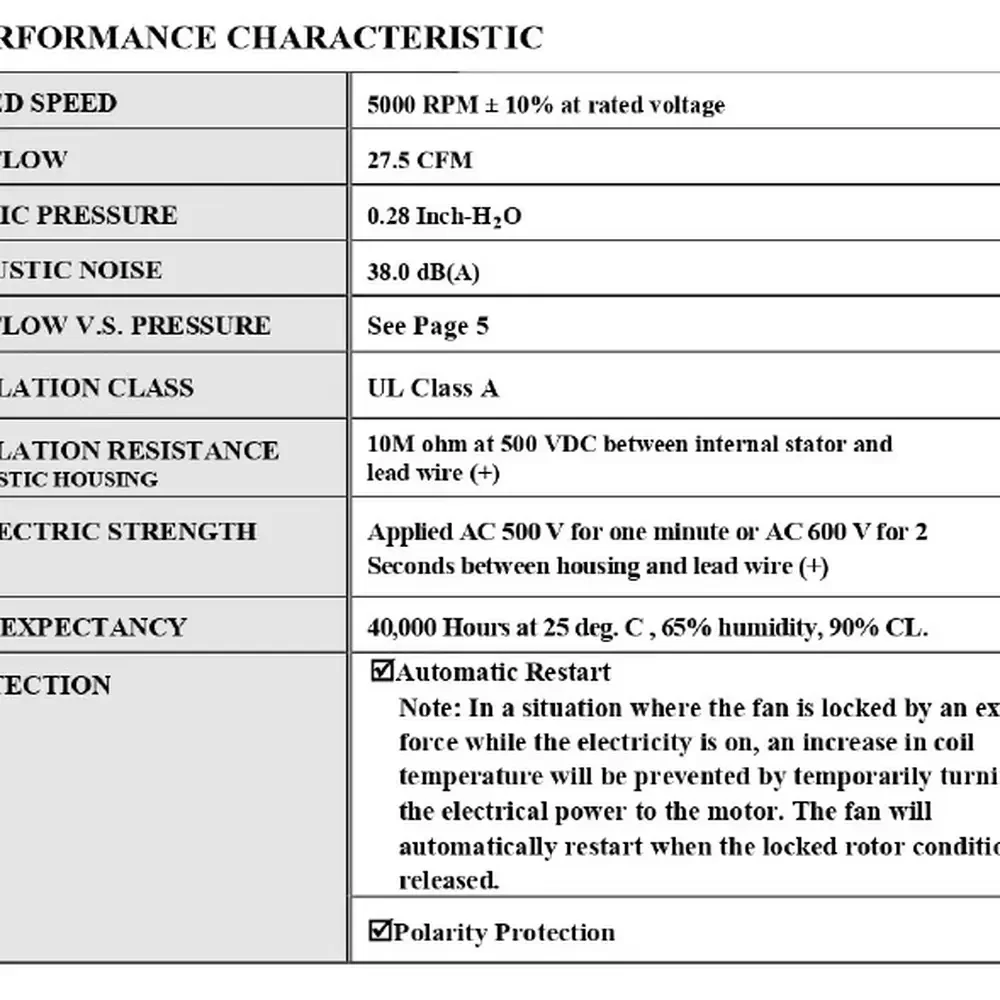

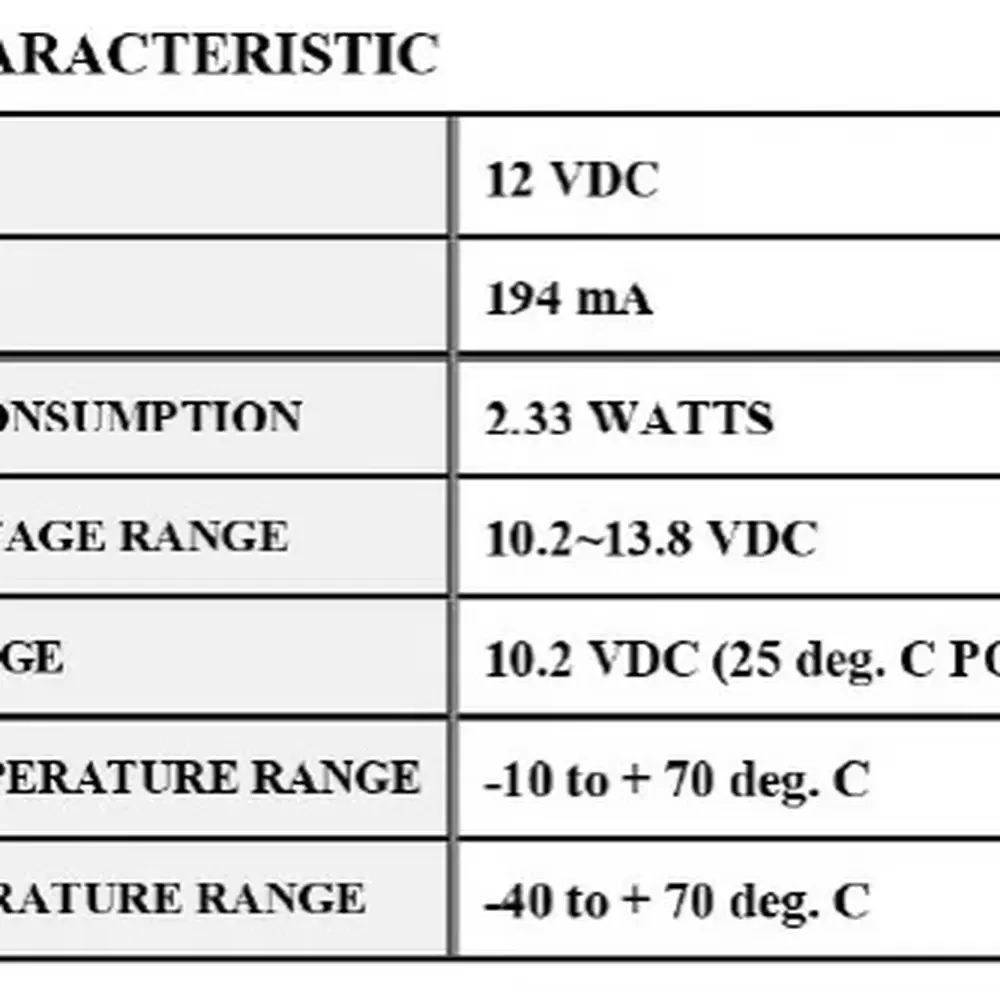

PSD1206PKV1-A.B4386.F.GN Specifications
Model: PSD1206PKV1-A.B4386.F.GN
Brand: Sunon
Category: DC Axial Fan
Dimensions: 60 x 60 x 20 mm
Rated Voltage: 12 VDC
Rated Current: 2.33 A
Rated Power: 28.0 W
Rated Speed: 13,000 RPM
Airflow: 55.5 CFM
Static Pressure: 1.58 inch-H2O
Noise Level: 61.5 dBA
Bearing Type: MagLev / VAPO
Interface: 4-Wire (Red: +, Black: -, Yellow: FG, Blue: PWM)
Frame Material: Thermoplastic PBT (UL 94V-0)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Weight: 75 g
Insulation Resistance: 10 M ohm at 500 VDC
Dielectric Strength: 500 VAC for 1 minute
Motor Protection: Polarity Protection, Restart Capability
Compliance: RoHS, UL, TUV

PSD1206PKV1-A.B4386.F.GN Applications
Primary applications include integration into high-density server enclosures, 1U/2U rackmount chassis, and telecommunications switching equipment requiring high static pressure cooling. Deployed within industrial power supply units, network storage arrays, and high-performance computing thermal management systems.
