Description

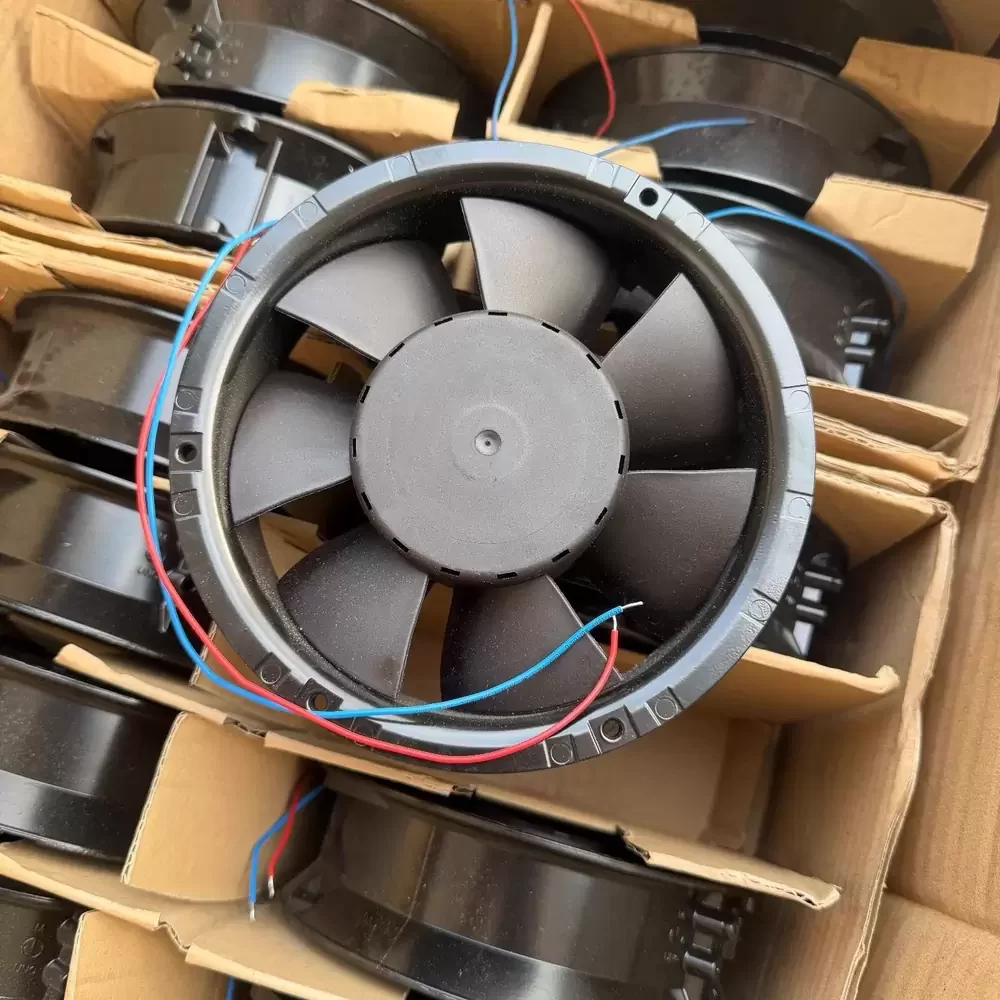

ebm-papst 6224NU is a high-performance DC axial fan featuring a 172 mm diameter by 51 mm depth circular profile, operating at a nominal 24 VDC with an 18 W power input. This unit utilizes a robust die-cast aluminum housing and a fiberglass-reinforced PA plastic impeller, supported by a dual ball bearing system for extended service life. The fan delivers a maximum airflow of 410 m³/h at a nominal speed of 3400 RPM while maintaining an IP 68 protection rating against dust and moisture ingress. Internal commutation electronics provide integrated protection against reverse polarity and rotor locking.
6224NU Specifications
Model: 6224NU
Brand: ebm-papst
Category: DC Axial Fan
Nominal Voltage: 24 VDC
Voltage Range: 12 to 28 VDC
Power Input: 18 W
Nominal Current: 710 mA
Airflow: 410 m³/h
Airflow (Imperial): 241.3 CFM
Speed: 3400 RPM
Noise Level: 55 dB(A)
Dimensions: 172 x 51 mm
Weight: 0.82 kg
Bearing Type: Ball Bearing
Housing Material: Die-cast Aluminum
Impeller Material: Fiberglass-reinforced PA Plastic
IP Rating: IP 68
Operating Temperature: -20 to 72 °C
Service Life (L10 at 40 °C): 75,000 h
Termination: 2-wire leads
Protection: Polarity reversal and locked-rotor protection
Approvals: VDE, CSA, UL, CE
6224NU Applications
Primary applications include integration into harsh-environment industrial control cabinets, telecommunications base stations, and high-density server racks requiring IP 68 ingress protection. Deployed within outdoor power inverters, medical imaging equipment, and automated manufacturing machinery for critical thermal management of high-heat dissipation components.
