Description

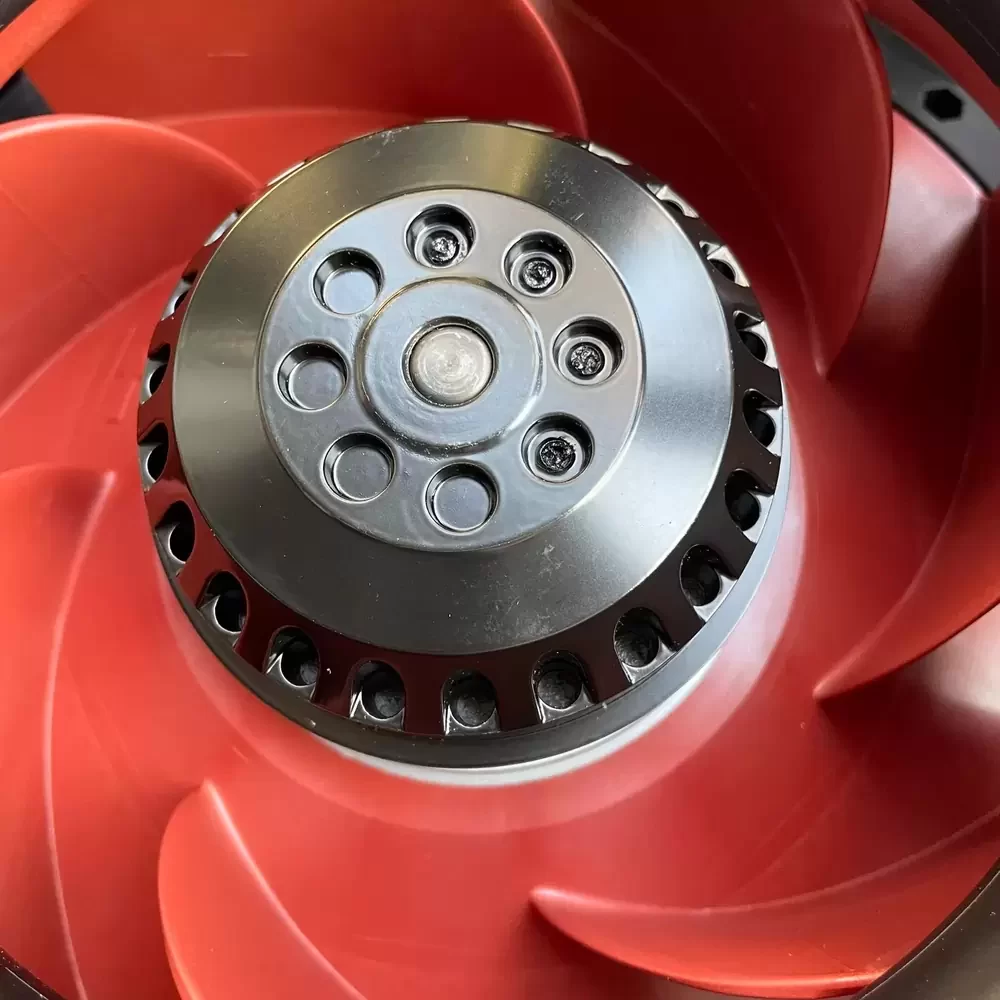

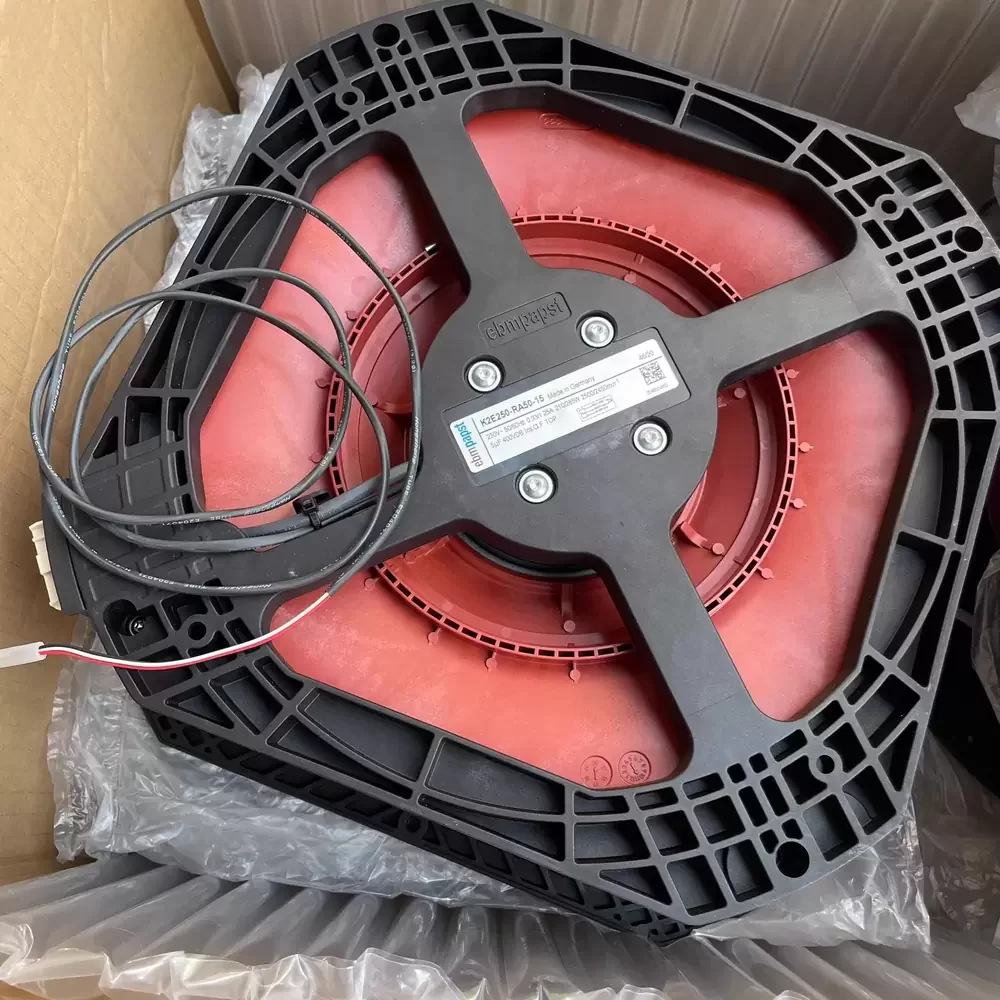

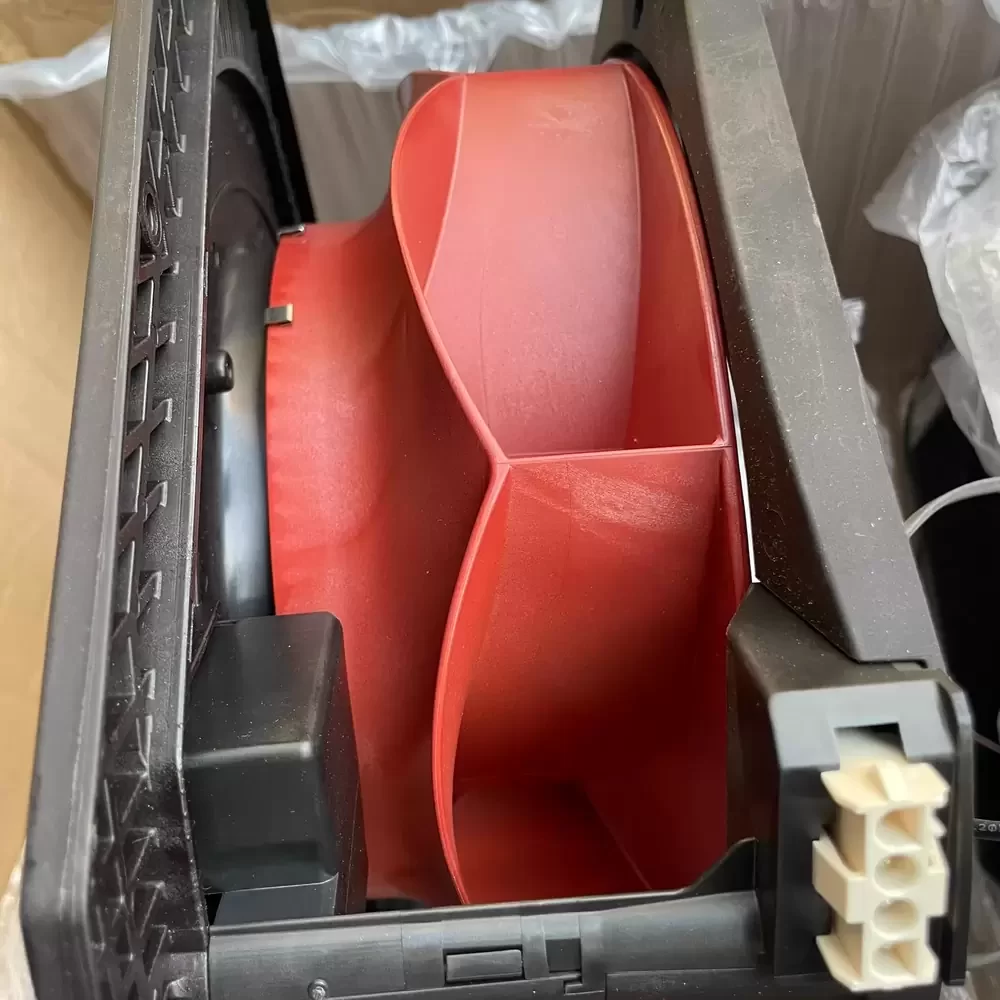

ebmpapst K2E250-RA50-15 is a 250 mm diameter centrifugal fan operating at 230 V AC with a power consumption of 125 W and a nominal speed of 2500 RPM. The unit features a backward-curved impeller constructed from glass-fiber reinforced PA plastic and is driven by an M2E068-DF external rotor motor. It incorporates a maintenance-free dual ball bearing system and an internal thermal overload protector (TOP) for operational safety. The assembly is rated for insulation class F and IP 44 protection, utilizing a 5 µF capacitor for single-phase operation. The mechanical design includes 11 blades and allows for any mounting position with integrated condensate drainage holes on the rotor side.
K2E250-RA50-15 Specifications

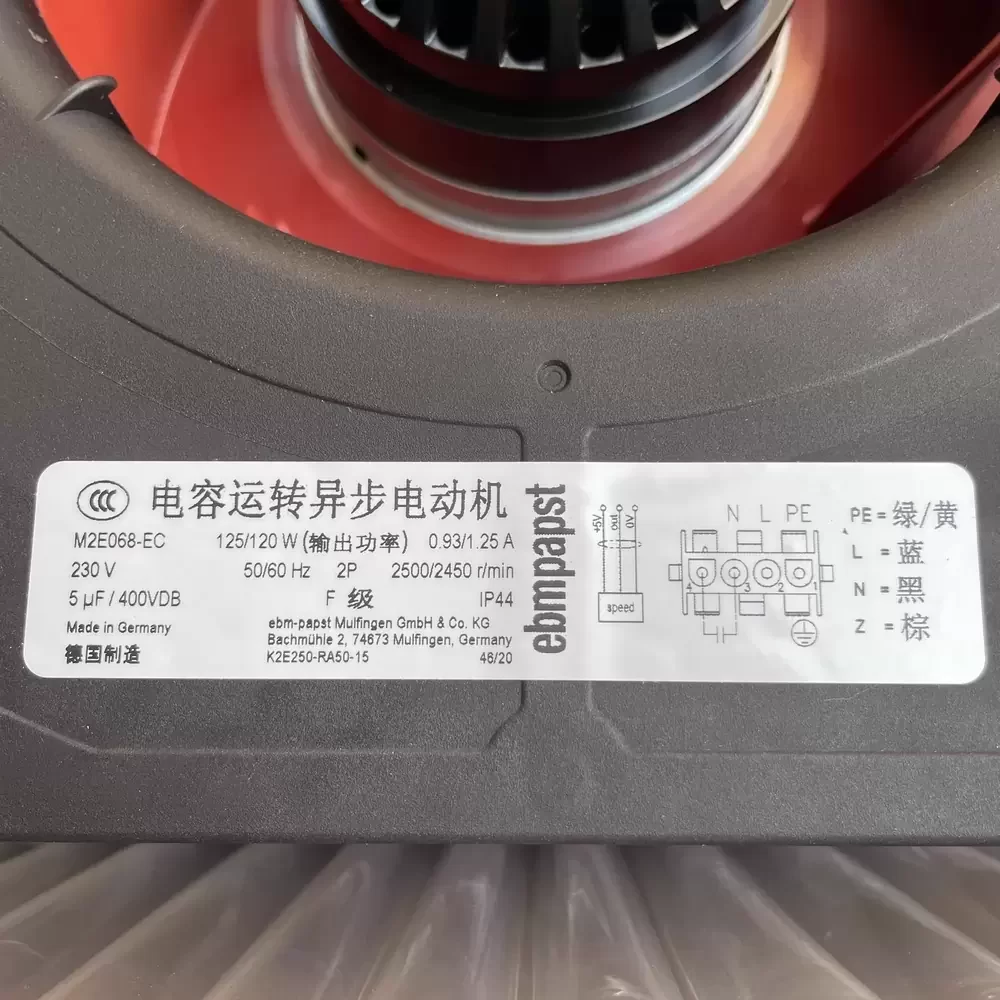

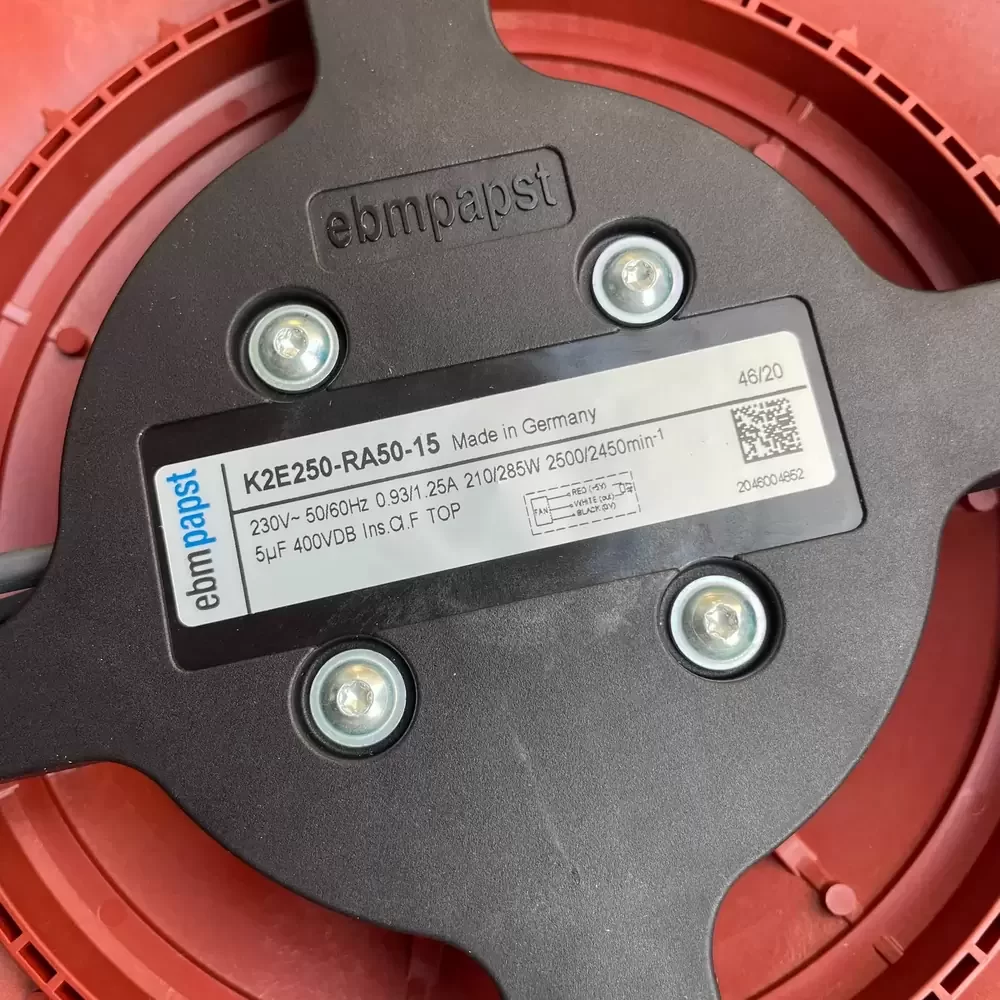

Model: K2E250-RA50-15
Brand: ebmpapst
Motor: M2E068-DF
Phase: 1 ~
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Speed: 2500 / 2450 RPM
Power Consumption: 125 / 120 W
Current Draw: 0.93 / 1.25 A
Capacitor: 5.0 µF
Capacitor Voltage: 400 VDB
Impeller Diameter: 250 mm
Number of Blades: 11
Impeller Material: PA plastic, glass-fiber reinforced
Direction of Rotation: Clockwise, viewed toward rotor
Degree of Protection: IP 44
Insulation Class: F
Moisture Sensitivity Class: F1-2
Max. Permissible Ambient Temp. (Motor): + 80 °C
Min. Permissible Ambient Temp. (Motor): – 25 °C
Mounting Position: Any
Condensate Discharge Holes: On rotor side
Mode: S1
Motor Bearing: Ball bearing
Technical Features: Thermal overload protector (TOP) internally connected

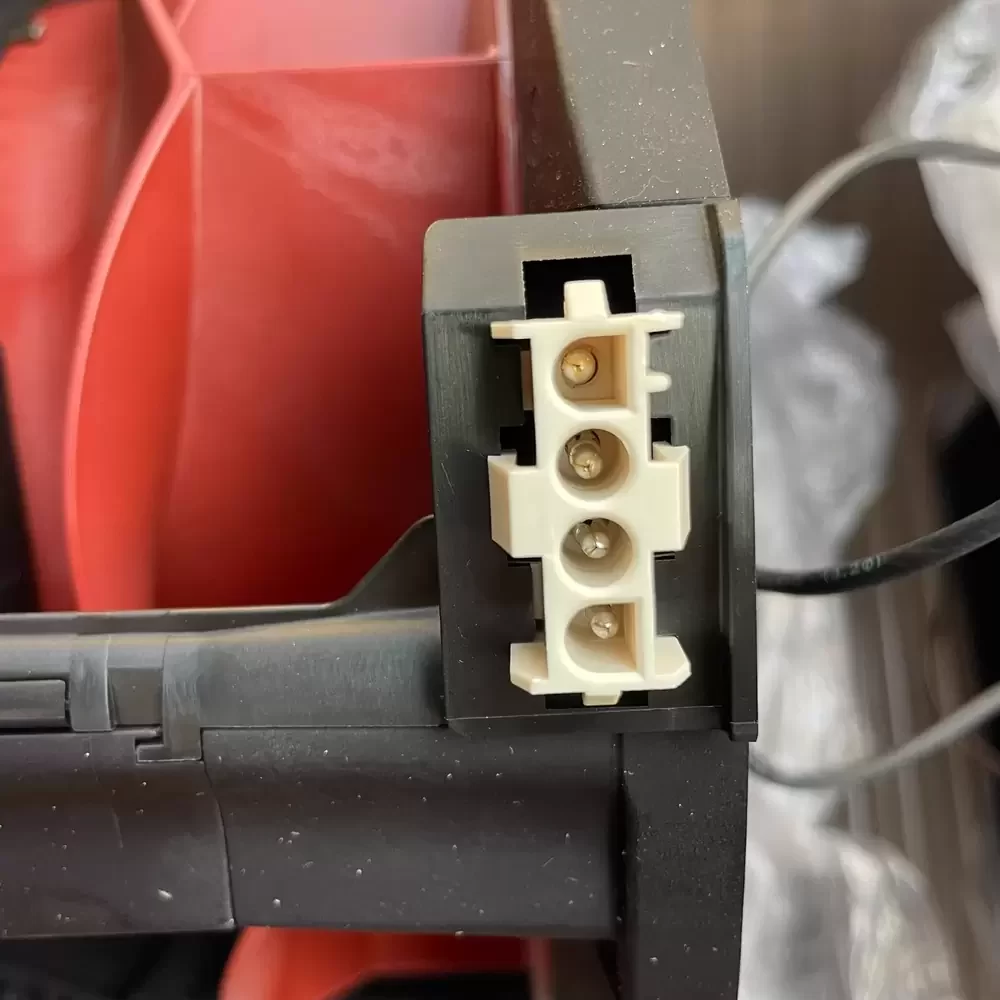

Electrical Hookup: Multi-lead cable
Protection Class: I
Weight: 3.5 kg
Approval: CE, EN 60335-1
K2E250-RA50-15 Applications
Primary applications include integration into industrial cabinet cooling systems, HVAC heat recovery units, and cleanroom filter fan units (FFU). Deployed within telecommunications base station thermal management and commercial kitchen ventilation extraction modules.
