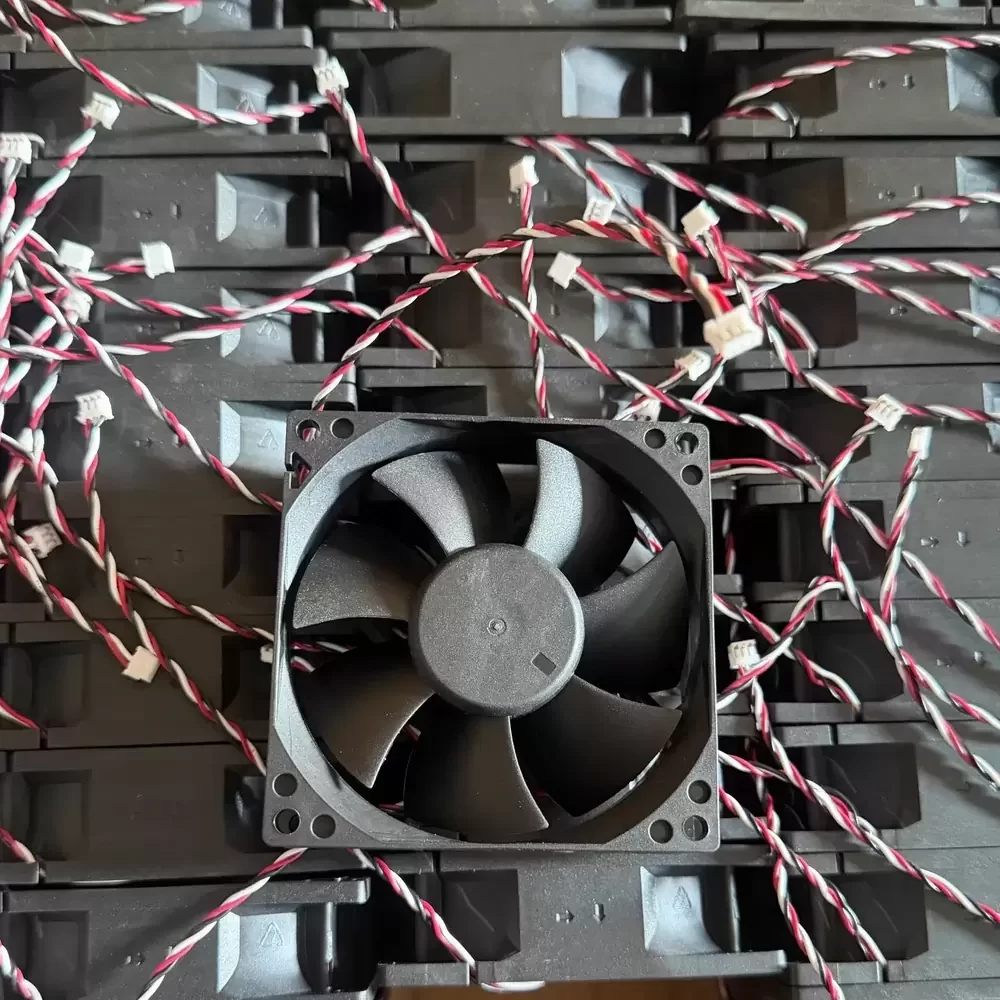

DA08025R12M-RAR AVC 12VDC 0.25A 80x80x25mm Cooling Fan

Description

AVC DA08025R12M-RAR 80 x 80 x 25 mm, 12 VDC, 0.25 A axial cooling fan features a specialized hydraulic bearing architecture for sustained thermal regulation. Constructed with a rigid UL94V-0 thermoplastic frame and impeller, the unit integrates a 3-wire interface equipped with a tachometer signal for precise rotational speed monitoring. The internal brushless DC motor is engineered to minimize mechanical friction, ensuring stable acoustic profiles and consistent static pressure output across continuous duty cycles.

DA08025R12M-RAR Specifications
Model Number: DA08025R12M-RAR
Brand: AVC (Asia Vital Components)
Product Category: DC Axial Cooling Fan
Nominal Voltage: 12 VDC
Operating Voltage Range: 10.8 to 13.2 VDC
Nominal Current: 0.25 A
Power Consumption: 3.0 W
Dimensions: 80 x 80 x 25 mm
Form Factor: 8025
Bearing Type: Hydraulic Bearing
Interface: 3-Wire
Tachometer Output: Yes
Motor Type: Brushless DC
Frame Material: Thermoplastic (UL94V-0)
Impeller Material: Thermoplastic (UL94V-0)
Termination: Wire Leads

DA08025R12M-RAR Applications
Primary applications include integration into industrial power supplies, telecommunication base stations, and CNC spindle cooling systems. Deployed within server chassis, HVAC control panels, and automated testing equipment, this component ensures rigorous thermal regulation. It is also utilized in medical diagnostic machinery and high-density LED thermal management arrays.
