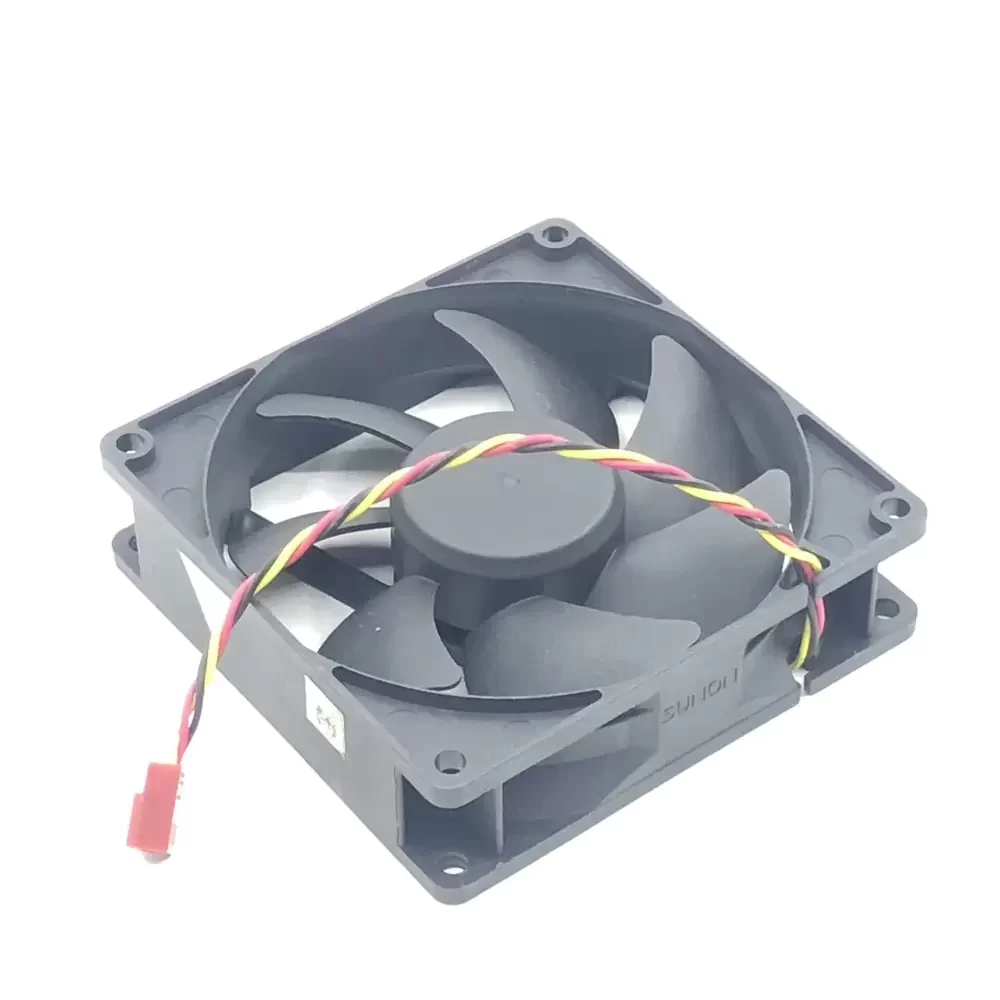

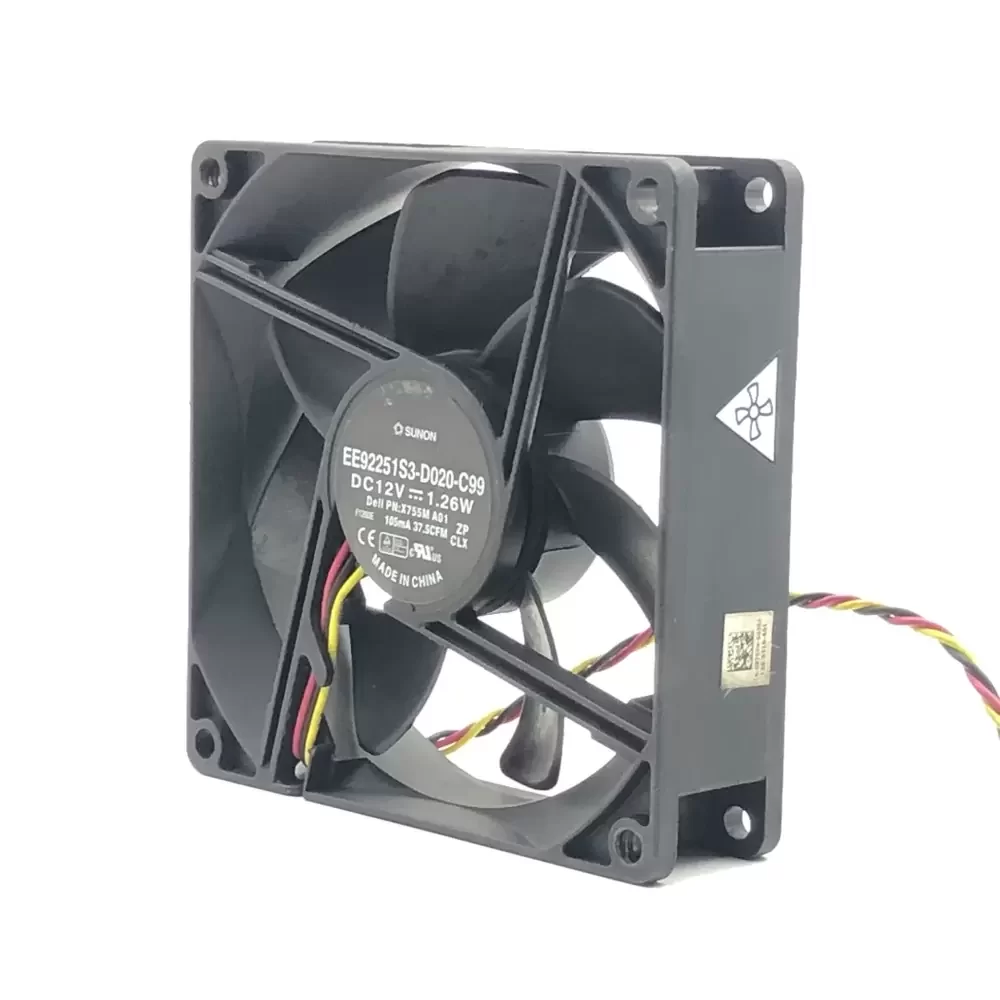

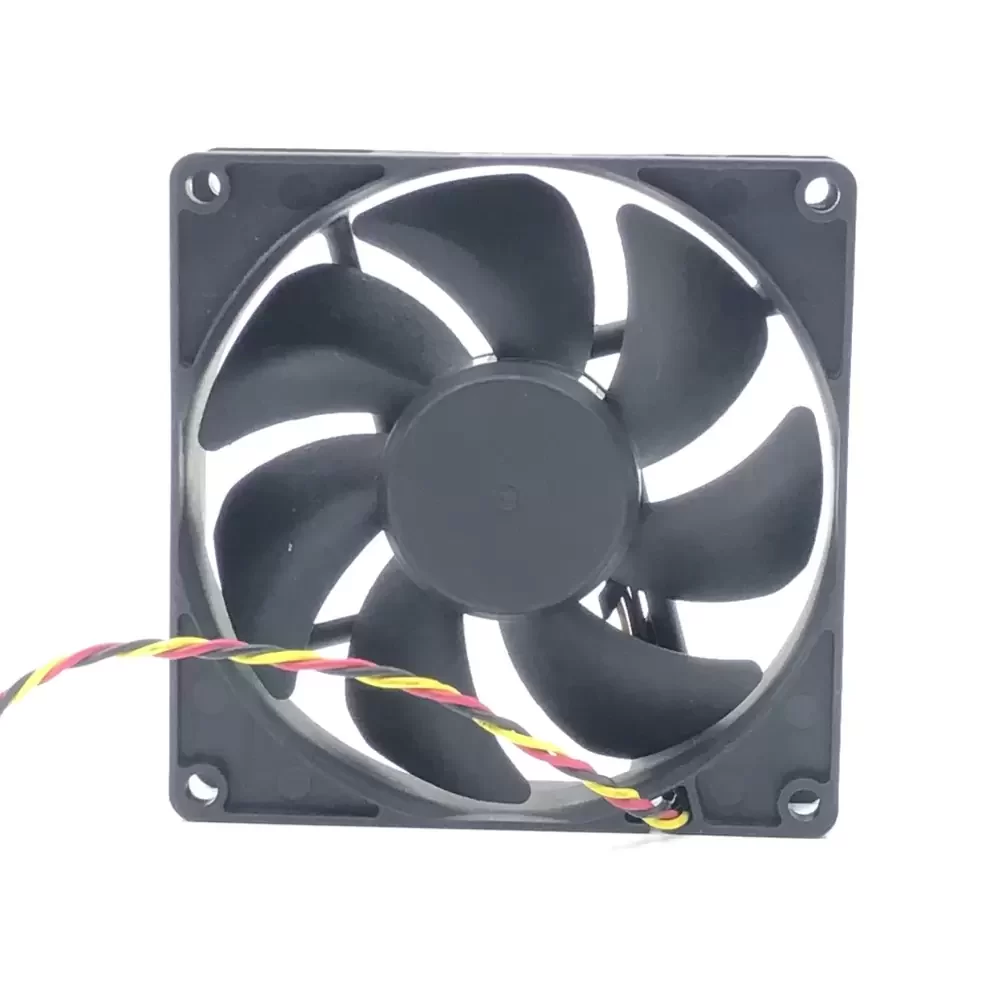

EE92251S3-D020-C99 SUNON 12VDC 1.26W 92x92x25mm Axial Fan

Description

The SUNON EE92251S3-D020-C99 is a precision-engineered DC axial fan measuring 92 x 92 x 25 mm, operating at a nominal 12 VDC with a power consumption of 1.26 W. This hardware component utilizes a hydraulic bearing system to facilitate a rotational speed of 2400 RPM, generating a rated airflow of 37.5 CFM. The unit is constructed with a thermoplastic PBT frame and impeller, meeting UL 94V-0 flammability standards for thermal safety. It features a 3-wire interface with a 3-pin connector, specifically designed for tachometer signal output (F-type) to enable real-time speed monitoring. The internal motor architecture is brushless DC, optimized for low-current draw at 105 mA while maintaining static pressure stability within compact enclosures.

EE92251S3-D020-C99 Specifications
Model Number: EE92251S3-D020-C99
Brand: SUNON
Product Category: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 12 VDC
Rated Current: 105 mA
Rated Power: 1.26 W
Rated Speed: 2400 RPM
Airflow: 37.5 CFM
Bearing Type: Hydraulic Bearing
Termination: 3-wire (3-pin connector)
Signal Output: F-type (Frequency/Tachometer)
Frame Material: Thermoplastic PBT
Impeller Material: Thermoplastic PBT
Flammability Rating: UL 94V-0
Color: Black
Weight: 100 g
OEM Part Number: Dell X755M A01

EE92251S3-D020-C99 Applications
Primary applications include integration into Dell Vostro and Inspiron mini-tower chassis, server power supply units, and network switch enclosures. Deployed within industrial automation control panels and telecommunications rack cooling systems to provide active thermal management for internal PCB components.
