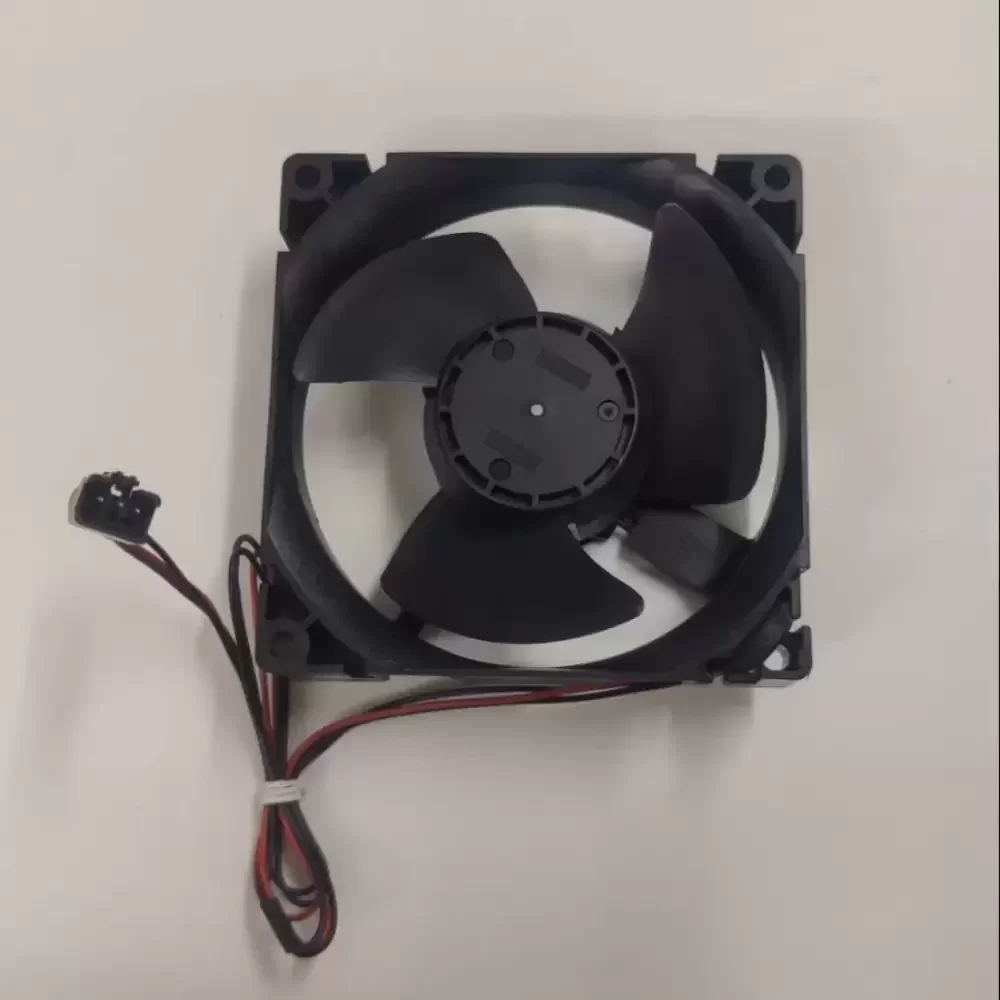

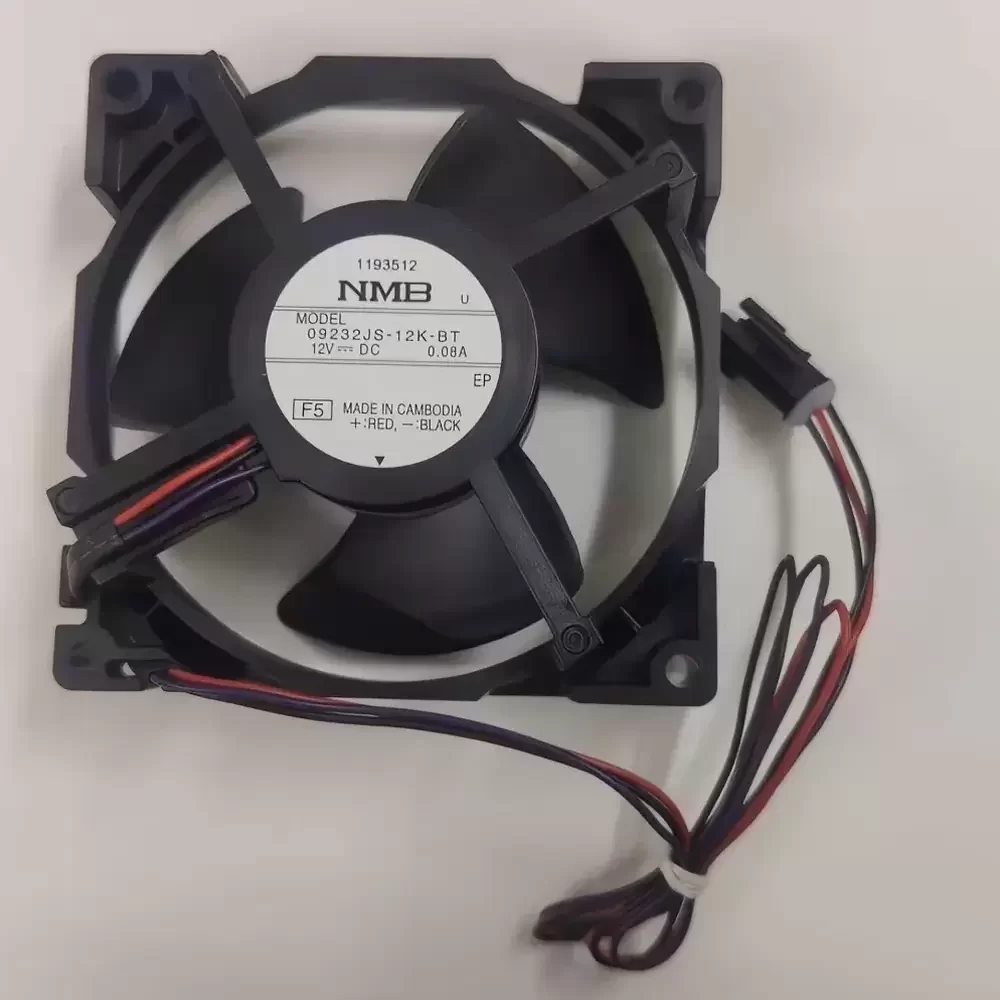

0932JS-12K-BT-F5 NMB 12VDC 0.08A 92x32mm Refrigerator Fan

Description

NMB 0932JS-12K-BT-F5 92 x 92 x 32 mm 12 VDC 0.08 A 0.96 W is a high-performance DC axial fan. The unit is constructed with a glass-fiber reinforced PBT plastic frame and impeller, meeting UL 94V-0 flammability standards. It utilizes a precision dual ball bearing mechanism to ensure extended operational life and stable rotation under continuous duty cycles. The internal brushless motor is designed for high-efficiency thermal management without significant acoustic output.

0932JS-12K-BT-F5 Specifications
Model Number: 0932JS-12K-BT-F5
Brand: NMB (MinebeaMitsumi)
Category: DC Axial Fan
Nominal Voltage: 12 VDC
Operating Voltage Range: 10.2 to 13.8 VDC
Rated Current: 0.08 A
Input Power: 0.96 W
Dimensions: 92 x 92 x 32 mm
Frame Material: Plastic (PBT) UL 94V-0
Impeller Material: Plastic (PBT) UL 94V-0
Bearing Type: Dual Ball Bearing
Termination: Lead Wires
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Insulation Resistance: 10 MΩ
Dielectric Strength: 500 VAC
Mass: 130 g

0932JS-12K-BT-F5 Applications
Primary applications include integration into domestic refrigerator evaporator compartments, commercial reach-in freezer air circulation systems, and automated cold-chain storage ventilation units.
