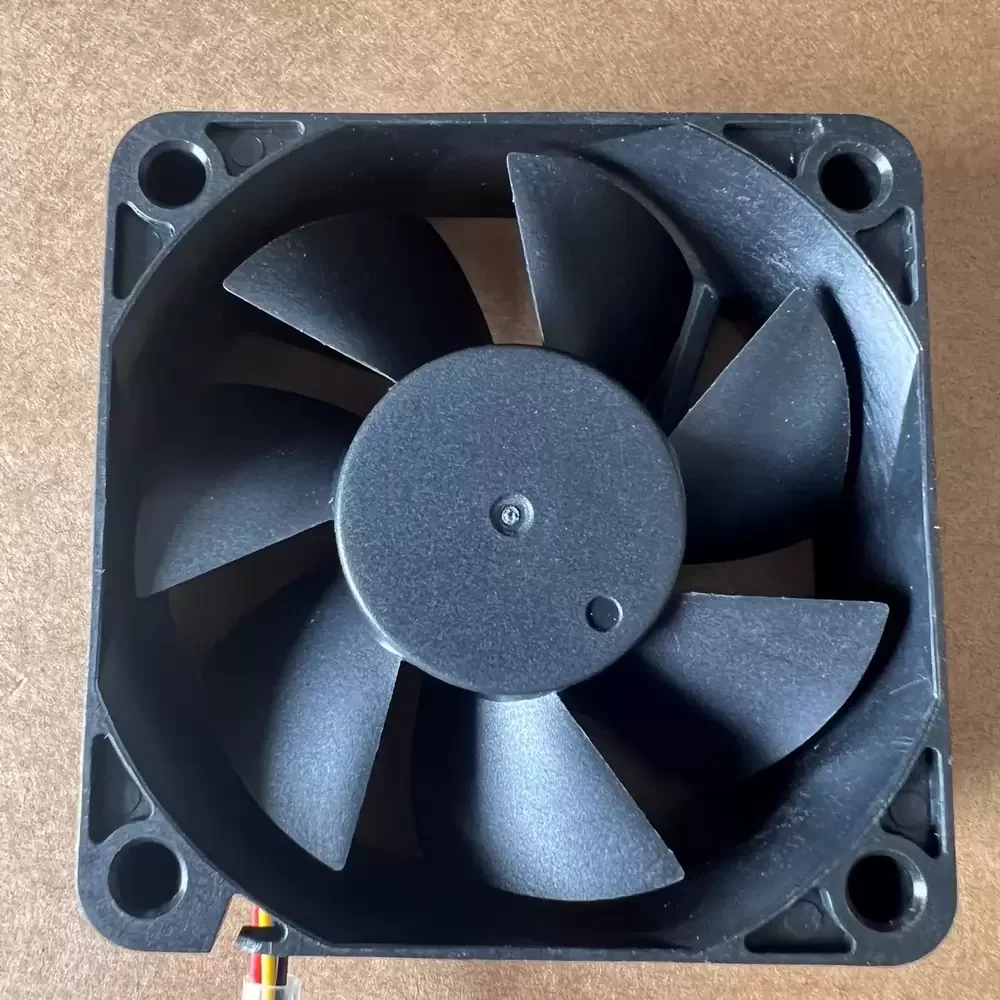

FD126020EB Y.S.TECH 12VDC 3.36W 60x60x20mm PWM Axial Fan

Description

Y.S.TECH FD126020EB is a 60 x 60 x 20 mm axial cooling fan operating at a nominal 12 VDC with a power consumption of 3.36 W and a maximum airflow of 29.1 CFM. The unit features a dual ball bearing system and a 4-wire interface supporting Pulse Width Modulation (PWM) for variable speed regulation. Constructed with a PBT thermoplastic housing and impeller rated to UL 94V-0 flammability standards, it delivers a maximum static pressure of 7.0 mmH2O at a rated speed of 5300 RPM. The internal brushless DC motor is protected by auto-restart and polarity protection mechanisms.

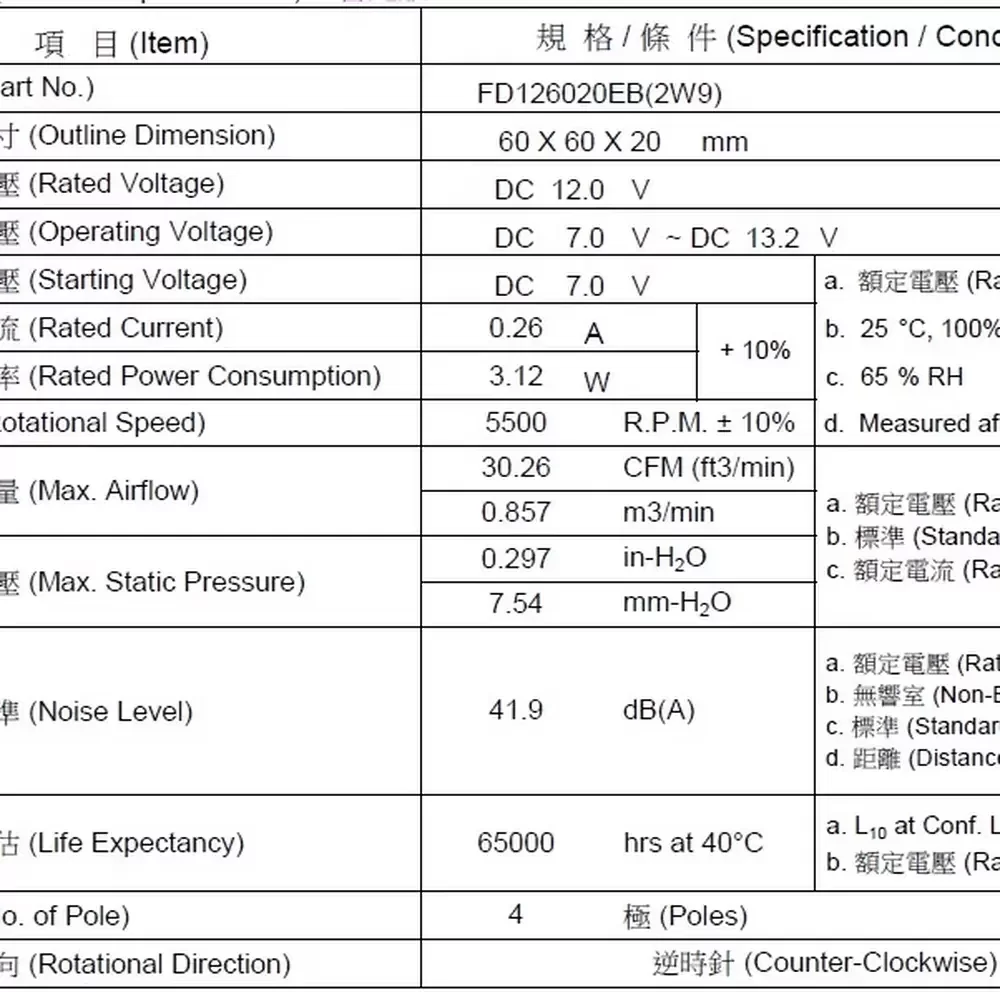

FD126020EB Specifications
Model: FD126020EB
Brand: Y.S. TECH
Category: DC Axial Fan
Dimensions: 60 x 60 x 20 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 to 13.2 VDC
Rated Current: 0.28 A
Rated Power: 3.36 W
Rated Speed: 5300 RPM
Maximum Airflow: 29.1 CFM
Maximum Static Pressure: 7.0 mmH2O
Noise Level: 41.0 dBA
Bearing Type: Dual Ball Bearing
Interface: 4-Wire PWM
Lead Wire: UL 1007 #26 AWG
Material: PBT Plastic (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Life Expectancy: 65,000 Hours at 40 °C
Weight: 44.0 g
Safety Approvals: UL, CUL, TUV, CE

FD126020EB Applications
Primary applications include integration into server rack enclosures, telecommunications switching equipment, and industrial power supply units requiring active thermal management. Deployed within medical diagnostic imaging systems, CNC controller cabinets, and high-density network storage arrays.
