Description

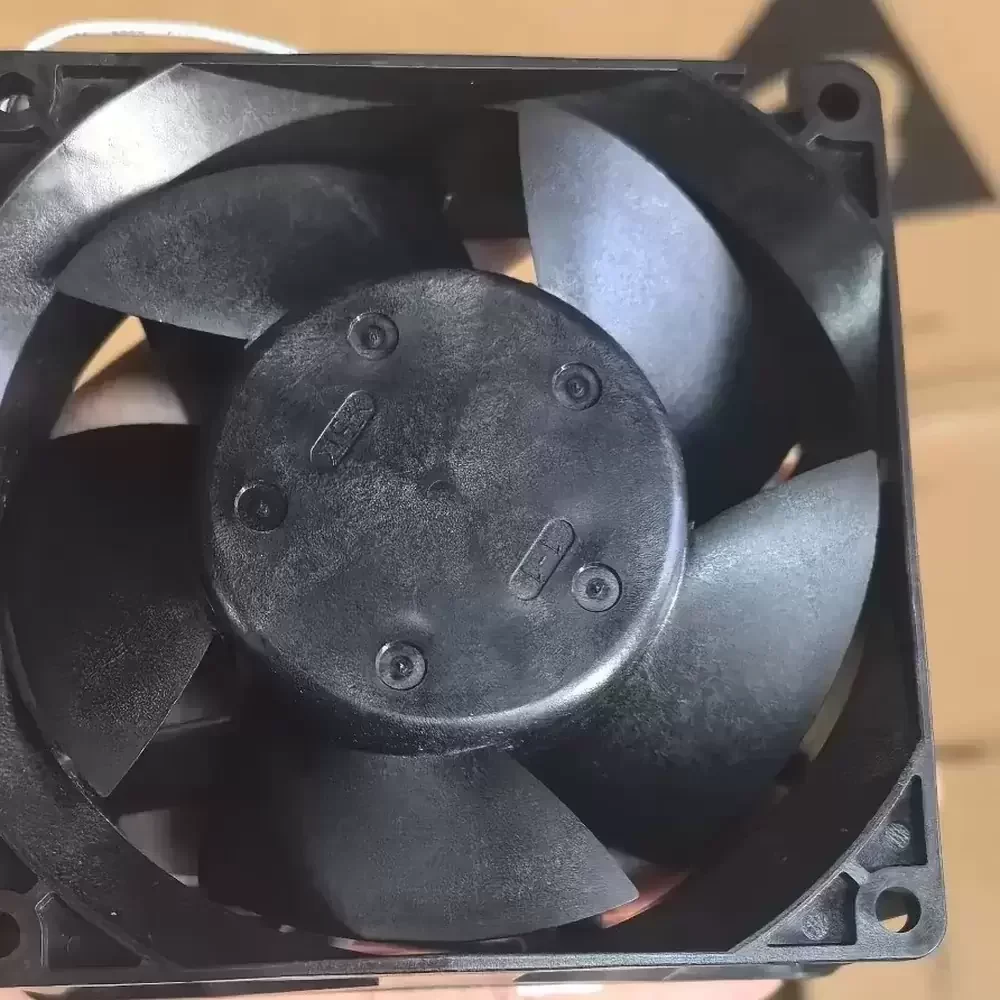

The NMB 09238DE-24P-CUE-1 is a high-performance Axial Fan engineered for demanding industrial thermal management applications. Leveraging MinebeaMitsumi’s advanced precision machining, this unit features a robust dual ball bearing architecture that ensures exceptional rotational stability and longevity under continuous operation. The aerodynamic impeller design is optimized to deliver high static pressure, effectively overcoming significant thermal impedance in densely packed electronic enclosures. With a 24VDC drive system and integrated PWM speed control capabilities, it offers precise airflow modulation, balancing cooling efficiency with acoustic performance. The structural rigidity of the frame supports high-speed operation, making it an ideal solution for critical cooling requirements where reliability is paramount.
Model Number: 09238DE-24P-CUE-1
Brand: NMB-MAT (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 1.50 A
Power Consumption: 36.0 W
Rated Speed: 5500 RPM
Max. Air Flow: 120.1 CFM (204.0 m³/h / 3.40 m³/min)
Max. Static Pressure: 28.5 mmH₂O (279.5 Pa / 1.12 inH₂O)
Bearing Type: Dual Ball Bearing
Dimensions: 92 x 92 x 38 mm
Weight: 230 g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: PWM (Pulse Width Modulation)
Noise Level: 58.0 dBA
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Safety Protection: Auto Restart, Polarity Protection
Designed for high-static pressure environments, the 09238DE-24P-CUE-1 excels in cooling variable frequency drives (VFDs) and industrial inverters where dense componentry restricts airflow. This model is frequently deployed in server rack enclosures, telecommunications base stations, and precision CNC machinery requiring consistent thermal regulation. The 09238DE-24P-CUE-1 is also suitable for medical instrumentation and power supply units, ensuring critical components remain within safe operating temperature ranges during peak loads.
