Description

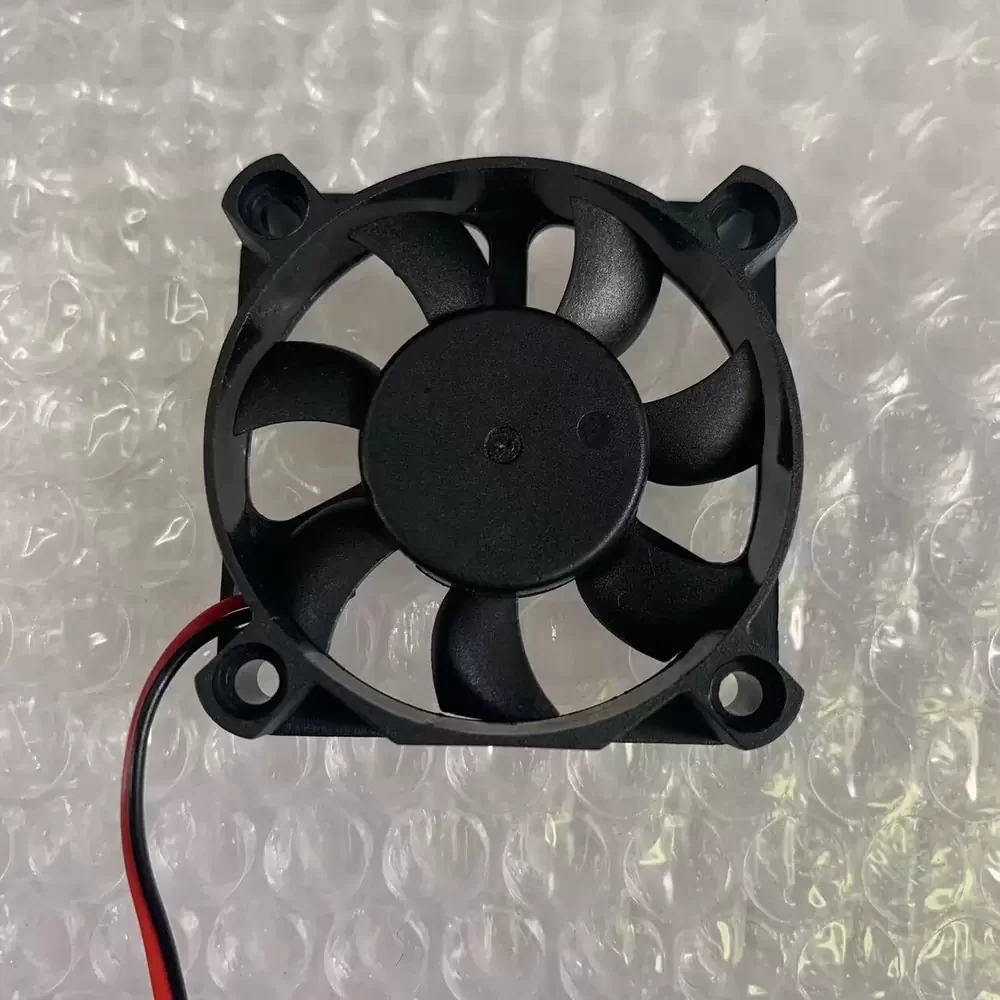

The SINWAN SD5012PT-24H(HH) is a DC Axial Fan engineered for precision thermal management in space-constrained industrial environments. Utilizing advanced DC brushless motor technology, this unit minimizes thermal impedance while maximizing structural rigidity through its UL94V-0 reinforced thermoplastic housing. The aerodynamic impeller design is optimized for stable laminar flow, ensuring efficient heat dissipation in high-density electronic enclosures. Its robust bearing architecture is designed to withstand continuous operation cycles, providing a reliable cooling solution for critical infrastructure. This fan represents a balance of low power consumption and consistent volumetric airflow, making it an essential component for maintaining optimal operating temperatures in sensitive electronic systems.
Model Number: SD5012PT-24H(HH)
Brand: SINWAN
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 20.4 – 27.6 VDC
Rated Current: 0.06A
Power: 1.44W
Rated Speed: 5000 RPM
Bearing Type: Precision Ball Bearing
Max. Air Flow: 12.5 CFM (21.2 m³/h / 0.35 m³/min)
Max. Static Pressure: 4.2 mmH₂O (41.2 Pa / 0.16 inH₂O)
Dimensions: 50x50x12mm
Weight: 25g
Life Expectancy: 50,000 Hours at 40°C
Noise Level: 32.0 dB(A)
Housing Material: Thermoplastic PBT, UL94V-0
Blade Material: Thermoplastic PBT, UL94V-0
Termination: 2-Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +80°C
Insulation Class: Class A
Protection Features: Polarity Protection, Locked Rotor Protection
Certifications: CE, TUV, UL
The SD5012PT-24H(HH) is specifically designed for high-reliability applications such as Schindler elevator inverters and industrial frequency converters. Due to its compact 50mm profile, the SD5012PT-24H(HH) is frequently integrated into server racks, medical diagnostic equipment, and telecommunications modules where space is at a premium. Its ability to maintain consistent airflow under back-pressure makes it ideal for cooling power supplies and CNC control cabinets, ensuring the longevity of sensitive semiconductor components in demanding industrial automation environments.
