Description

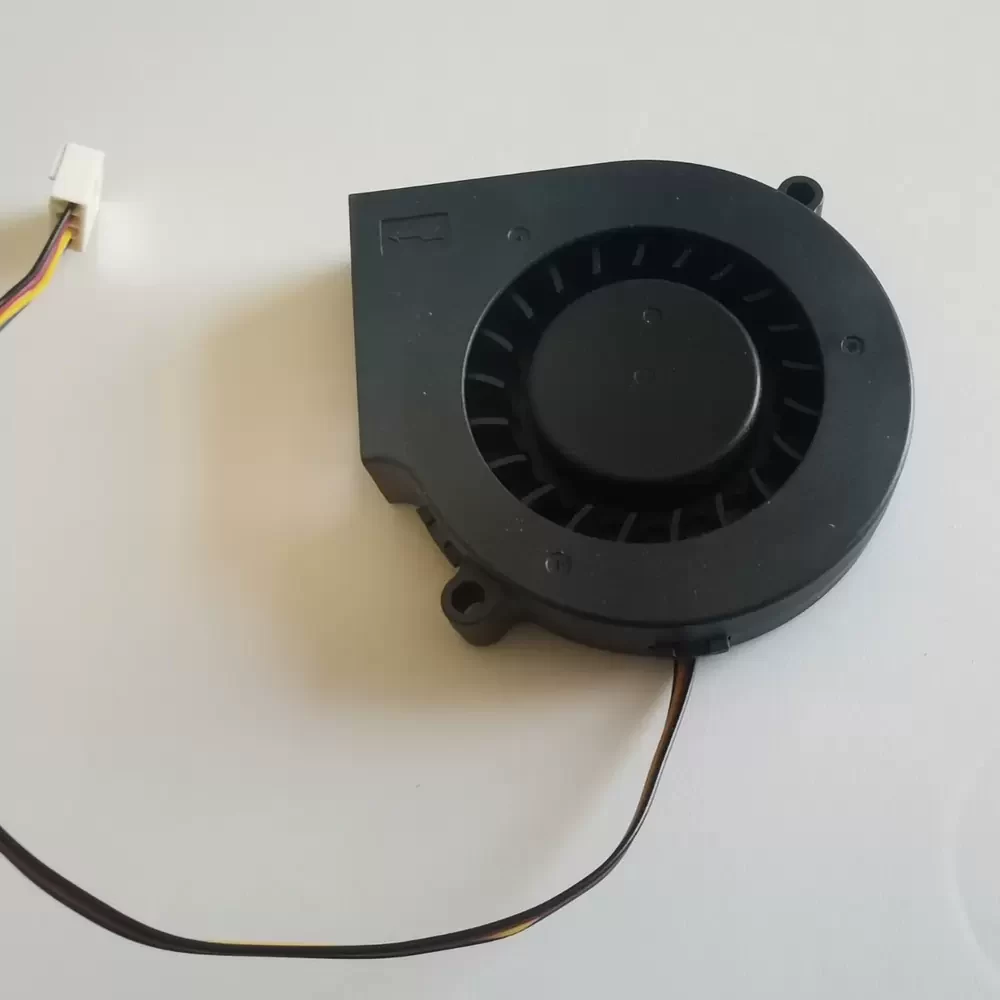

The CoolServer 7015BVH-M1 is a specialized centrifugal blower fan engineered for high-density thermal management in restricted environments. Utilizing advanced DC motor technology paired with a robust dual ball bearing architecture, this unit ensures exceptional rotational stability and prolonged operational lifespan under continuous load. The aerodynamic profile features a turbine-style impeller designed to maximize static pressure, overcoming high thermal impedance in compact chassis such as 1U servers and graphics cards. Its structural rigidity and precision-balanced components minimize vibration, while the integration of Pulse Width Modulation (PWM) allows for dynamic speed regulation based on real-time thermal demands, optimizing the balance between cooling efficiency and acoustic performance.
Model Number: 7015BVH-M1
Brand: CoolServer
Product Type: Centrifugal Blower Fan
Rated Voltage: 12VDC
Rated Current: 0.55 A
Rated Speed: 5000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 10.73 CFM (18.23 m³/h)
Max. Static Pressure: 17.41 mmH₂O (170.73 Pa / 0.69 inH₂O)
Dimensions: 77 x 75 x 15.5 mm
Mounting Hole Distance: 75 mm

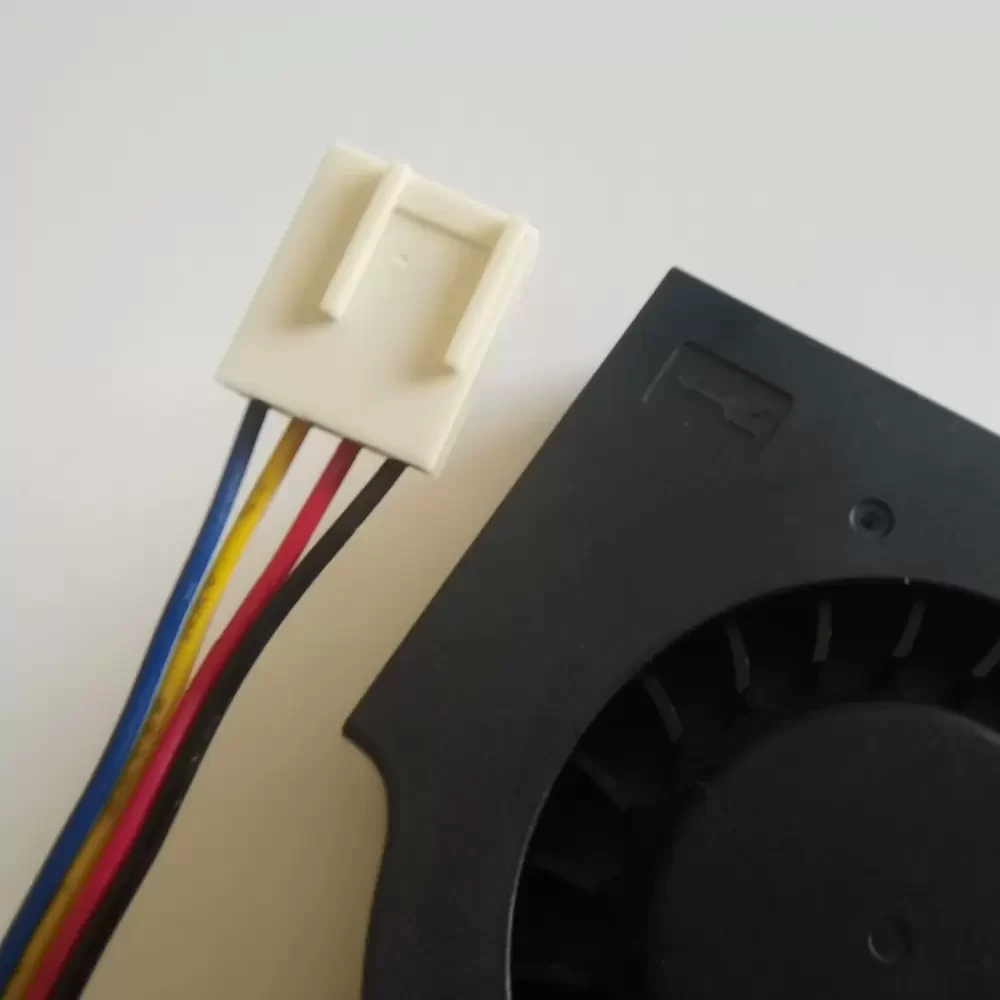

Connector: Standard 4-Pin Motherboard
Wire Length: 20 cm
Speed Control: PWM (Pulse Width Modulation)
Signal Output: FG (Frequency Generator / Tachometer)

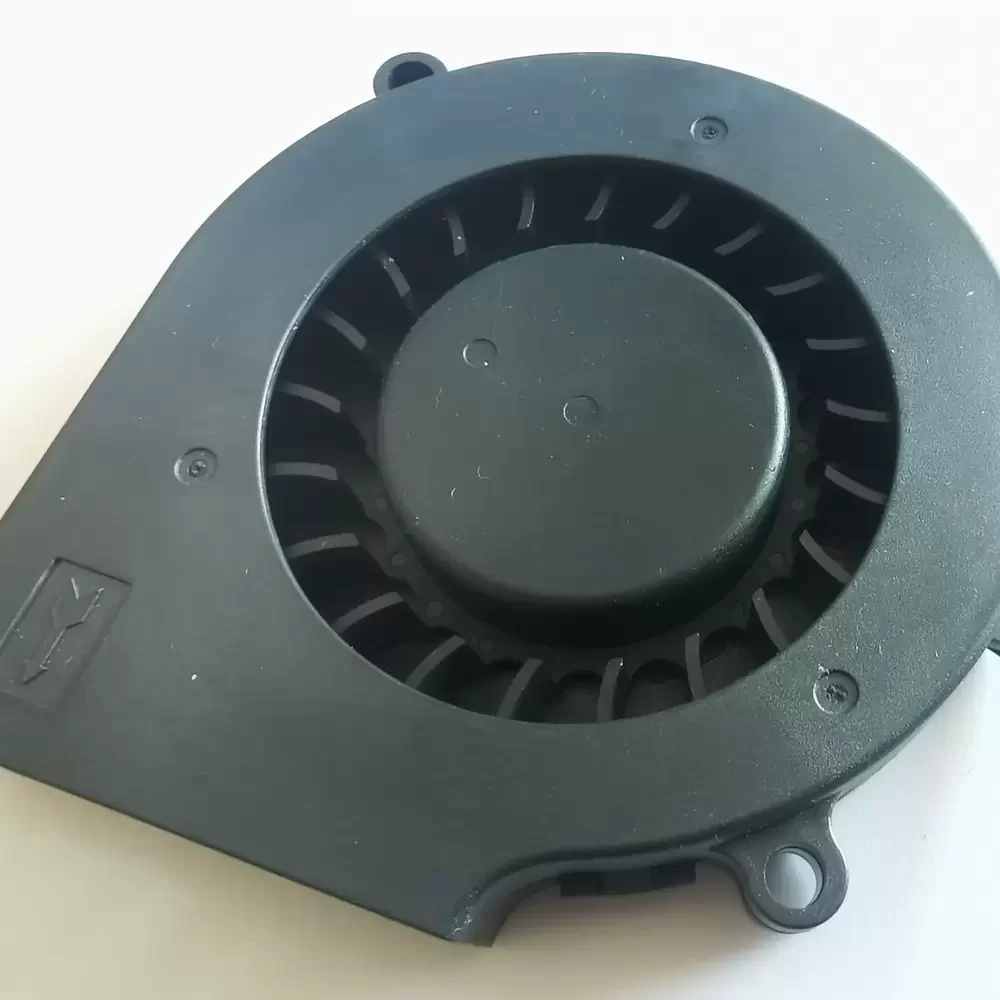

Blade Design: Turbine Centrifugal
Application: GPU, 1U Server, Industrial Control
Designed for space-constrained industrial and computing environments, the 7015BVH-M1 excels in applications requiring directed airflow and high static pressure. This blower is frequently deployed in 1U server racks where vertical height is limited, as well as in high-performance graphics card cooling solutions to dissipate heat from GPUs efficiently. The 7015BVH-M1 is also suitable for industrial control units (IPCs) and compact electronic enclosures where traditional axial fans cannot overcome the system resistance, ensuring critical components remain within safe operating temperature ranges.
Updated:
Additional information
| Shipping Weight | 1 kg |
|---|
