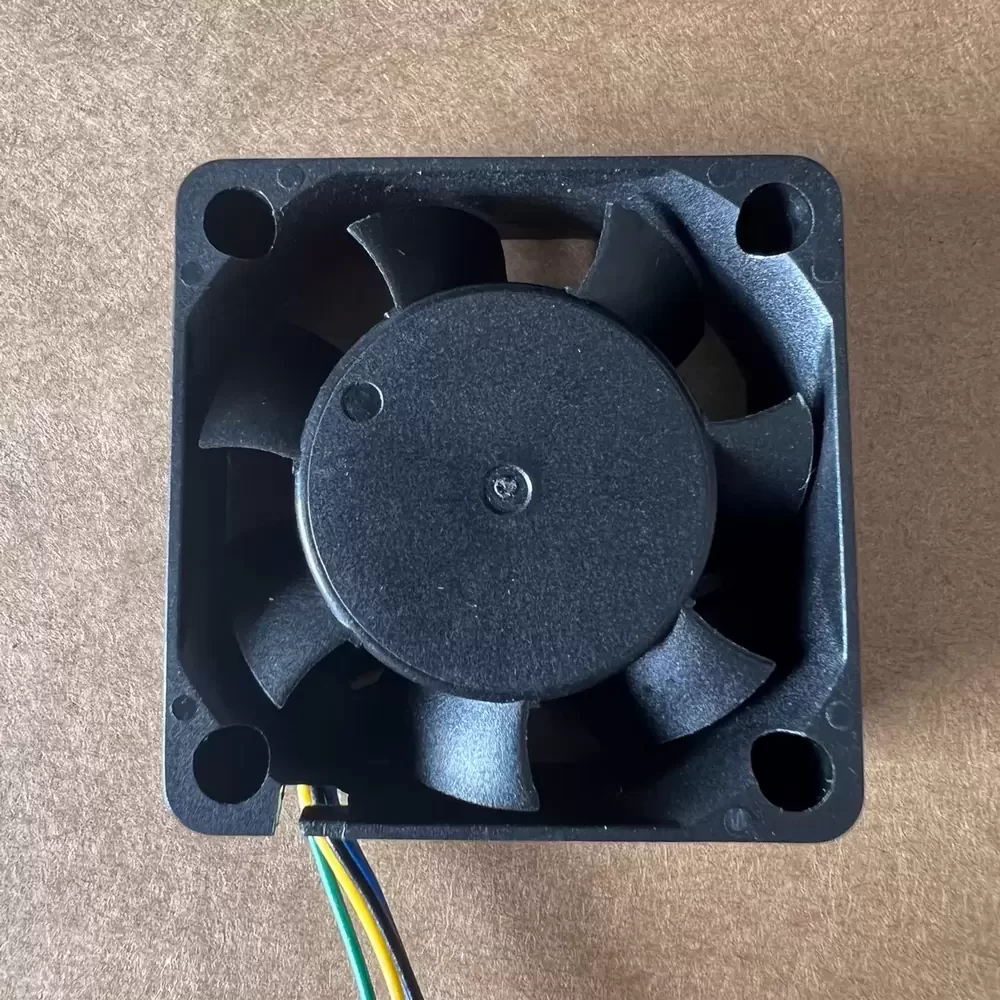

FD124015UB-N Y.S.TECH 12V 11000RPM 40x40x15mm DC Axial Fan

Description

Y.S. TECH FD124015UB-N 40 x 40 x 15 mm 12 VDC 11000 RPM 14.6 CFM is a high-performance DC axial fan designed for high-density thermal management. This unit features a precision dual ball bearing system and a 4-wire interface supporting PWM speed control for dynamic cooling adjustments. Constructed with a PBT UL 94V-0 plastic housing and impeller, the fan delivers a maximum rotational speed of 11000 RPM, generating a static pressure of 14.6 mmH2O. The internal mechanism is optimized for continuous operation with a life expectancy of 65000 hours at 40 °C, utilizing a brushless DC motor for efficient power conversion.

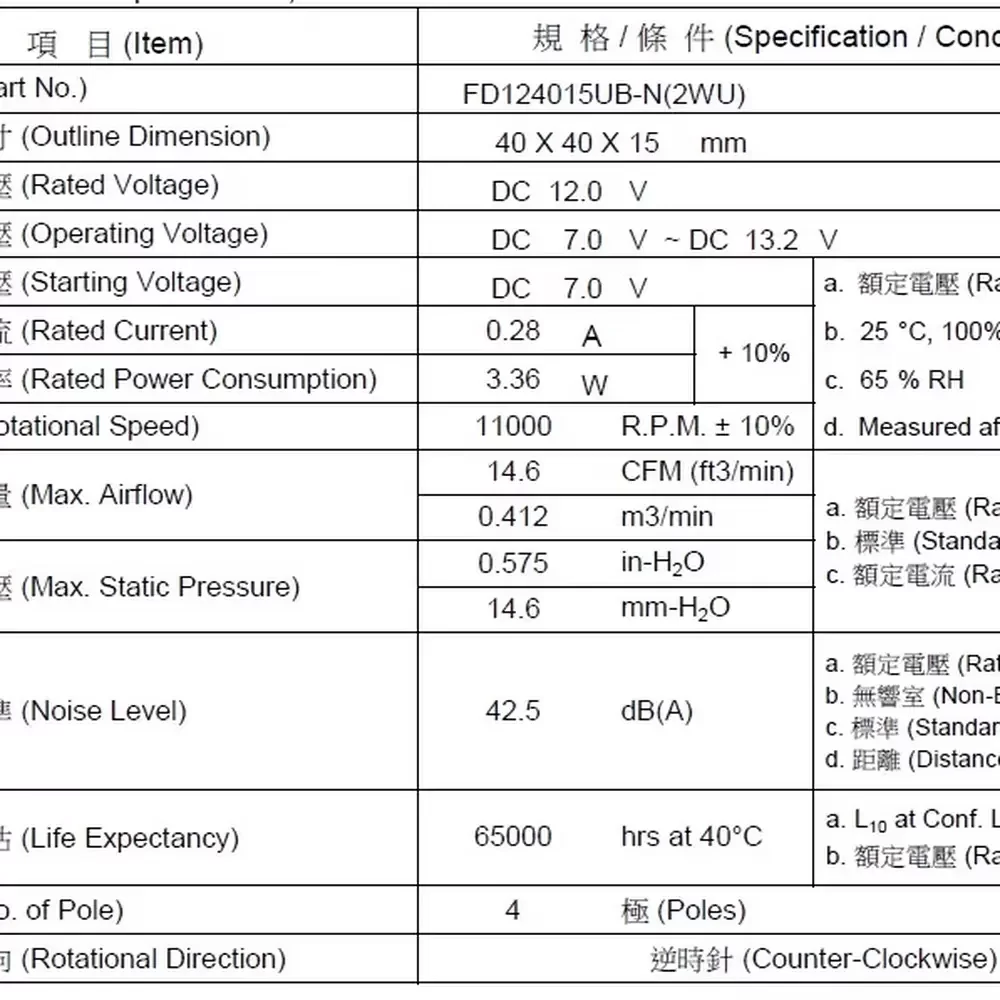

FD124015UB-N Specifications
Model Number: FD124015UB-N
Brand: Y.S. TECH (Yen Sun Technology Corp.)
Category: DC Axial Fan
Dimensions: 40 x 40 x 15 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7 to 13.2 VDC
Rated Current: 0.28 A
Label Current: 0.34 A
Input Power: 3.36 W
Rated Speed: 11000 RPM
Maximum Airflow: 14.6 CFM
Maximum Static Pressure: 14.6 mmH2O
Noise Level: 42.5 dBA
Bearing Type: Dual Ball Bearing
Interface: 4-wire (PWM Control)
Material: PBT Plastic (UL 94V-0)
Weight: 28 g
Life Expectancy: 65000 hours at 40 °C
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Safety Certifications: UL, CUL, TUV, CE

FD124015UB-N Applications
Primary applications include integration into 1U network server chassis, high-density telecommunications switches, and industrial power supply cooling modules. Deployed within compact medical diagnostic equipment and high-performance computing nodes requiring precise PWM-regulated thermal dissipation.
