FD1260-S3012C ARX 12VDC 0.13A 60x60x15mm Axial Fan

Description

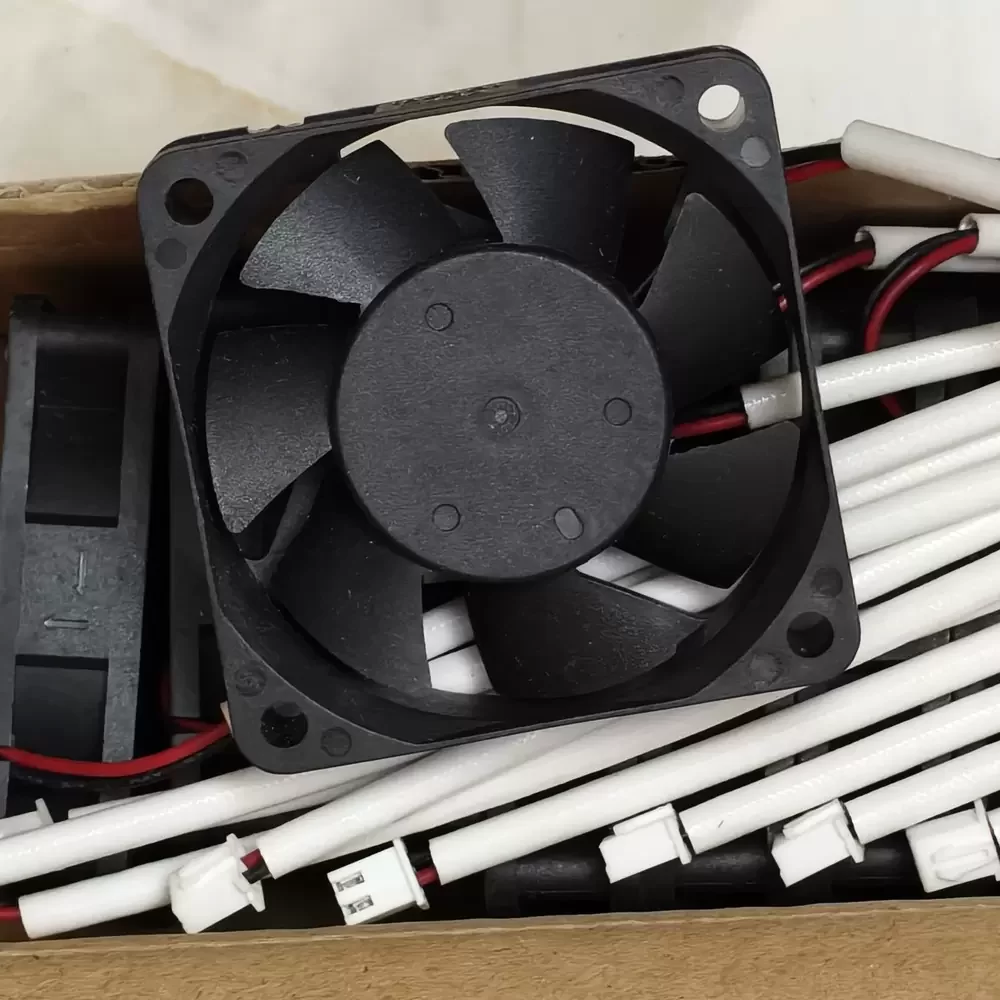

ARX FD1260-S3012C is a 60 x 60 x 15 mm axial cooling fan operating at a nominal 12 VDC with a 0.13 A current draw. The unit features a PBT plastic housing and impeller rated to UL 94V-0 standards, integrated with a sleeve bearing system for horizontal mounting stability. It utilizes a brushless DC motor architecture with a 2-wire lead interface, delivering approximately 18.5 CFM of airflow at a rotational speed of 4000 RPM while maintaining a noise profile of 30 dBA. The internal circuitry includes polarity protection and auto-restart functionality within a compact 15 mm profile.

FD1260-S3012C Specifications
Model: FD1260-S3012C
Brand: ARX
Category: Axial Cooling Fan
Dimensions: 60 x 60 x 15 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.2 to 13.8 VDC
Rated Current: 0.13 A
Power Consumption: 1.56 W
Rated Speed: 4000 RPM
Maximum Airflow: 18.5 CFM
Static Pressure: 3.2 mmH2O
Noise Level: 30 dBA
Bearing Type: Sleeve Bearing
Housing Material: Thermoplastic PBT (UL 94V-0)
Impeller Material: Thermoplastic PBT (UL 94V-0)

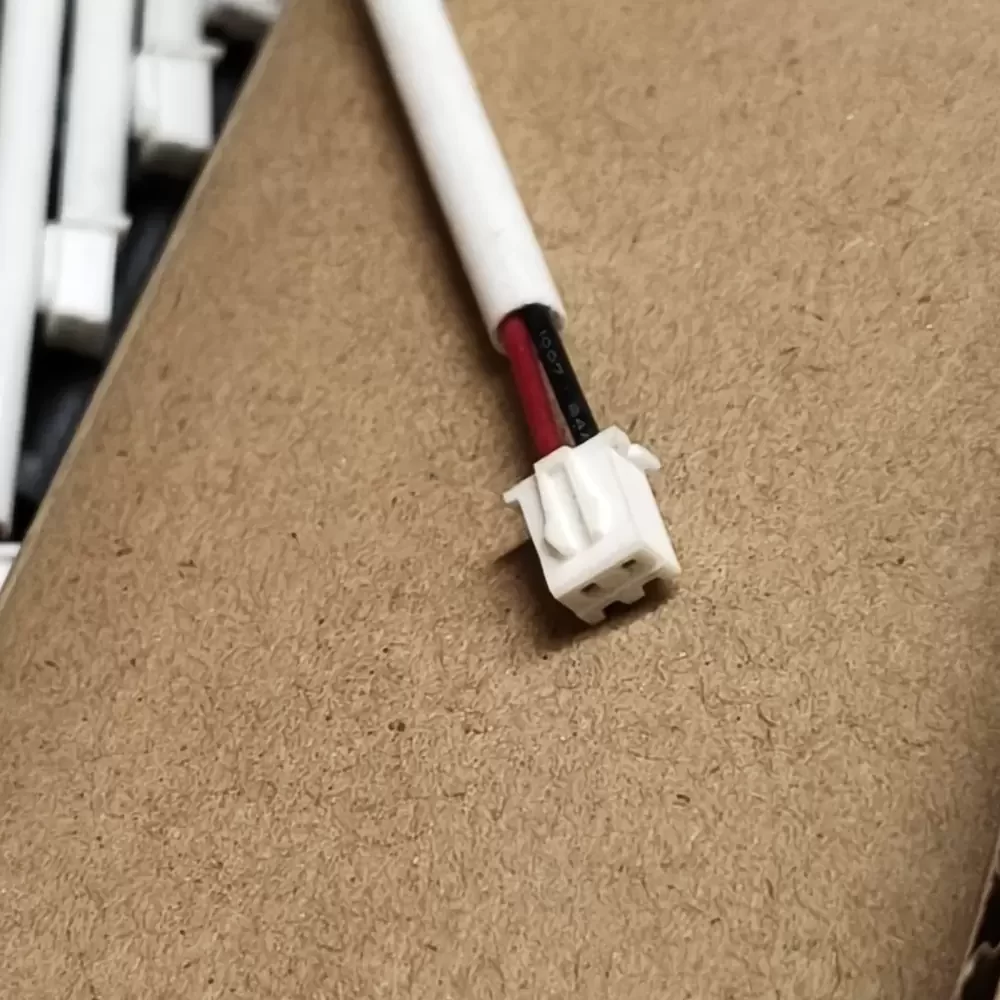

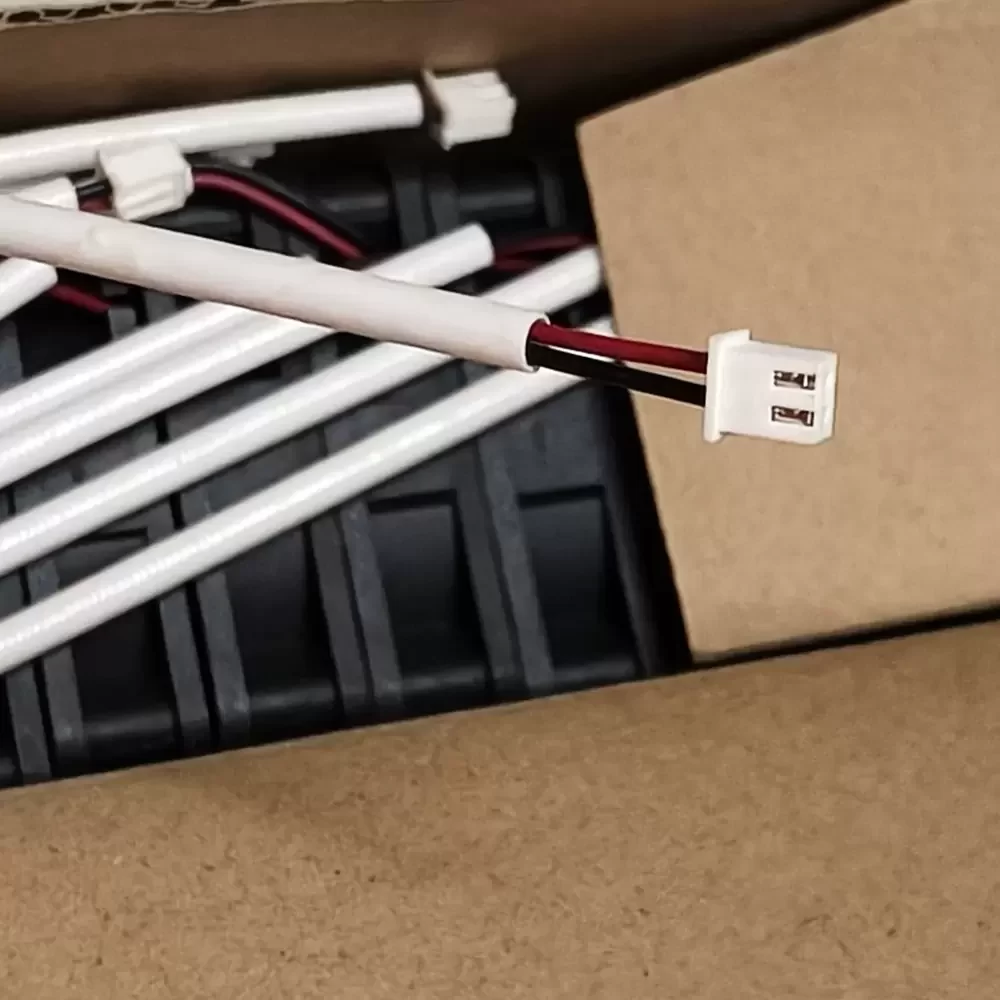

Lead Wire: 2-wire (Red +, Black -)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Weight: 35 g
Motor Type: Brushless DC Motor
Insulation Resistance: 10 MΩ at 500 VDC
Dielectric Strength: 5 mA Max at 500 VAC for 1 minute

FD1260-S3012C Applications
Primary applications include integration into network switch enclosures, compact power supply units, and medical diagnostic equipment. Deployed within server rack ventilation modules and industrial control PC chassis to facilitate localized heat dissipation.
