Description

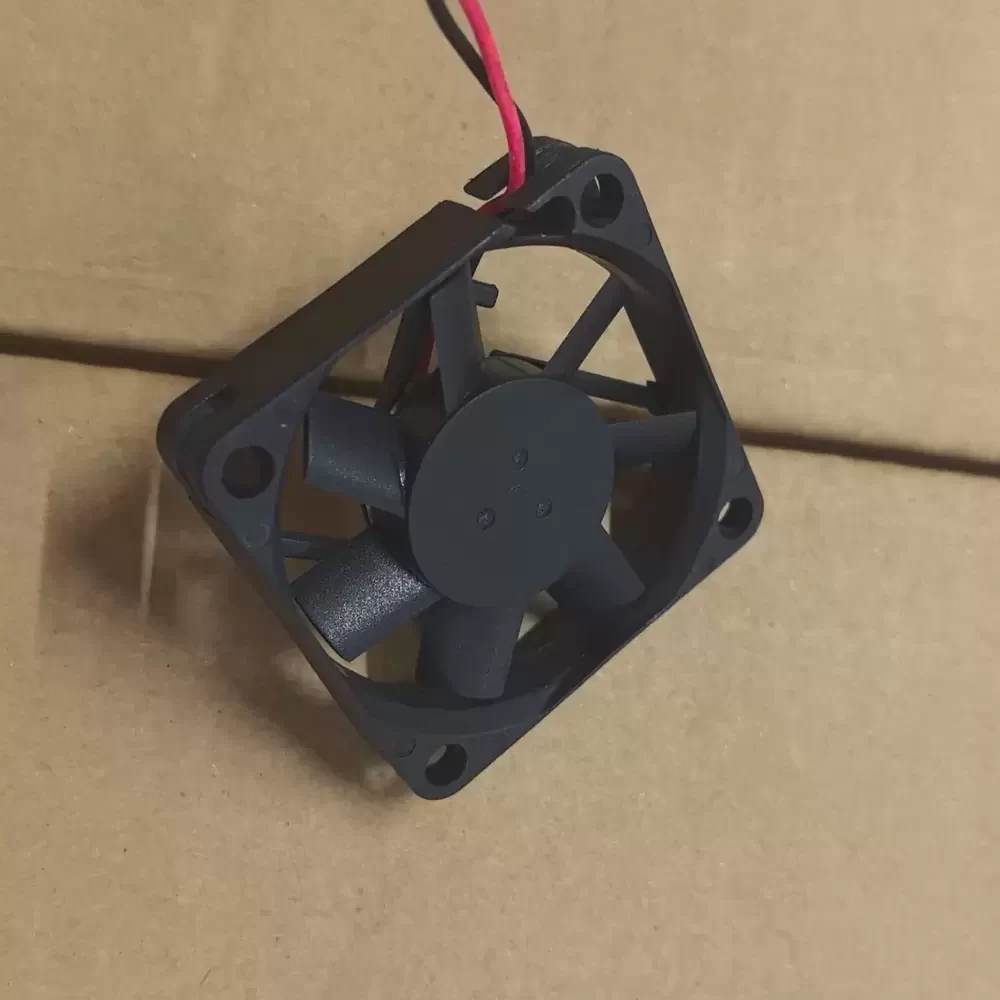

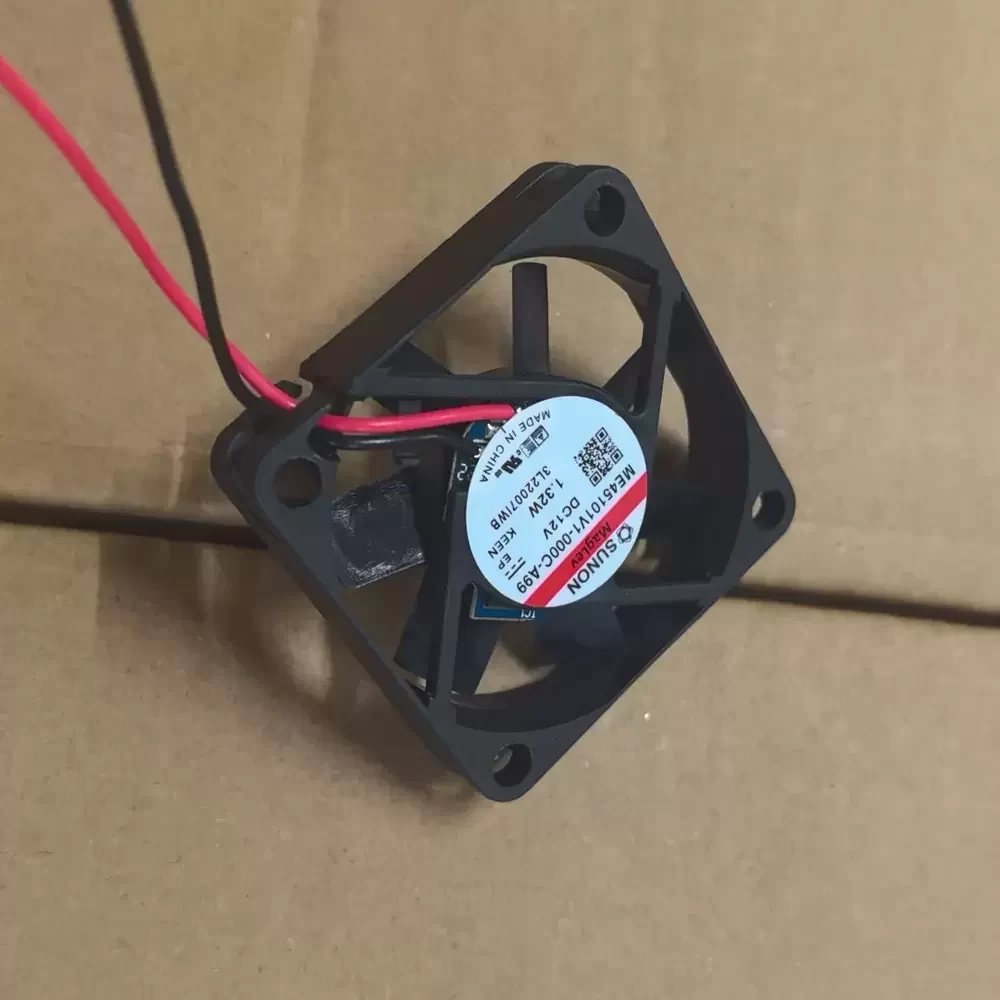

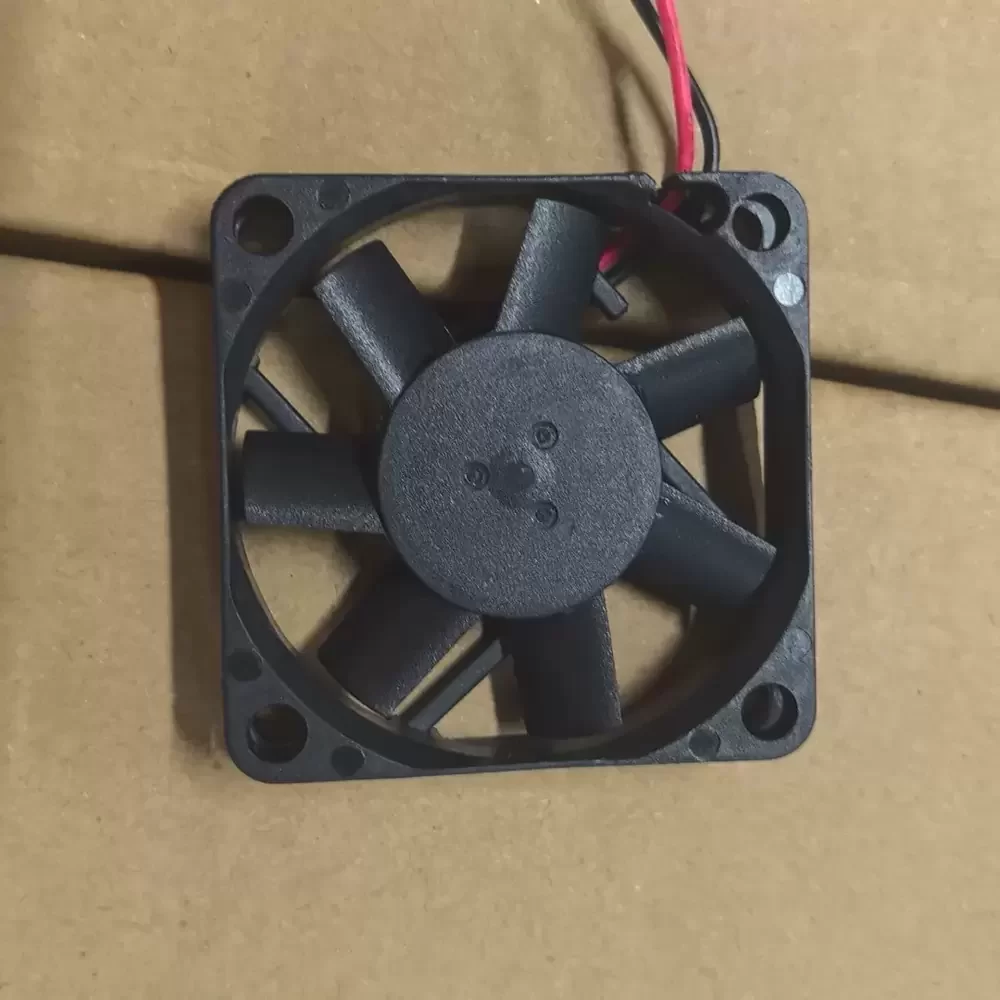

The Sunon ME45101V1-000C-A99 is a precision-engineered DC Axial Fan designed for compact thermal management solutions. Utilizing Sunon’s proprietary MagLev (Magnetic Levitation) motor technology combined with a Vapo bearing system, this unit eliminates physical contact between the shaft and bearing, significantly reducing friction and noise while extending operational lifespan. The aerodynamic impeller geometry is optimized to deliver high airflow density relative to its 45mm frame, ensuring low thermal impedance in restricted spaces. Constructed with high-grade thermoplastic PBT, the frame offers superior structural rigidity and vibration damping, making it ideal for continuous duty cycles in demanding industrial and electronic environments.
Model Number: ME45101V1-000C-A99
Brand: Sunon
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 4.5 – 13.8 VDC
Rated Current: 0.11 A
Power: 1.32 W
Rated Speed: 6000 RPM
Bearing Type: MagLev Vapo
Max. Air Flow: 11.0 CFM (18.7 m³/h / 0.31 m³/min)
Max. Static Pressure: 4.83 mmH₂O (47.4 Pa / 0.19 inH₂O)
Dimensions: 45x45x10mm
Weight: 14.0 g
Life Expectancy: 60,000 Hours at 40°C
Noise Level: 32.0 dBA
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Termination: 2-Wire Lead (Red +, Black -)
Wire Gauge: 26 AWG
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP5X
Safety Certifications: UL, CUR, TUV
Motor Protection: Impedance Protected; Reverse Polarity
The ME45101V1-000C-A99 is engineered for critical cooling applications where space constraints and reliability are paramount. Common deployments include compact server chassis, network switches, and embedded industrial controllers requiring consistent airflow. The ME45101V1-000C-A99 is also frequently utilized in portable medical devices, LED lighting arrays, and projector cooling systems, where its MagLev technology ensures quiet operation without compromising thermal performance.
