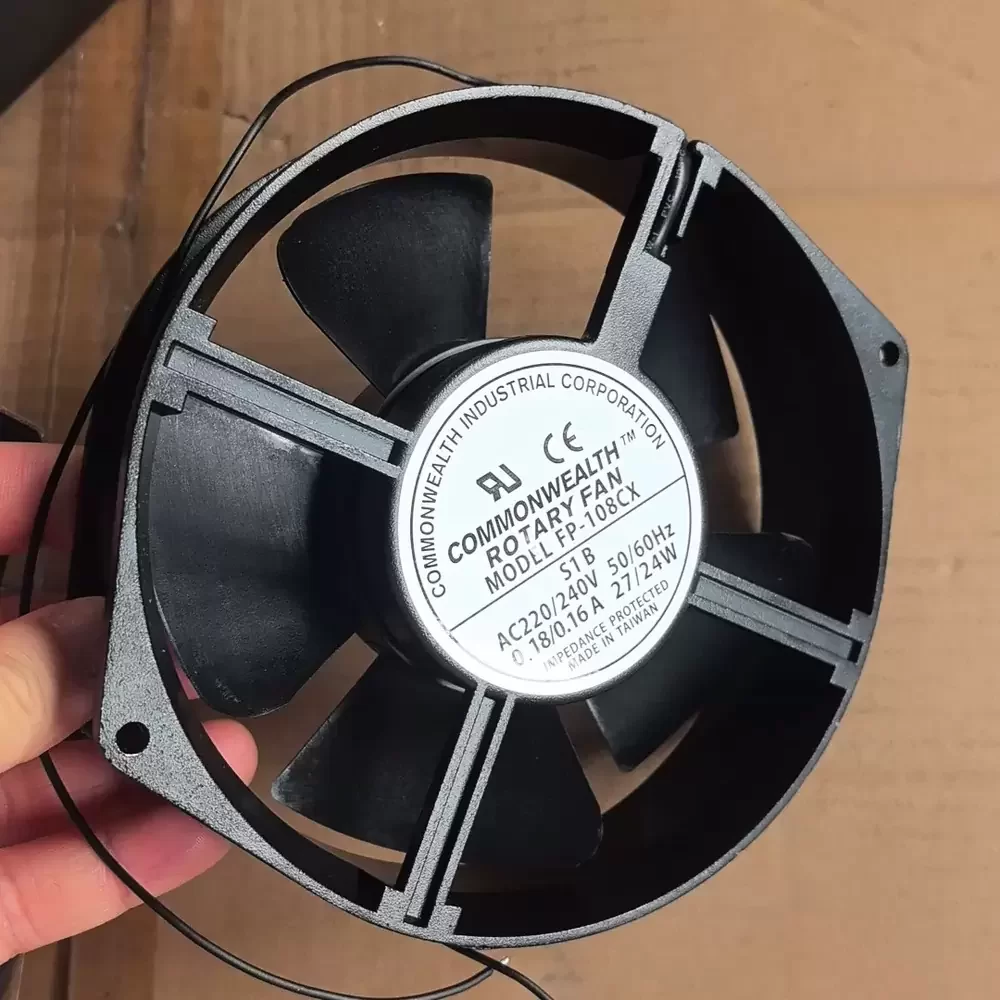

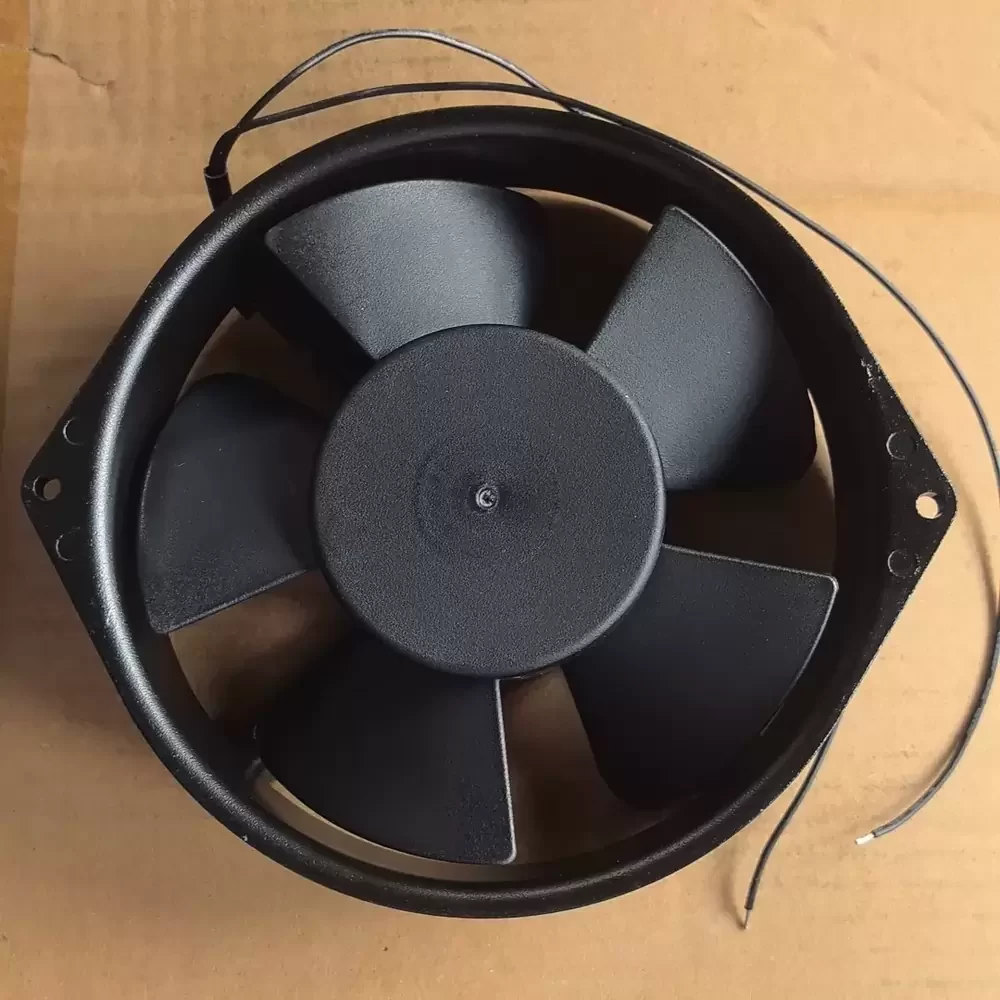

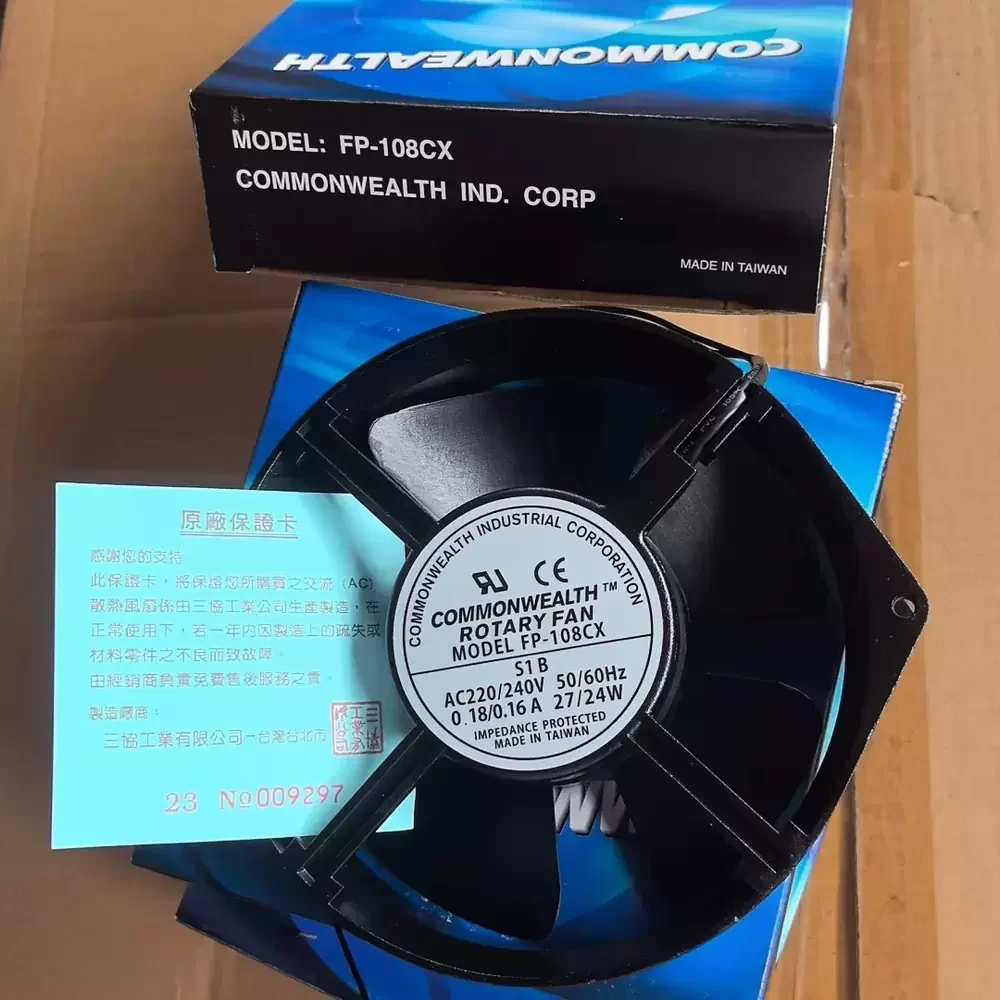

FP-108CX-S1-B Commonwealth 220/240VAC 162x150x38mm AC Axial Fan

Description

The Commonwealth FP-108CX-S1-B is a robust AC Axial Fan engineered for critical thermal management in industrial environments. Featuring a durable aluminum die-cast frame and a UL94V-0 thermoplastic impeller, this unit ensures structural rigidity and optimal aerodynamic performance under continuous operation. The motor utilizes a reliable sleeve bearing architecture designed to balance operational longevity with cost-efficiency. With an impedance-protected shaded pole motor design, the fan offers resilience against electrical fluctuations while delivering consistent airflow. Its elliptical form factor allows for versatile integration into space-constrained enclosures, minimizing thermal impedance in high-density electronic cabinets and machinery.

Model Number: FP-108CX-S1-B
Brand: Commonwealth
Product Type: AC Axial Fan
Rated Voltage: 220/240 VAC
Frequency: 50/60 Hz
Rated Current: 0.18 / 0.16 A
Power Input: 27 / 24 W
Rated Speed: 2900 / 3300 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 190 / 235 CFM (5.38 / 6.65 m³/min)
Max. Static Pressure: 14.0 / 17.3 mmH₂O (137 / 169 Pa)
Dimensions: 162mm x 150mm x 38mm
Noise Level: 50 / 55 dBA
Frame Material: Aluminum Alloy Die-Cast
Impeller Material: PBT Thermoplastic (UL94V-0)
Motor Type: Shaded Pole Induction Motor
Termination: Terminals
Operating Temperature: -10°C to +70°C
Insulation Resistance: >100M Ohm at 500VDC
Dielectric Strength: 1500VAC for 1 Minute
Protection: Impedance Protected
Weight: 840 g

Designed for rigorous industrial applications, the FP-108CX-S1-B excels in ventilating server racks, telecommunication cabinets, and automation control panels. Its oval profile makes it particularly suitable for retrofitting into legacy machinery or CNC equipment where standard square frames may not fit. The FP-108CX-S1-B provides reliable heat dissipation for power supplies and instrumentation, ensuring continuous operation in manufacturing facilities and data centers.
