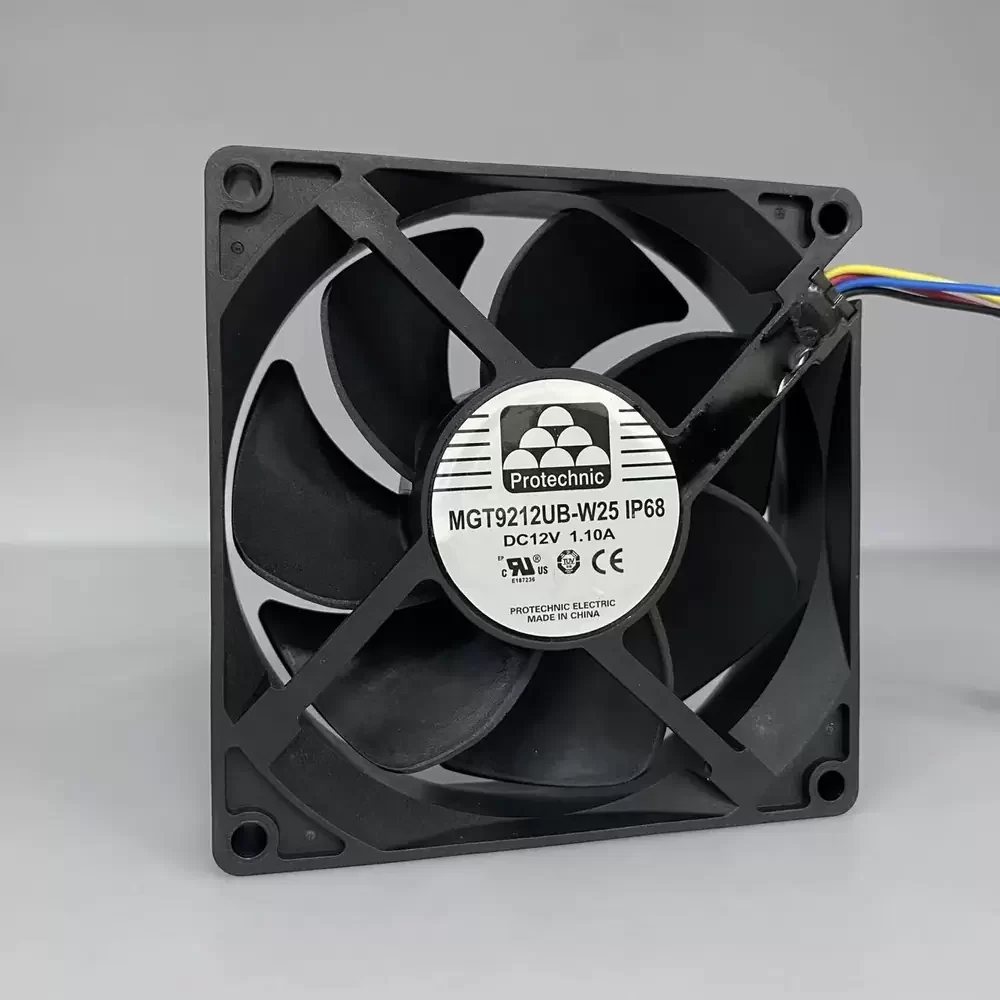

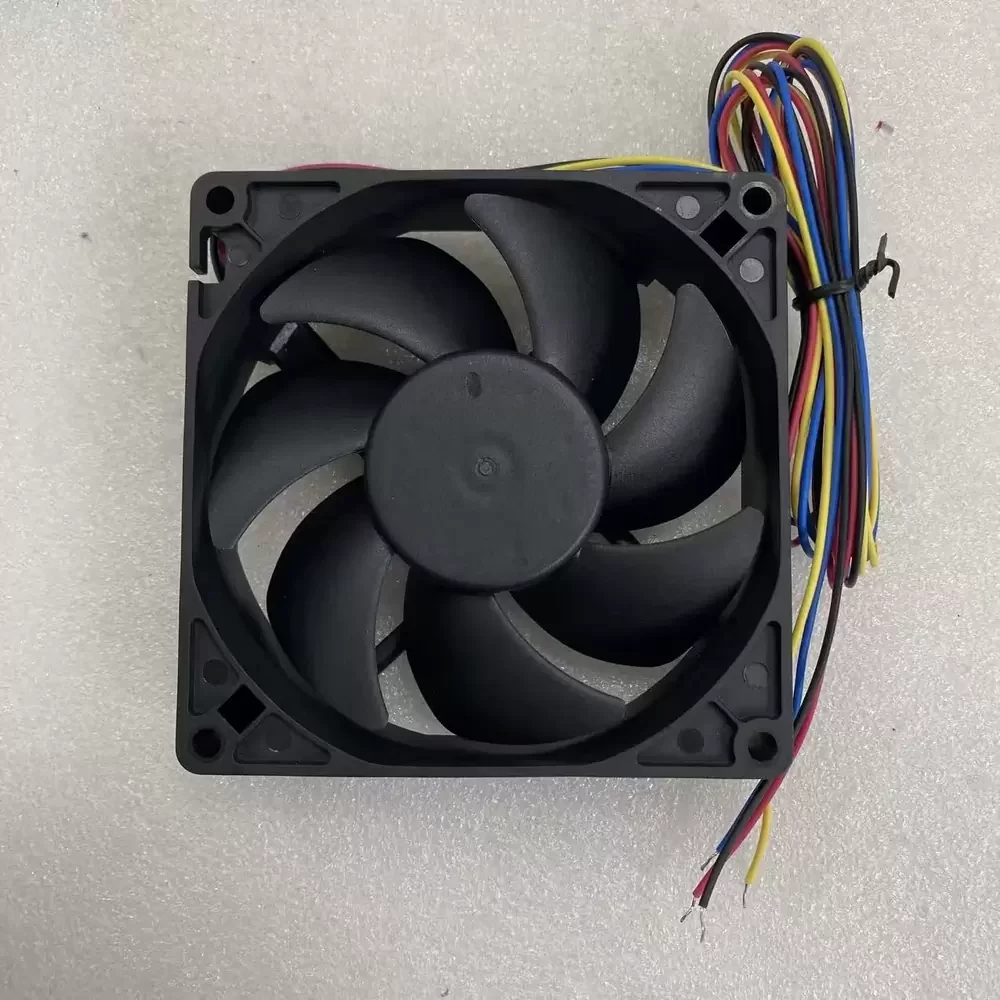

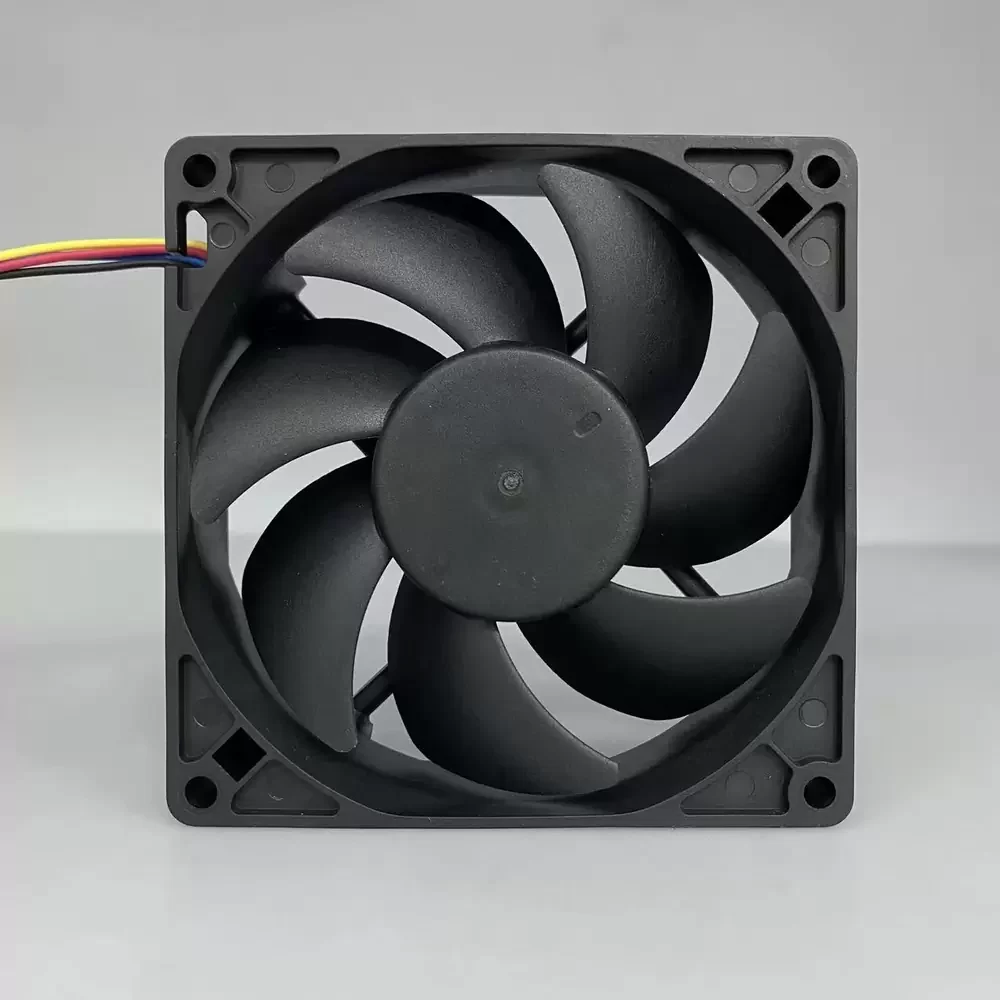

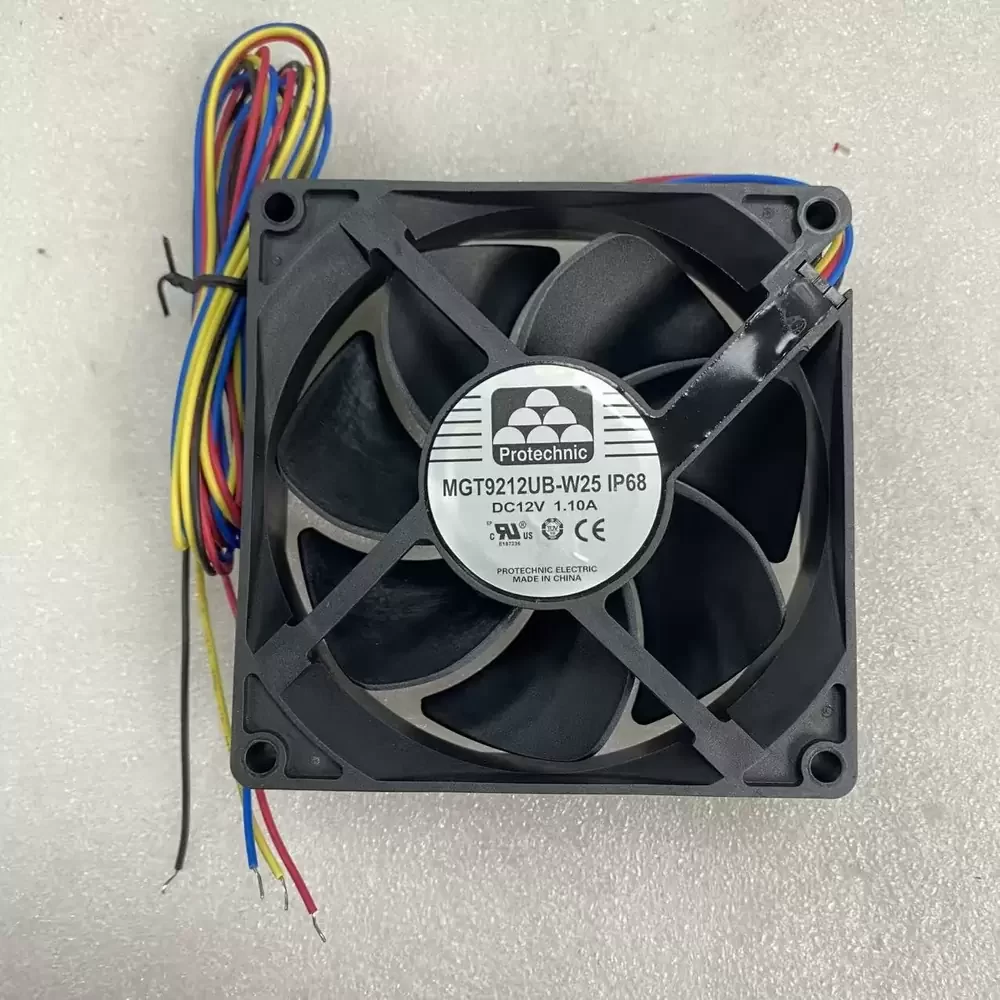

MGT9212UB-W25IP68 Protechnic 12VDC 92x92x25mm Axial Fan

Description

Protechnic MGT9212UB-W25IP68 is a 92 x 92 x 25 mm axial cooling fan operating at 12 VDC with a 1.10 A current draw and 5574 RPM rotational speed. The unit features a dual ball bearing system and a PBT UL 94V-0 plastic impeller and frame. It utilizes a 4-wire interface for PWM speed control and tachometer output. The internal motor is fully encapsulated to achieve an IP 68 ingress protection rating against dust and water immersion.

MGT9212UB-W25IP68 Specifications
Model: MGT9212UB-W25IP68
Brand: Protechnic
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.8 to 13.2 VDC
Rated Current: 1.10 A
Rated Power: 13.2 W
Rated Speed: 5574 RPM
Maximum Airflow: 110.5 CFM
Maximum Static Pressure: 15.8 mmH2O
Noise Level: 55.2 dBA
Bearing Type: Dual Ball Bearing
Ingress Protection: IP 68
Interface: 4-wire (PWM/Signal)
Material: PBT Plastic (UL 94V-0)
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +70 °C
Weight: 120 g
Life Expectancy: 70,000 hours at 40 °C

MGT9212UB-W25IP68 Applications
Primary applications include integration into high-density server rack enclosures, industrial automation control cabinets, and outdoor telecommunications base stations requiring moisture resistance. Deployed within CNC machine tool cooling systems and ruggedized power supply units where high static pressure and IP 68 environmental sealing are mandatory.
