PFR0912XHE-D3N Delta 12VDC 4.5A 92mm Server Cooling Fan

Description

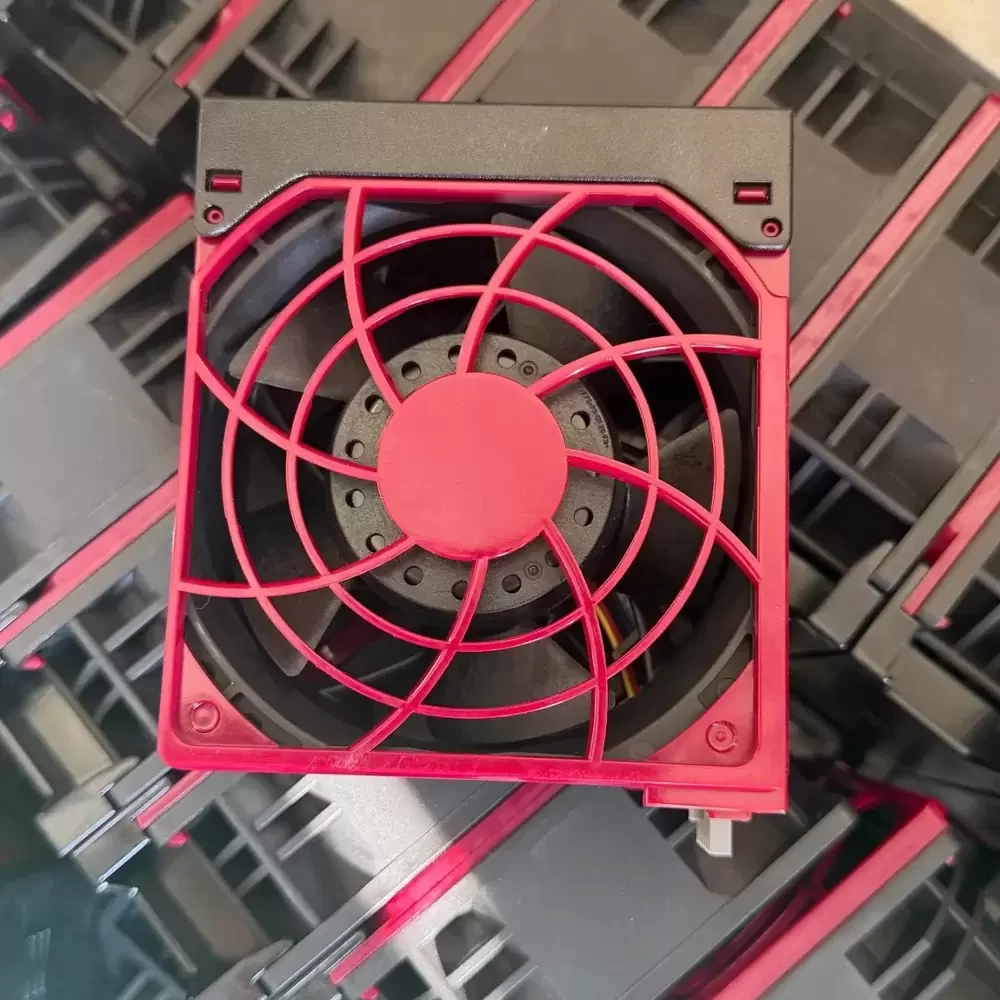

Delta PFR0912XHE-D3N is a 92 x 92 x 38 mm axial cooling fan delivering 12 VDC nominal voltage, 4.50 A current, and an aggressive 185.55 CFM airflow capacity. Constructed with a durable plastic frame and impeller, this unit utilizes a maintenance-free dual ball bearing mechanism designed for a 70000 hour lifespan at 40 °C. The hardware features a 4-wire interface supporting precise PWM speed control and tachometer feedback, operating at a maximum speed of 11500 RPM while generating 2.523 inH2O of static pressure.

PFR0912XHE-D3N Specifications
Model Number: PFR0912XHE-D3N

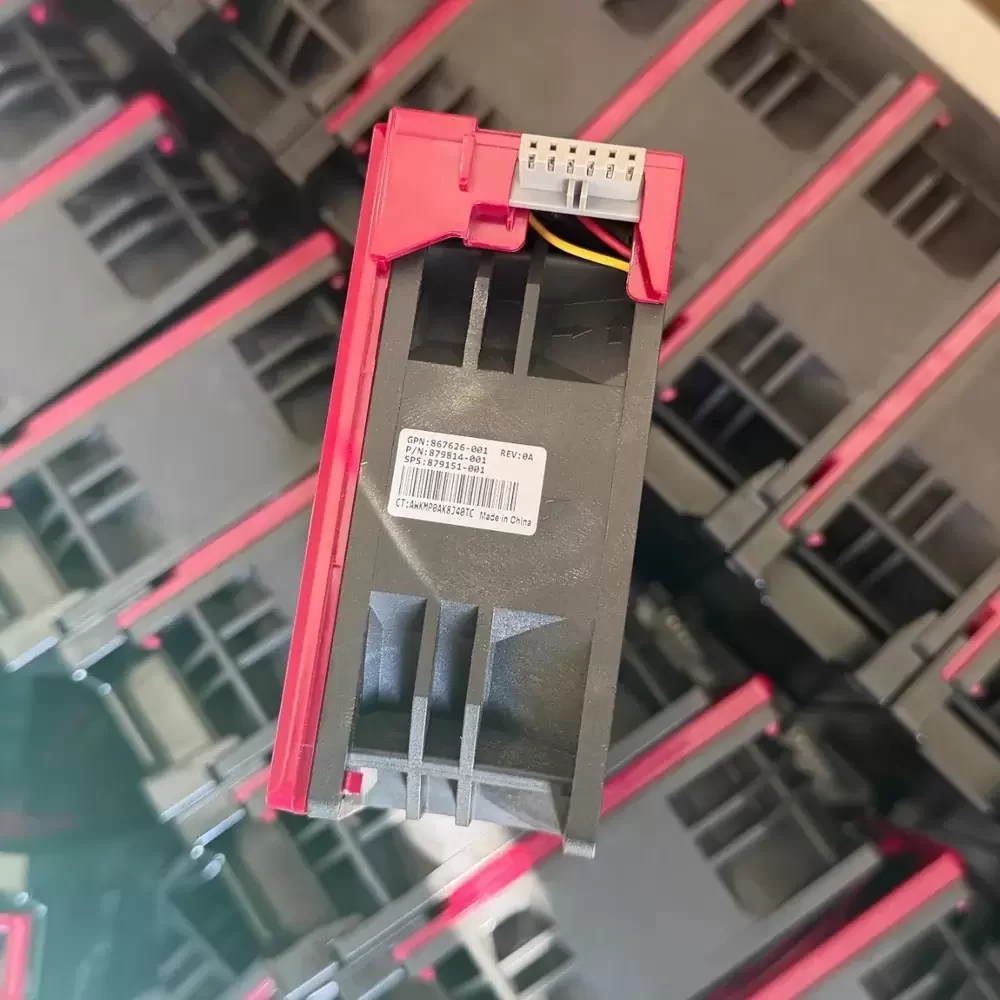

HP Part Numbers: 867626-001, 879814-001, 879151-001, DBPG0938B2U
Brand: Delta Electronics
Product Category: DC Brushless Axial Flow Fan
Nominal Voltage: 12 VDC
Operating Voltage Range: 7.0 to 13.2 VDC
Nominal Current: 4.50 A
Power Consumption: 54.0 W
Dimensions: 92 x 92 x 38 mm
Maximum Airflow: 185.55 CFM
Maximum Airflow (Metric): 5.255 m³/min
Static Pressure: 2.523 inH2O
Static Pressure (Metric): 64.10 mmH2O
Maximum Speed: 11500 RPM
Noise Level: 71.0 dB(A)
Bearing Type: Dual Ball Bearing
Termination: 4-Wire Lead
Control Method: PWM
Sensor: Tachometer
Frame Material: Plastic
Blade Material: Plastic
Operating Temperature: -10 to 70 °C
Expected Lifetime: 70000 Hours at 40 °C
Weight: 260 g

PFR0912XHE-D3N Applications
Primary applications include integration into HPE ProLiant ML350 Gen10 enterprise servers for direct CPU and motherboard thermal management. Deployed within high-density data center racks, telecom base stations, and industrial computing chassis requiring aggressive forced-air heat dissipation under continuous operational loads.
