Description

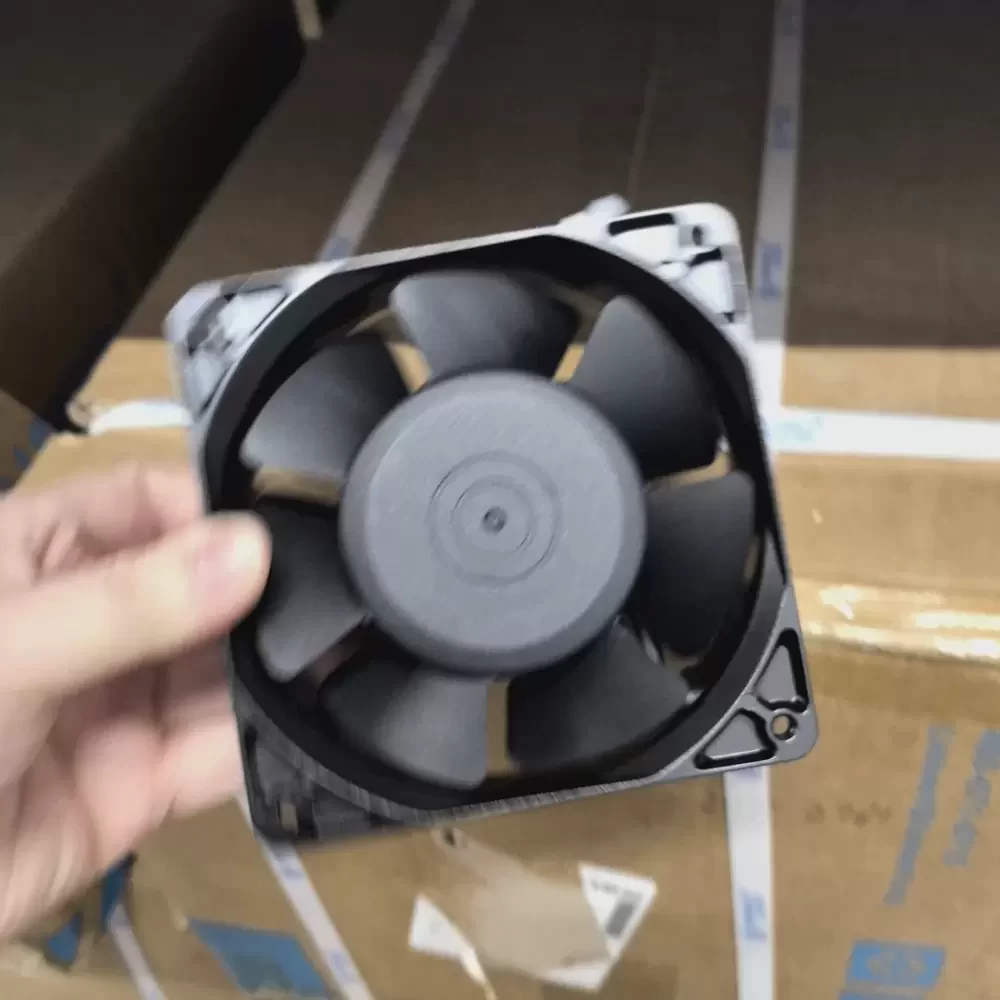

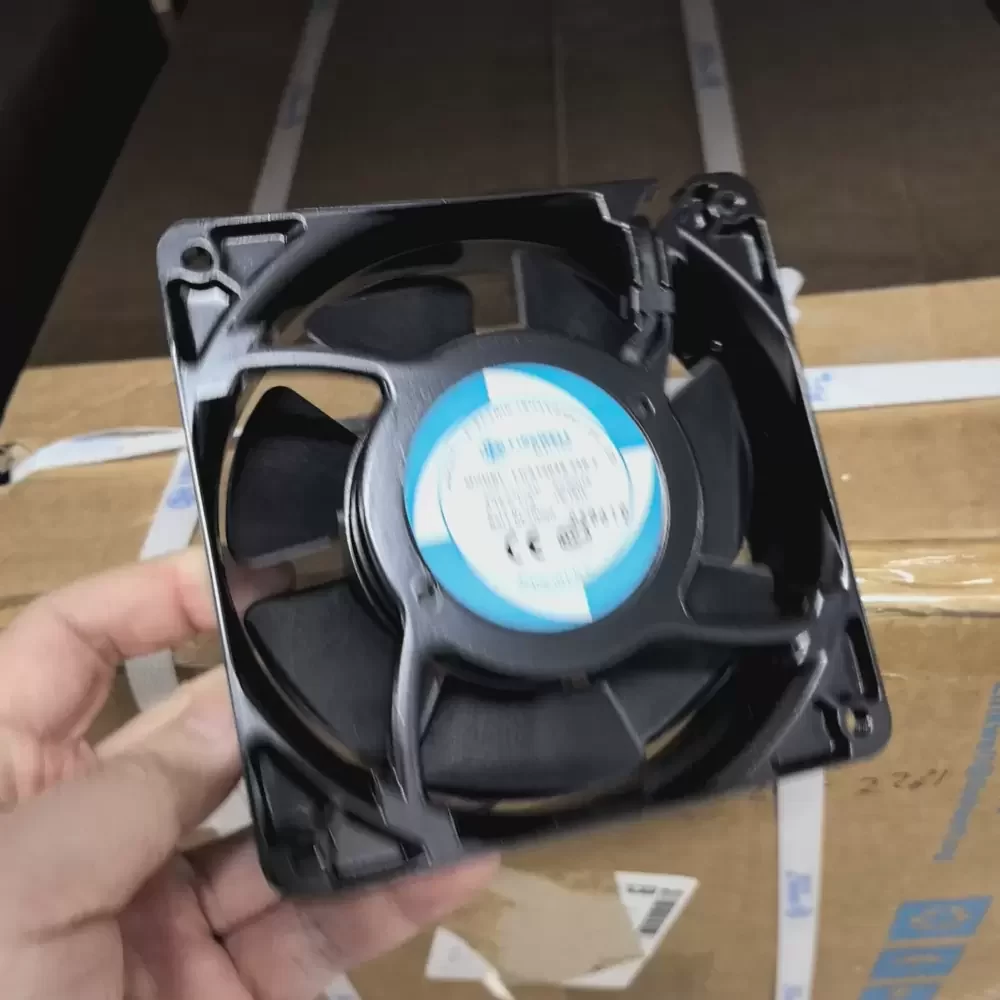

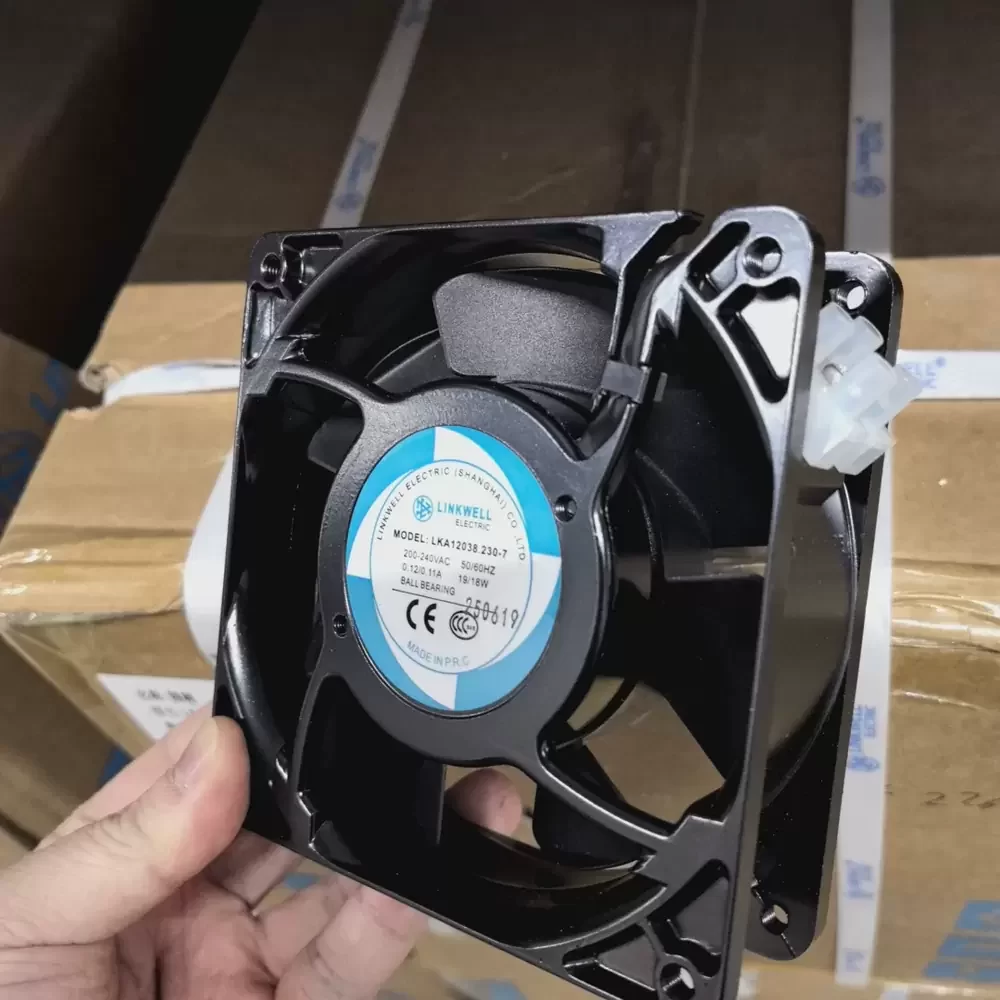

The LINKWELL LKA12038.230-7 is a high-reliability AC axial fan engineered for demanding industrial thermal management applications. Designed with a robust motor architecture, this unit delivers consistent performance to maintain optimal thermal impedance within enclosed electronic systems. The fan features a die-cast aluminum housing that provides exceptional structural rigidity and heat dissipation properties, ensuring durability in harsh operating environments. Its aerodynamic impeller design is optimized to maximize airflow efficiency while minimizing turbulence and acoustic noise. Ideal for continuous duty cycles, the LKA12038.230-7 integrates precision bearing technology to reduce friction and extend the operational lifespan of the component, making it a critical asset for maintaining system stability.
Model Number: LKA12038.230-7
Brand: LINKWELL
Product Type: AC Axial Fan
Rated Voltage: 230 VAC
Voltage Range: 200 – 240 VAC
Frequency: 50 / 60 Hz
Rated Current: 0.12 / 0.11 A
Power Input: 19 / 18 W
Rated Speed: 2600 / 2900 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 95.0 CFM (161.4 m³/h)
Max. Static Pressure: 7.5 mmH₂O (73.5 Pa / 0.30 inH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 530 g
Frame Material: Aluminum Alloy
Impeller Material: PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Termination: Lead Wires
Life Expectancy: 50,000 Hours at 25°C
Phase: Single Phase
Motor Type: Shaded Pole Induction Motor
The LKA12038.230-7 is specifically designed for integration into industrial automation systems and telecommunications infrastructure where reliable cooling is paramount. It is frequently deployed in server racks, electrical control cabinets, and power distribution units to prevent thermal throttling of sensitive components. The LKA12038.230-7 is also suitable for use in CNC machinery controls, medical instrumentation, and ventilation systems requiring a compact yet powerful air movement solution. Its robust construction ensures consistent performance in diverse settings, from factory floors to data centers.
