Description

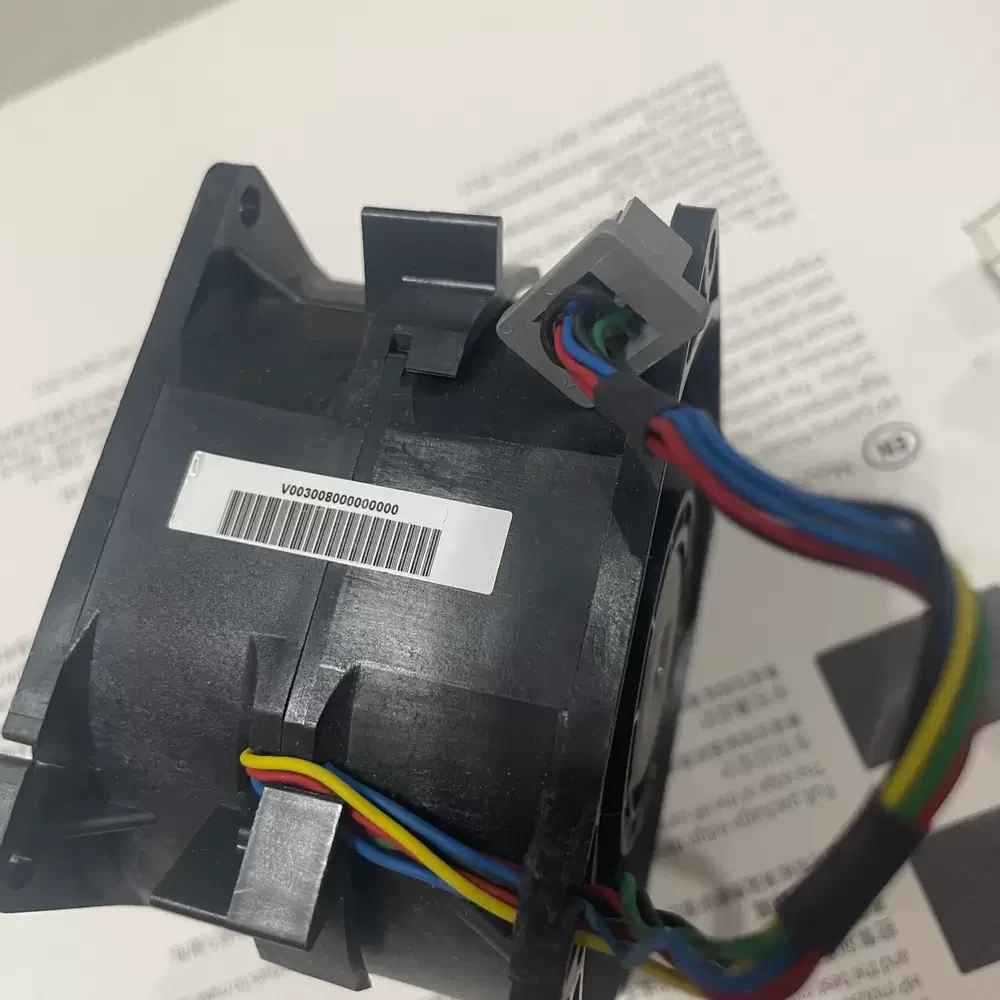

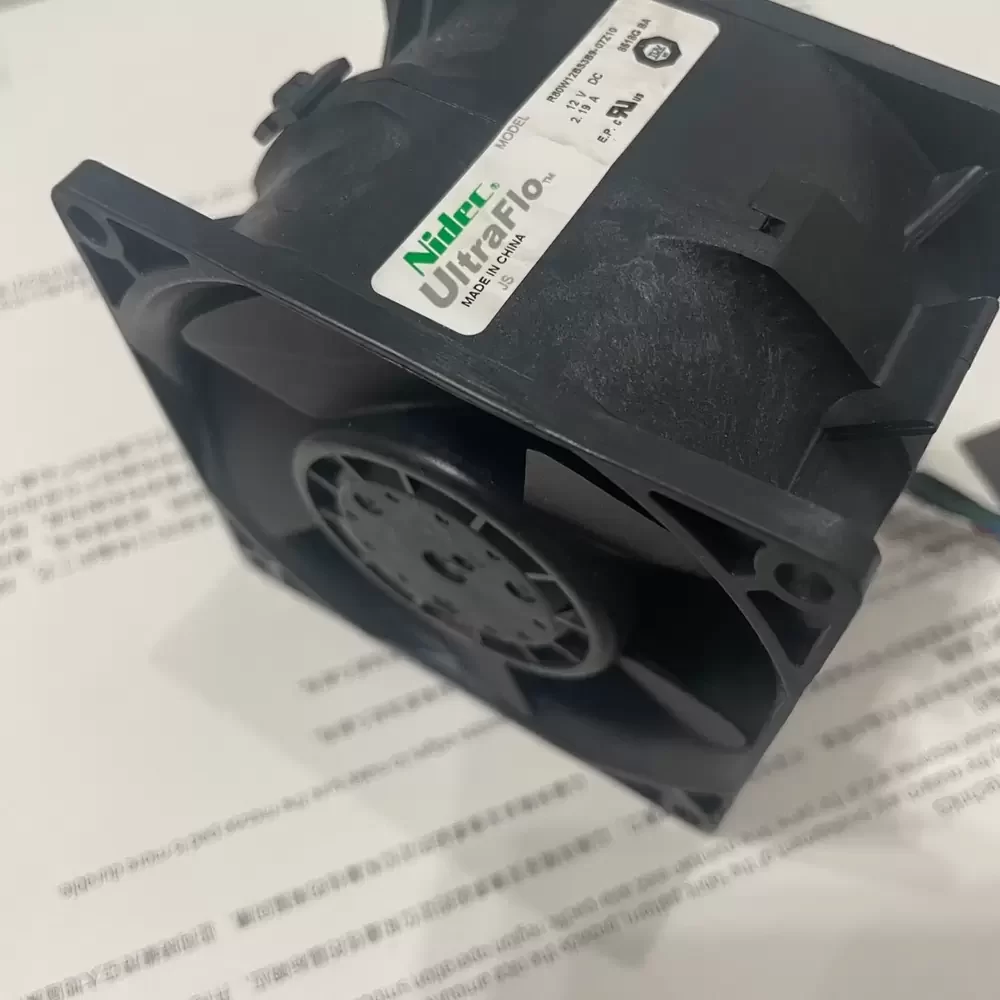

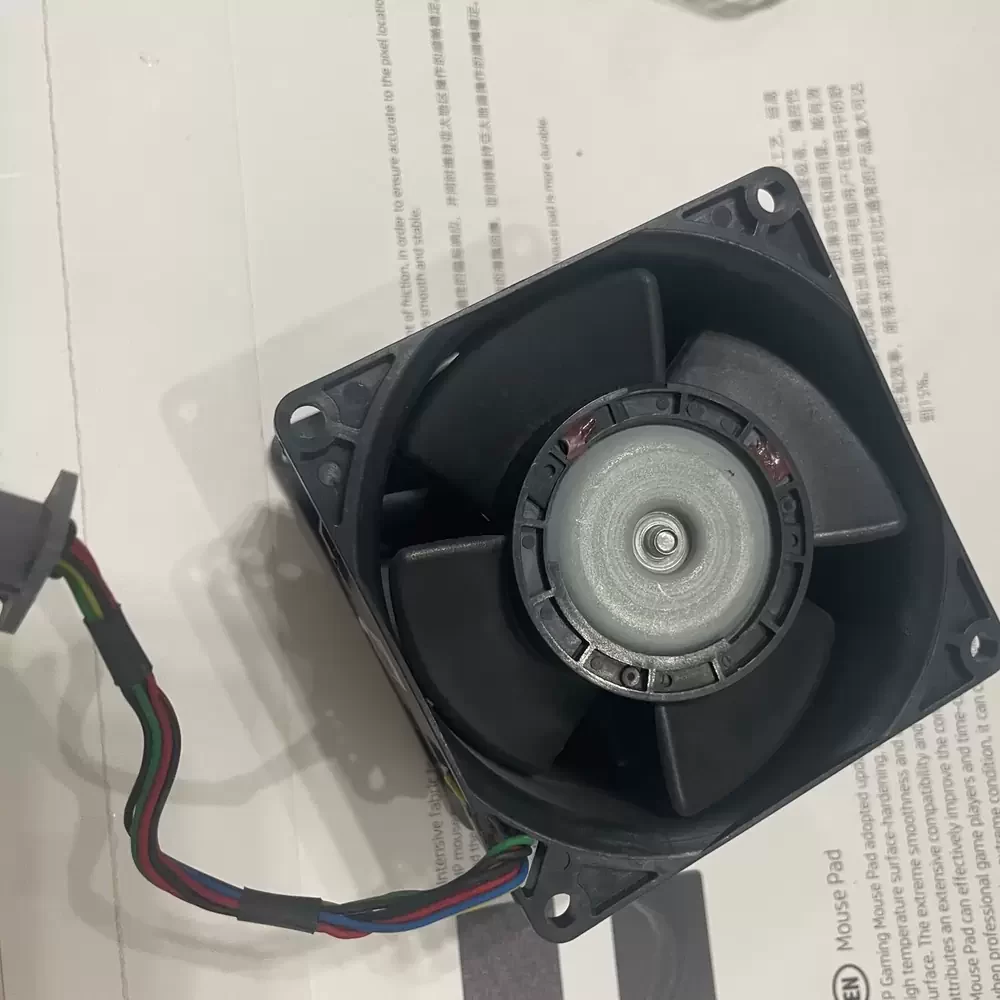

The Nidec R80W12BS3B9-07Z10 is a Axial Fan engineered for high-density thermal management environments. Utilizing a sophisticated dual-motor counter-rotating architecture, this unit minimizes thermal impedance by generating extreme static pressure and concentrated airflow. The DC brushless motor technology is paired with a precision-engineered bearing architecture to ensure structural rigidity and long-term reliability under continuous operation. Its aerodynamic design is optimized to reduce turbulence at the blade tips, maximizing efficiency in restricted airflow paths common in enterprise-grade hardware. This UltraFlo series component represents the pinnacle of industrial cooling, balancing power consumption with superior heat dissipation capabilities.
Model Number: R80W12BS3B9-07Z10
Brand: Nidec
Product Type: Dual Motor Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 2.19A
Power: 26.28W
Rated Speed: 12500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 115.0 CFM (195.4 m³/h / 3.26 m³/min)
Max. Static Pressure: 48.5 mmH₂O (475.6 Pa / 1.91 inH₂O)
Dimensions: 80x80x56mm
Weight: 360g
Life Expectancy: 70,000 Hours
Speed Control: PWM, Tachometer
Termination: 8-Pin Connector
Housing Material: UL94V-0 Reinforced Plastic
Blade Material: UL94V-0 Reinforced Plastic
Operating Temperature: -10 to +70 C
Storage Temperature: -40 to +75 C
Protection: Locked Rotor Protection, Reverse Polarity Protection
This high-performance cooling solution is primarily deployed in enterprise server racks and high-density blade servers where vertical space is limited but heat loads are significant. The R80W12BS3B9-07Z10 is also ideal for telecommunications infrastructure and industrial CNC control cabinets that require consistent airflow through dense internal components. Due to its robust construction, the R80W12BS3B9-07Z10 ensures critical system stability in 24/7 data center environments and medical imaging equipment.
