Description

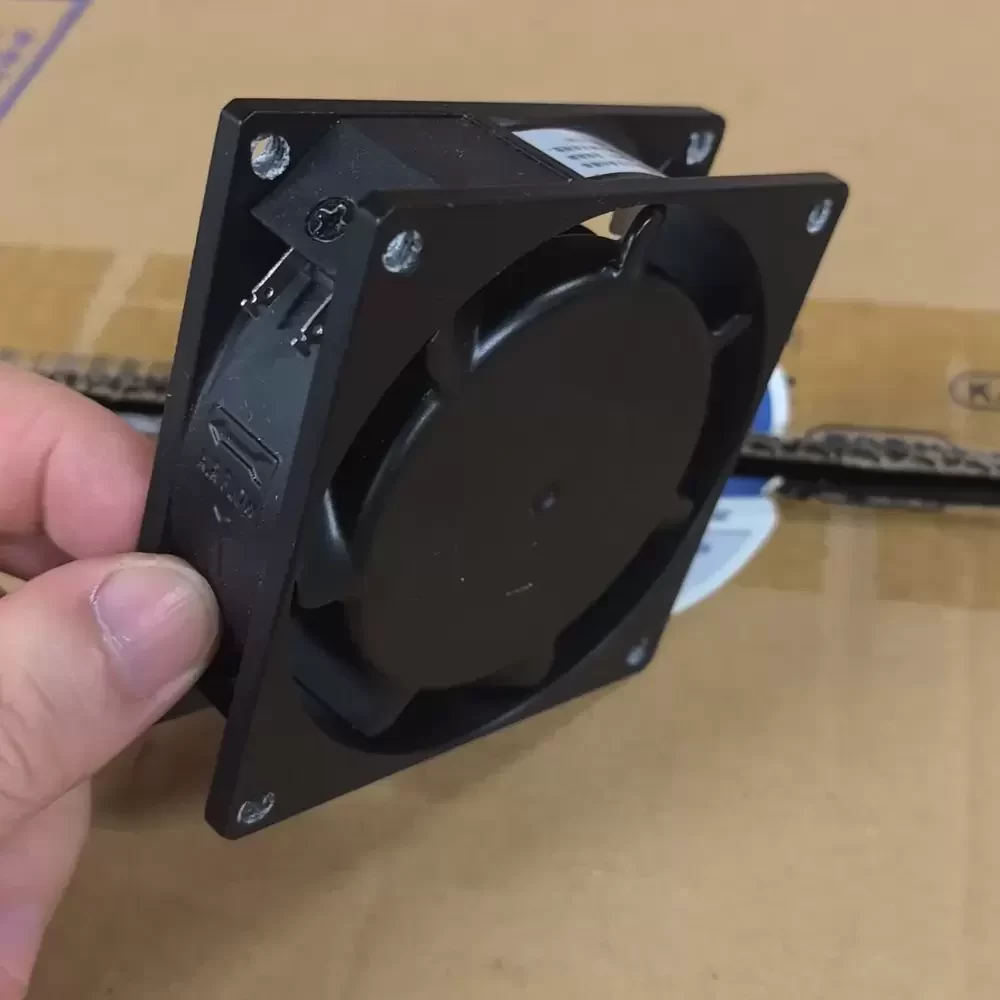

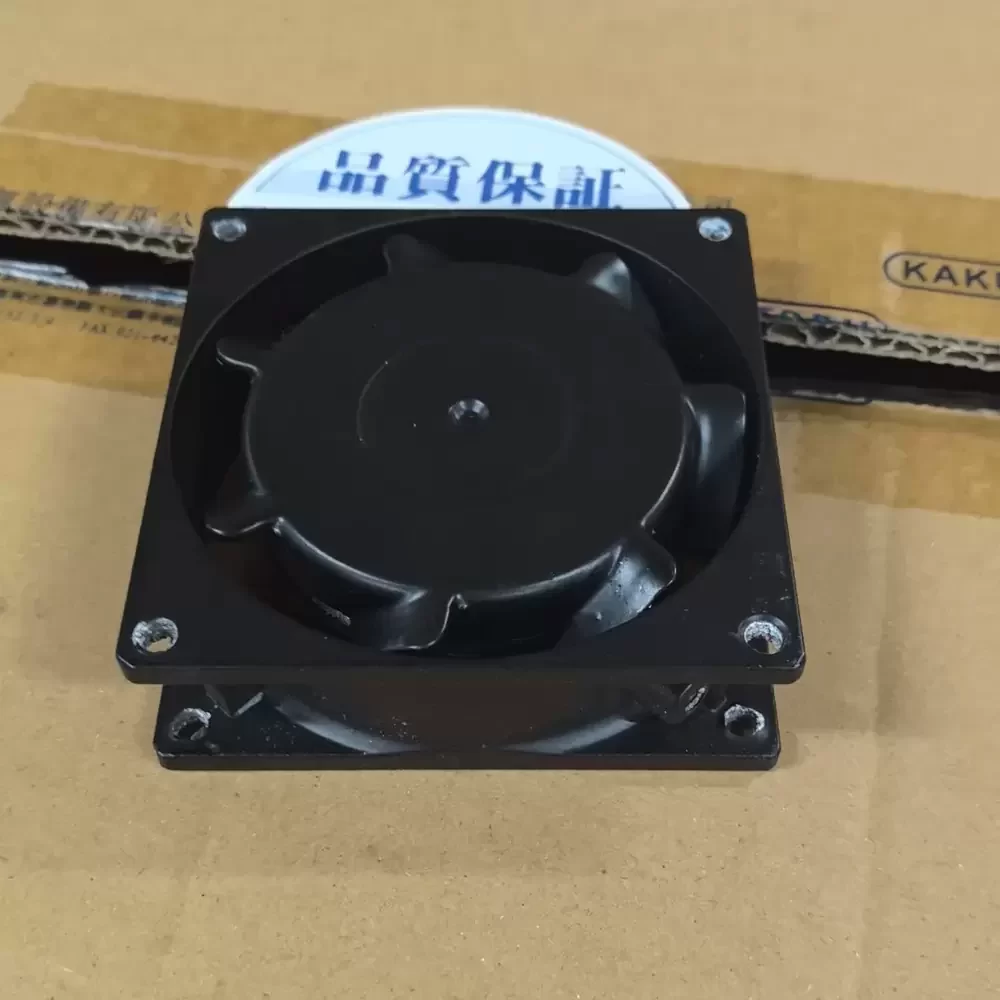

The KAKU KA8025HA1 is a robust AC Axial Fan designed for demanding industrial thermal management applications. Engineered with a high-efficiency AC motor and a durable ball bearing system, this unit ensures consistent rotational stability and reduced frictional heat generation. The construction features a full metal frame and impeller, providing superior structural rigidity and resistance to harsh environmental factors. Its aerodynamic profile is optimized to deliver high static pressure while maintaining thermal impedance within operational limits, making it an ideal solution for continuous duty cycles in enclosed electronic systems.
Model Number: KA8025HA1
Brand: KAKU
Product Type: AC Axial Fan
Rated Voltage: 110-120VAC
Frequency: 50/60 Hz
Rated Current: 0.14/0.13 A
Power Consumption: 14/11 W
Rated Speed: 2450/2700 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 19.0/23.0 CFM (32.2/39.0 m³/h)
Max. Static Pressure: 3.5/4.8 mmH₂O (34/47 Pa)
Dimensions: 80x80x25mm
Weight: 260 g
Housing Material: Aluminum Alloy (Metal)
Impeller Material: Metal
Noise Level: 32/36 dBA
Termination: Lead Wires / Terminals
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 50,000 Hours at 25°C
Ingress Protection: IP20
Mounting Orientation: Any
The KA8025HA1 is specifically engineered for critical cooling in industrial automation and telecommunications infrastructure. Its rugged metal construction makes it suitable for server racks, electrical control cabinets, and power supply units where heat dissipation is paramount. The KA8025HA1 excels in environments requiring reliable airflow to prevent thermal throttling in CNC machinery and medical instrumentation. By integrating the KA8025HA1, facility managers ensure optimal operating temperatures for sensitive electronic components within high-density enclosures.
