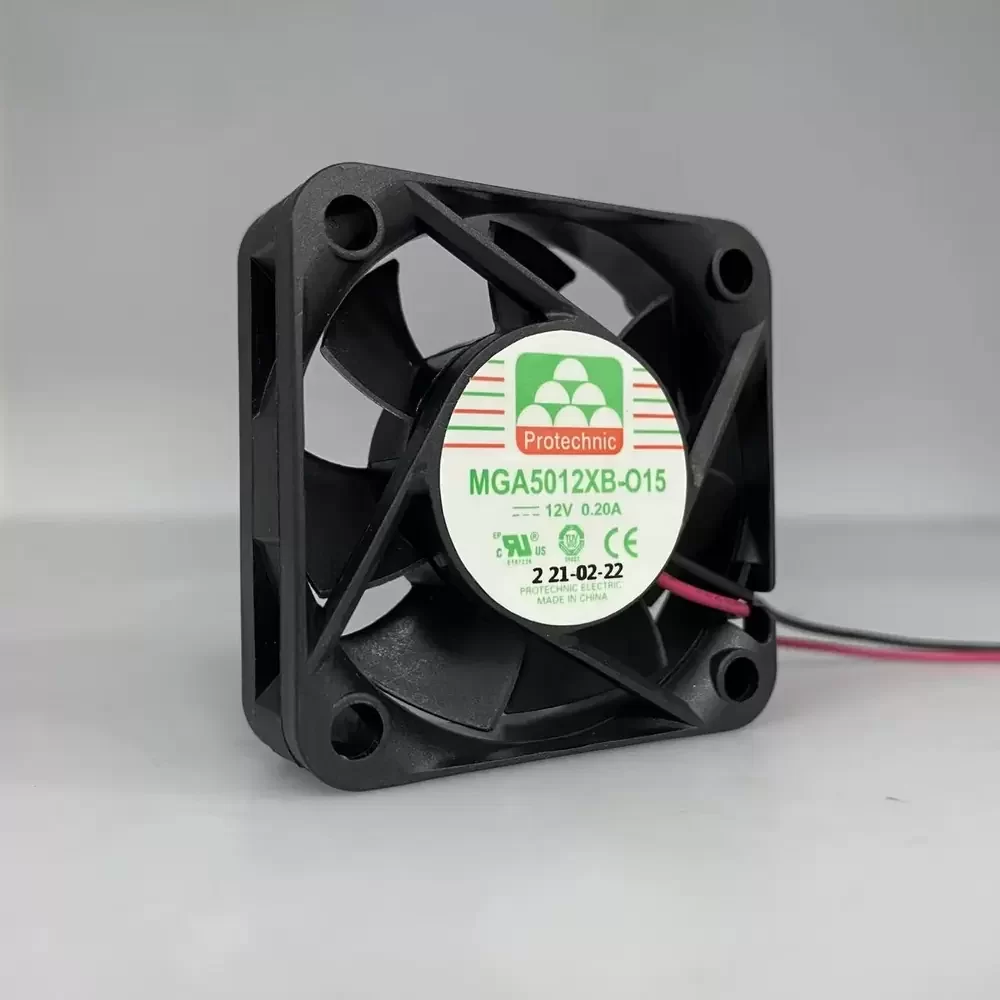

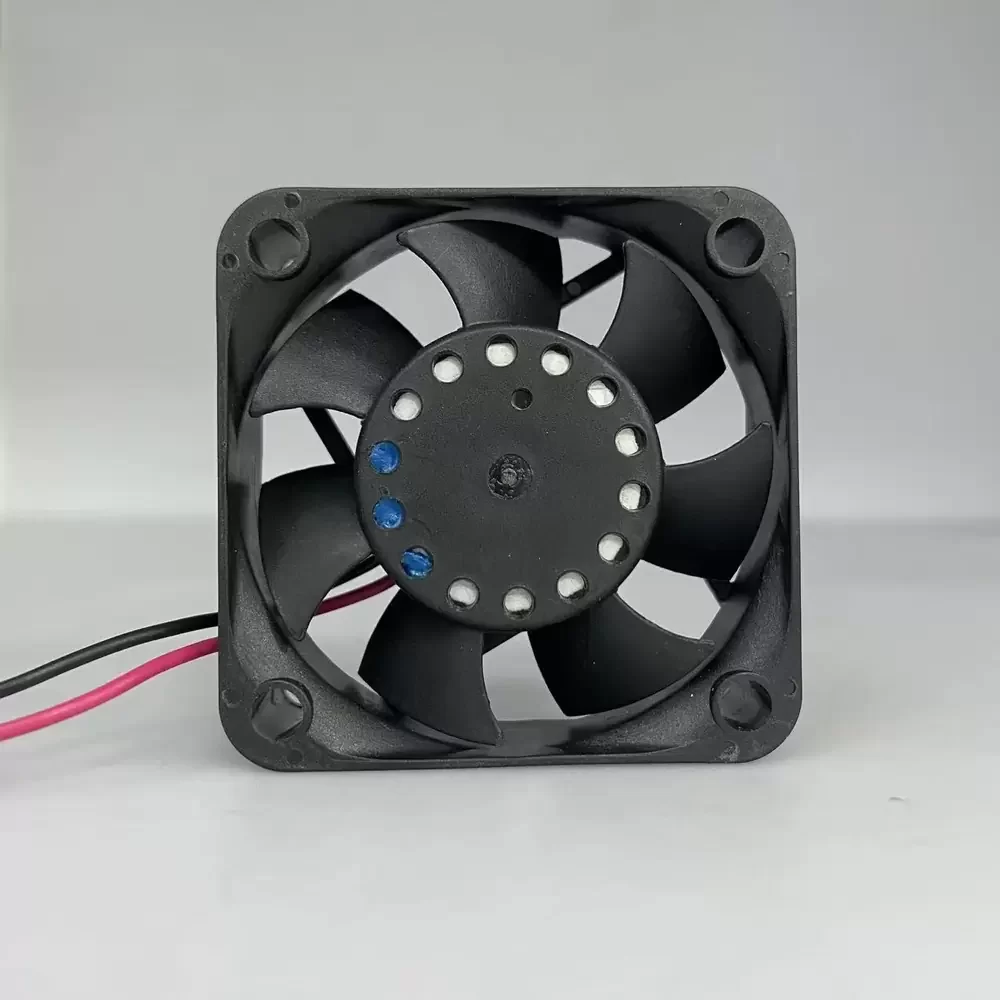

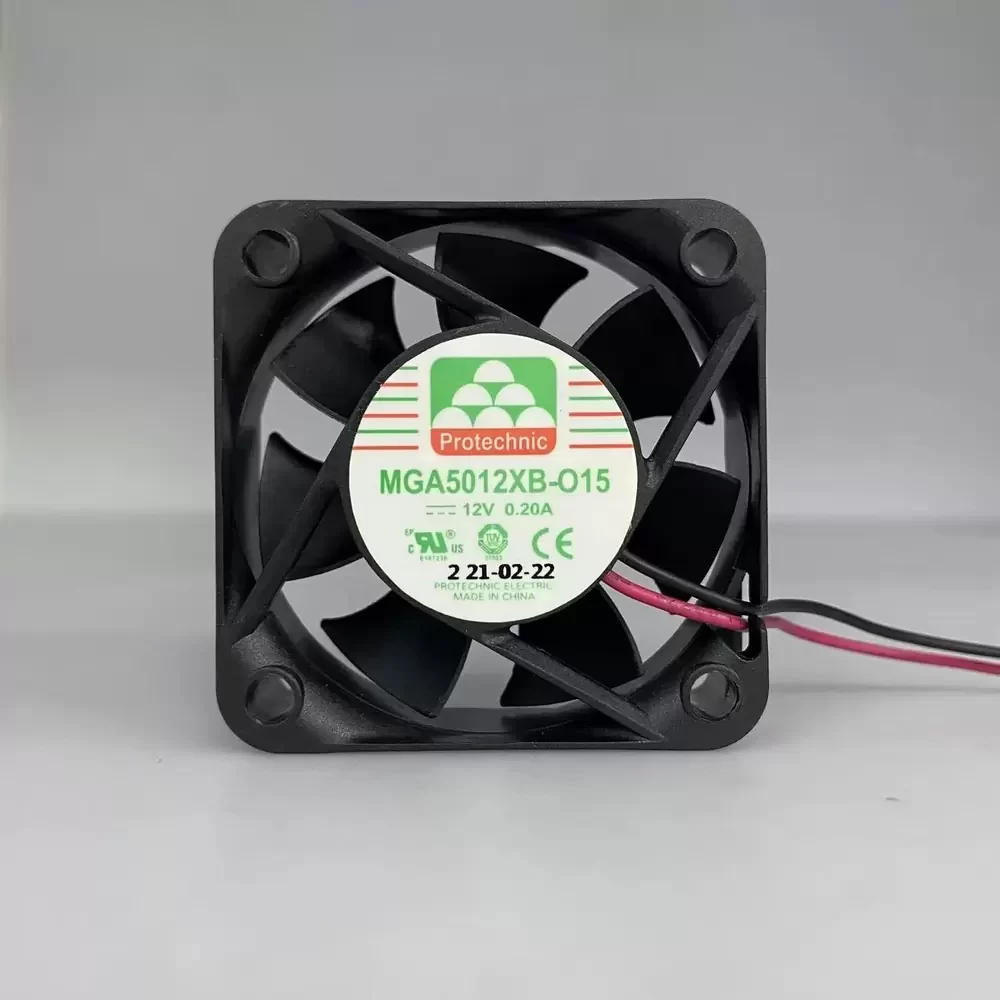

MGA5012XB-O15 Protechnic 12VDC 0.20A 50x50x15mm Axial Fan

Description

Protechnic MGA5012XB-O15 50 x 50 x 15 mm 12 VDC 0.20 A 18.31 CFM axial fan. This high-performance cooling component features a dual ball bearing system and a PBT thermoplastic frame and impeller rated to UL 94V-0 standards. It operates at a nominal speed of 7000 RPM, generating a static pressure of 0.325 inH2O while maintaining a noise profile of 37.6 dBA. The electrical interface consists of a 2-wire lead wire configuration for direct DC power input.

MGA5012XB-O15 Specifications
Model: MGA5012XB-O15
Brand: Protechnic
Category: DC Axial Fan
Dimensions: 50 x 50 x 15 mm
Rated Voltage: 12 VDC
Operating Voltage: 10.8 to 13.2 VDC
Rated Current: 0.20 A
Input Power: 2.4 W
Rated Speed: 7000 RPM
Maximum Airflow: 18.31 CFM
Static Pressure: 0.325 inH2O
Noise Level: 37.6 dBA
Bearing Type: Dual Ball Bearing
Frame Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)
Termination: 2-Wire Lead
Operating Temperature: -10 to +70 °C
Life Expectancy: 70,000 hours
Weight: 29 g

MGA5012XB-O15 Applications
Primary applications include integration into compact server chassis, industrial power supply units, and ultrasonic humidifiers. Deployed within 3D printer extruders, telecommunications networking hardware, and medical laboratory equipment requiring localized thermal dissipation.
