Description

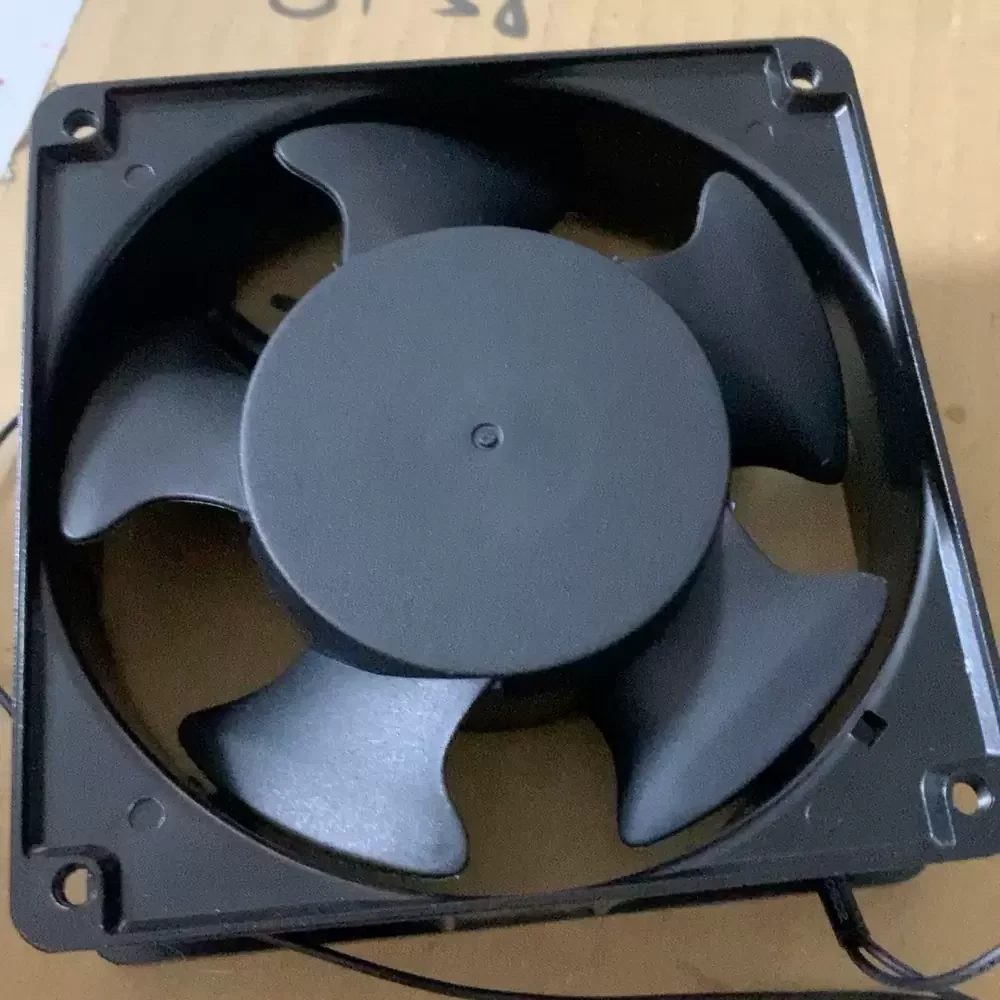

The Delta TD12038HH-IP55 is a robust AC Axial Fan engineered for demanding industrial environments requiring consistent thermal management and high reliability. Featuring a precision-balanced impeller housed within a durable die-cast aluminum frame, this unit optimizes aerodynamic efficiency while minimizing structural vibration and resonance. The motor assembly utilizes high-grade dual ball bearings to ensure longevity and reduce thermal impedance during continuous operation. Designed with an IP55 rating, the fan offers significant resistance against dust ingress and low-pressure water jets, making it suitable for harsh operational conditions where environmental protection is paramount.
Model Number: TD12038HH-IP55
Brand: Delta Electronics
Product Type: AC Axial Fan
Rated Voltage: 220/240 VAC
Frequency: 50/60 Hz
Voltage Range: 200 – 240 VAC
Rated Current: 0.14 A
Input Power: 21.0 W
Rated Speed: 2700 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 95.0 CFM (161.4 m³/h / 2.69 m³/min)
Max. Static Pressure: 8.38 mmH₂O (82.1 Pa / 0.33 inH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 550 g
Frame Material: Die-Cast Aluminum (Black Coated)
Impeller Material: Thermoplastic PBT (UL94V-0)
Ingress Protection: IP55
Noise Level: 44.0 dBA
Insulation Class: Class B
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Life Expectancy: 50,000 Hours @ 40°C

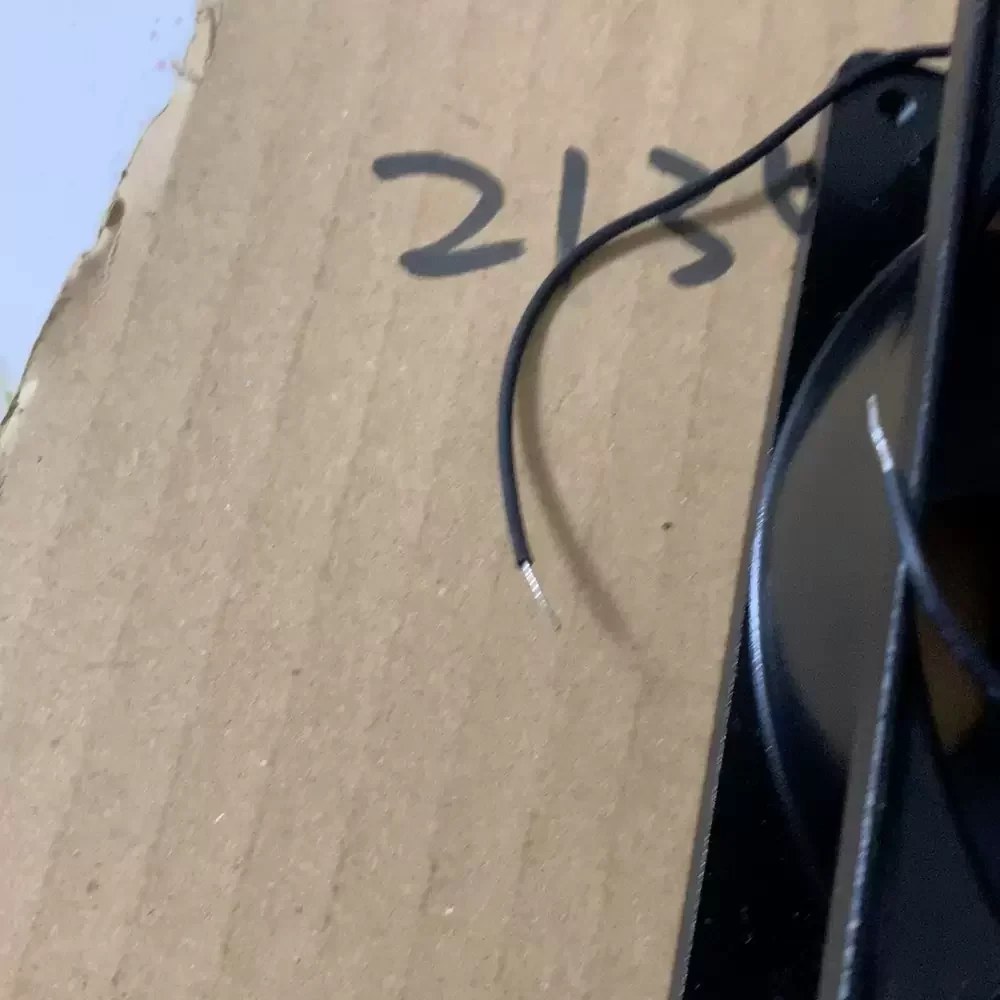

Termination: Lead Wires
Mounting Orientation: Any
This cooling solution is specifically calibrated for high-density electronic enclosures and industrial automation setups. The TD12038HH-IP55 excels in server racks, telecommunications cabinets, and CNC machinery control panels where heat dissipation is critical. By maintaining optimal airflow, the TD12038HH-IP55 prevents thermal throttling in power supplies and variable frequency drives, ensuring system stability in manufacturing plants and outdoor utility boxes.
