Description

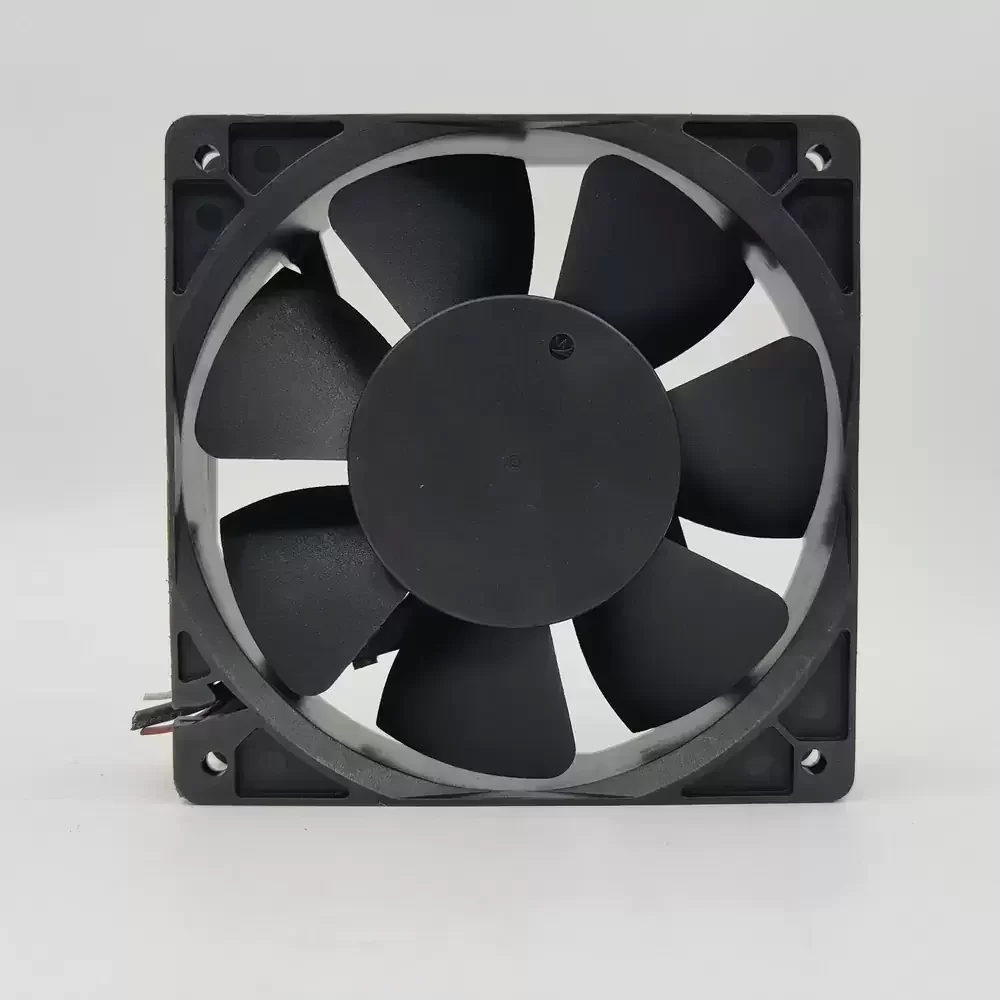

The HUAXIA HENGTAI AF12038B22HL is a precision-engineered AC Axial Fan designed for robust thermal management in industrial environments. Operating with a versatile dual voltage configuration of 100-120/220-240VAC, this unit delivers consistent performance within a standard 120x120x38mm form factor. The motor assembly incorporates high-grade dual ball bearings, which significantly reduce frictional wear and thermal impedance, ensuring operational stability and extended service life. The aerodynamic impeller design maximizes airflow efficiency while maintaining structural rigidity under continuous load. With a power consumption of 9.5W, the AF12038B22HL balances energy efficiency with high-static pressure capabilities, making it an optimal solution for critical cooling applications requiring reliable heat dissipation.
Model Number: AF12038B22HL
Brand: HUAXIA HENGTAI
Product Type: AC Axial Fan
Rated Voltage: 110/220 VAC
Voltage Range: 100-120 / 220-240 VAC
Input Power: 9.5 W
Rated Speed: 2600 RPM
Max. Air Flow: 95.0 CFM (161.4 m³/h)
Max. Static Pressure: 7.1 mmH₂O (69.6 Pa / 0.28 inH₂O)
Bearing Type: Dual Ball Bearing
Dimensions: 120 x 120 x 38 mm
Weight: 530 g
Termination: 2-Wire Lead
Frequency: 50 / 60 Hz
Frame Material: Aluminum Die-Cast
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 50,000 Hours
Mounting: Flange Mount
The AF12038B22HL is engineered for deployment in mission-critical hardware such as server racks and telecommunications enclosures where continuous airflow is mandatory. Its dual voltage capability makes it highly adaptable for global industrial automation equipment, including CNC control panels and power supply units. The AF12038B22HL is also frequently integrated into medical instrumentation and heavy-duty ventilation systems, providing the necessary thermal regulation to prevent component failure and ensure system longevity.
