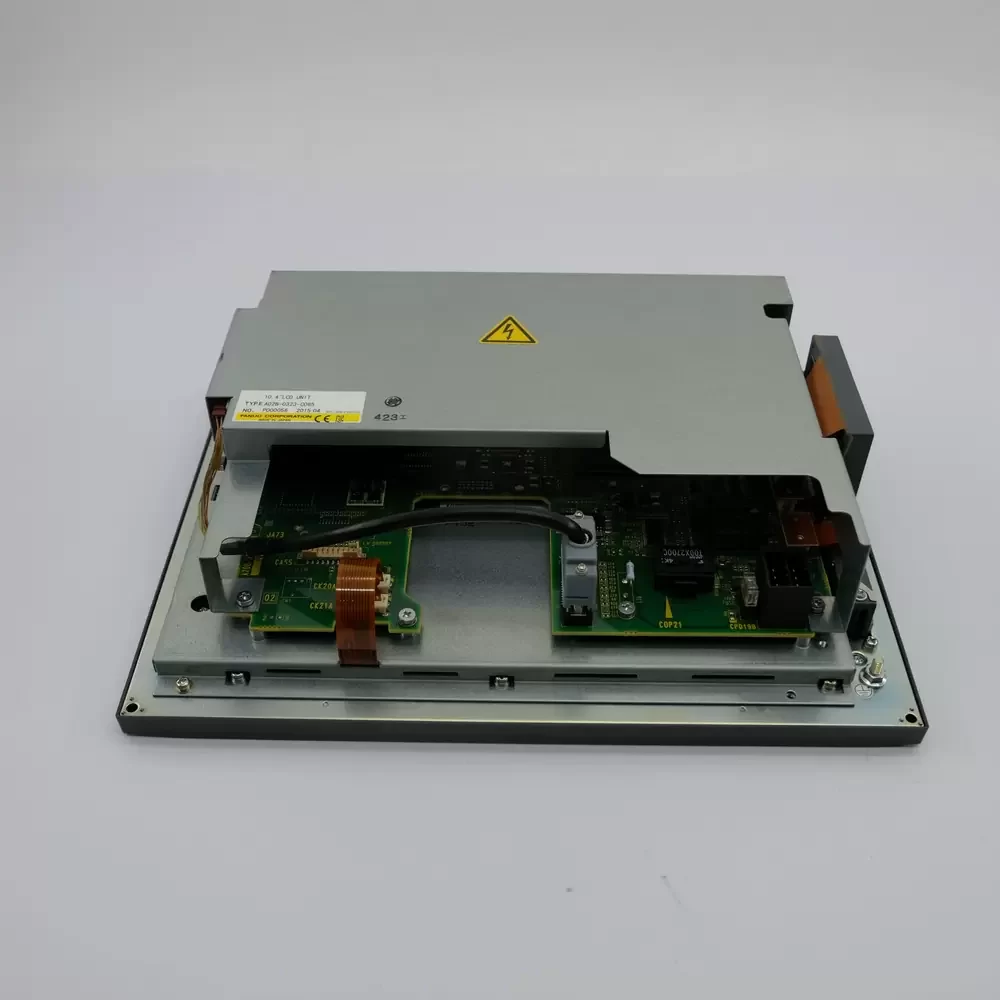

A02B-0323-C085 Fanuc 10.4inch 24VDC Touch LCD Operator Interface

Description

Fanuc A02B-0323-C085 10.4 inch color LCD 24 VDC touch screen operator interface is a high-resolution display unit designed for CNC system interaction. The hardware features an integrated resistive touch panel, a set of tactile soft keys, and a ruggedized protection cover for industrial durability. It operates on a 24 VDC power supply and connects via high-speed serial or dedicated display interfaces. The unit is housed in a reinforced frame with a front-panel IP 65 rating to resist coolant and dust ingress.

A02B-0323-C085 Specifications
Model: A02B-0323-C085
Brand: Fanuc
Category: Operator Interface
Display Type: 10.4 inch Color LCD
Input Voltage: 24 VDC
Current Consumption: 1.5 A
Touch Screen Type: Resistive
Interface: Fanuc Display Link / I/O Link
Resolution: 640 x 480 pixels
Operating Temperature: 0 to 55 °C
Storage Temperature: -20 to 60 °C
Weight: 3.18 kg
Dimensions: 285 mm x 215 mm x 65 mm
Protection Rating: IP 65 (Front Panel)
Features: Integrated Soft Keys, Protective Cover
Compatibility: Fanuc 31i Model B, 0i-MD, 0i-D

A02B-0323-C085 Applications
Primary applications include integration into CNC milling machine control stations and vertical machining center operator consoles. Deployed within Fanuc 31i Model B systems to provide real-time axis monitoring and manual data input in high-precision metalworking environments.
