A05B-2255-C101#ESW FANUC 6.4inchLCD IP65 VGA Teach Pendant

Description

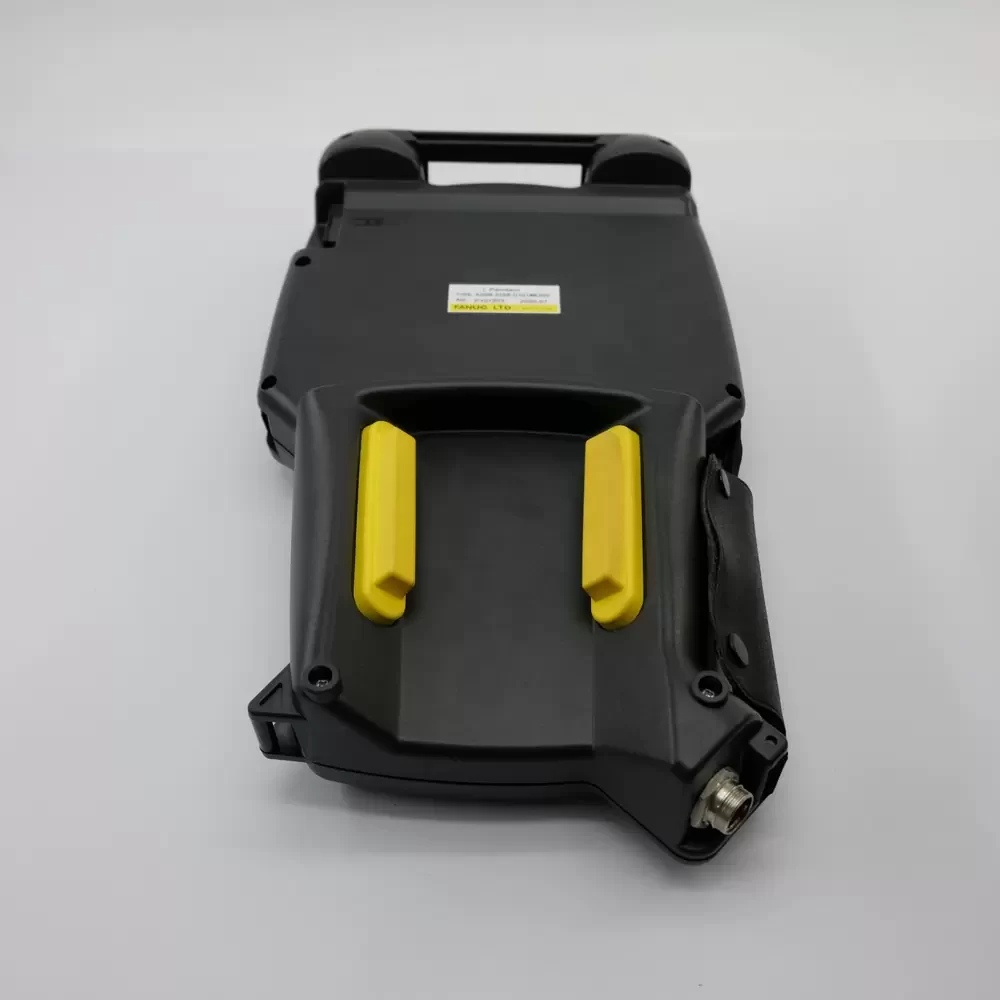

FANUC A05B-2255-C101#ESW is a 381 mm x 203 mm x 64 mm teach pendant featuring a 6.4 inch color TFT LCD and an integrated 3-position deadman safety switch. The unit is constructed with a high-impact polymer housing and a membrane keypad with tactile feedback. It incorporates a resistive touch screen interface and a dedicated dual-channel emergency stop button. Internal hardware includes a high-speed processor optimized for the R-30iB controller interface, supporting graphical user interface (GUI) rendering. The device features an IP 65 ingress protection rating and includes a side-mounted USB 2.0 port for data backup. Connection is established via a multi-pin circular connector for high-speed serial communication.

A05B-2255-C101#ESW Specifications

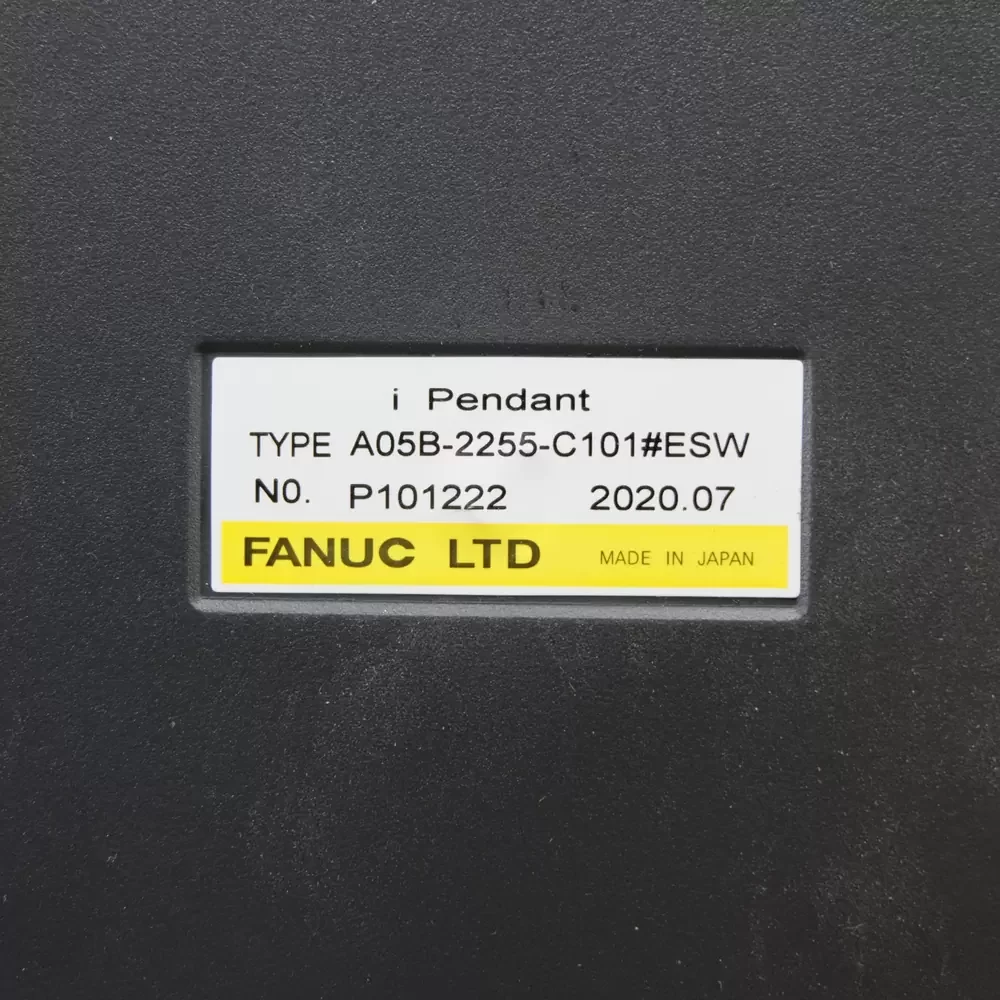

Model: A05B-2255-C101#ESW
Brand: FANUC
Product Category: Teach Pendant (iPendant)
Display Type: 6.4 inch Color TFT LCD
Resolution: 640 x 480 pixels
Input Method: Touch Screen and Membrane Keypad
Safety Features: 3-position Deadman Switch, Emergency Stop Button
Ingress Protection: IP 65
Interface: USB 2.0, Ethernet
Controller Compatibility: R-30iB, R-30iB Mate, R-30iB Plus, R-30iA
Weight: 1.36 kg
Operating Temperature: 0 to 45 °C
Storage Temperature: -20 to 60 °C
Humidity: 10 to 90 % RH
Dimensions: 381 mm x 203 mm x 64 mm
Backlight Life: 50,000 hours
Software Configuration: Spot Welding (ESW)

A05B-2255-C101#ESW Applications
Primary applications include integration into FANUC R-30iB robotic control systems for programming and manual manipulation of industrial articulated robots. Deployed within automotive assembly lines, CNC machine tending cells, and high-speed palletizing systems for real-time path teaching and diagnostic monitoring.
