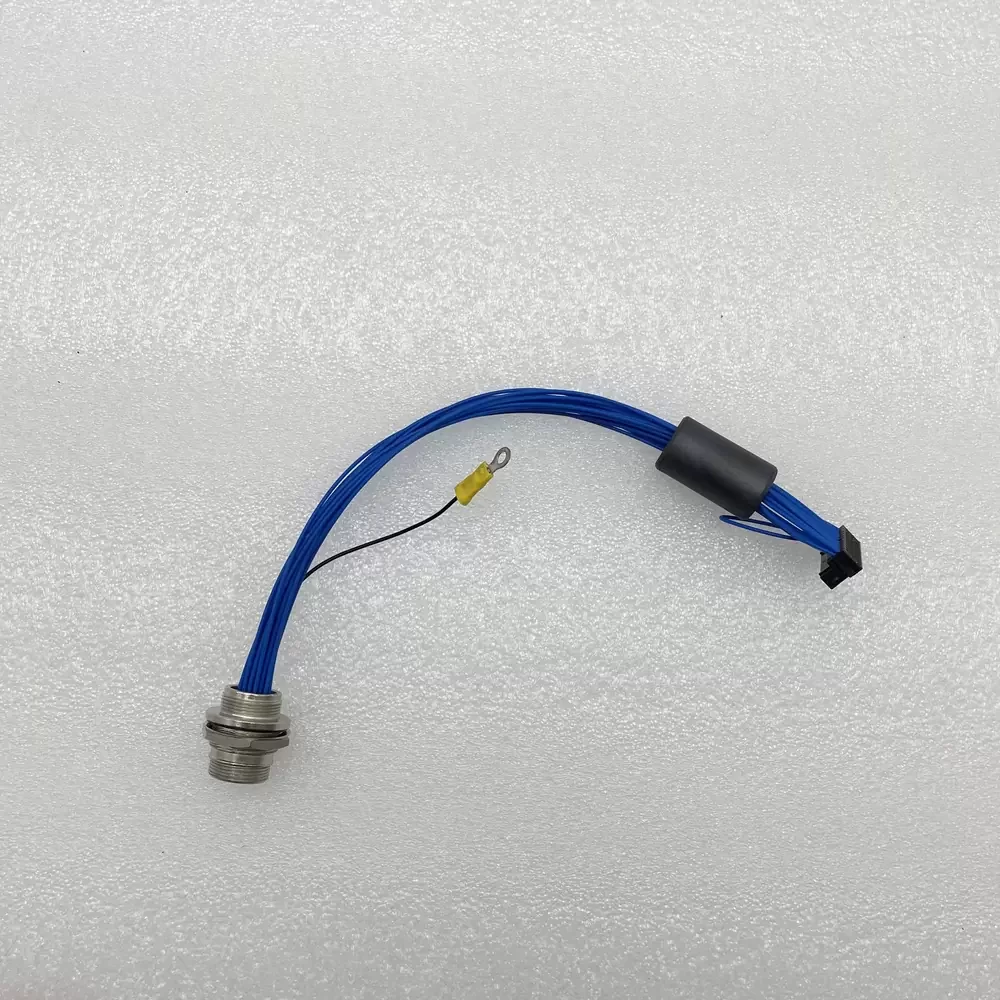

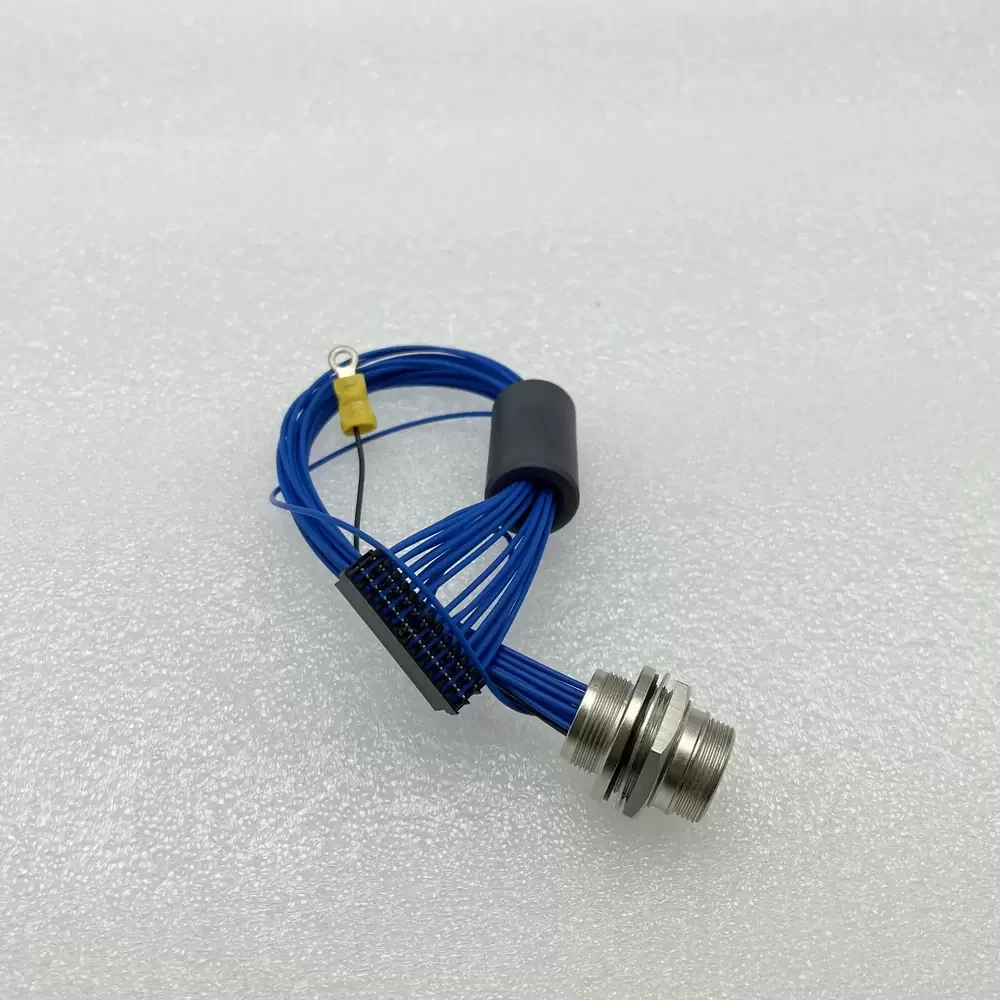

8016-T436 FANUC 200mm A05B-2518 Teach Pendant Adapter Cable

Description

This high-precision internal interface harness is engineered for FANUC robotic control systems, specifically designed to bridge the connection between the teach pendant unit and the main controller interface. The 8016-T436 features gold-plated contact pins and high-purity copper conductors to ensure zero-latency signal transmission and EMI resistance. With a standard 200mm length and a specialized CNTP1 connector, it provides the critical link for manual jogging, program editing, and emergency stop integration within R-J3iB and R-30iA control environments.

8016-T436 Specifications
Model Number: 8016-T436
Brand: FANUC
Part Number: A660-8016-T436
Compatible Pendant Series: A05B-2518-CXXX
Compatible Controllers: R-J3iB, R-30iA, R-30iB
Cable Length: 200mm
Connector Type: CNTP1 Interface
Conductor Material: High-purity Copper
Contact Plating: Gold-plated pins
Insulation Material: Industrial-grade Polyamide/PVC
Signal Type: Digital/Analog Control Signals
Environmental Rating: IP54 (when installed)
Operating Temperature: -10 to 60°C
Storage Temperature: -20 to 70°C
Certifications: RoHS Compliant, CE
Weight: Approx. 0.15kg

8016-T436 Applications
Internal signal routing for FANUC A05B-2518 series teach pendants, R-30iA robotic controller maintenance, and high-density interface bridging in automotive assembly lines and CNC machining cells.
