Description

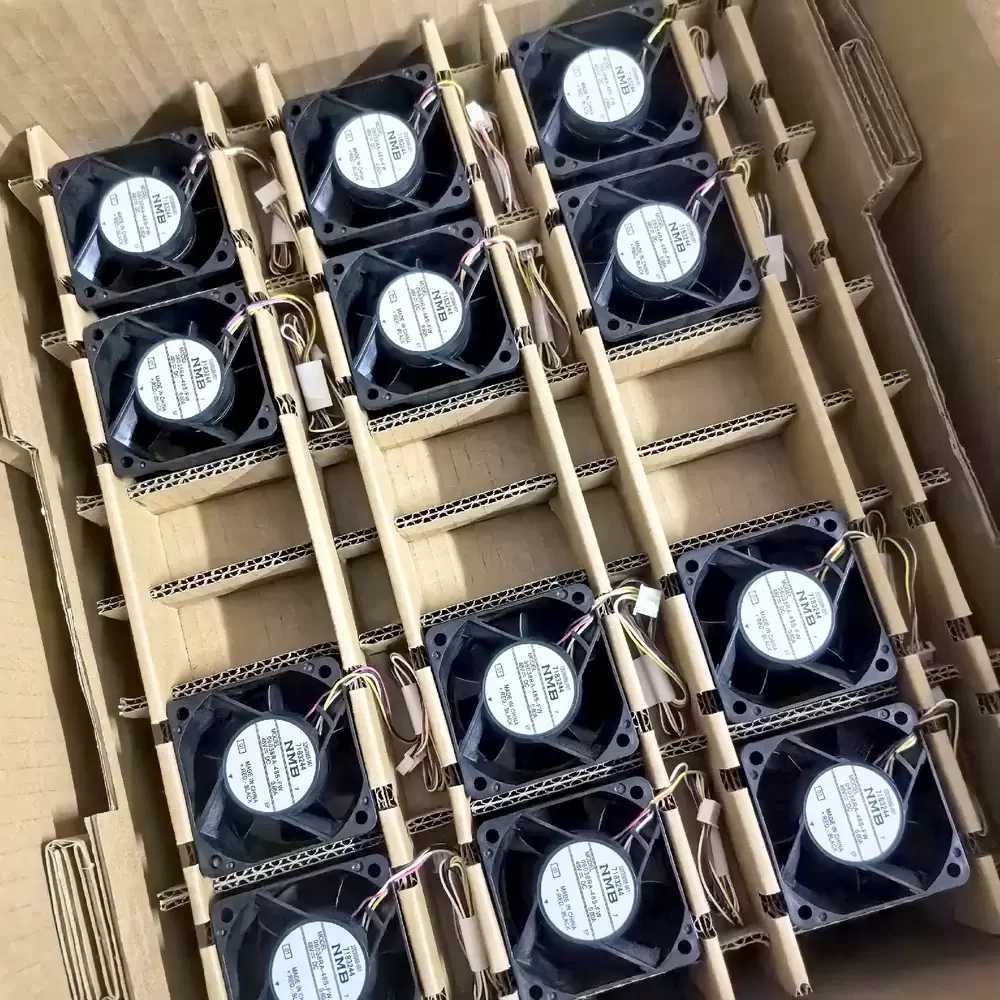

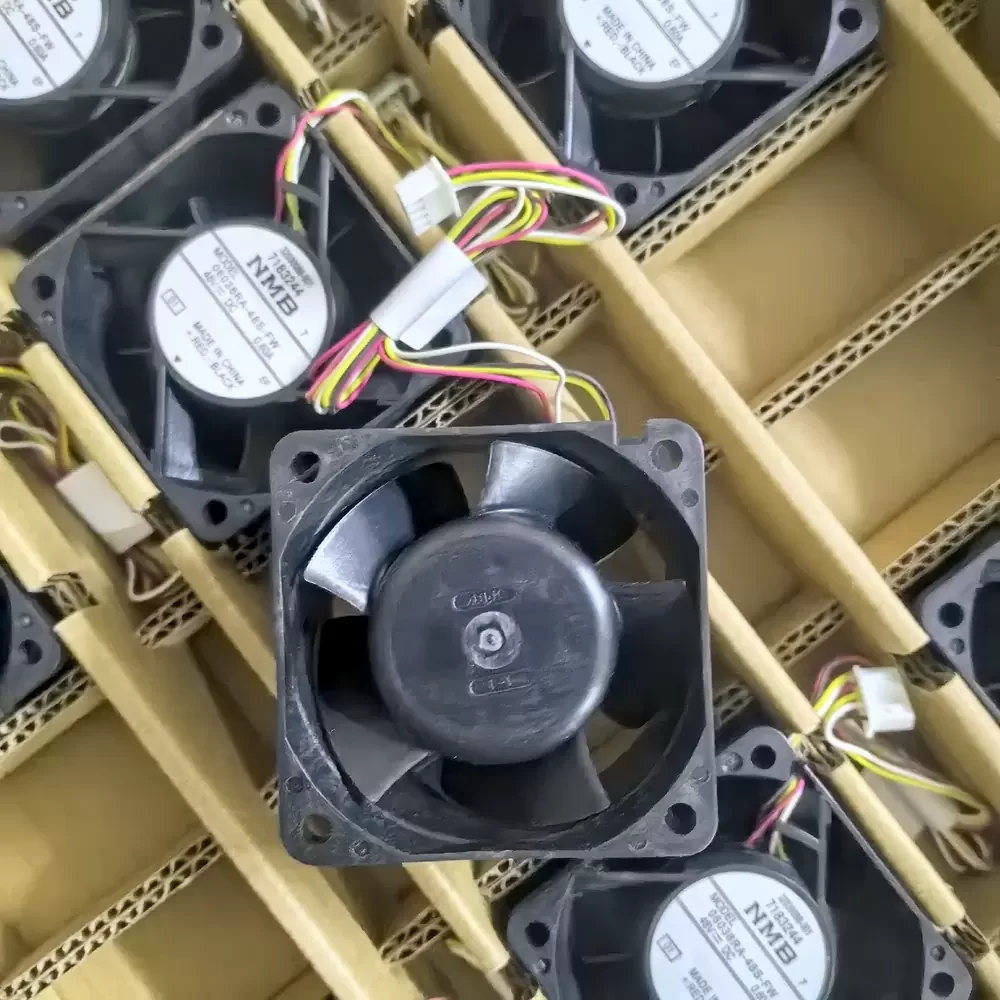

The NMB 06038RA-48S-FW-01 is a precision-engineered DC Axial Fan designed to deliver exceptional static pressure in space-constrained industrial environments. Built upon MinebeaMitsumi’s renowned ball bearing technology, this unit minimizes frictional losses while ensuring superior rotational stability and extended service life. The deep 38mm frame geometry houses a specialized impeller that optimizes the P-Q characteristic curve, allowing the fan to effectively overcome significant thermal impedance in dense component arrays. Equipped with Pulse Width Modulation (PWM) control, the motor enables precise speed regulation, ensuring optimal thermal performance while maintaining structural rigidity and reliability under continuous duty cycles.
Model Number: 06038RA-48S-FW-01
Brand: NMB (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 48VDC
Voltage Range: 28.0 – 56.0 VDC
Rated Current: 0.60 A
Power Consumption: 28.8 W
Dimensions: 60x60x38mm
Bearing Type: Dual Ball Bearing
Max. Air Flow: 68.5 CFM (Approximate for S-Class)
Max. Static Pressure: 48.5 mmH2O (Approximate for S-Class)
Speed Control: PWM (Pulse Width Modulation)
Termination: 4-Wire Leads
Frame Material: Reinforced Plastic (UL94V-0)
Impeller Material: Reinforced Plastic (UL94V-0)
Operating Temperature: -10 to +70 Degrees Celsius
Life Expectancy: 70,000 Hours @ 40C
Mounting Orientation: Any
Ingress Protection: IP20
Designed for high-density electronics, this unit is ideal for cooling variable frequency drives, solar inverters, and rack-mounted server equipment. The 06038RA-48S-FW-01 provides the necessary airflow to penetrate dense heatsink fins in telecommunications infrastructure and industrial automation systems. Furthermore, the 06038RA-48S-FW-01 is frequently utilized in network switches and CNC control modules where reliable heat dissipation is paramount for system stability.
