Description

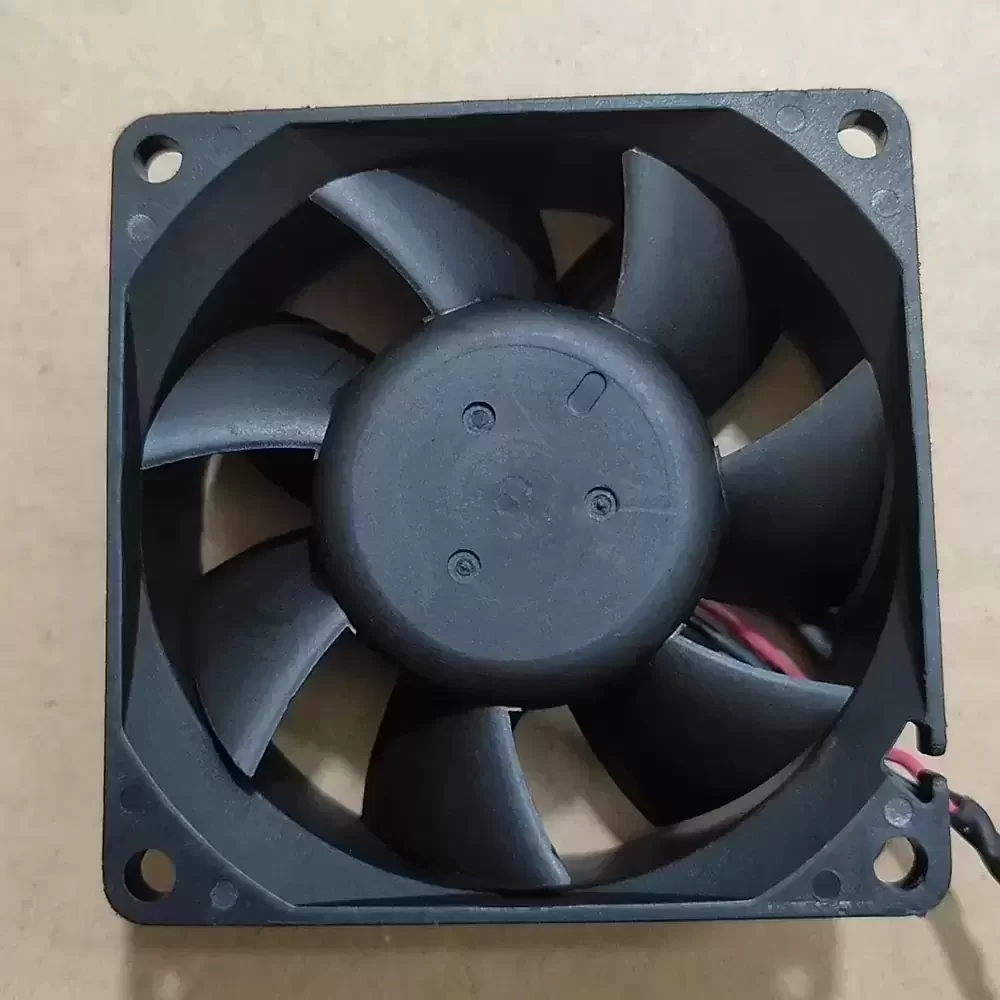

The Delta AFB0724V-A is a precision-engineered DC Axial Fan designed for critical thermal management in industrial environments. Utilizing advanced DC brushless motor technology and a robust dual ball bearing architecture, this unit ensures minimal friction and extended operational longevity under continuous loads. The aerodynamic impeller design optimizes airflow dynamics to reduce thermal impedance within high-density enclosures. Constructed with high-grade thermoplastic materials, the frame offers superior structural rigidity, making it suitable for demanding applications such as variable frequency drives and automation control systems where reliability is paramount.
Model Number: AFB0724V-A
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.33 A
Input Power: 7.92 W
Rated Speed: 4700 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 42.5 CFM (72.2 m³/h / 1.20 m³/min)
Max. Static Pressure: 7.85 mmH₂O (77.0 Pa / 0.31 inH₂O)
Dimensions: 70 x 70 x 25 mm
Weight: 90 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 41.5 dB-A
Termination: 2-Wire Lead (Red +, Black -)
Housing Material: PBT Plastic (UL94V-0)
Blade Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Ingress Protection: IP20
Insulation Class: Class A
Safety Protection: Impedance Protected, Reverse Polarity
Mounting Orientation: Any
The AFB0724V-A is specifically engineered for forced convection cooling in industrial electronics and power conversion systems. Common deployment scenarios include variable frequency drives (VFDs) and heavy-duty power inverters where consistent thermal dissipation is required to prevent component derating. The AFB0724V-A is also widely utilized in server rack ventilation, CNC machinery control panels, and telecommunications power supplies, ensuring operational stability in 24/7 environments.
