Description

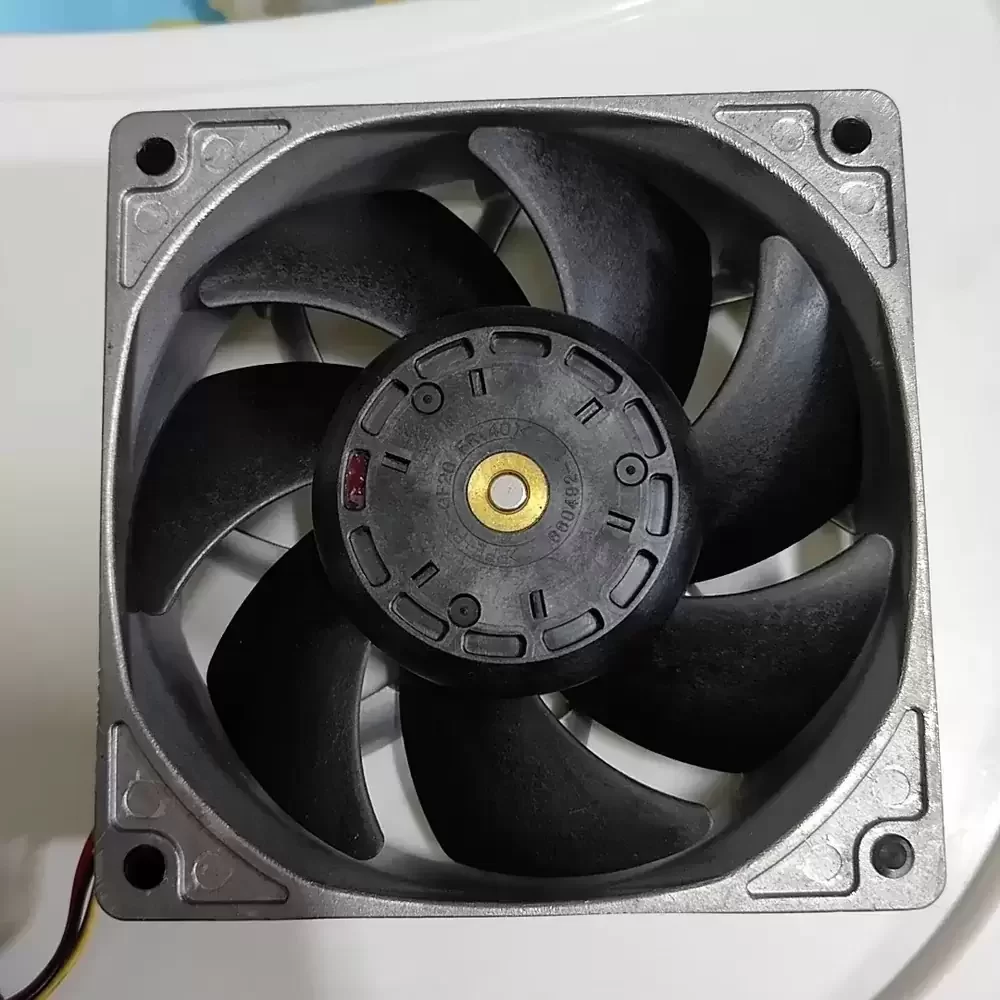

The Sanyo Denki 9SX1212P1K007 is a high-performance DC axial fan engineered for demanding industrial cooling applications requiring exceptional static pressure and airflow throughput. Part of the robust San Ace 120 SX series, this unit features a precision-die-cast aluminum frame that enhances structural rigidity and thermal dissipation capabilities under heavy loads. The motor assembly utilizes an advanced dual ball bearing architecture to minimize friction and extend operational lifespan, even during continuous high-speed rotation. Designed with optimized impeller geometry, the 9SX1212P1K007 delivers superior aerodynamic efficiency, significantly reducing thermal impedance in densely packed electronic enclosures and server environments.
Model Number: 9SX1212P1K007
Brand: Sanyo Denki
Product Type: DC Axial Fan
Series: San Ace 120 SX
Rated Voltage: 12 VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 4.4 A
Power Input: 52.8 W
Rated Speed: 5500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 261 CFM (443 m³/h / 7.39 m³/min)
Max. Static Pressure: 36.7 mmH₂O (360 Pa / 1.45 inH₂O)
Dimensions: 120 x 120 x 38 mm
Frame Material: Aluminum
Impeller Material: Plastic (UL94V-0)
Termination: 4-Wire Leads
Control Interface: PWM Control
Sensor Type: Tachometer Output
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +70°C
Life Expectancy: 40,000 Hours (at 60°C)
Weight: 460 g
Ingress Protection: Optional IP Ratings Available
Safety Certifications: UL, CSA, TUV
The 9SX1212P1K007 is specifically engineered for high-density equipment where back pressure is a significant factor, such as enterprise-grade server racks and telecommunications base stations. Its robust aluminum construction makes it ideal for industrial automation machinery and power supply units that generate substantial heat loads. By maintaining consistent airflow against high resistance, the 9SX1212P1K007 ensures critical components remain within safe thermal operating limits, preventing throttling in CNC machines and medical instrumentation.
