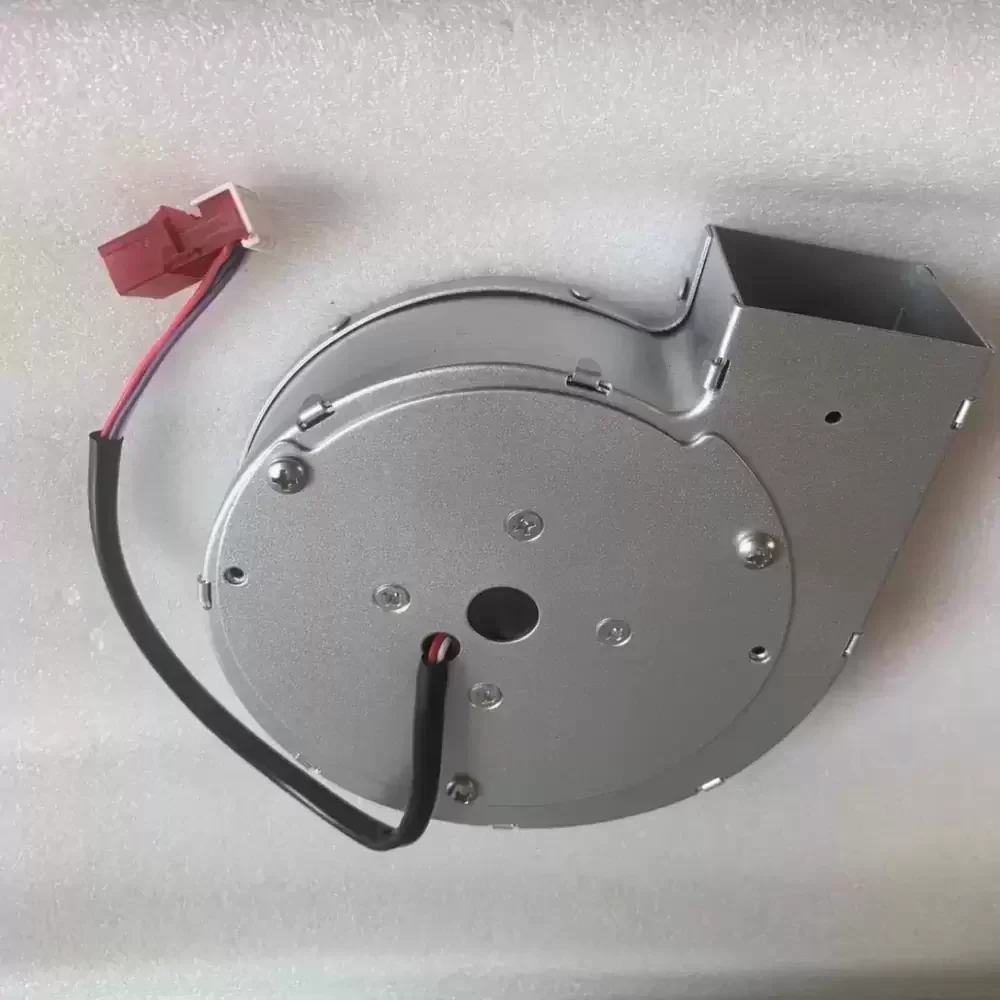

G1G097-AA01-12 ebmpapst 24VDC 97mm Centrifugal Blower

Description

The ebmpapst G1G097-AA01-12 is a precision-engineered Centrifugal Blower designed for critical thermal management in industrial machinery. Utilizing advanced EC (Electronically Commutated) motor technology, this unit offers superior energy efficiency and reduced thermal impedance compared to standard AC counterparts. The aerodynamic scroll housing optimizes airflow delivery, ensuring high static pressure capabilities essential for overcoming system resistance in dense electronic enclosures. Constructed with high-grade materials for structural rigidity, the G1G097-AA01-12 ensures reliable operation under continuous duty cycles. Its integrated electronics provide precise speed control, maintaining optimal operating temperatures within complex equipment like Heidelberg printing presses, ensuring longevity and operational stability.

Model Number: G1G097-AA01-12
Brand: ebmpapst
Product Type: EC Centrifugal Blower
OEM Part Number: C2.115.1411/02
Rated Voltage: 24VDC
Voltage Range: 22.0 – 26.0 VDC
Power Consumption: 15 W
Rated Current: 0.7 A
Rated Speed: 2900 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 61.8 CFM (105 m³/h)
Max. Static Pressure: 9.81 mmH₂O (96 Pa)
Impeller Diameter: 97 mm
Housing Material: Die-cast Aluminum / Plastic UL94V-0
Impeller Material: Galvanized Sheet Steel
Motor Technology: EC External Rotor
Ingress Protection: IP20
Insulation Class: B
Operating Temperature: -25°C to +60°C
Life Expectancy: 40,000 Hours (L10 at 40°C)
Termination: Lead Wires
Weight: 0.9 kg
Certifications: CE, UL, CSA
Direction of Rotation: Clockwise (viewed toward rotor)

This centrifugal blower is specifically engineered for integration into high-performance industrial machinery, serving as a critical component in Heidelberg printing presses, specifically the CD102 series. The G1G097-AA01-12 provides targeted cooling to electronic control units and drive systems where space is constrained and high static pressure is required. Beyond printing applications, the G1G097-AA01-12 is suitable for use in medical instrumentation, telecommunications cabinets, and automated manufacturing equipment requiring reliable thermal regulation.
