Description

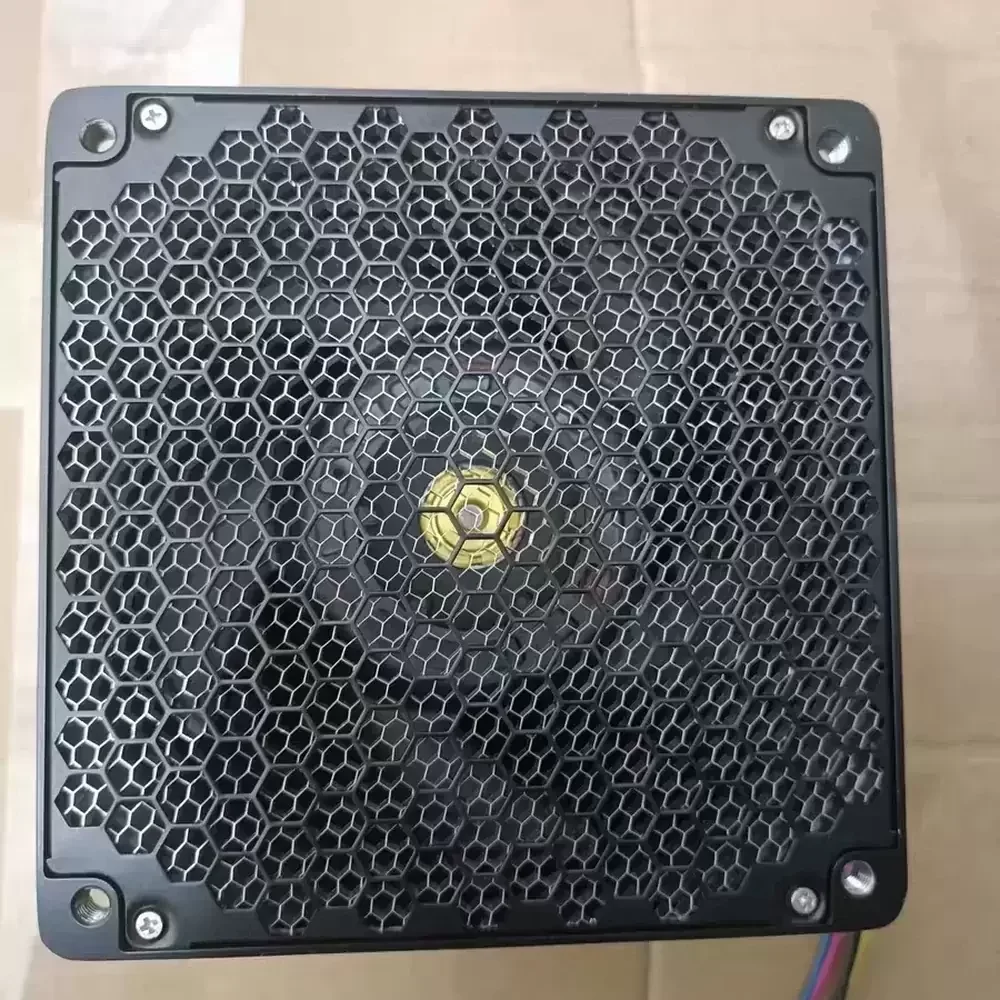

The AVC DAPA1290B8FY001 is a specialized DC Axial Fan designed for high-demand industrial cooling applications. Built upon a durable DC motor platform with a precision ball bearing system, this unit ensures low mechanical friction and extended operational life. The fan features an optimized blade geometry that enhances aerodynamic efficiency, delivering superior airflow while maintaining structural rigidity. This design effectively lowers thermal impedance in enclosed systems, making the DAPA1290B8FY001 an ideal solution for equipment requiring consistent and powerful air movement.
Model Number: DAPA1290B8FY001
Brand: AVC
Product Type: DC Axial Fan
Rated Voltage: 48VDC
Voltage Range: 36.0 – 57.0 VDC
Rated Current: 14.20A
Power: 681.6 W
Rated Speed: 6500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 260.5 CFM (442.6 m³/h / 7.37 m³/min)
Max. Static Pressure: 38.2 mmH₂O (374.6 Pa / 1.50 inH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 410 g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: PWM
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: 4-Wire Leads
The DAPA1290B8FY001 is extensively used in enterprise-grade server racks and data center cooling modules where high static pressure is required to overcome system resistance. It is also applicable in telecommunications infrastructure, such as base station amplifiers, and industrial automation machinery. Furthermore, the DAPA1290B8FY001 is suitable for cooling high-power power supplies and renewable energy inverters, ensuring component longevity in harsh thermal environments.
