Description

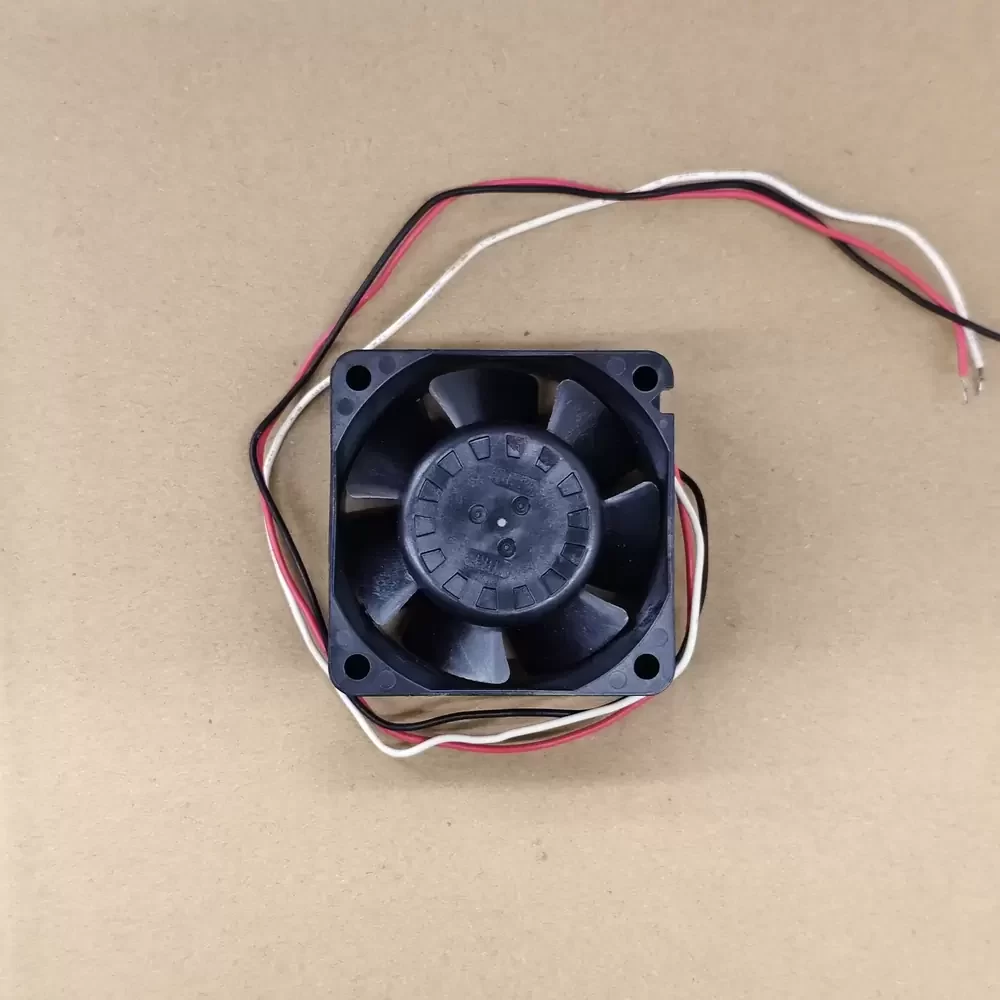

The NMB 06025VE-12Q-CT-00 is a high-performance DC brushless axial fan engineered for extreme environmental resilience and high-density thermal management. Operating at a nominal 12VDC with a 0.65A current draw, this unit delivers a substantial 39.2CFM (1.11m³/min) airflow while maintaining structural integrity through its IP68/IP69K ingress protection rating. It features a dual ball bearing system with stainless steel components, ensuring a service life of 40,000 hours at 60°C, and utilizes a 3-wire configuration for tachometer output monitoring.
06025VE-12Q-CT-00 Specifications
Model Number: 06025VE-12Q-CT-00
Brand: NMB Technologies (MinebeaMitsumi)
Product Category: DC Brushless Axial Fan
Rated Voltage: 12VDC
Operating Voltage Range: 7.0V to 13.2VDC
Rated Current: 0.65A
Input Power: 7.8W
Rated Speed: 10000 RPM
Maximum Airflow: 39.2 CFM (1.11 m3/min)
Maximum Static Pressure: 290 Pa (1.16 In H2O)
Noise Level: 54.0 dB
Bearing Type: Stainless Steel Ball Bearing
Frame Size: 60mm x 60mm x 25mm
Frame Material: Plastic (Black) UL94V-0
Impeller Material: Plastic (Black) UL94V-0
Ingress Protection: IP68 / IP69K (Potting II)
Termination: 3-Wire (Red: +, Black: -, White: Tachometer)
Lead Wire: UL3385 AWG26
Insulation Resistance: 10M Ohm min at 500VDC
Dielectric Strength: 700VAC for 1 second
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Expected Life: 40,000 Hours (L10 at 60°C)
Mass: 90g
Safety Approvals: UL, CSA, VDE, CE
06025VE-12Q-CT-00 Applications
Critical thermal regulation for high-performance frequency inverters, industrial power supplies, and telecommunications networking hardware. Mandatory cooling for outdoor electronic enclosures, server rack deployments, and automated manufacturing equipment requiring IP68/IP69K wash-down protection.
