Description

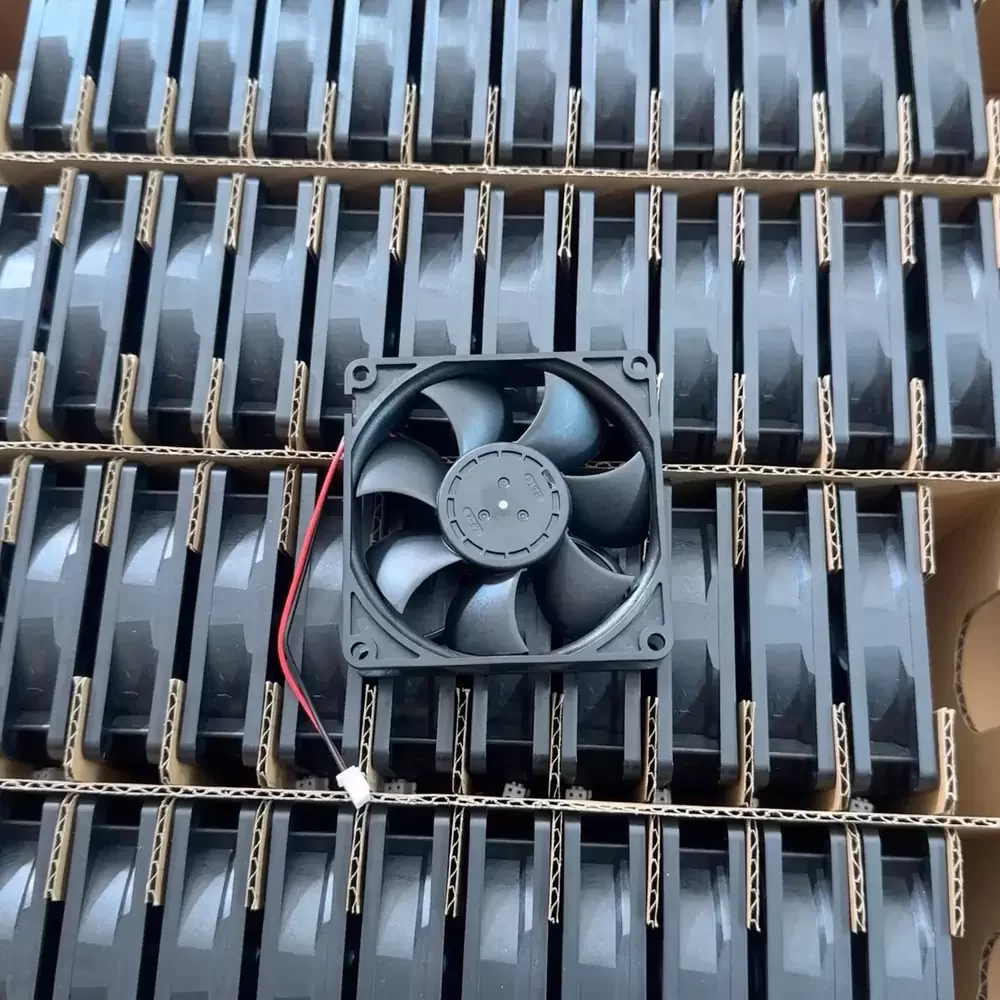

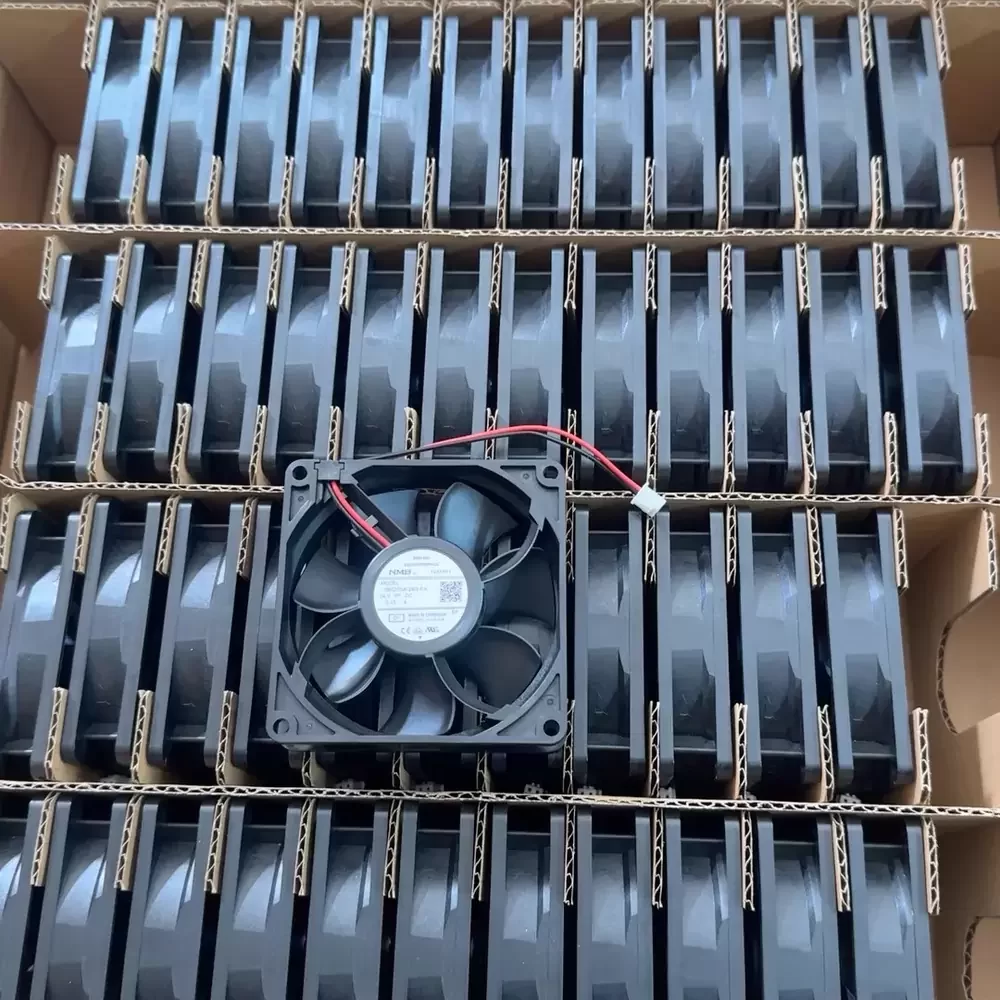

NMB 08020SA-24N-FA-01 is an 80 mm x 80 mm x 20 mm DC axial fan delivering a nominal 24 VDC and generating a primary output of 42.4 CFM. Constructed with a durable plastic housing and impeller, this unit operates at 4000 RPM while maintaining a noise profile of 40.5 dBA and a maximum static pressure of 53 Pa. The hardware features a flange mount design, a standard 2 wire lead interface, and a precision dual ball bearing mechanism rated for a lifespan of 40000 hours at 60 °C. Internal circuitry includes integrated auto-restart and polarity protection to ensure stable electromechanical operation.
08020SA-24N-FA-01 Specifications
Model Number: 08020SA-24N-FA-01
Brand: NMB (MinebeaMitsumi)
Product Category: DC Axial Fan
Nominal Voltage: 24 VDC
Rated Current: 0.15 A
Calculated Power: 3.6 W
Frame Dimensions: 80 mm x 80 mm x 20 mm
Maximum Airflow: 42.4 CFM (1.2 m³/min)
Maximum Static Pressure: 53 Pa (0.21 inH2O)
Rated Speed: 4000 RPM
Acoustic Noise: 40.5 dBA
Bearing System: Dual Ball Bearing
Termination: 2 Wire Leads
Mounting Configuration: Flange Mount
Frame Material: Plastic
Impeller Material: Plastic
Life Expectancy (L10): 40000 Hours @ 60 °C
Motor Protection: Auto Restart, Polarity Protection
Mass/Weight: 80 g
08020SA-24N-FA-01 Applications
Primary applications include integration into industrial control panels, CNC spindle cooling systems, and telecom base station enclosures. Deployed within automated factory equipment, server racks, and high-capacity power supply units requiring continuous thermal management under dense spatial constraints.
