Description

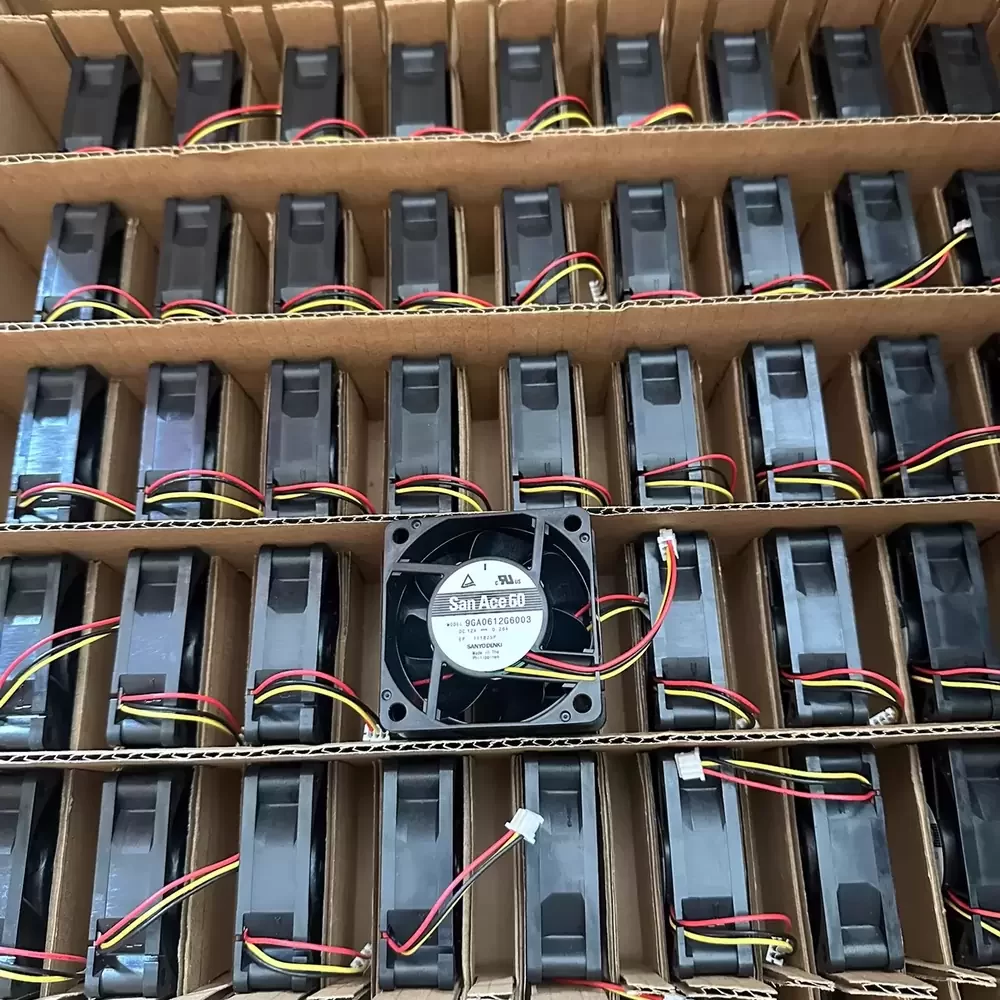

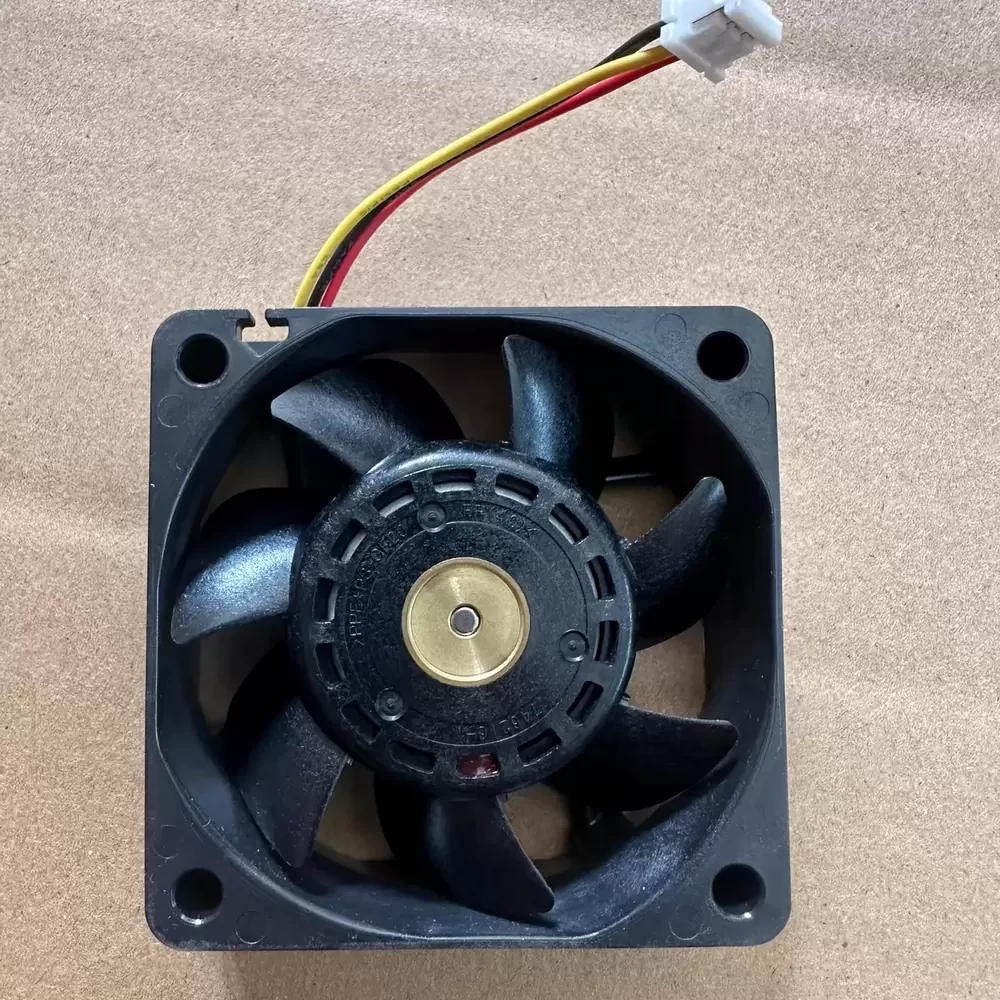

Sanyo Denki 9GA0612G6003 is a 60 x 60 x 20 mm DC tubeaxial fan operating at a nominal 12 VDC and 3.12 W, delivering a maximum airflow of 31.1 CFM and static pressure of 124.5 Pa. The unit features a lightweight plastic housing and impeller, supported by a dual ball bearing system for extended operational longevity. It utilizes a 3-wire interface with a tachometer speed sensor and includes locked rotor burnout protection alongside reverse polarity protection.
9GA0612G6003 Specifications
Model Number: 9GA0612G6003
Brand: Sanyo Denki
Series: San Ace 60 (9GA Type)
Product Category: DC Tubeaxial Fan
Dimensions: 60 x 60 x 20 mm
Nominal Voltage: 12 VDC
Operating Voltage Range: 10.8 to 13.2 VDC
Nominal Current: 0.26 A
Power Consumption: 3.12 W
Rotational Speed: 6850 RPM
Maximum Airflow: 31.1 CFM (0.88 m³/min)
Maximum Static Pressure: 124.5 Pa (0.500 in H2O)
Acoustic Noise Level: 43 dBA
Operating Temperature: -20 °C to 70 °C
Bearing Type: Double Ball Bearing
Housing Material: Plastic
Impeller Material: Plastic
Termination: 3-Wire Leads with Plug
Protection Features: Locked Rotor Burnout Protection, Reverse Polarity Protection
Sensor Type: Tachometer (Speed Sensor)
9GA0612G6003 Applications
Primary applications include integration into telecommunications base stations, CNC spindle cooling systems, and industrial power supply enclosures. Deployed within automated test equipment and server racks, this fan provides forced convection cooling for high-density electronic components operating under continuous thermal loads.
