Description

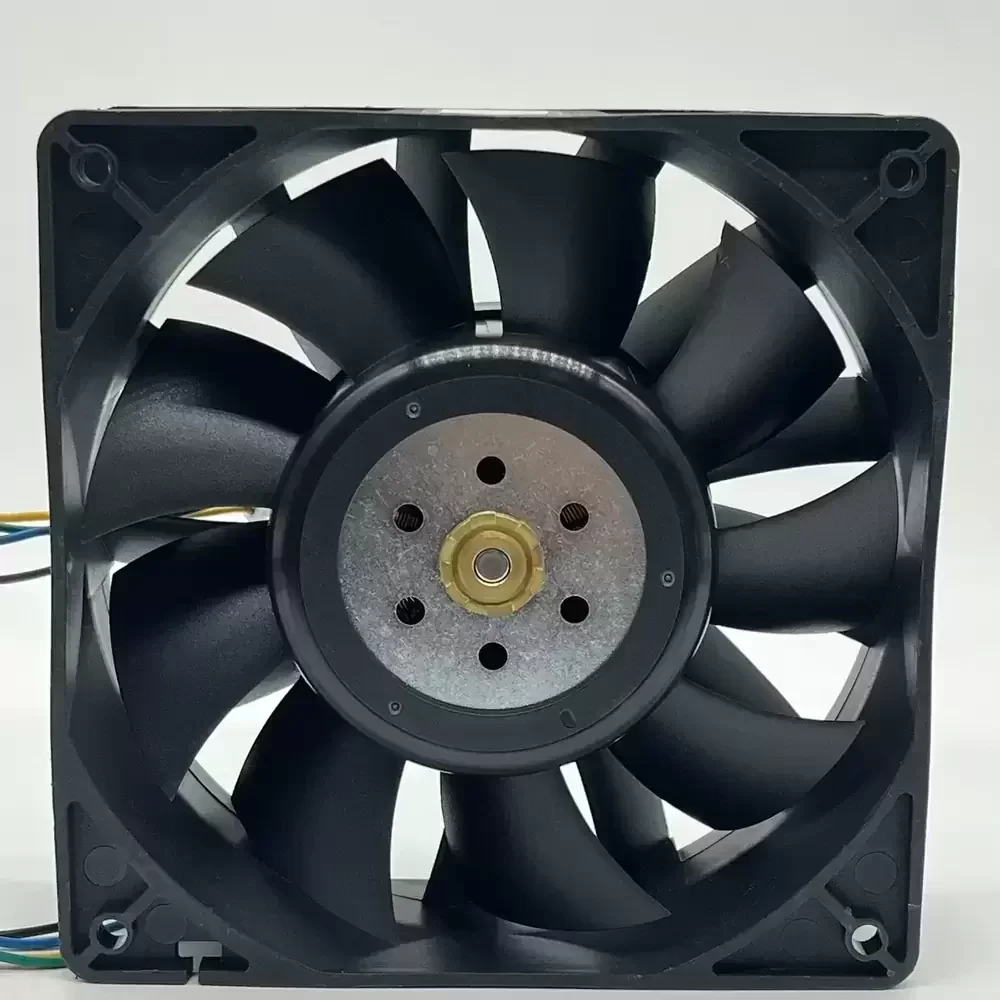

The Y.S.TECH FD121238MB-P is a high-capacity DC axial fan engineered for critical thermal management in environments requiring substantial static pressure and airflow throughput. Utilizing a robust DC brushless motor architecture, this unit operates with a significant power profile to overcome high system impedance in dense electronic enclosures. The construction features a reinforced thermoplastic frame and impeller designed to maintain structural rigidity under high rotational velocities. Equipped with a precision double ball bearing system, the FD121238MB-P ensures minimized frictional coefficients and extended operational service life, making it a reliable solution for mitigating thermal loads in continuous-duty industrial applications.
Model Number: FD121238MB-P
Brand: Y.S.TECH
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Rated Current: 3.0 A
Power Consumption: 36.0 W
Dimensions: 120 x 120 x 38 mm
Bearing Type: Dual Ball Bearing
Speed Control: PWM (Pulse Width Modulation)
Termination: 4-Wire Lead
Motor Type: DC Brushless
Housing Material: PBT (UL94V-0)
Impeller Material: PBT (UL94V-0)
Mounting Orientation: Flange Mount
Ingress Protection: Standard
Operating Temperature: -10°C to +70°C
Application: Server/Industrial Cooling
The FD121238MB-P is specifically deployed in high-performance computing scenarios, such as rack-mounted server chassis and data center infrastructure, where maintaining optimal operating temperatures is critical. Its high-static pressure capabilities allow it to effectively force air through restrictive heatsinks and densely packed components found in telecommunications equipment and power supply units. Furthermore, the FD121238MB-P is utilized in industrial automation control cabinets and CNC machinery, providing the necessary air exchange to prevent thermal throttling and ensure the longevity of sensitive electronic hardware.
