Description

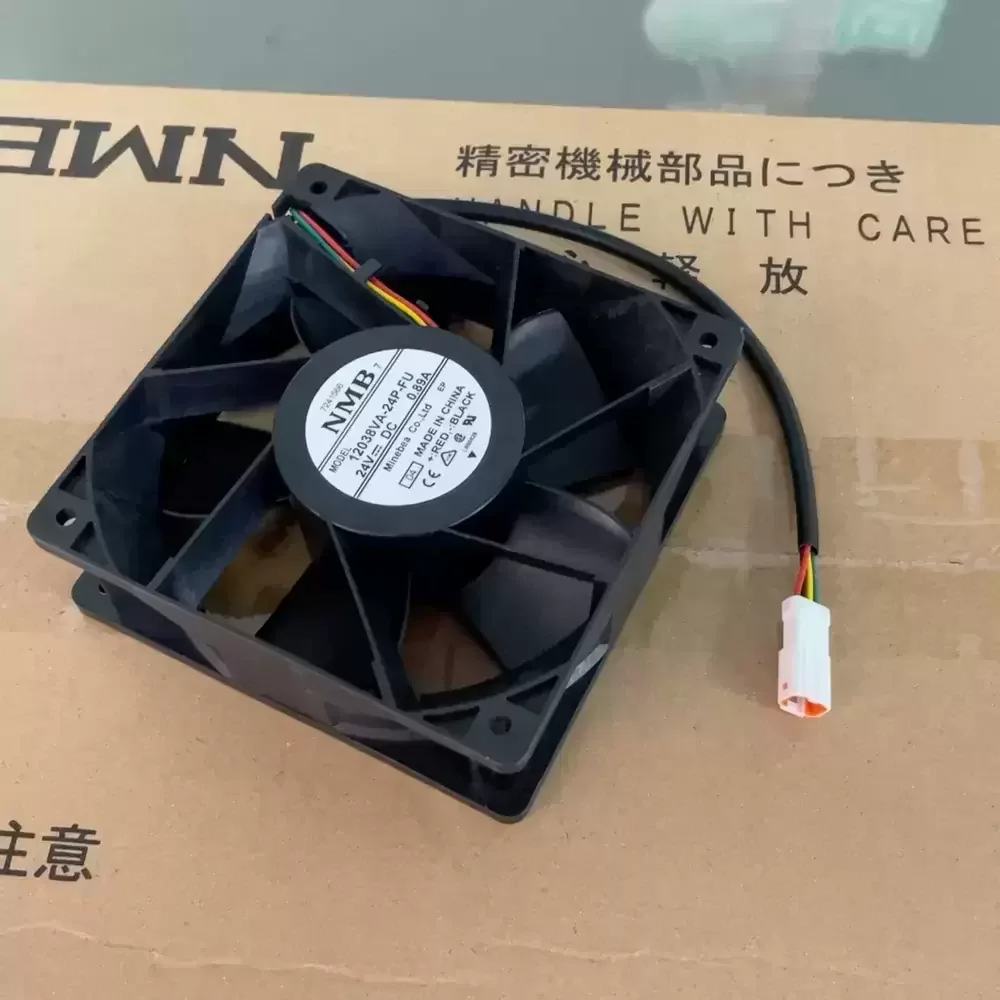

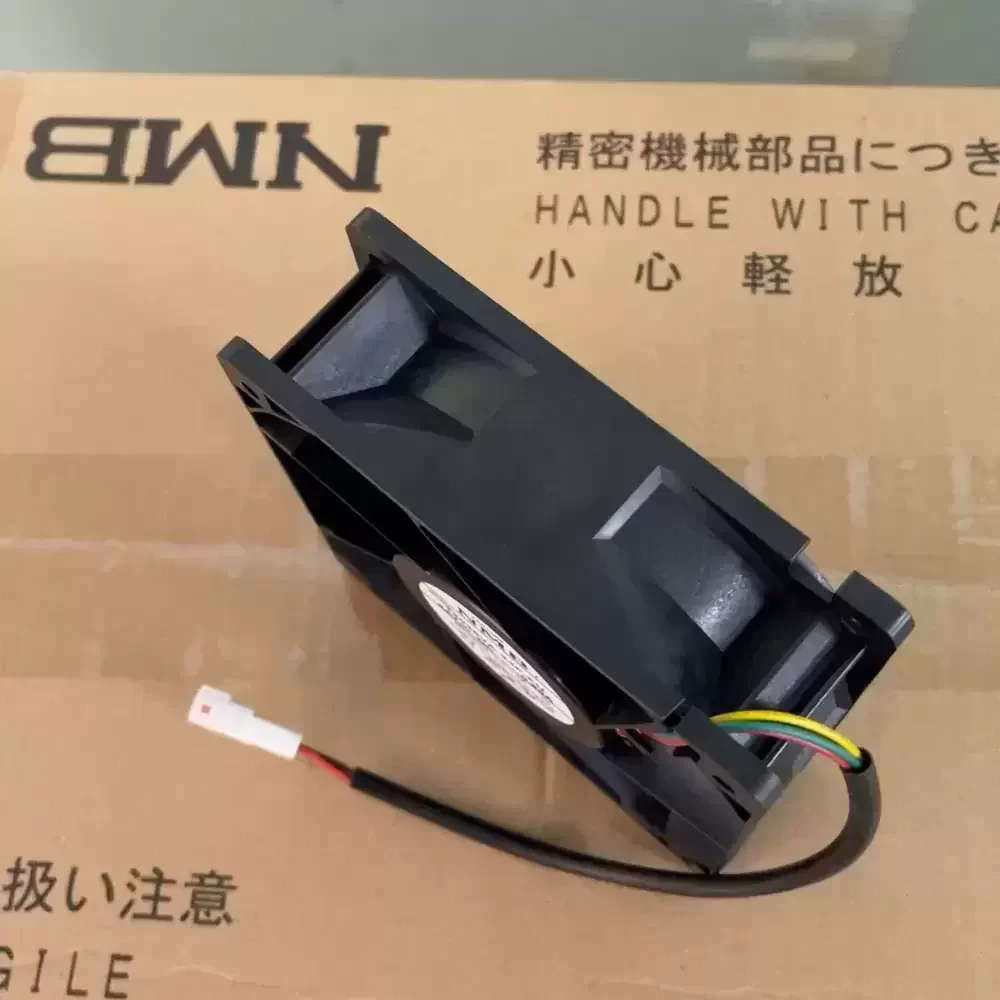

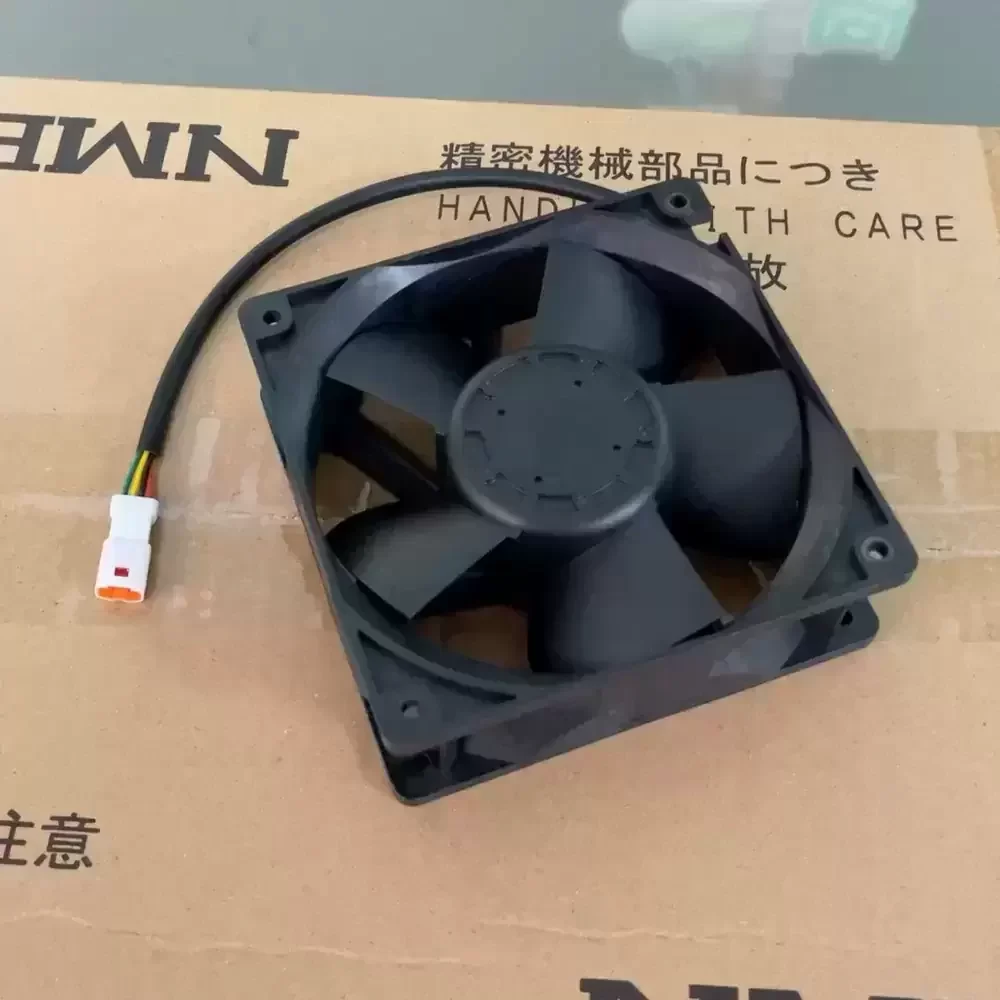

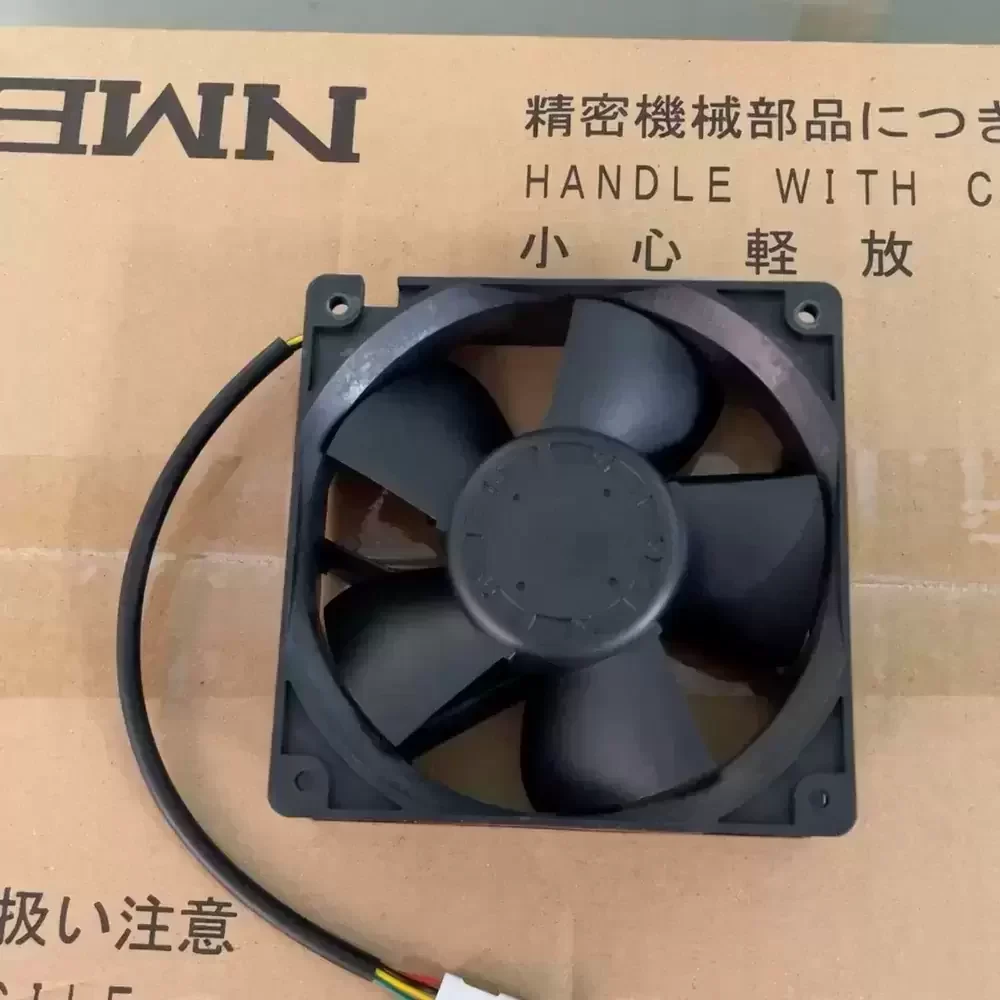

The NMB 12038VA-24P-FU-04 is a high-static pressure DC Axial Fan engineered for critical thermal management in industrial environments. Manufactured by MinebeaMitsumi, this unit features a robust thermoplastic housing designed for structural rigidity and vibration dampening. It utilizes precision dual ball bearing architecture to ensure longevity and stable operation under continuous loads. With a rated voltage of 24VDC and a current draw of 0.89A, the fan delivers exceptional airflow efficiency, optimizing the thermal impedance of heat sinks in inverters and automation equipment. The aerodynamic impeller design maximizes the P-Q characteristic curve for demanding back-pressure applications.
Model Number: 12038VA-24P-FU-04
Brand: NMB (MinebeaMitsumi)
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.89 A
Power Consumption: 21.36 W
Dimensions: 120 x 120 x 38 mm
Bearing Type: Dual Ball Bearing
Max. Air Flow: 160.0 CFM (Approx. 271 m³/h)
Max. Static Pressure: 18.5 mmH₂O (Approx. 181 Pa)
Rated Speed: 4200 RPM
Noise Level: 56.0 dBA
Termination: 4-Wire (PWM/Tachometer Support)
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 Hours (at 40°C)
Ingress Protection: IP20
Mounting Orientation: Any
Application: Inverter Cooling, Server Cabinets
Designed for rigorous industrial environments, the 12038VA-24P-FU-04 excels in cooling variable frequency drives (VFDs) and high-density server racks where sustained airflow is critical. Its high-pressure profile makes it suitable for forcing air through dense fin stacks in power supply units and CNC machinery control cabinets. The 12038VA-24P-FU-04 ensures reliable heat dissipation, preventing thermal throttling in telecommunications infrastructure and automated manufacturing systems.
