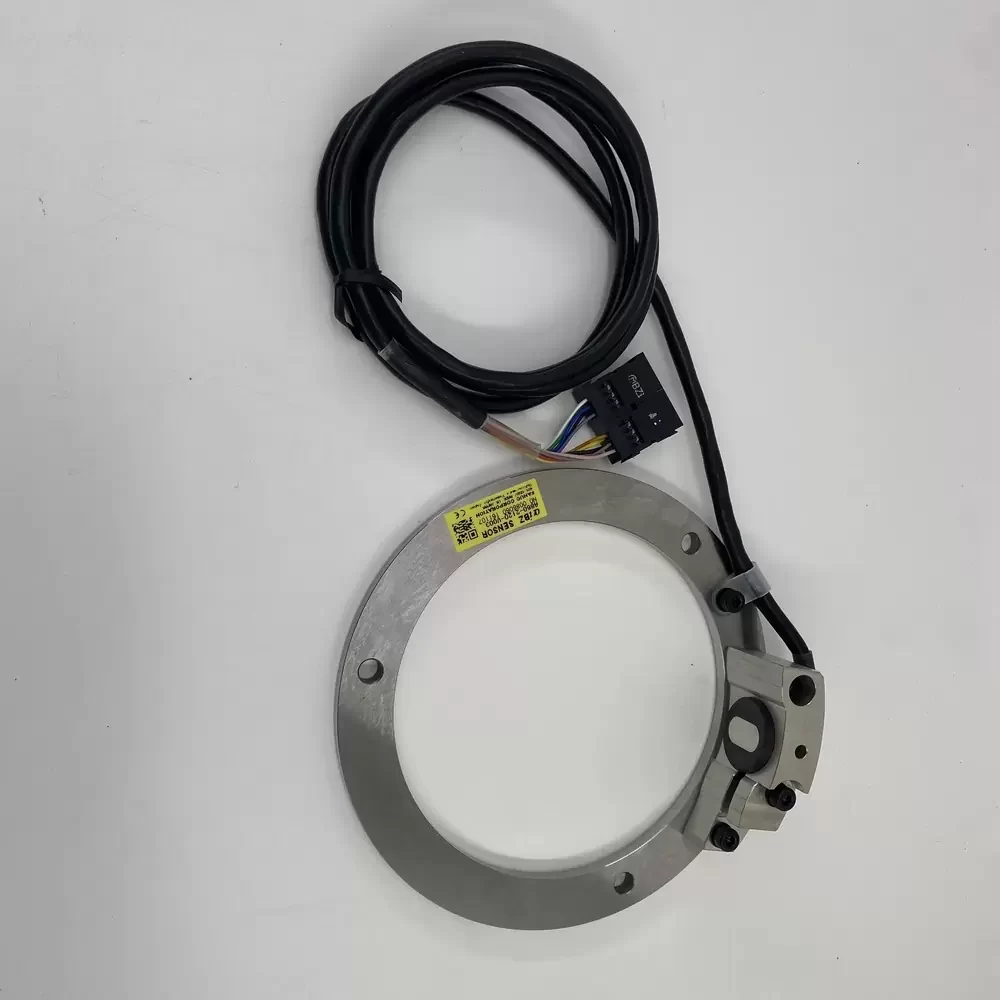

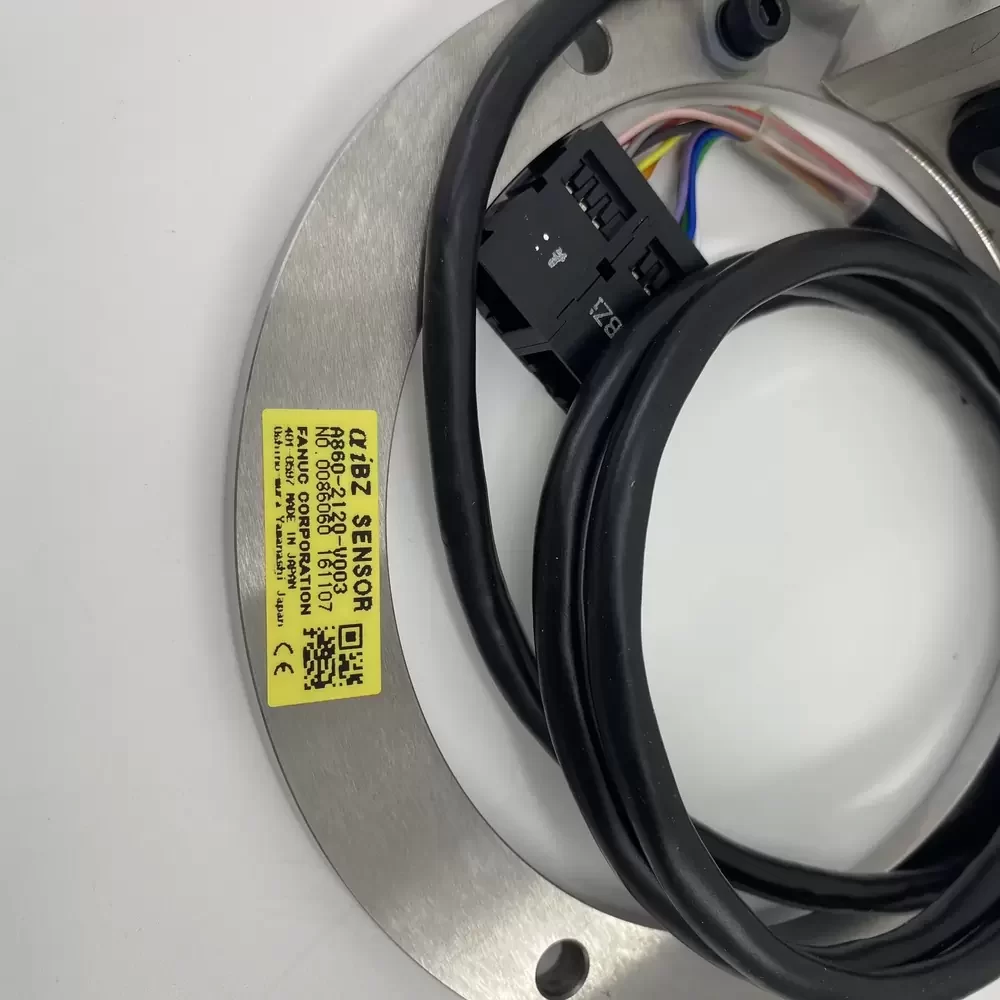

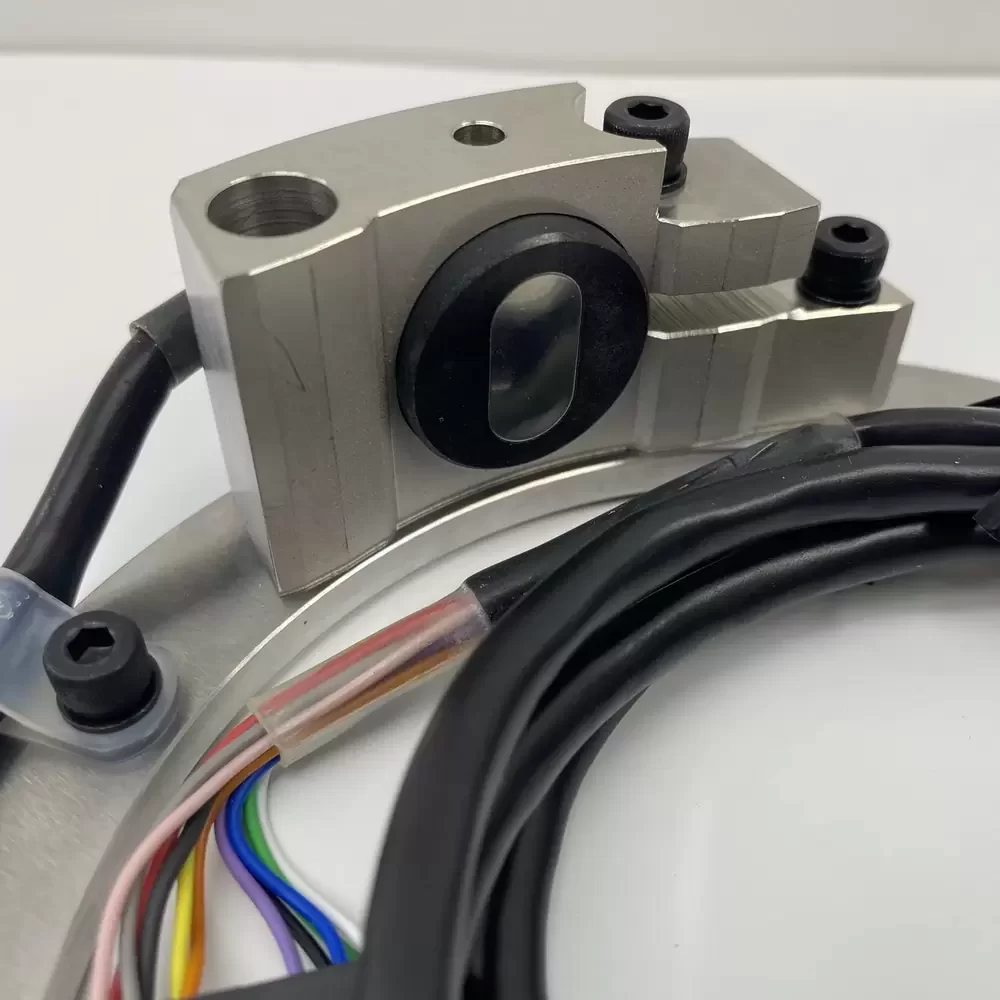

A860-2120-V003 Fanuc 24VDC 12kHz AiBZ Spindle Encoder

Description

The Fanuc A860-2120-V003 is a 24 VDC, 12 kHz AiBZ absolute multi-turn spindle encoder featuring a 0.45 kg industrial-grade reinforced housing and an integral cable with included connectors. This sensor kit utilizes a flange-mount design with a secure mounting ring to ensure precise mechanical alignment. It operates within a 0 to 60 °C temperature range and tolerates up to 95 % non-condensing relative humidity, utilizing the proprietary Fanuc serial interface for high-resolution position and speed feedback.

A860-2120-V003 Specifications
Model Number: A860-2120-V003
Manufacturer: Fanuc
Product Category: Spindle Encoder / Pulse Coder
Sensor Type: AiBZ (Absolute, Multi-turn)
Operating Voltage: 4 to 24 VDC
Operating Frequency: Up to 12 kHz
Communication Protocol: Fanuc Serial Interface
Mounting Style: Flange-mount with Mounting Ring
Operating Temperature: 0 to 60 °C
Storage Temperature: -20 to 60 °C
Relative Humidity: 95 % or less (non-condensing)
Ingress Protection Rating: IP64
Weight: 0.45 kg (1.00 lbs)
Enclosure Material: Industrial-grade reinforced housing
Connection Type: Integral cable with connectors
HS Code: 85030090

A860-2120-V003 Applications
Primary applications include integration into Fanuc AC spindle motor systems, CNC machining centers, and automated production lines requiring closed-loop servo feedback. Deployed within high-speed robotic systems and precision tool positioning equipment to monitor spindle rotation and maintain accurate motion control.
