DVF-11 Shinko 0-2500rpm Pulse Type Analog Tachometer

Description

The Shinko DVF-11 is a high-precision pulse-type analog tachometer designed for rigorous rotational speed monitoring in heavy industrial and marine environments. Utilizing a wide-angle 110mm square scale, this instrument provides clear, real-time RPM visualization with a full-scale sensitivity of 3mA. The unit is engineered for pulse-signal inputs from magnetic pickups or proximity sensors, featuring a rear-mounted gain adjustment for precise field calibration. Its robust construction ensures immunity to iron panel interference, maintaining accuracy in dense electrical enclosures. With a measurement range of 0-2500rpm (X100 scale), it serves as a critical diagnostic tool for monitoring engine, generator, and motor performance.

[Model] Specifications
Model Number: DVF-11
Brand: Shinko Ind. Ltd. (Toyo Keiki)
Product Category: Pulse Type Analog Tachometer / RPM Meter

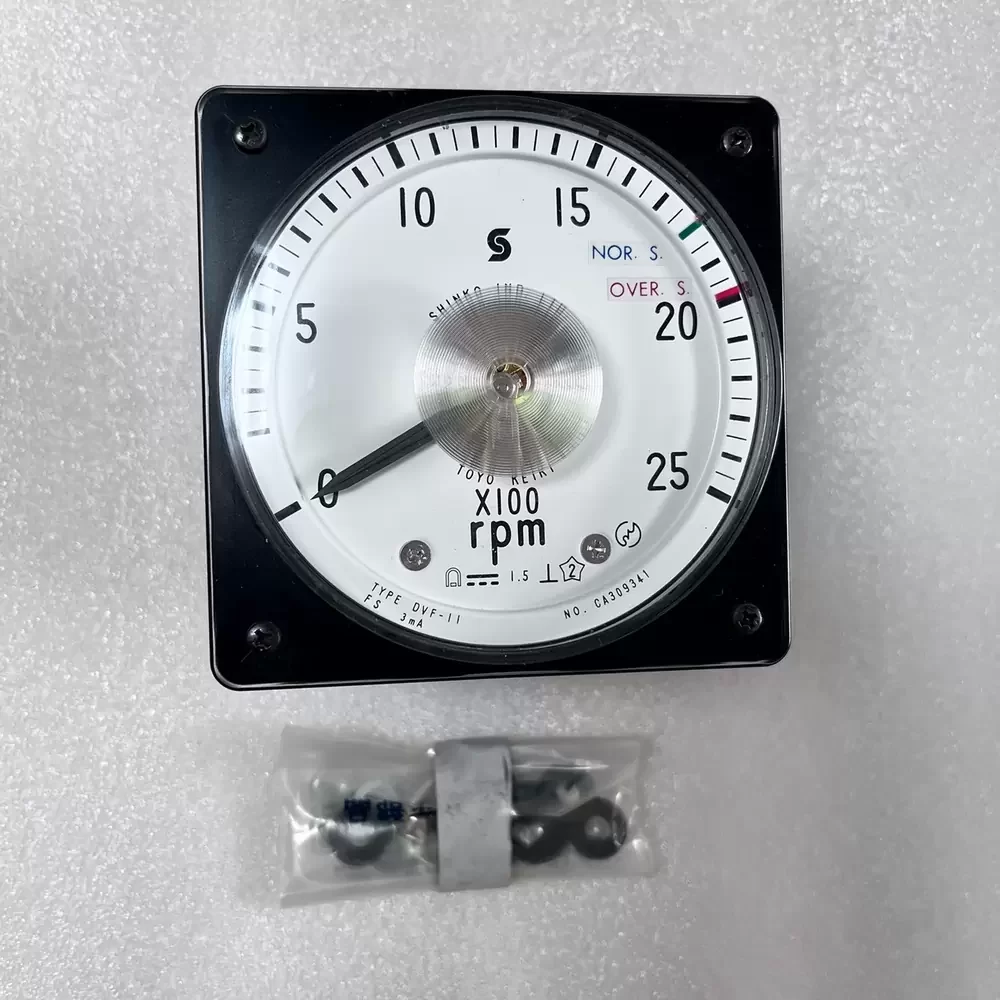

Measurement Range: 0 to 2500 rpm (Scale 0-25 x100)
Input Type: Pulse Signal (Transistorized Circuitry)
Full Scale Sensitivity: 3mA (FS 3mA)
Accuracy Class: Standard Industrial Grade (JIS compliant)

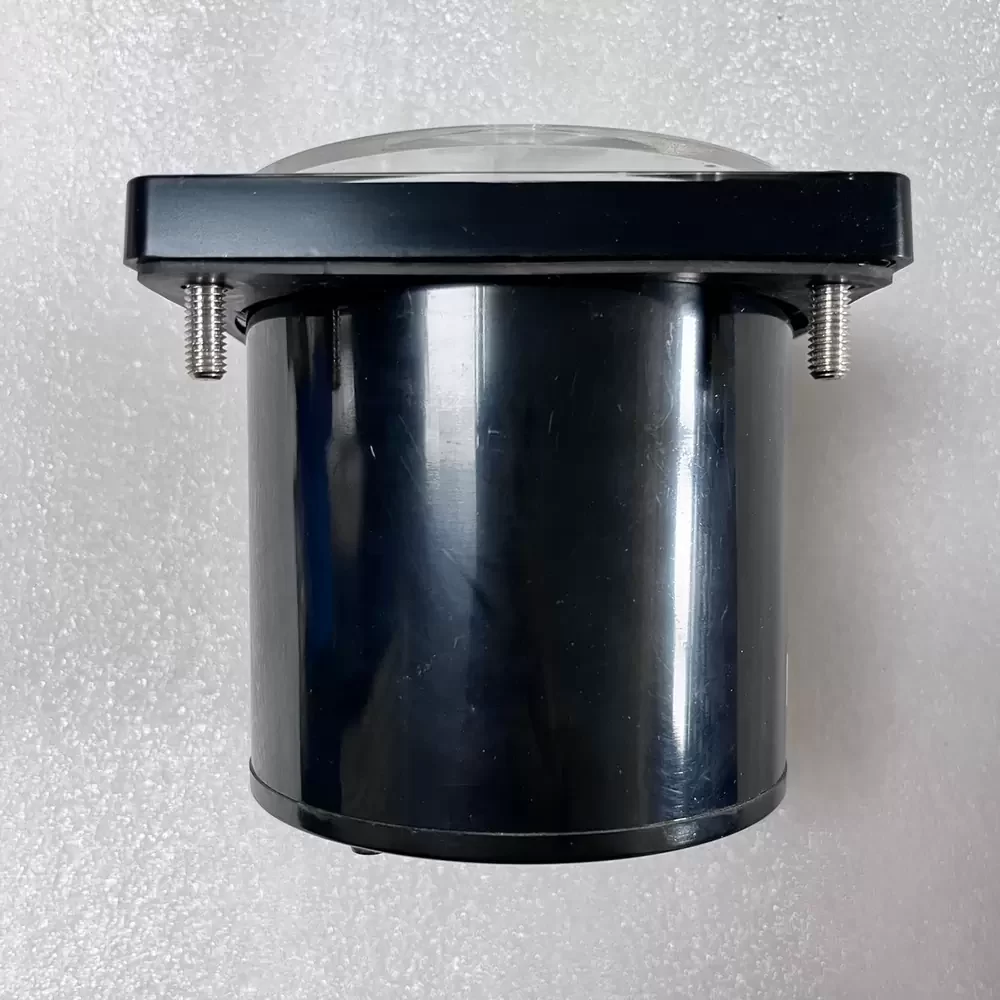

Panel Dimensions: 110 x 110 mm

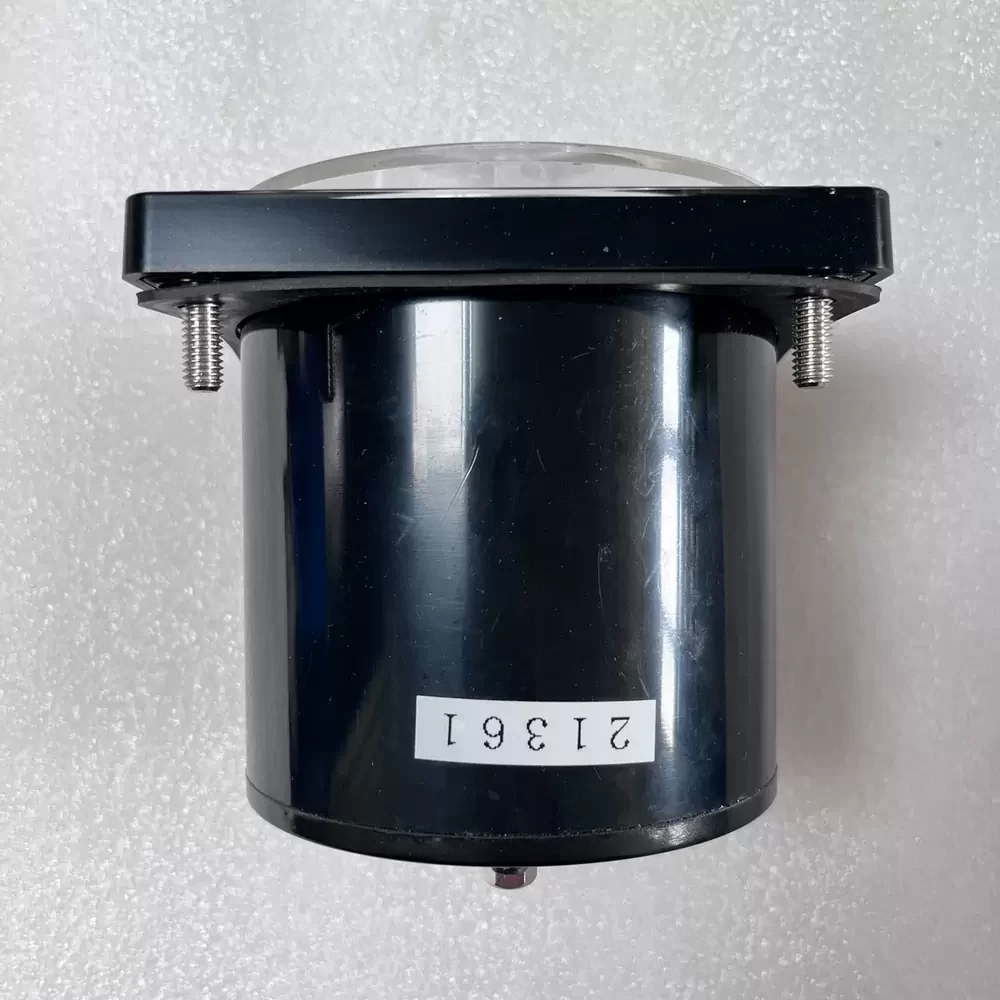

Mounting Type: Square Flush Panel Mount
Panel Cutout: 102 mm diameter
Terminal Type: M4/M5 Screw Terminals

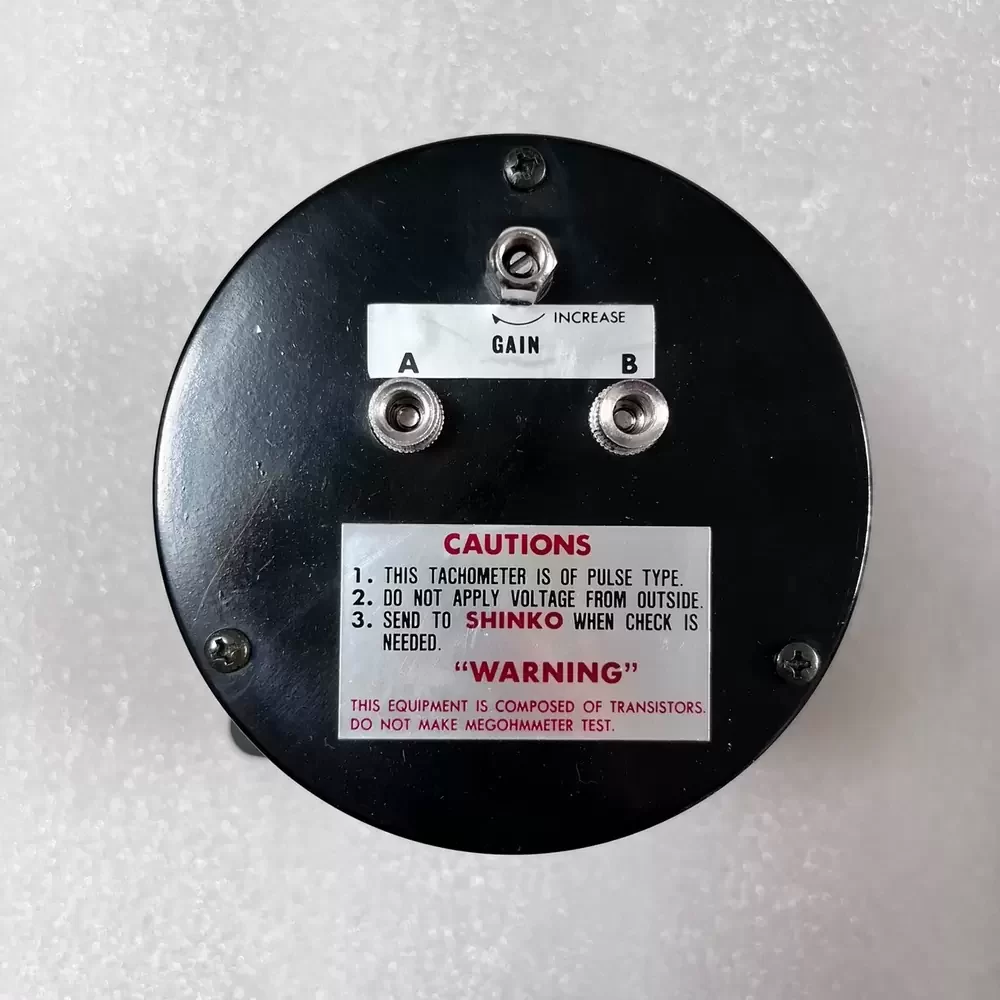

Adjustment: Rear-mounted GAIN potentiometer
Internal Resistance: Approx. 1kΩ/V (1mA sensitivity)
Operating Temperature: -10 to +50°C
Enclosure Material: High-impact Resin / Glass Face
Weight: Approximately 0.45 kg
Certifications: JIS Standards, Marine Type Approved
Features: Wide-angle long scale, zero-point adjustment, anti-magnetic interference

[Model] Applications
Mandatory rotational speed monitoring for marine main engines, industrial diesel generators, and large-scale centrifugal pumping systems. Direct integration into engine control rooms (ECR) and power distribution panels for real-time mechanical diagnostic feedback.
