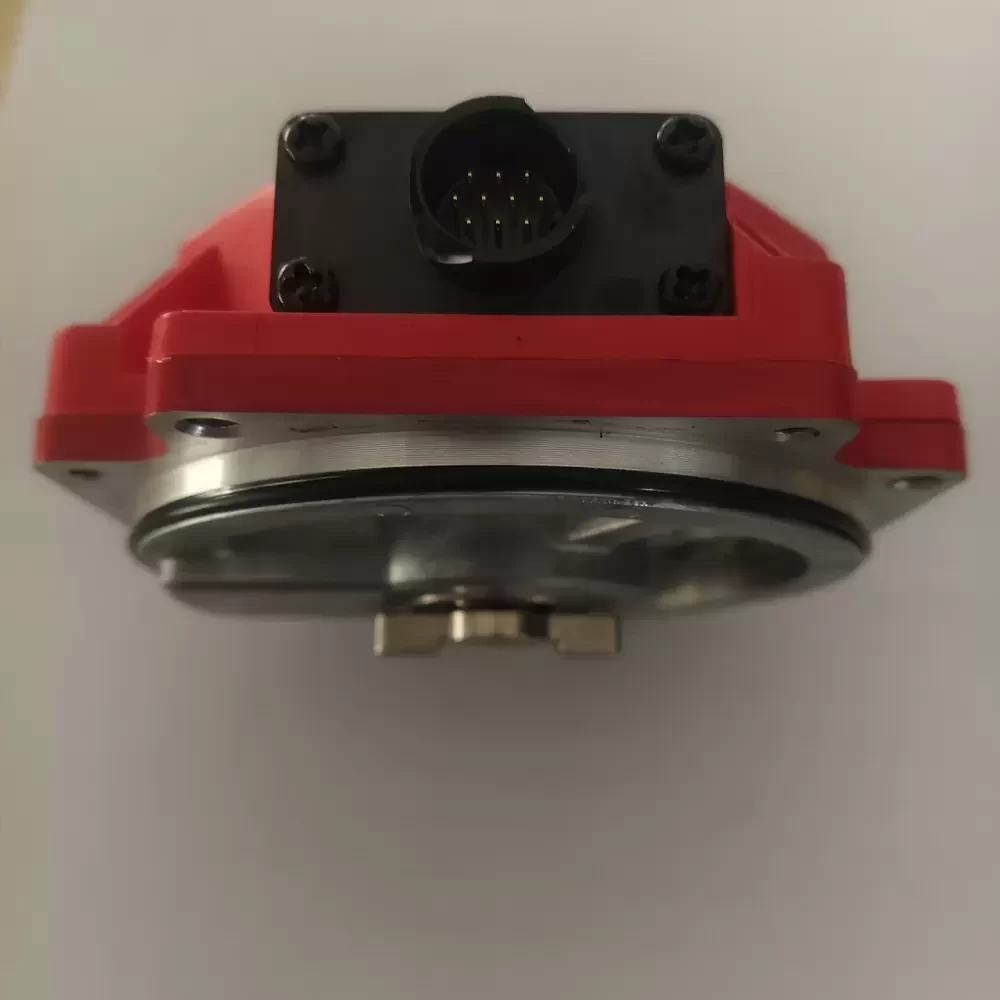

A860-2000-T301 FANUC 1000000PPR IP65 Absolute Pulse Coder

Description

FANUC A860-2000-T301 1 000 000 PPR absolute pulse coder features an integrated Oldham coupling interface and IP 65 ingress protection. This Alpha i A1000 series component utilizes a 10 pin male connector for serial data transmission and is housed in a ruggedized enclosure for protection against dust and liquid ingress. The internal mechanism supports rotational speeds up to 3 000 RPM while maintaining precise absolute position data through power cycles via a backup capacitor system. The unit is constructed with a compact flange mount and EMI-resistant differential line driver circuitry to ensure signal integrity.

A860-2000-T301 Specifications
Model: A860-2000-T301
Brand: FANUC
Product Series: Alpha i A1000
Type: Absolute Pulse Coder
Resolution: 1 000 000 PPR
Interface: Serial Communication
Connector: 10 pin Male
Coupling Type: Oldham Coupling
Ingress Protection: IP 65
Rated Speed: 3 000 RPM
Weight: 0.29 kg
Dimensions: 5.0 x 10.0 x 10.0 cm
Controller Compatibility: R-J3, R-J3iB, R-30iA, R-30iB
Motor Compatibility: Alpha Series Servo Motors
Output Type: Differential Line Driver
Feedback Type: Absolute Position
Mounting Type: Flange Mount
Signal Type: Digital Serial

A860-2000-T301 Applications
Primary applications include integration into CNC machine tool spindle and feed axis feedback systems for high-precision milling and machining centers. Deployed within robotic joint assemblies and gantry systems to provide sub-micron positioning data for closed-loop velocity and position control.
