Description

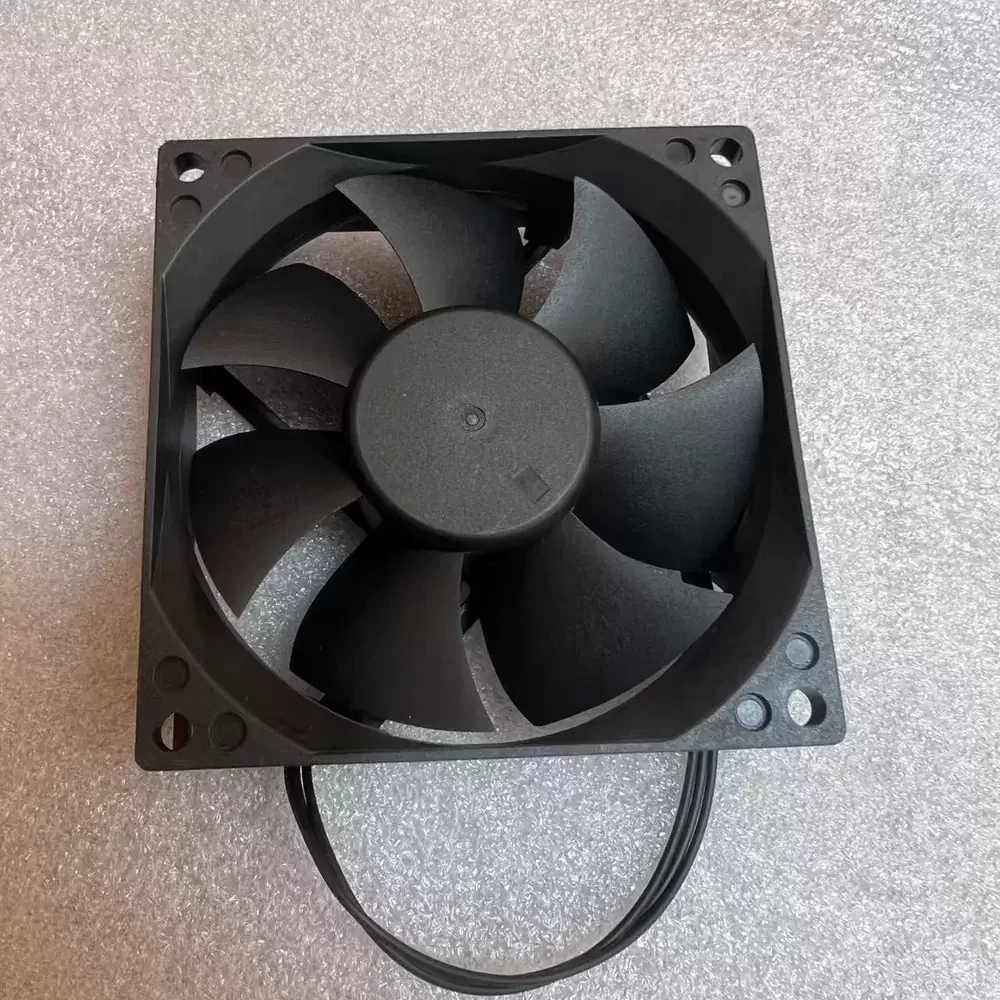

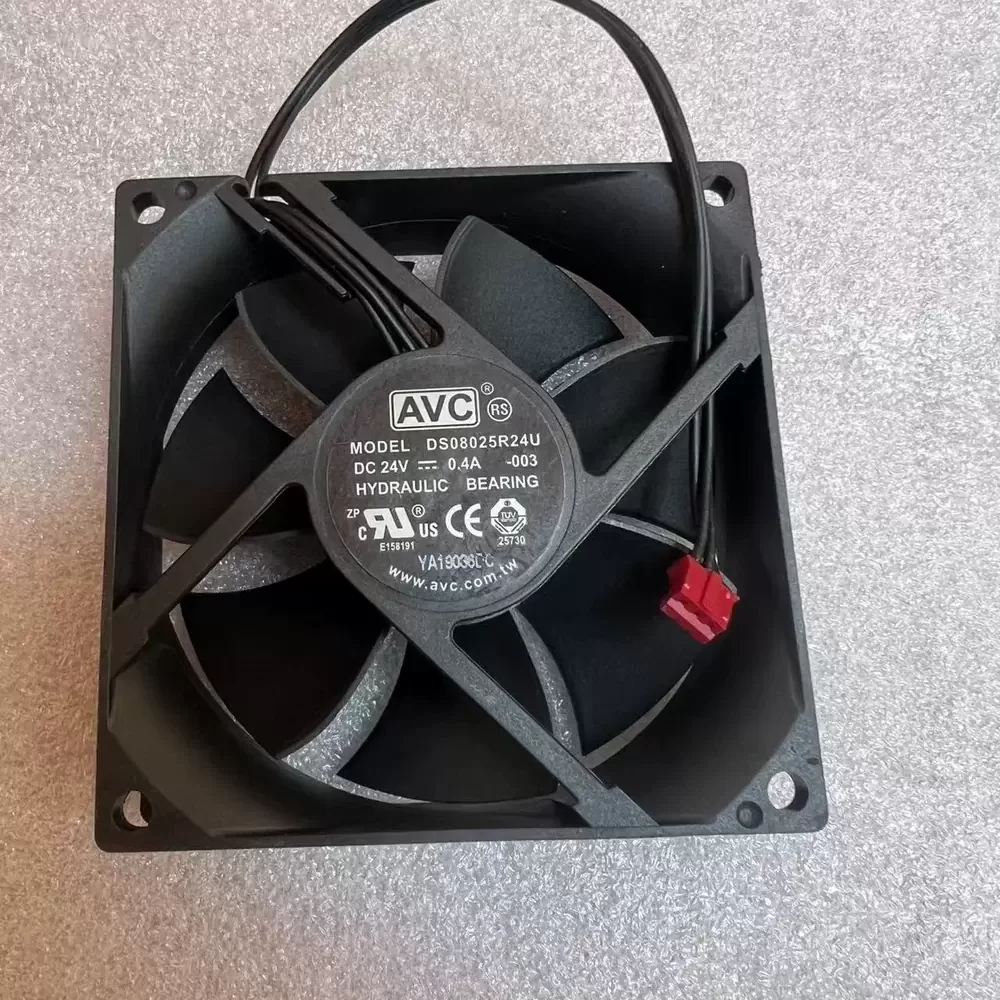

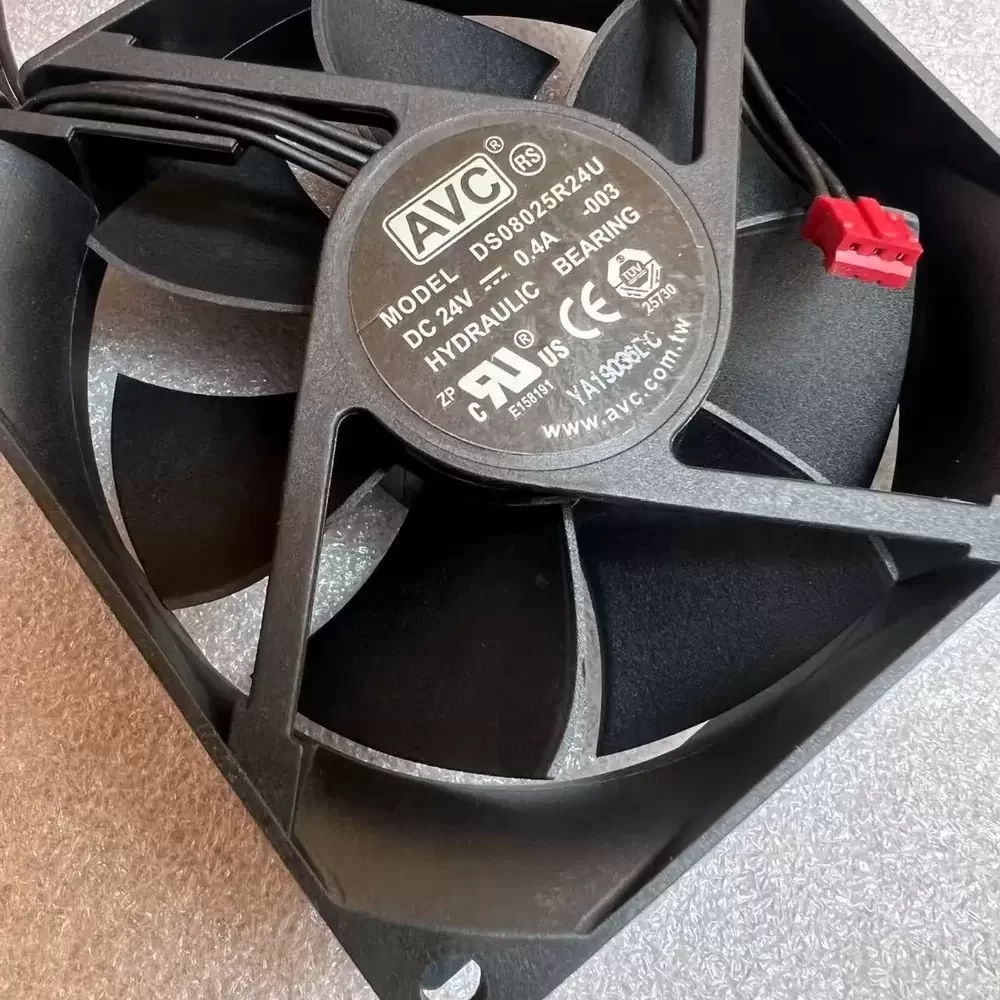

AVC DS08025R24U-003 is a 24VDC 80x80x25mm Axial Fan optimized for high-density thermal management in industrial power electronics. Engineered with advanced DC brushless motor technology and a specialized hydraulic bearing architecture, this unit minimizes thermal impedance while maintaining structural rigidity under continuous duty cycles. The aerodynamic impeller design is specifically tuned to deliver a robust 0.40A current draw at peak performance, achieving a rated speed of 4500 RPM to overcome significant static pressure within cramped enclosures. This model is an essential component for maintaining system stability, providing a maximum airflow of 52.5 CFM to ensure critical components remain within safe operating temperatures.
Model Number: DS08025R24U-003
Brand: AVC
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.40 A
Power: 9.6 W
Rated Speed: 4500 RPM
Bearing Type: Hydraulic Bearing
Max. Air Flow: 52.5 CFM (89.2 m³/h / 1.49 m³/min)
Max. Static Pressure: 8.2 mmH₂O (80.4 Pa / 0.32 inH₂O)
Dimensions: 80 x 80 x 25 mm
Weight: 85 g
Life Expectancy: 50,000 Hours at 40°C
Noise Level: 42.5 dB(A)
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Termination: 3-Lead Wires
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Certifications: CE, TUV, UL, RoHS
DS08025R24U-003 Applications
1. VFD Inverter Cooling: Engineered to overcome the high system impedance of frequency converters, serving as a high-reliability replacement fan for internal power module ventilation.
2. Industrial Power Supplies: The hydraulic bearing system provides the low-vibration stability required for sensitive switch-mode power supply (SMPS) environments.
3. 2U Rackmount Chassis: Compact 80mm form factor with high static pressure capability makes it ideal for dense server enclosures requiring targeted airflow over heat sinks.
