Description

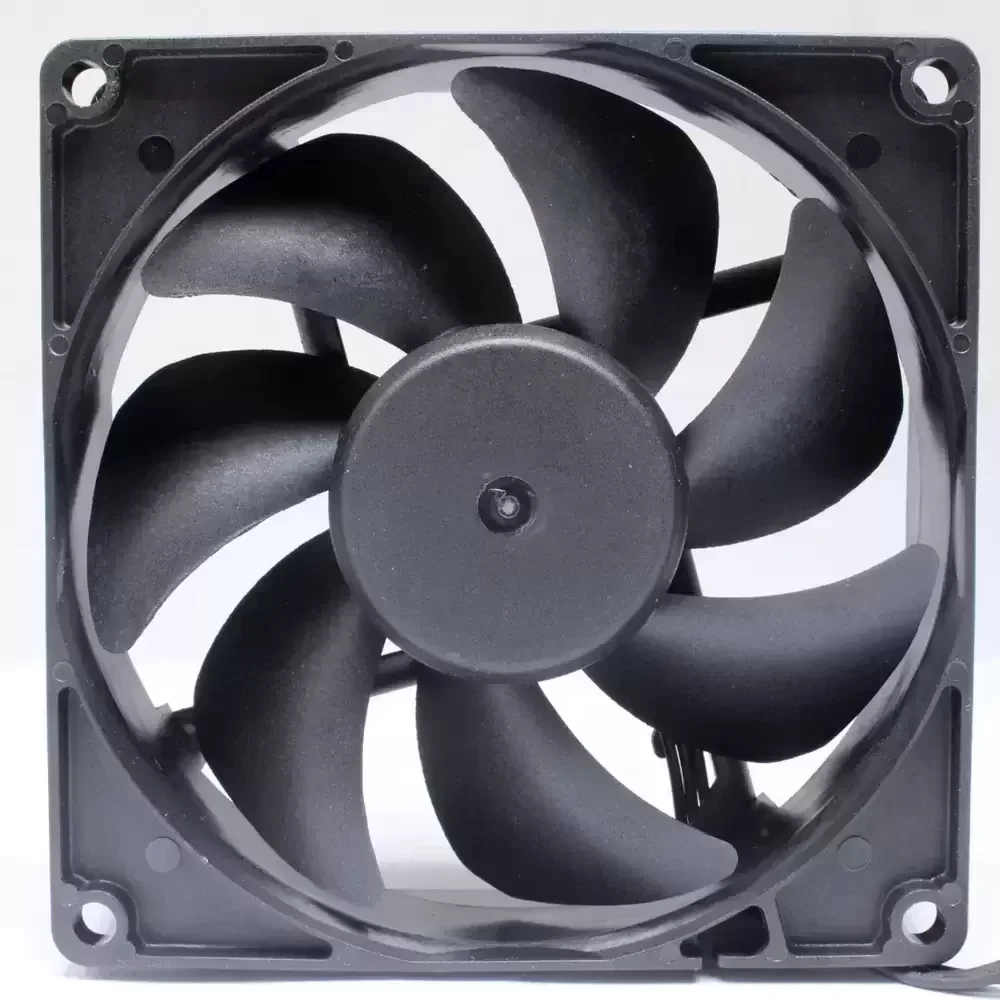

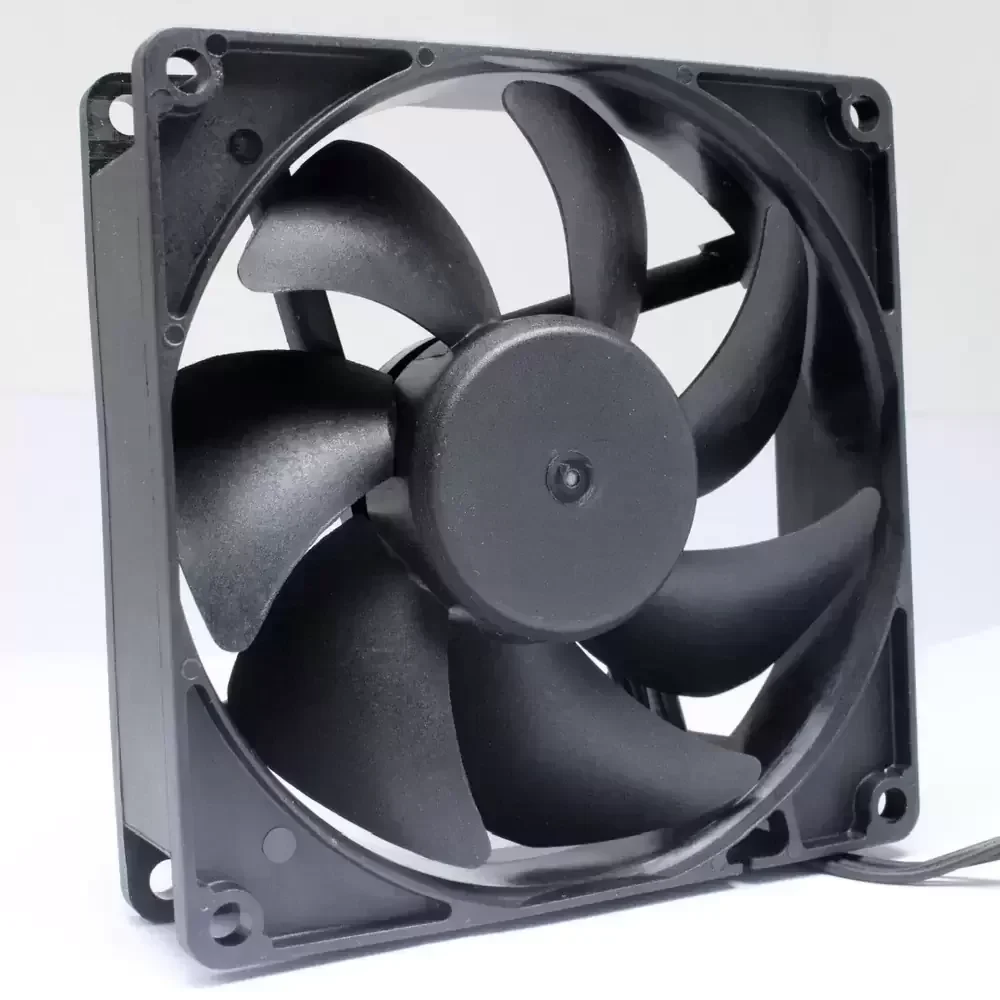

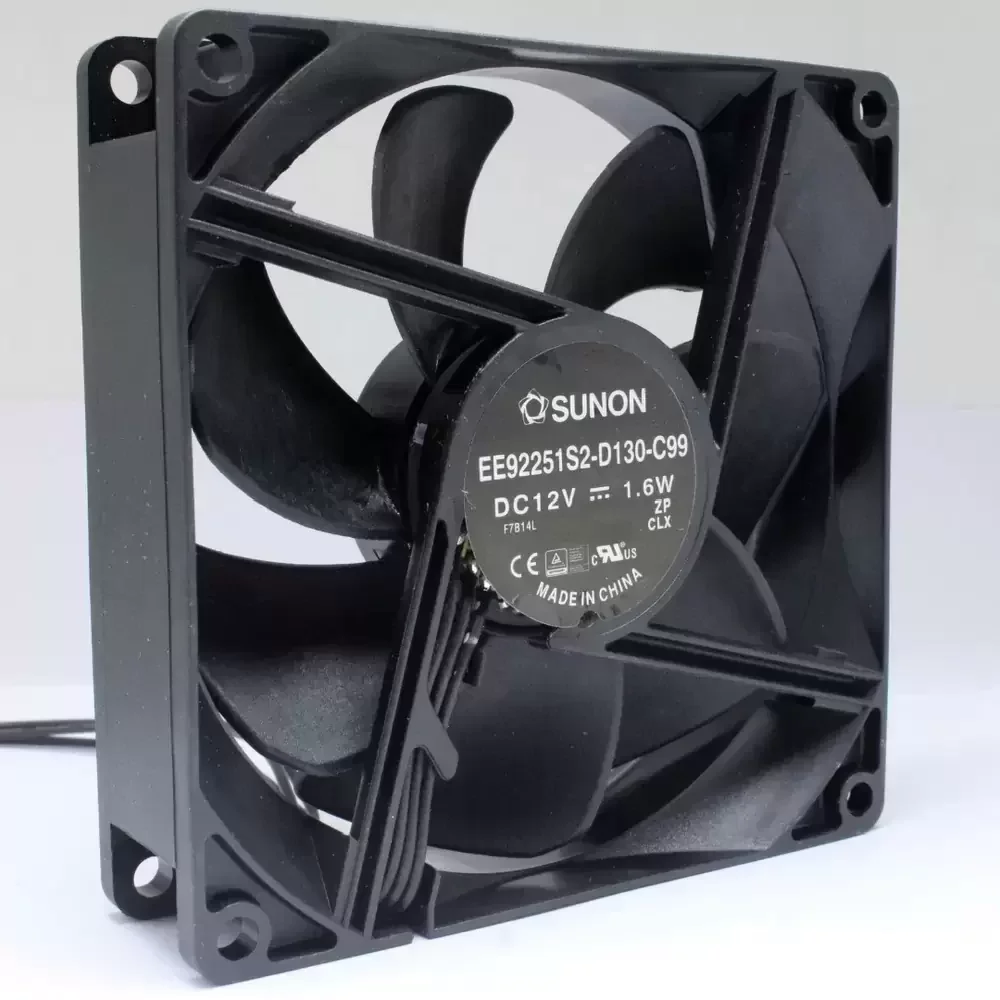

The SUNON EE92251S2-D130-C99 is a precision-engineered DC Axial Fan designed for optimal thermal management in compact electronic enclosures. Utilizing a robust Sleeve Bearing architecture, this unit ensures consistent rotational stability and reduced friction coefficients during operation. The aerodynamic impeller design maximizes airflow efficiency while maintaining a low noise profile, making it suitable for noise-sensitive industrial applications. With a rated voltage of 12VDC and power consumption of 1.6W, it delivers a balanced performance-to-efficiency ratio, effectively mitigating thermal impedance in high-density component layouts. The structural rigidity of the thermoplastic frame ensures durability under continuous duty cycles.
Model Number: EE92251S2-D130-C99
Brand: SUNON
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 4.5 – 13.8 VDC
Power: 1.60 W
Rated Current: 0.133 A
Rated Speed: 2900 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 51.5 CFM (87.5 m³/h / 1.46 m³/min)
Max. Static Pressure: 0.14 inH₂O (34.8 Pa)
Dimensions: 92 x 92 x 25 mm
Weight: 94.0 g
Noise Level: 34.0 dB(A)
Frame Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: 2-Wire Leads (Red/Black)
Ingress Protection: N/A
Life Expectancy: 35,000 Hours at 40°C
Safety Certifications: UL, CUR, TUV
Motor Protection: Impedance Protected
This cooling solution is engineered for integration into diverse industrial and commercial environments requiring reliable heat dissipation. The EE92251S2-D130-C99 is frequently utilized in server rack ventilation systems, ensuring critical uptime for data processing units. Additionally, the EE92251S2-D130-C99 serves as a primary cooling component in medical instrumentation and telecommunications power supplies, where maintaining specific thermal envelopes is mandatory for component longevity and safety.
