Description

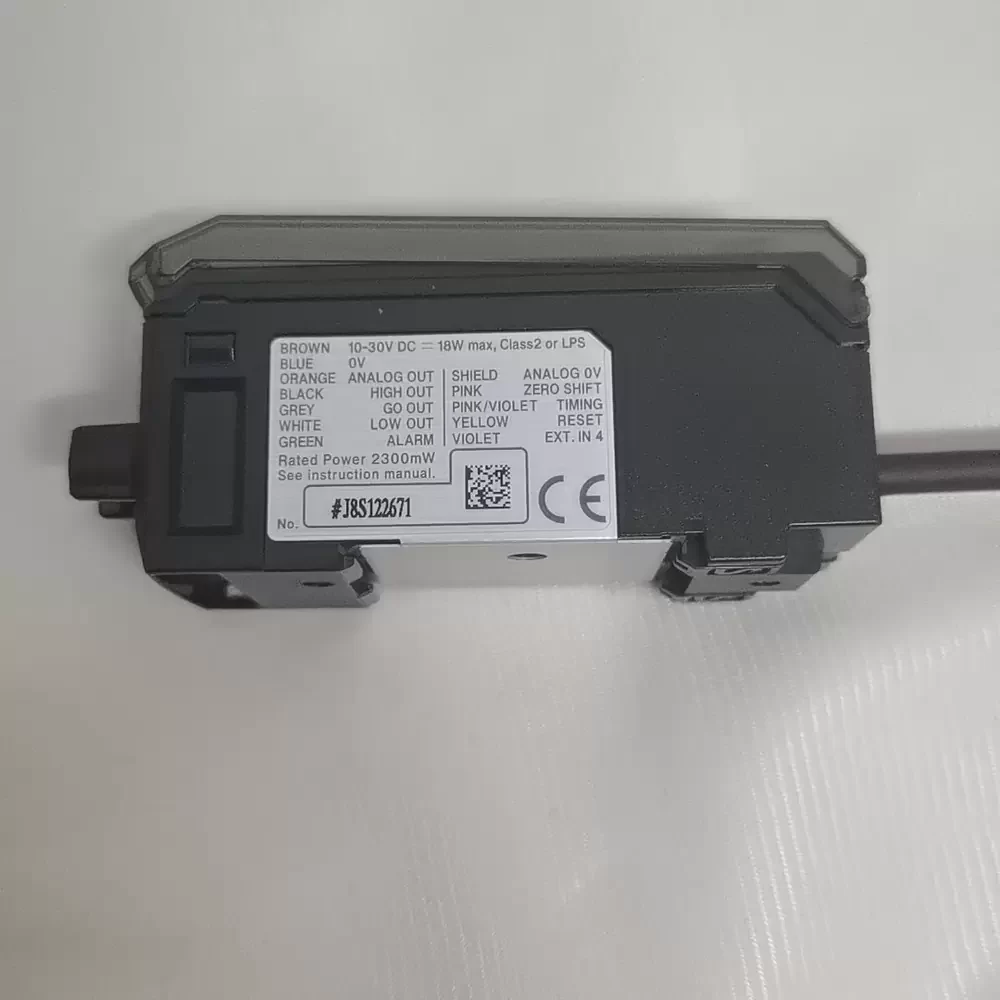

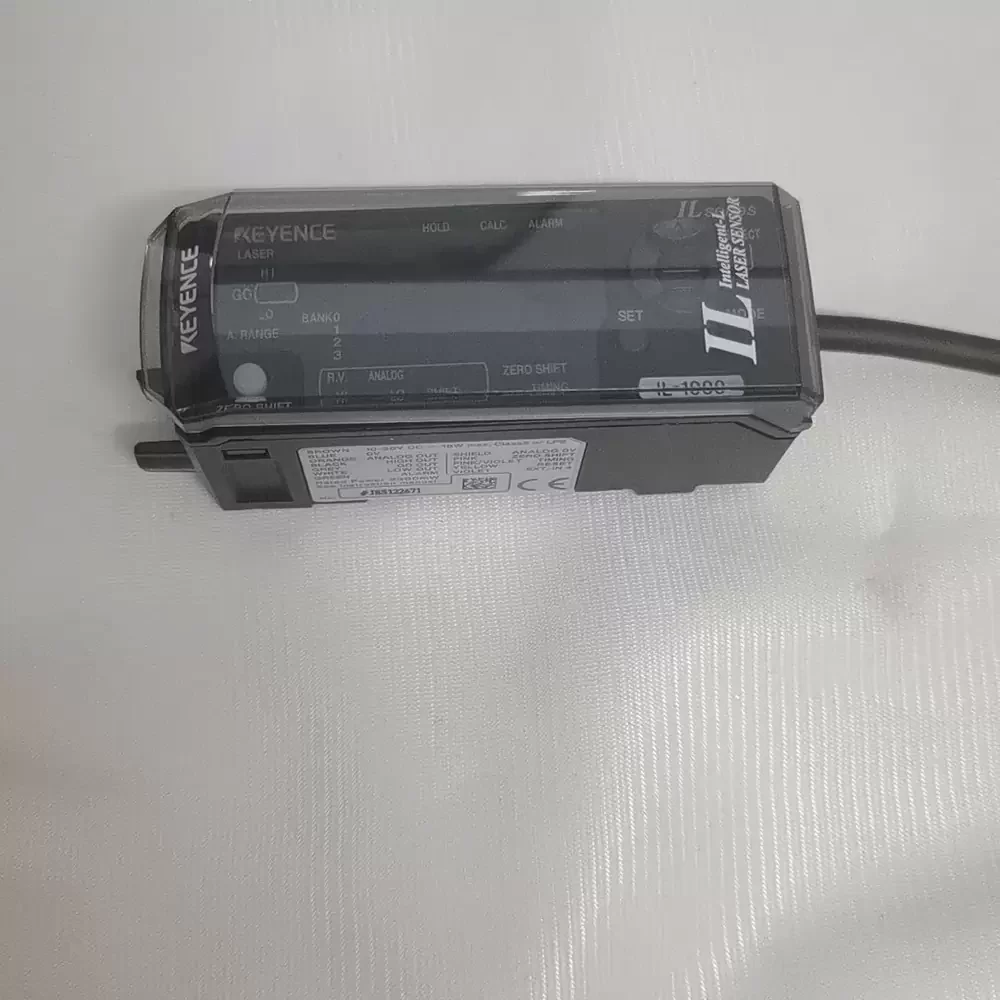

The KEYENCE IL-1000 10 to 30 VDC DIN-rail mount amplifier unit operates with a maximum power consumption of 2300 mW and delivers an analog current output of 4 to 20 mA. Constructed with a durable polycarbonate case and PVC cable, this unit features an open collector output with NPN and PNP changeover capabilities, alongside a display rate of approximately 10 times/sec. The hardware integrates a 100 Ω output impedance for voltage signals and supports a maximum load resistance of 350 Ω for current outputs, ensuring precise signal amplification across a -10 to 50 °C ambient temperature range.
IL-1000 Specifications
Model Number: IL-1000
Brand: KEYENCE
Product Category: Amplifier Unit (DIN-rail mount)
Main Unit / Expansion Unit: Main unit
Head Compatibility: Compatible with IL series sensor heads
Power Voltage: 10 to 30 VDC (ripple P-P 10 % included, Class 2)
Power Consumption: 2300 mW or less (at 30 V : 77 mA or less)
Analog Voltage Output: ±5 V, 1 to 5 V, 0 to 5 V
Voltage Output Impedance: 100 Ω
Analog Current Output: 4 to 20 mA
Current Maximum Load Resistance: 350 Ω
Control Output: Open collector output (NPN, PNP changeover possible / N.O., N.C. changeover possible)
Display Rate: Approx. 10 times/sec
Ambient Temperature: -10 to 50 °C (No condensation or freezing)
Relative Humidity: 35 to 85 % RH (No condensation)
Vibration Resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in X, Y, and Z directions
Pollution Degree: 2
Case Material: Polycarbonate
Key Tops Material: Polyacetal
Cable Material: PVC
Weight: Approx. 150 g (including attachments)
IL-1000 Applications
Primary applications include integration into automated packaging machinery, CNC dimensional inspection systems, and robotic assembly lines requiring high-speed displacement measurement. Deployed within industrial control panels and DIN-rail enclosures, this amplifier processes analog signals for semiconductor wafer positioning equipment and automotive part thickness verification systems.
