Description

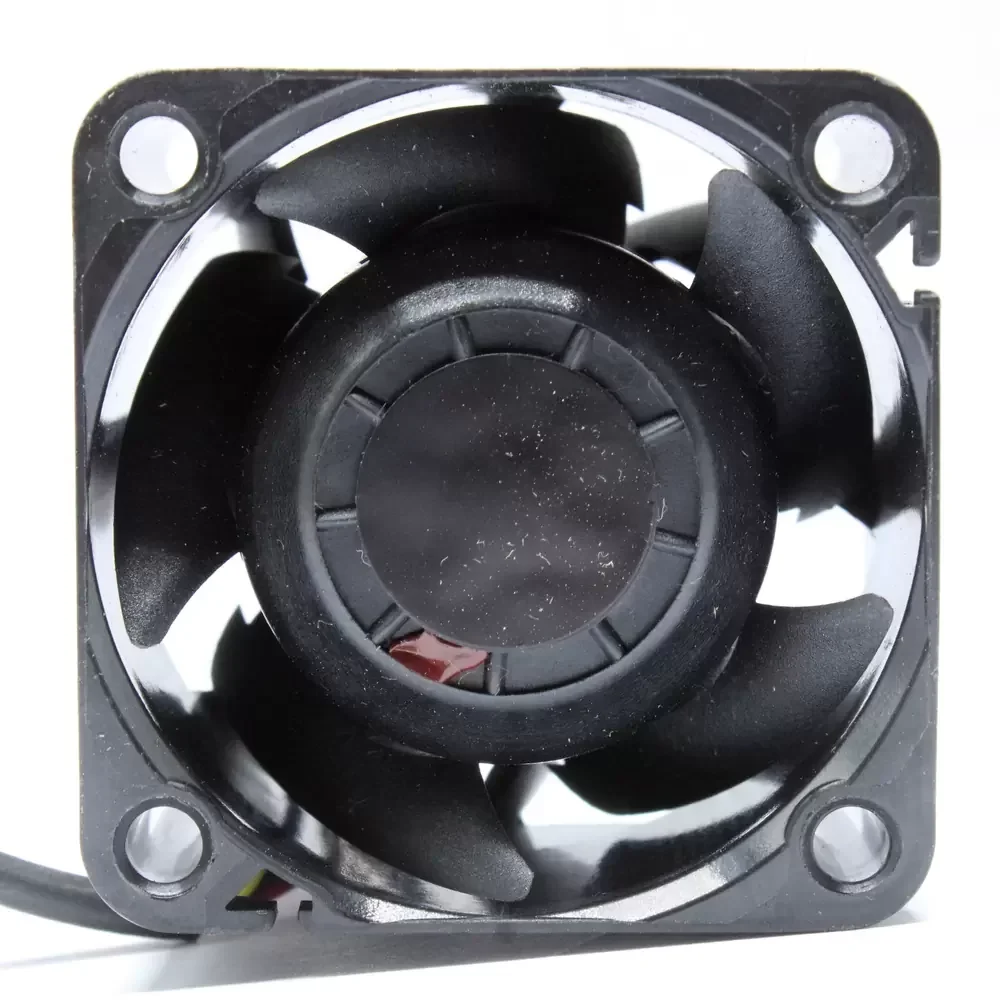

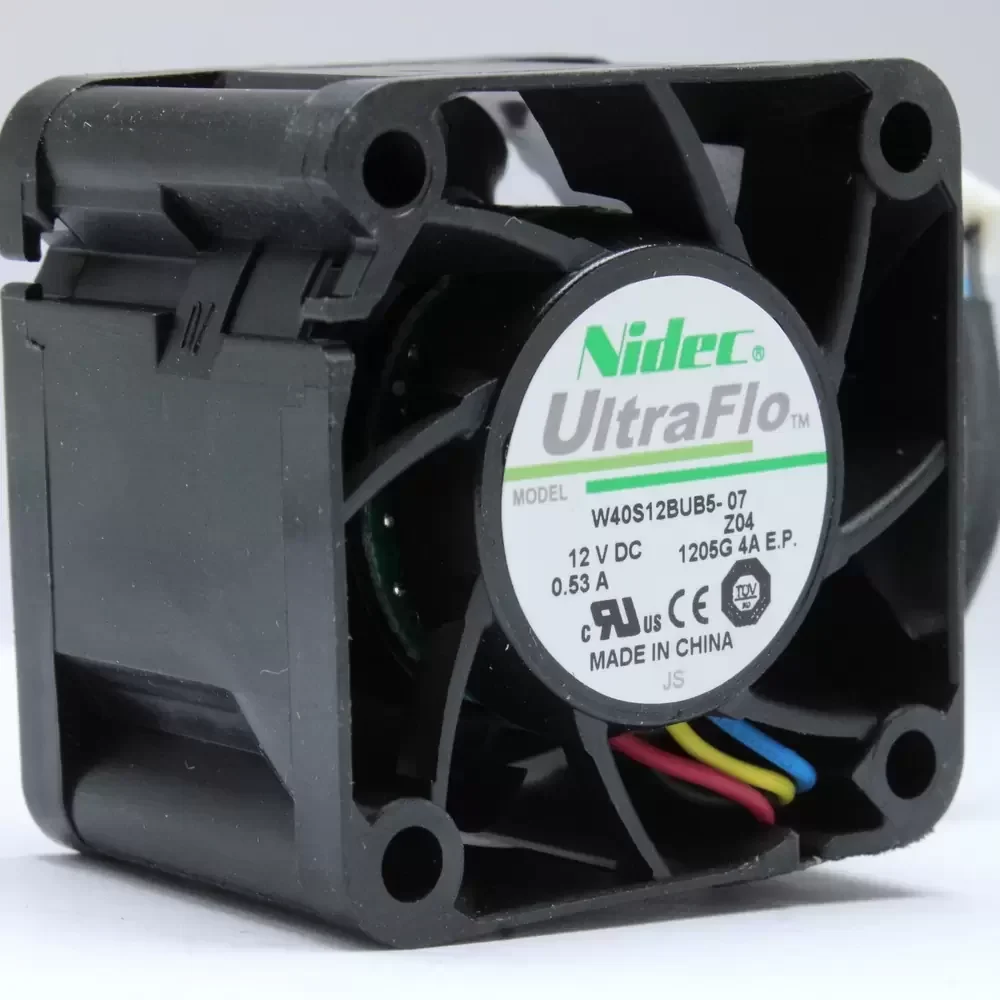

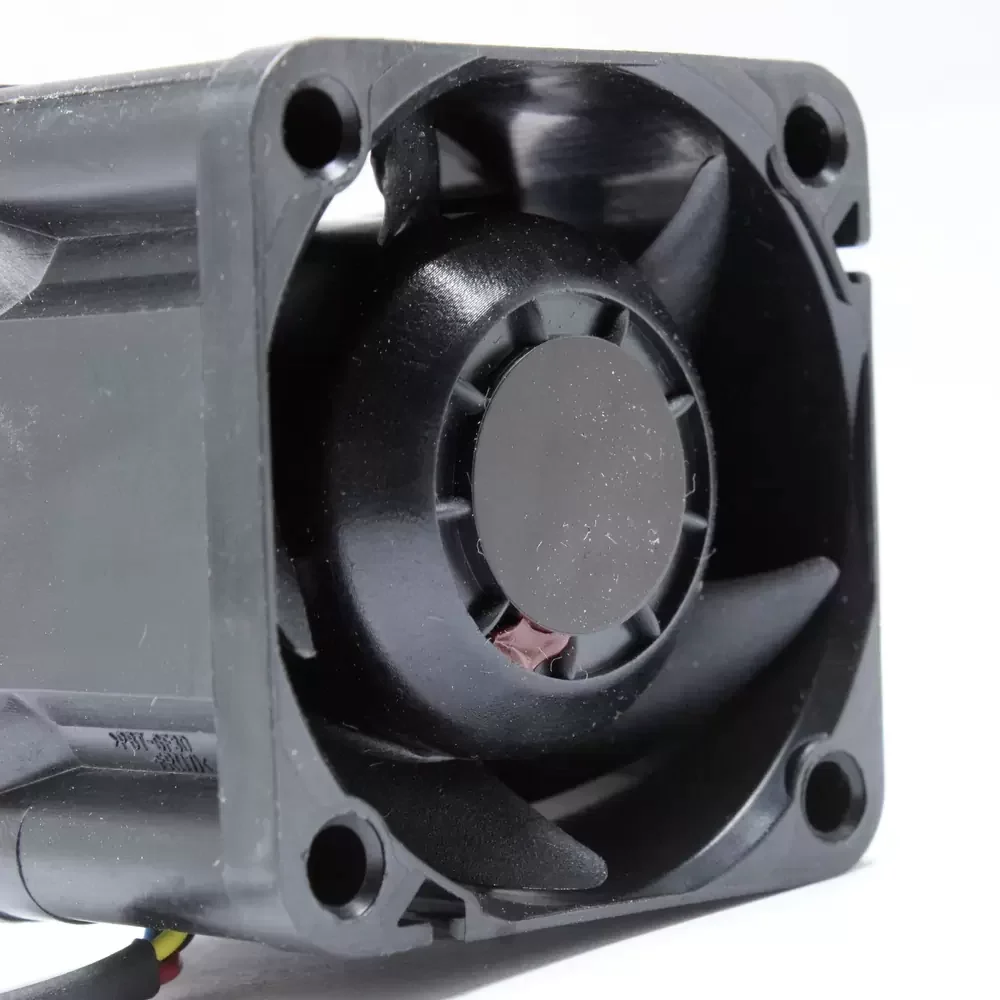

The Nidec W40S12BUB5-07Z04 is a Axial Fan engineered for mission-critical server environments. Utilizing Nidec’s UltraFlo motor technology, this DC brushless fan features a dual ball bearing architecture designed to minimize thermal impedance and ensure long-term structural rigidity under continuous operation. The aerodynamic impeller design is optimized for high static pressure, overcoming the resistance of densely packed electronic components. Its robust construction and precision-balanced blades provide exceptional reliability, making it an essential component for thermal management in high-performance computing systems where airflow efficiency and durability are paramount.
Model Number: W40S12BUB5-07Z04
Brand: Nidec
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.53A
Power: 6.36W
Rated Speed: 13000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 21.5 CFM (0.61 m³/min)
Max. Static Pressure: 28.5 mmH₂O (279.5 Pa)
Dimensions: 40x40x28mm
Weight: 55g
Life Expectancy: 70,000 Hours at 40C
Speed Control: PWM Control
Output Signal: Tachometer
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Termination: 4-Wire Lead Wires
Operating Temperature: -10C to +70C
Storage Temperature: -40C to +75C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Certifications: UL, TUV, CE
The W40S12BUB5-07Z04 is primarily deployed in 1U and 2U rack-mount servers where space is constrained but cooling requirements are extreme. Due to its high static pressure capabilities, the W40S12BUB5-07Z04 is also ideal for telecommunications equipment, network switches, and industrial power supplies. It provides critical thermal regulation for high-speed processors and storage arrays, ensuring system stability in demanding data center environments.
