Description

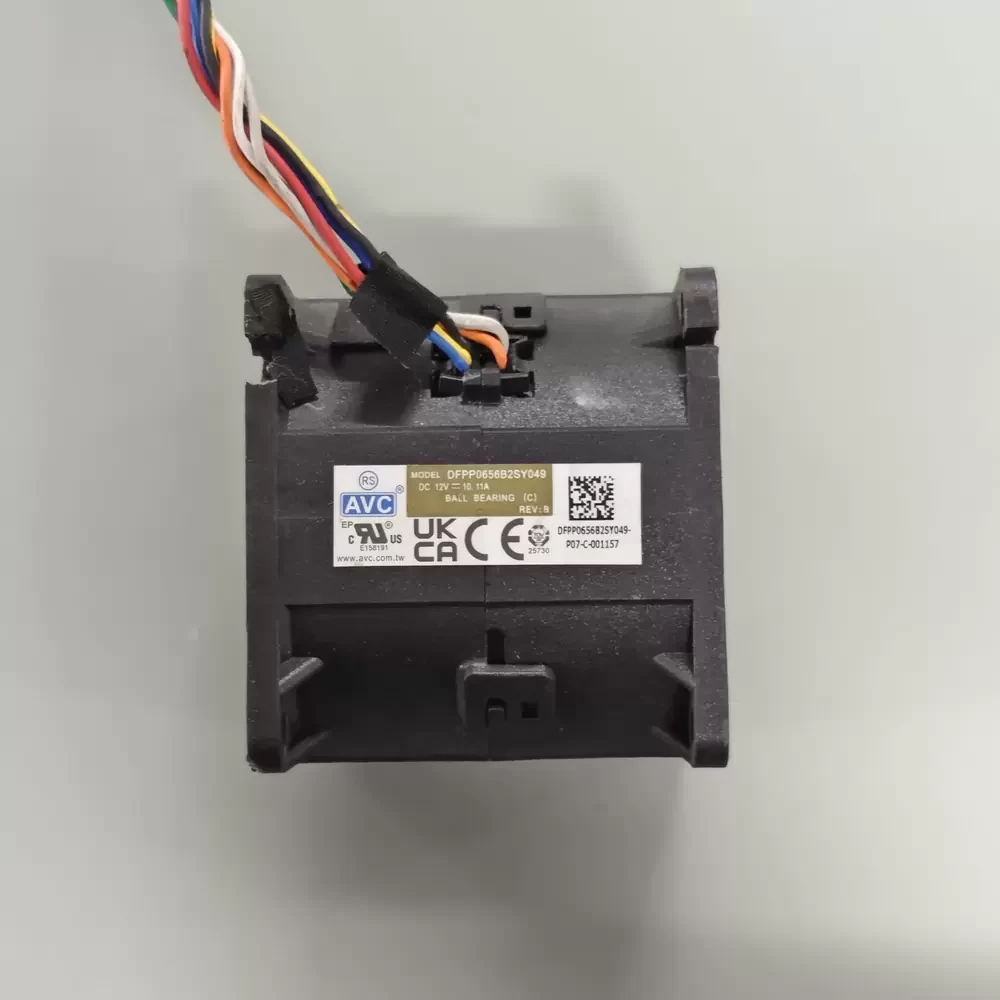

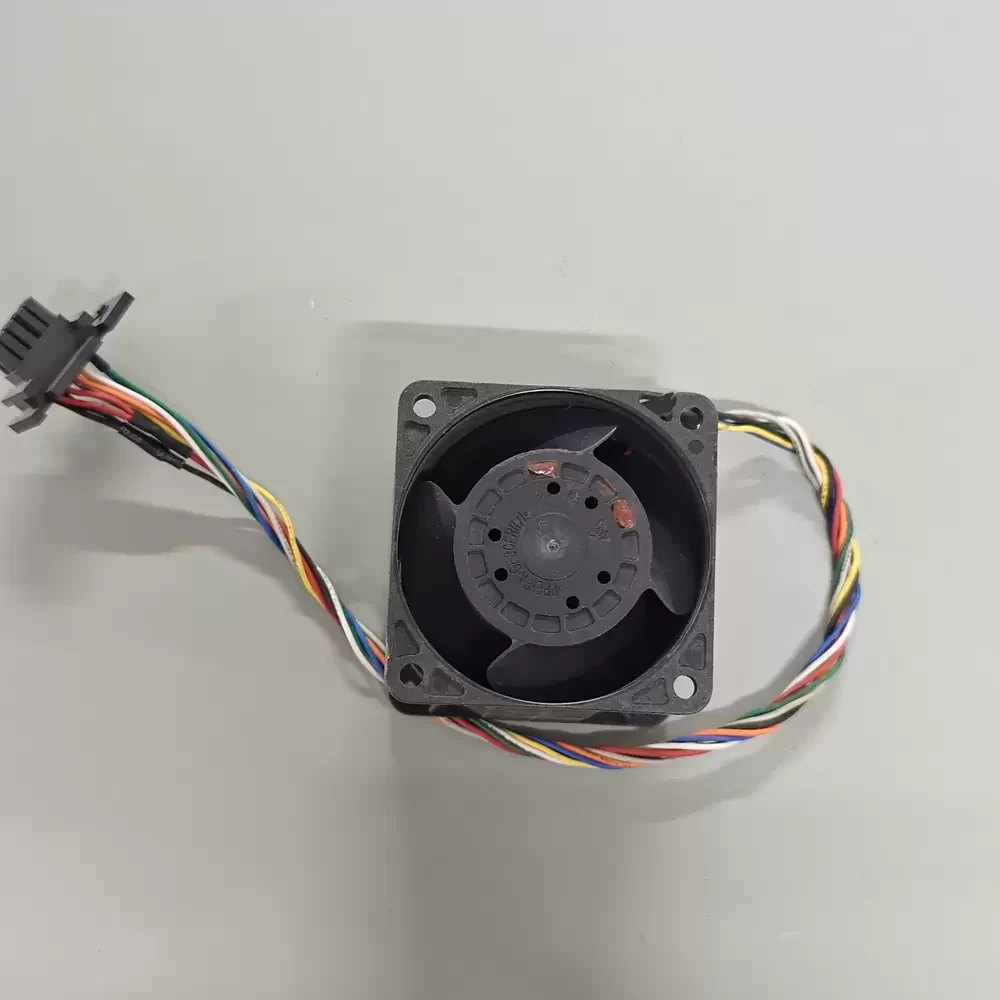

AVC DFPP0656B2SY049 is a 12VDC 60x60x56mm axial fan optimized for overcoming extreme system impedance in high-density server environments. Utilizing an advanced DC motor topology with a robust 4-ball bearing architecture, this counter-rotating dual-rotor unit delivers exceptional structural rigidity and extended operational longevity. The aerodynamic design maximizes volumetric throughput while maintaining optimal thermal impedance across critical components. Drawing a substantial 10.11A, this extreme pressure replacement fan guarantees unparalleled cooling capacity for demanding 1U and 2U rackmount chassis, ensuring peak performance under severe thermal loads.
Model Number: DFPP0656B2SY049
Brand: AVC
Product Type: Axial Fan
Rated Voltage: 12 VDC
Rated Current: 10.11 A
Dimensions: 60 x 60 x 56 mm
Bearing Type: 4-Ball Bearing
Motor Design: Counter-Rotating Dual Rotor
Termination: Lead wires
DFPP0656B2SY049 Applications
1. 1U/2U Rackmount Servers: Overcomes high system impedance in densely packed chassis utilizing the extreme static pressure generated by the 10.11A dual-rotor design.
2. High-Performance Computing (HPC) Nodes: Acts as a critical replacement fan to maintain low thermal impedance across heavily overclocked or continuous-load processors.
3. Industrial Power Supplies: Provides rapid heat dissipation and structural rigidity for continuous operation in demanding environments requiring robust 4-ball bearing reliability.
Updated:
Additional information
| Shipping Weight | 1 kg |
|---|
